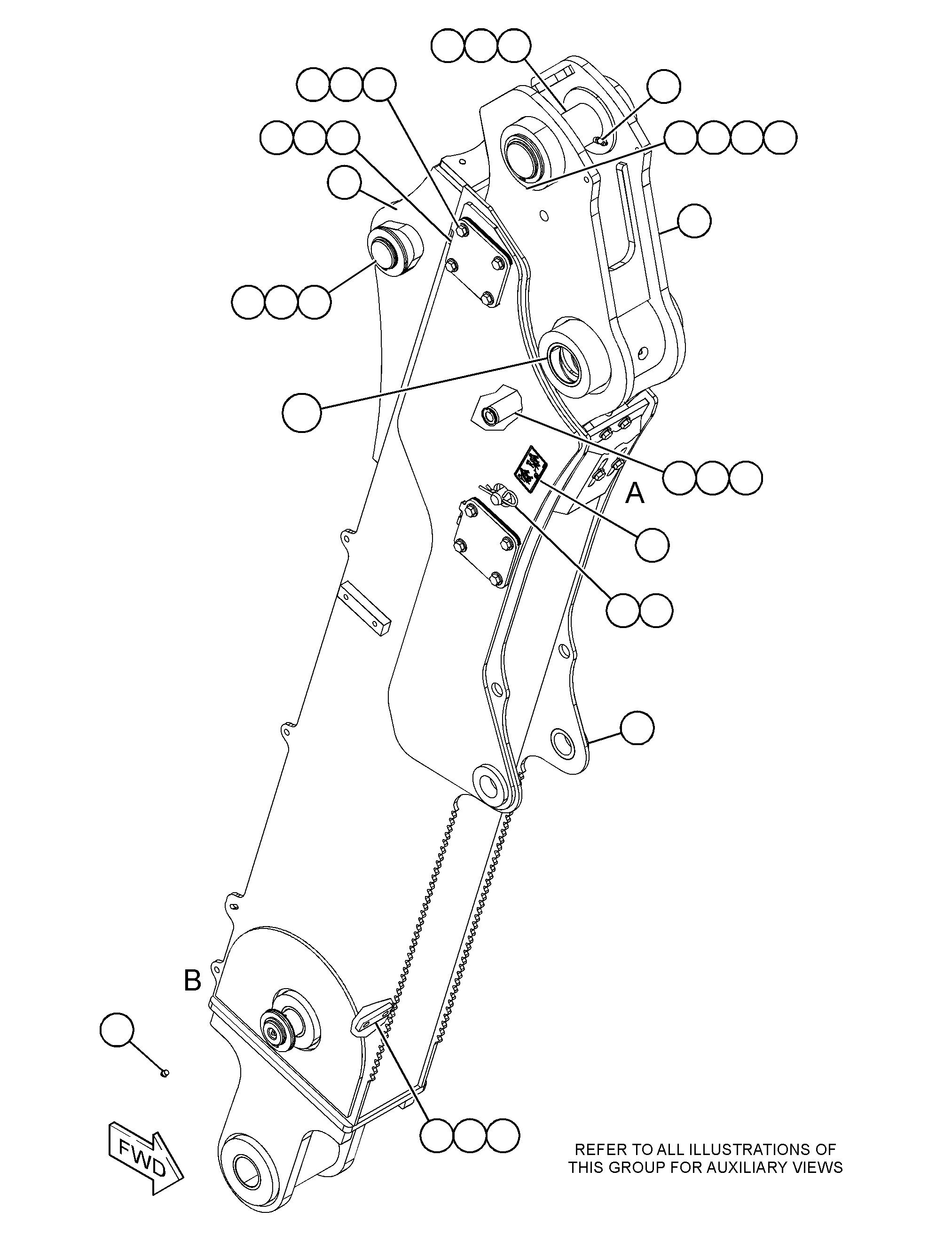

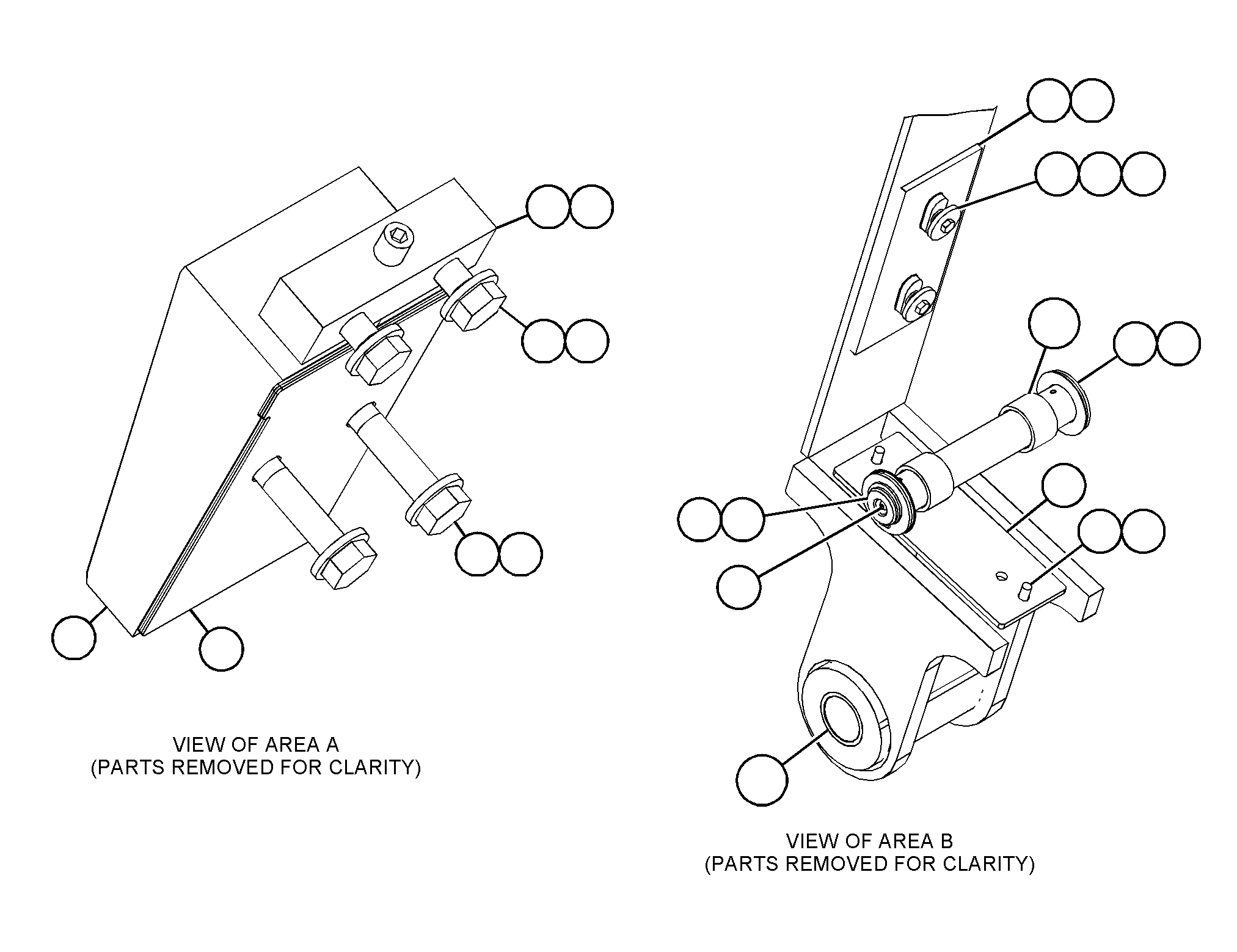

498-0055 STICK GP-EXTENDABLES/N DYN1-UP

Group No: 498-0055
Part NumberPart NameQty
8C89921 BOLT-LOCKING (M12X1.75X30-MM)16
9R29592 CLIP2
20924353 BLOCK2
21461434 PIN1
21662955 PLATE1
21700556 PIN1
21715777 PAD AS2
22251718 SCREW AS (ADJUSTER)2
3E4352WASHER-HARD (8.8X20.5X2.5-MM THK)1
9X2403SETSCREW-HEX SOCKET (M12X1.75X50-MM)1
22339269 PLATE1
226976410 PAD AS2
233516611 SHIM (1-MM THK)12
2335167SHIM (2-MM THK)4
233516913 PAD4
254721114 PLATE4
259180215 FILM-INSTRUCTION (EXTENDABLE STICK PIN, READ OMM)2
287566716 SHIM (1-MM THK)6
293988217 SHIM (1-MM THK)8
2939884SHIM (0.25-MM THK)12
311807519 PLATE4
498005620 STICK AS (INNER)1
507299620A BEARING-SLEEVE2
498005721 STICK AS (OUTER)1
9R406221A BUSHING2
286716621B BUSHING2
1076711BLOCK2
509555222 PIN1
509555323 PIN1
095092824 RING-RETAINING2
111925125 WASHER-HARD (20X35X1.6-MM THK)4
115643326 WASHER (11X50X6-MM THK)4
1L376827 RING-RETAINING2
220710828 WASHER (51X85X1-MM THK)2
564531329 PIN1
4F871130 PLUG-BUTTON2
3B848631 FITTING-GREASE (1/8-27 PTF)2
3B848932 FITTING-GREASE (1/8-27 PTF)5
6V436433 RING-RETAINING2
8C311434 RING-RETAINING2
8T412135 WASHER-HARD (11X21X2.5-MM THK)14
8T413636 BOLT (M10X1.5X25-MM)2
8T413937 BOLT (M12X1.75X30-MM)2
8T418338 BOLT (M12X1.75X40-MM)2
8T419439 BOLT (M12X1.75X50-MM)4
8T419540 BOLT (M10X1.5X30-MM)2
8T422341 WASHER-HARD (13.5X25.5X3-MM THK)26
8T464842 BOLT (M12X1.75X70-MM)2
9R151043 WASHER (51X82X4-MM THK)4
9R406644 WASHER (61X98X4-MM THK)5
