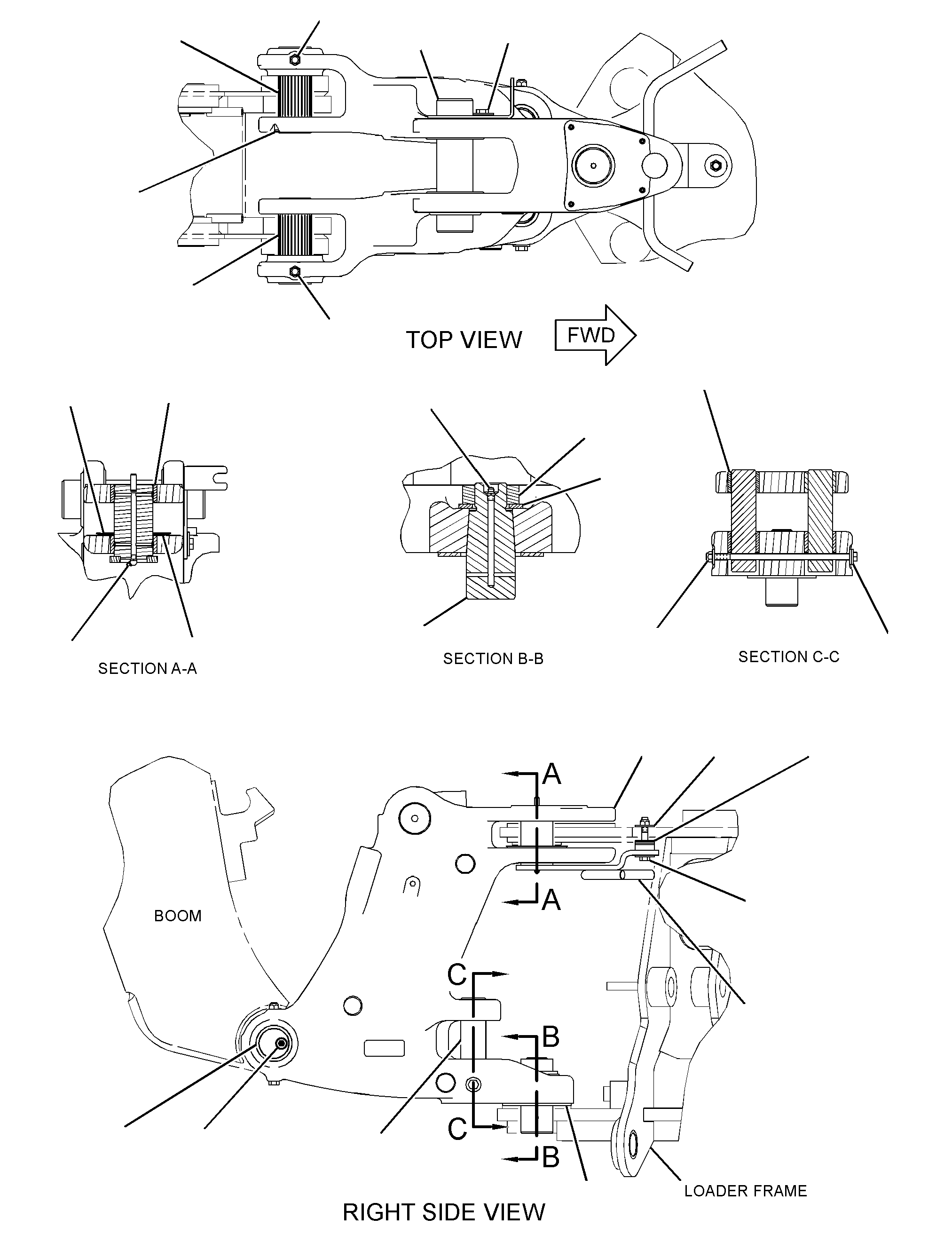

251-4520 FRAME GP-SWINGS/N EAT1-1271

Group No: 251-4520
Part NumberPart NameQty
8T48211 WASHER (13.5X40X3-MM THK)5
8T48372 WASHER (48X85X6-MM THK)1
30054403 PIN1
9R54294 SPACER (67.5X120X3-MM THK)2
9R78825 SPACER (14X25X7-MM THK)1
9R82916 SPACER (66X125X1-MM THK)2
13025337 PIN2
20968558 PIN2
20968639 FRAME AS-SWING1
9R03669A WASHER (80X140X5-MM THK)1
23681589B BUSHING2
26270439C BEARING2
27854559D BUSHING2
21367029E BUSHING4
213670910 PIN AS1
290815611 PIN AS1
9F2049DOWEL1
250074112 LUG1
136744013 SHIM (1-MM THK)2
270529014 BOLT-SOCKET HEAD (M12X1.75X300-MM)1
3B848615 FITTING-GREASE (1/8-27 PTF)1
3B848916 FITTING-GREASE (1/8-27 PTF)3
5P107617 WASHER-HARD (13.5X30X4-MM THK)4
6V768718 LOCKNUT (M12X1.75-THD)4
8T686819 BOLT (M12X1.75X80-MM)1
8T365220 NUT (M42X2-THD)1
8T413921 BOLT (M12X1.75X30-MM)1
8T793023 BOLT (M12X1.75X160-MM)2
