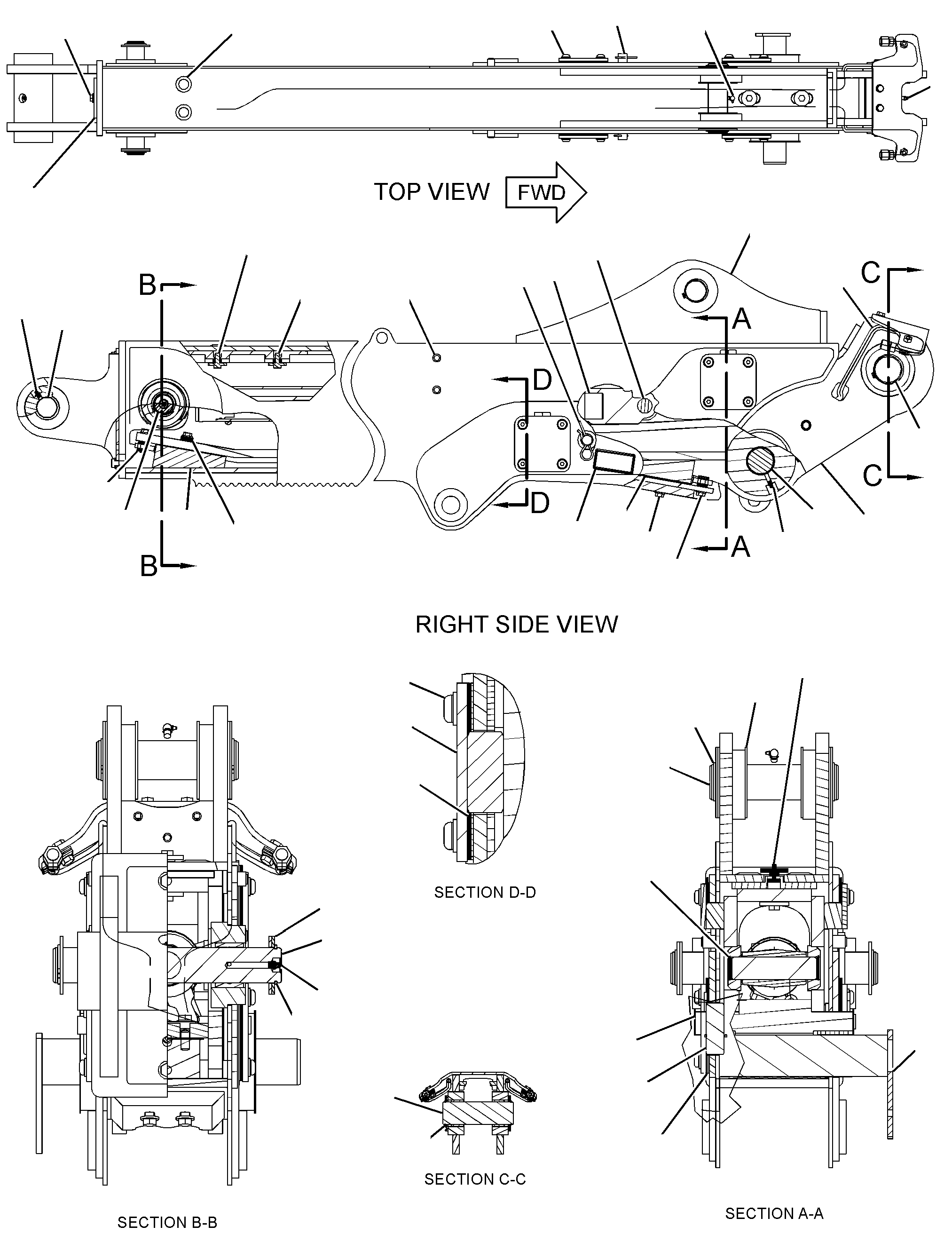

271-1406 STICK GP-EXTENDABLES/N LNH1-UP

Group No: 271-1406
Part NumberPart NameQty
3B84891 FITTING-GREASE (1/8-27 PTF)5
9R29592 CLIP2
20924353 BLOCK2
21070984 CYLINDER GP-EXTENDABLE STICK (EXTENDABLE)1
30583875 STICK AS (INNER)1
21367155A BUSHING2
21367195B BUSHING2
21461436 PIN1
21662957 PLATE1
21700558 PIN1
21715779 PAD AS2
220101810 PIN1
222517111 SCREW AS (ADJUSTER)2
223392612 PLATE1
226976413 PAD AS2
233516514 PLATE4
233516615 SHIM (1-MM THK)8
233516716 SHIM (2-MM THK)4
233516917 PAD4
331009718 LINES GP-EXTENDABLE STICK1
271140919 STICK AS (OUTER)1
286716619A BUSHING2
9R016219B BUSHING2
1L376820 RING-RETAINING2
4F871121 PLUG-BUTTON2
5V719022 WASHER-HARD (10.5X45.2X6-MM THK)4
6V436423 RING-RETAINING2
8T412124 WASHER-HARD (11X21X2.5-MM THK)4
8T413625 BOLT (M10X1.5X25-MM)2
8T413926 BOLT (M12X1.75X30-MM)2
8T418327 BOLT (M12X1.75X40-MM)2
8T419428 BOLT (M12X1.75X50-MM)2
8T419529 BOLT (M10X1.5X30-MM)2
8T422330 WASHER-HARD (13.5X25.5X3-MM THK)26
8T491031 BOLT (M12X1.75X60-MM)4
297551032 SCREW-HEX SOCKET (M12X1.75X30-MM)16
287566733 SHIM (1-MM THK)5
293988234 SHIM (1-MM THK)4
293988435 SHIM (0.25-MM THK)4
111925136 WASHER-HARD (20X35X1.6-MM THK)2
3B848837 FITTING-GREASE (1/8-27 PTF)1
213671838 PIN1
213672839 PIN AS1
220101940 PIN1
6V834441 RING-RETAINING2
095795042 RING-RETAINING2
259180243 FILM-INSTRUCTION (EXTENDABLE STICK PIN, READ OMM)2
9R151044 WASHER (51X82X4-MM THK)3
286308845 SPACER (66X145X1-MM THK)3
9R048146 WASHER (71X110X4-MM THK)4
193591447 PLUG4
9R523848 SPACER (56X110X3-MM THK)6
8T412149 WASHER-HARD (11X21X2.5-MM THK)8
220710850 WASHER (51X85X1-MM THK)2
