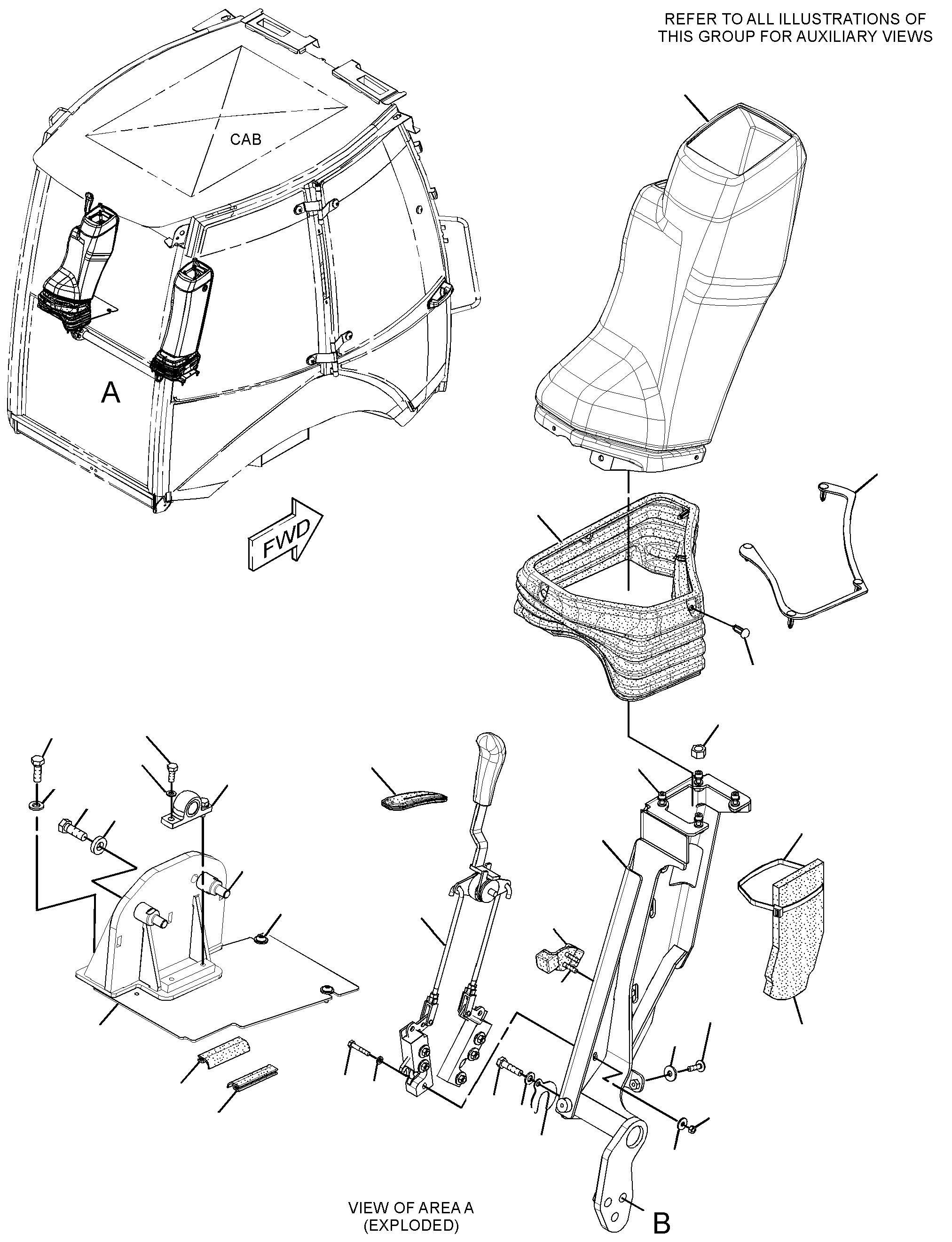

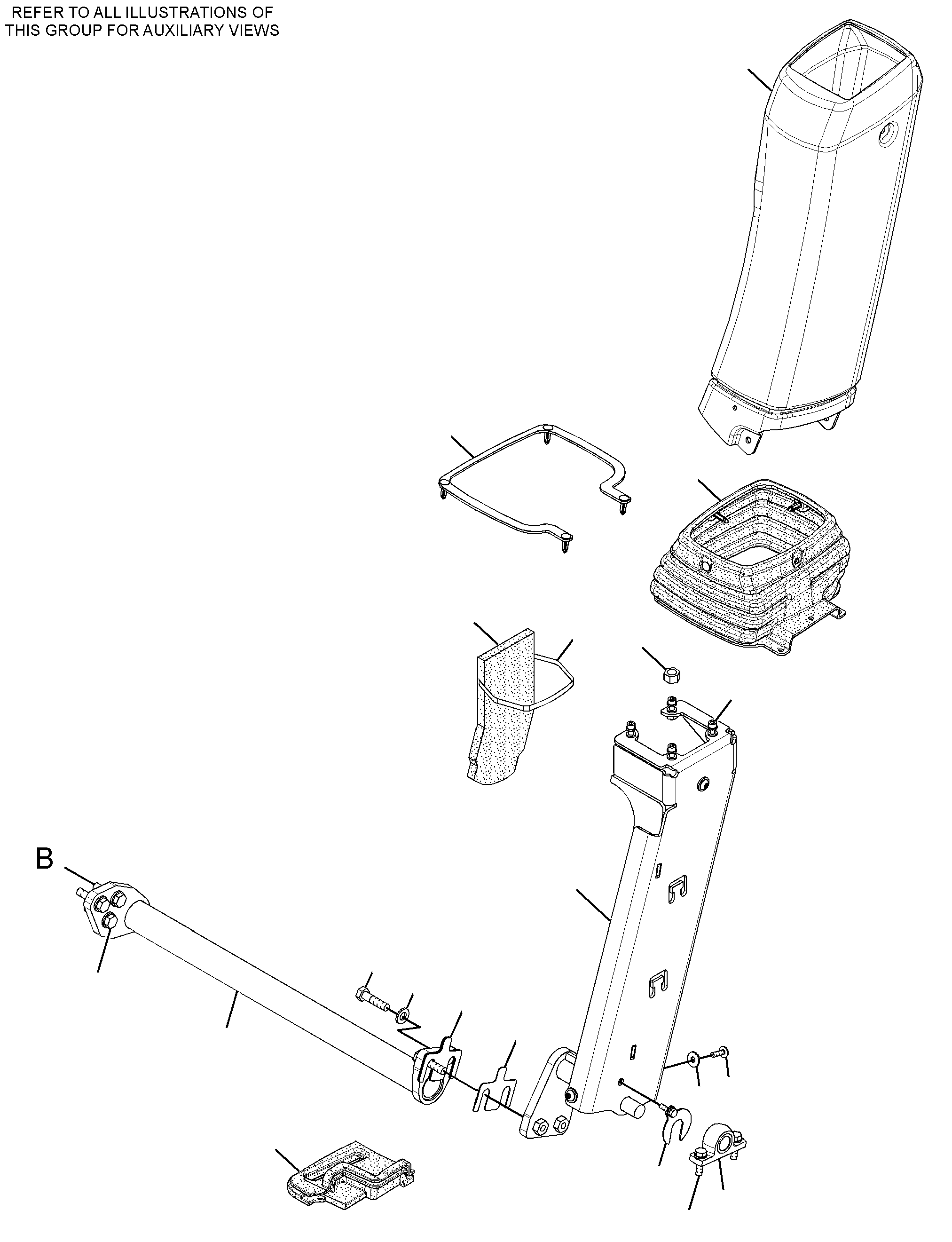

269-3247 MOUNTING GP-BACKHOE CONTROL -PILOTS/N LDY1-281

Group No: 269-3247
Part NumberPart NameQty
7K11811 STRAP-CABLE2
16413682 FASTENER (CLIP)15
18349343 BEARING-SELF-ALIGNING2
19576024 SHIM (1.6-MM THK)3
26196345 SEAL-BULK (8.5-CM EACH)
26196426 COVER-CONSOLE (LH)1
26752257 BOOT1
34424328 LATCH GP-CONSOLE1
26932549 SUPPORT AS (LH)1
269326210 SHIM (1-MM THK)4
270279411 INSULATION2
270516112 GASKET1
272707913 PLATE1
273147314 GROMMET1
273147515 COVER-CONSOLE (RH)1
273147616 BOOT1
273147717 PLATE1
273147818 BUMPER AS1
283346719 PLATE AS1
6V9632NUT-WELD (M6X1-THD)7
8T3490NUT-WELD (M10X1.5-THD)3
8T3612NUT-WELD (M8X1.25-THD)1
283347720 TUBE AS1
283798121 PLATE AS1
283805322 STRIKER2
039855723 WASHER (13X26X6-MM THK)2
3T084924 BOLT-SOCKET HEAD (M6X1X25-MM)8
7X253325 BOLT (M6X1X35-MM)6
8T412126 WASHER-HARD (11X21X2.5-MM THK)9
8T413427 NUT (M6X1-THD)6
8T413828 BOLT (M6X1X20-MM)2
8T418629 BOLT (M10X1.5X40-MM)5
8T418930 BOLT (M8X1.25X20-MM)2
8T419531 BOLT (M10X1.5X30-MM)4
8T422432 WASHER-HARD (8.8X16X2-MM THK)4
8T424433 NUT (M12X1.75-THD)2
8T495634 BOLT (M12X1.75X35-MM)2
8T497135 BOLT (M6X1X30-MM)2
8T754736 BOLT (M8X1.25X30-MM)2
9X203837 WASHER (7X19X2-MM THK)14
9X204538 SCREW-TRUSS HEAD (M6X1X20-MM)6
9X825639 WASHER (6.6X12X2-MM THK)26
9X204340 SCREW-TRUSS HEAD (M6X1X14-MM)2
