System And Components

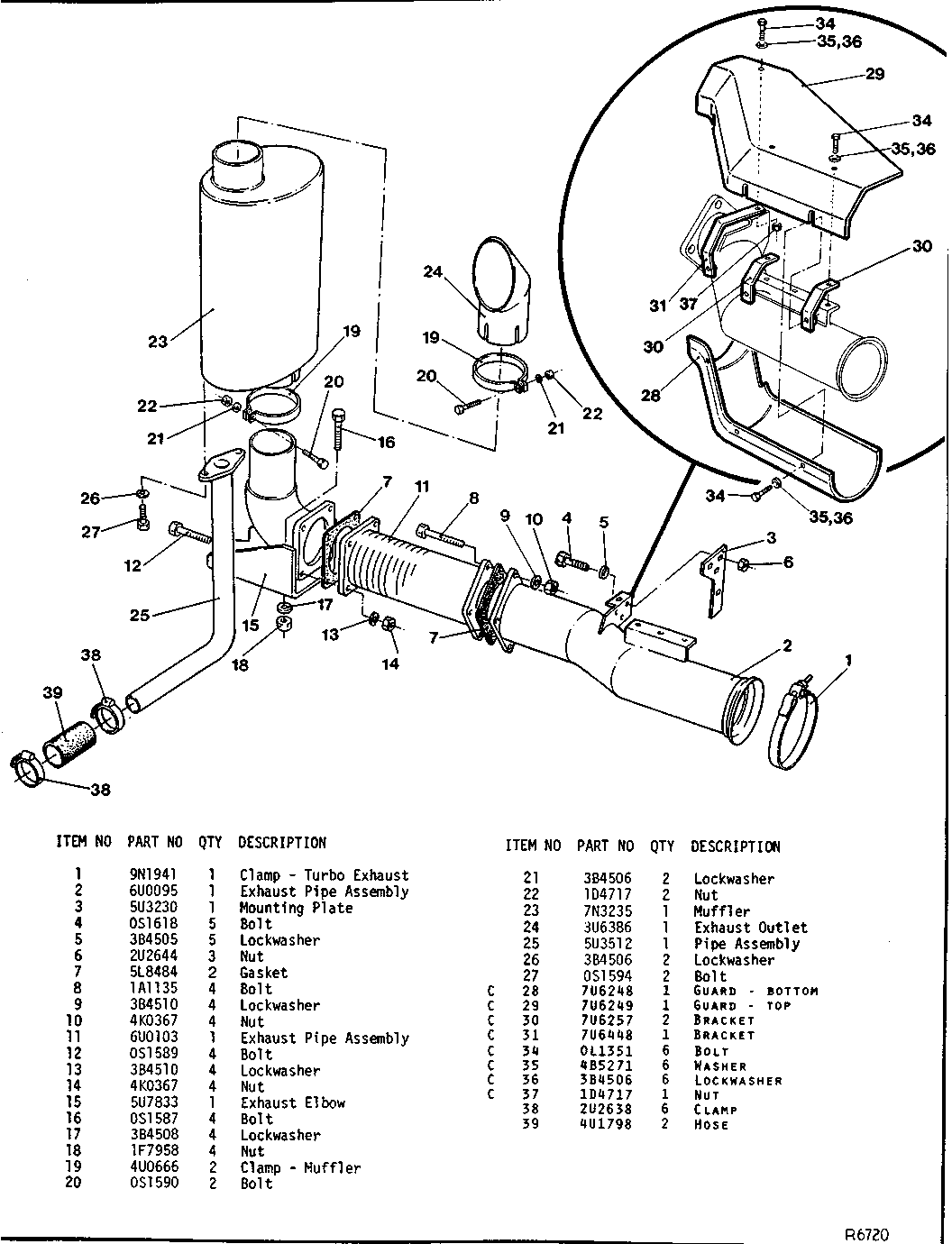

EXHAUST AND MUFFLER GROUPSECOND TYPE
Group No: EXHAUST
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 9N1941 | 1 CLAMP - TURBO EXHAUST | 1 | |
| 6U0095 | 2 EXHAUST PIPE ASSEMBLY | 1 | |
| 5U3230 | 3 MOUNTING PLATE | 1 | |
| 0S1618 | 4 BOLT | 5 | |
| 3B4505 | 5 LOCKWASHER | 5 | |
| 2U2644 | 6 NUT | 3 | |
| 5L8484 | 7 GASKET | 2 | |
| 1A1135 | 8 BOLT | 4 | |
| 3B4510 | 9 LOCKWASHER | 4 | |
| 4K0367 | 10 NUT | 4 | |
| 6U0103 | 11 EXHAUST PIPE ASSEMBLY | 1 | |
| 0S1589 | 12 BOLT | 4 | |
| 3B4510 | 13 LOCKWASHER | 4 | |
| 4K0367 | 14 NUT | 4 | |
| 5U7833 | 15 EXHAUST ELBOW | 1 | |
| 0S1587 | 16 BOLT | 4 | |
| 3B4508 | 17 LOCKWASHER | 4 | |
| 1F7958 | 18 NUT | 4 | |
| 4U0666 | 19 CLAMP - MUFFLER | 2 | |
| 0S1590 | 20 BOLT | 2 | |
| 3B4506 | 21 LOCKWASHER | 2 | |
| 1D4717 | 22 NUT | 2 | |
| 7N3235 | 23 MUFFLER | 1 | |
| 3U6386 | 24 EXHAUST OUTLET | 1 | |
| 5U3512 | 25 PIPE ASSEMBLY | 1 | |
| 3B4506 | 26 LOCKWASHER | 2 | |
| 0S1594 | 27 BOLT | 2 | |
| 7U6248 | 28 GUARD - BOTTOM | 1 | |
| 7U6249 | 29 GUARD - TOP | 1 | |
| 7U6257 | 30 BRACKET | 2 | |
| 7U6448 | 31 BRACKET | 1 | |
| 0L1351 | 34 BOLT | 6 | |
| 4B5271 | 35 WASHER | 6 | |
| 3B4506 | 36 LOCKWASHER | 6 | |
| 1D4717 | 37 NUT | 1 | |
| 2U2638 | 38 CLAMP | 6 | |
| 4U1798 | 39 HOSE | 2 |
