System And Components

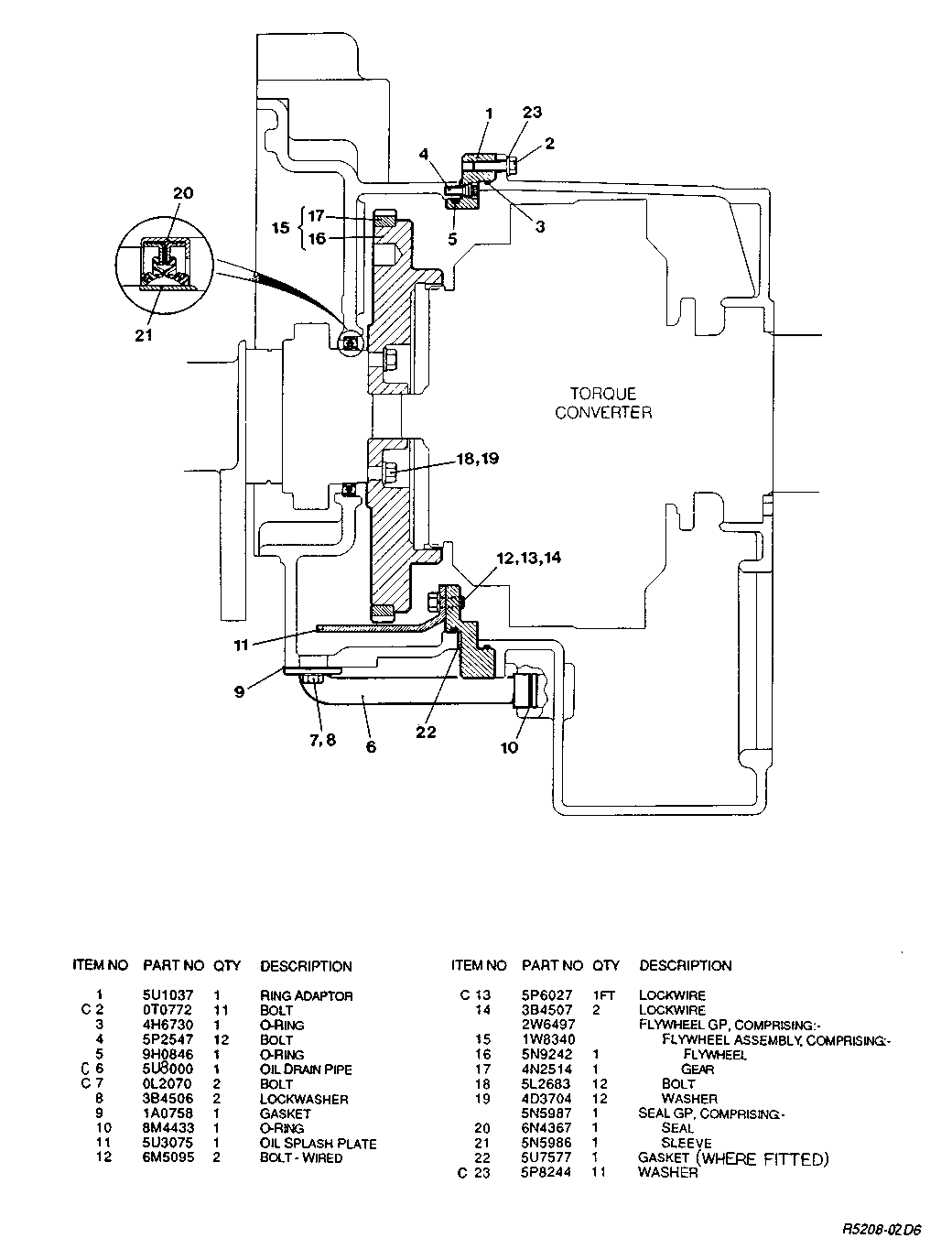

ENGINE ADAPTOR FLANGE AND FLYWHEEL
Group No: ENGINE
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 5U1037 | 1 RING ADAPTOR | 1 | |
| 0T0772 | 2 BOLT | 11 | |
| 4H6730 | 3 O-RING | 1 | |
| 5P2547 | 4 BOLT | 12 | |
| 9H0846 | 5 O-RING | 1 | |
| 5U8000 | 6 OIL DRAIN PIPE | 1 | |
| 0L2070 | 7 BOLT | 2 | |
| 3B4506 | 8 LOCKWASHER | 2 | |
| 1A0758 | 9 GASKET | 1 | |
| 8M4433 | 10 O-RING | 1 | |
| 5U3075 | 11 OIL SPLASH PLATE | 1 | |
| 6M5095 | 12 BOLT-WIRED | 2 | |
| 5P6027 | 13 LOCKWIRE | 1FT | |
| 3B4507 | 14 LOCKWIRE | 2 | |
| 2W6497 | FLYWHEEL GP, COMPRISING:- | NULL | |
| 1W8340 | 15 FLYWHEEL ASSEMBLY, COMPRISING:- | NULL | |
| 5N9242 | 16 FLYWHEEL | 1 | |
| 4N2514 | 17 GEAR | 1 | |
| 5L2683 | 18 BOLT | 12 | |
| 4D3704 | 19 WASHER | 12 | |
| 5N5987 | SEAL GP, COMPRISING:- | 1 | |
| 6N4367 | 20 SEAL | 1 | |
| 5N5986 | 21 SLEEVE | 1 | |
| 5U7577 | 22 GASKET (WHERE FITTED) | 1 | |
| 5P8244 | 23 WASHER | 11 |
