System And Components

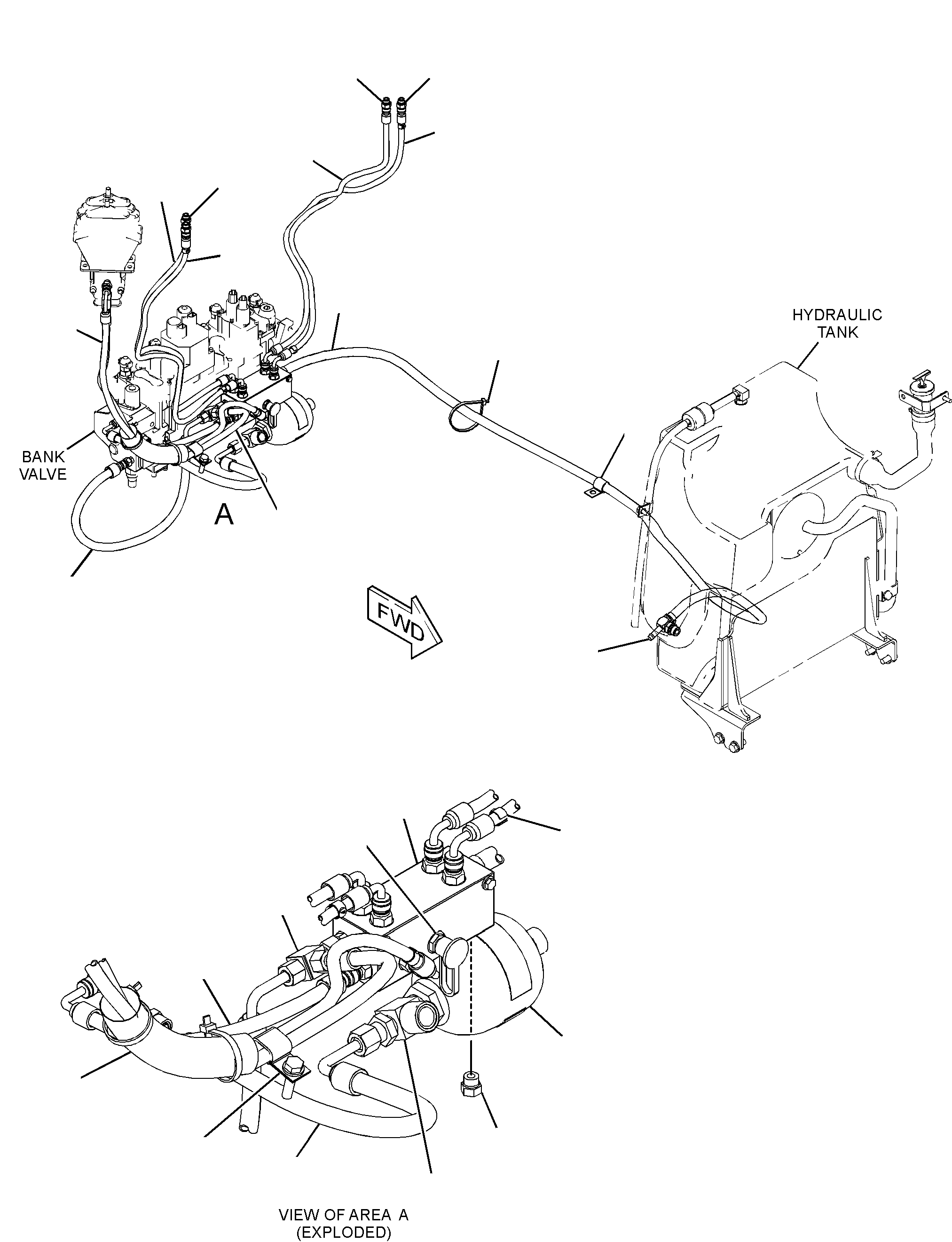

417-3388 LINES GP-PILOT -WITH ACCUMULATORS/N LYR1-UP
Group No: 417-3388
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 6V0852 | 1 CAP-DUST | 1 | |
| 7K1181 | 2 STRAP-CABLE | 3 | |
| 1335813 | 3 BAND-MARKER (GRAY, P) | 6 | |
| 1433158 | 4 CONNECTOR | 1 | |
| 1746740 | 5 TEE AS | 1 | |
| 2M9780 | SEAL-O-RING | 1 | |
| 1221113 | TEE-O-RING | 1 | |
| 2260420 | 6 ACCUMULATOR GP-HYDRAULIC (CHARGED) | 1 | |
| 2680094 | 7 MANIFOLD (RETURN) | 1 | |
| 2734211 | 8 TEE AS | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 2734210 | TEE | 1 | |
| 2779708 | 9 FILM-WARNING (ACCUM, HIGH PRESS, READ OMM) | 2 | |
| 2787764 | 10 HOSE AS | 1 | |
| 2893296 | 11 HOSE AS | 1 | |
| 2893297 | 12 HOSE AS | 1 | |
| 2893298 | 13 HOSE AS | 1 | |
| 2893299 | 14 HOSE AS | 1 | |
| 2893300 | 15 HOSE AS | 1 | |
| 2893301 | 16 HOSE AS | 1 | |
| 2893302 | 17 HOSE AS | 1 | |
| 2893303 | 18 HOSE AS | 1 | |
| 3622820 | 19 CAP | 2 | |
| 1488336 | 20 CONNECTOR AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V8636 | CONNECTOR | 1 | |
| 1488407 | 21 PLUG AS | 3 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 9S4191 | PLUG (9/16-18-THD) | 1 | |
| 1488433 | 22 TEE AS | 1 | |
| 6V8397 | SEAL-O-RING | 2 | |
| 6V9836 | TEE-SWIVEL | 1 | |
| 1504043 | 23 CONNECTOR AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 6V9873 | CONNECTOR | 1 | |
| 1645567 | 24 COUPLER AS-QUICK DISCONNECT (MALE) | 1 | |
| 6V3965 | FITTING (QUICK DISCONNECT) | 1 | |
| 2147568 | SEAL-O-RING | 1 | |
| 2694949 | 25 ADAPTER | 13 | |
| 2694965 | 26 ADAPTER AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 3810212 | 27 CLAMP-HOSE | 2 | |
| 2M9780 | 28 SEAL-O-RING | 1 | |
| 4K6177 | 29 CLIP | 1 | |
| 5P4295 | 30 CLIP | 1 | |
| 6V9169 | 31 NUT (13/16-16-THD) | 1 | |
| 8T4121 | 32 WASHER-HARD (11X21X2.5-MM THK) | 2 | |
| 8T4186 | 33 BOLT (M10X1.5X40-MM) | 1 | |
| 8T4205 | 34 WASHER-HARD (7.2X14.5X2-MM THK) | 2 | |
| 8T6974 | 35 BOLT (M6X1X80-MM) | 2 | |
| 4231983 | 36 HOSE (80-IN) | ||
| 1602246 | 37 SLEEVE-ABRASION (7.5-IN) |
