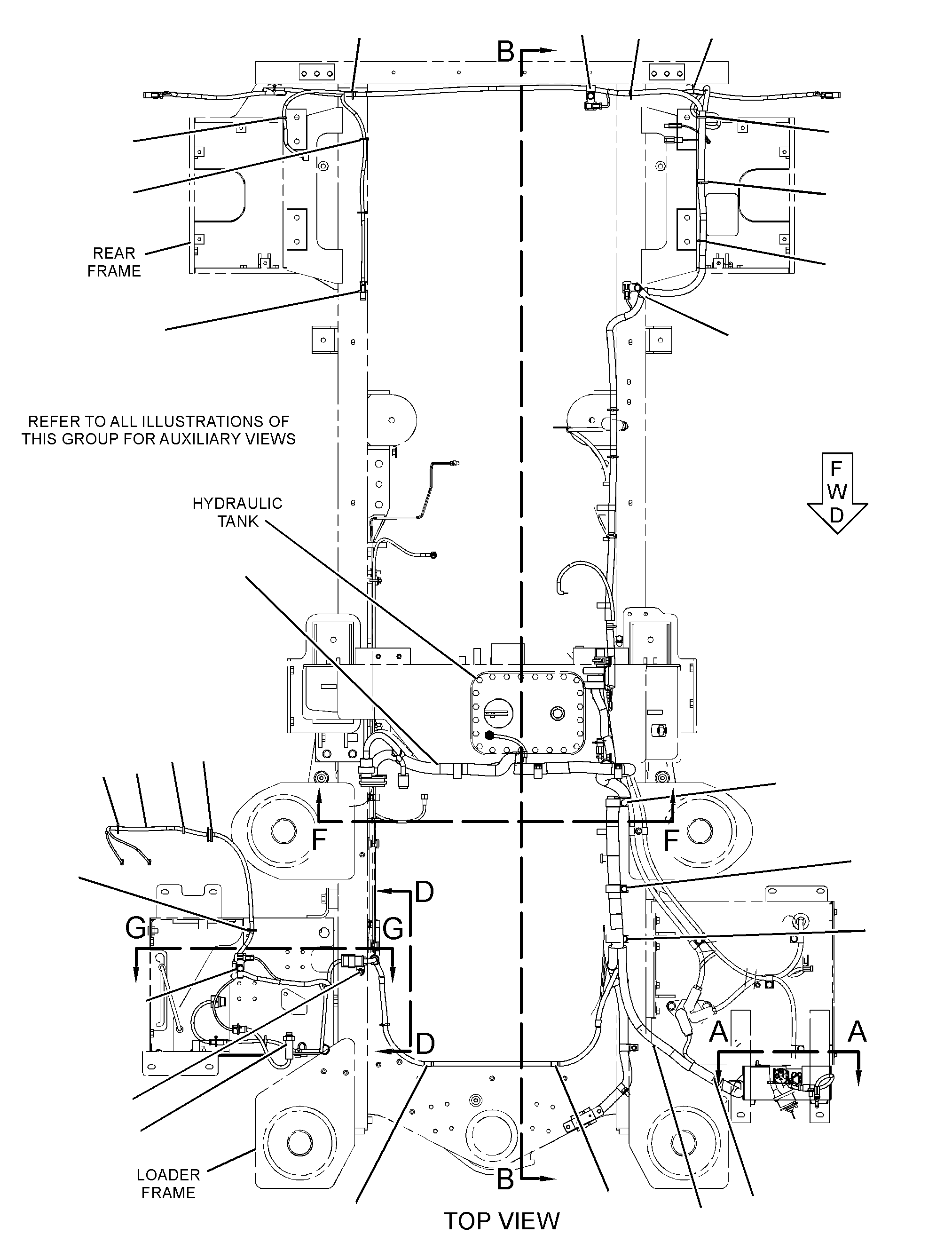

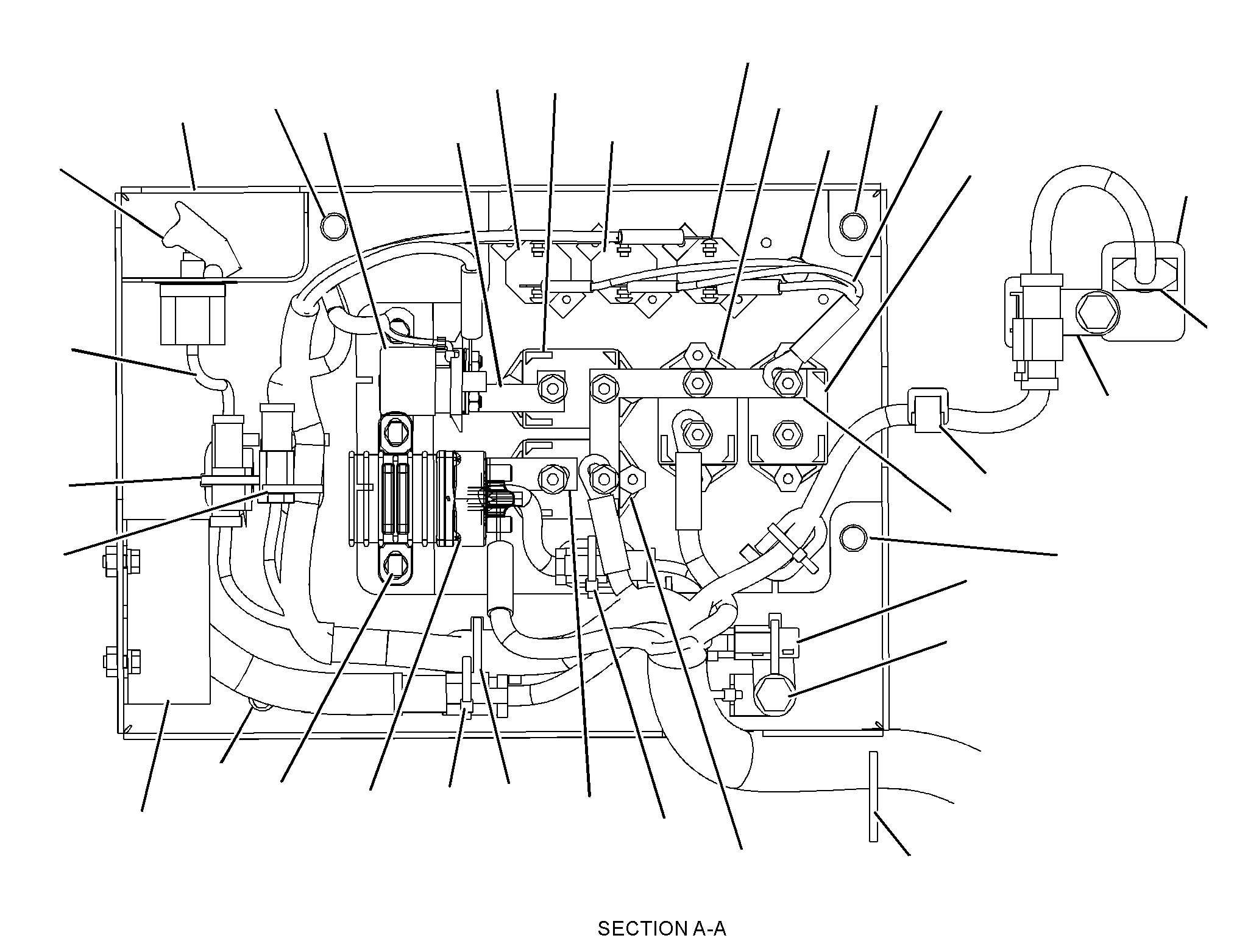

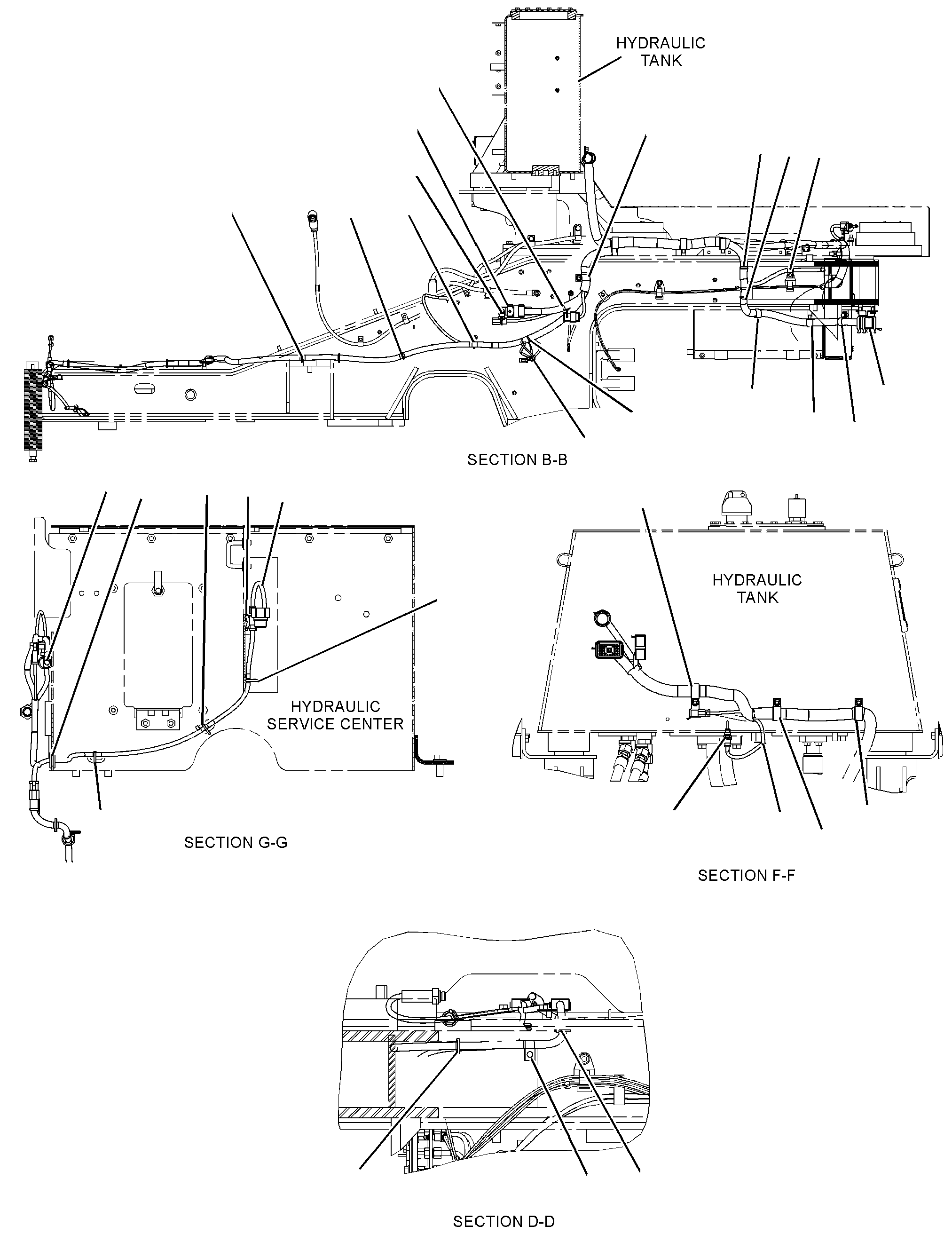

241-0642 WIRING GP-CHASSISS/N N1A1-UP

Group No: 241-0642
Part NumberPart NameQty
3E51691 GUARD-SWITCH1
7K11812 STRAP-CABLE42
12513023 SWITCH GP-MAGNETIC (24-VOLT)(START RELAY)1
13098114 SENSOR GP-TEMPERATURE (HYDRAULIC OIL)1
14602405 SWITCH GP-TOGGLE (LOCKING)(HOOD TILT ACTUATOR)1
3E3371WEDGE-RECEPTACLE LOCK (3-PIN)1
6T3631NUT-HEX (15/32-32-THD)2
6T3632LOCKWASHER1
6T3633RING-LOCKING1
1863735PIN-CONNECTOR (16-GA TO 18-GA)3
1028803KIT-RECEPTACLE (3-PIN)1
14926126 RELAY AS (24-VOLT)(HOOD TILT MOTOR)1
1863735PIN-CONNECTOR (16-GA TO 18-GA)2
9W0852PIN-CONNECTOR (14-GA TO 16-GA)4
1028805KIT-RECEPTACLE (6-PIN)1
15866347 SWITCH GP-TOGGLE (GROUND LEVEL SHUTDOWN)1
3E3377WEDGE-RECEPTACLE LOCK (4-PIN)1
6T3631NUT-HEX (15/32-32-THD)2
6T3632LOCKWASHER1
6T3633RING-LOCKING1
1863735PIN-CONNECTOR (16-GA TO 18-GA)3
9G3695PLUG-SEAL1
1028804KIT-RECEPTACLE (4-PIN)1
16475778 SWITCH GP-BYPASS (POWER TRAIN OIL FILTER)1
17248719 BRACKET AS1
174431210 SWITCH AS-PRESSURE (PARKING BRAKE OIL)1
1028803KIT-RECEPTACLE (3-PIN)1
3E3371WEDGE-RECEPTACLE LOCK (3-PIN)1
5P6008TUBE-HEAT SHRINK (6.35-MM DIA)(0.2-M)
8T5677SLEEVE (0.6-M)
1863735PIN-CONNECTOR (16-GA TO 18-GA)3
178362011 STRAP-DUAL CLAMP1
246448812 BAR-BUS1
246448913 WIRE AS1
247450614 HARNESS AS-CHASSIS (MAIN)1
1028802KIT-RECEPTACLE (2-PIN)6
1028804KIT-RECEPTACLE (4-PIN)1
1028801KIT-RECEPTACLE (12-PIN)3
1106845PLUG AS-CONNECTOR (40-PIN)1
1U9053CAPSULE-LUBRICANT1
1106844SEAL1
8N1533PLUG AS-CONNECTOR (7-PIN)1
8N1535BELL AS-END1
9X6772STRAP-CABLE1
1130580RECEPTACLE AS-CONNECTOR (40-PIN)1
1064155KIT-RETAINING BOLT1
1275484RECEPTACLE AS-CONNECTOR (1-PIN)1
1297163PLUG AS-CONNECTOR (1-PIN)1
1297164RECEPTACLE AS-CONNECTOR (1-PIN)1
1552255KIT-CONNECTING PLUG (12-PIN)2
1552260KIT-CONNECTING PLUG (3-PIN)3
1552270KIT-CONNECTING PLUG (2-PIN)10
1552271KIT-CONNECTING PLUG (4-PIN)2
1552274KIT-CONNECTING PLUG (6-PIN)1
1607689PLUG AS-CONNECTOR (70-PIN)1
1599322SEAL-O-RING1
247756915 HARNESS AS-CHASSIS (HYDRAULIC TANK)1
1552255KIT-CONNECTING PLUG (12-PIN)1
1552260KIT-CONNECTING PLUG (3-PIN)1
1552270KIT-CONNECTING PLUG (2-PIN)2
248154516 FILM-IDENTIFICATION (FUSE PANEL)1
271395217 BAR-BUS1
275402418 PANEL AS1
3R9322HINGE1
6V9632NUT-WELD (M6X1-THD)7
7T1099LINK5
8T6462BOSS-WELD (M10X1.5X25-MM)1
275991619 BAR-BUS1
033824820 CLIP (LOOP)4
130530021 CLIP6
132578922 CLIP (LADDER)2
171220623 CIRCUIT BREAKER AS (50-AMPERE)(START)1
6V8187NUT (1/4-28-THD)2
8T4205WASHER-HARD (7.2X14.5X2-MM THK)2
2532111LOCKWASHER2
171221024 CIRCUIT BREAKER AS (80-AMPERE)(MAIN)1
6V8187NUT (1/4-28-THD)2
8T4205WASHER-HARD (7.2X14.5X2-MM THK)2
2532111LOCKWASHER2
171221125 CIRCUIT BREAKER AS (90-AMPERE)(STARTING AID)1
6V8187NUT (1/4-28-THD)2
8T4205WASHER-HARD (7.2X14.5X2-MM THK)2
2532111LOCKWASHER2
171221226 CIRCUIT BREAKER AS (105-AMPERE)(ALTERNATOR)1
6V8187NUT (1/4-28-THD)2
8T4205WASHER-HARD (7.2X14.5X2-MM THK)2
2532111LOCKWASHER2
189315827 SUPPRESSOR-ARC1
241836828 SWITCH GP-MAGNETIC (24-VOLT)(MAIN RELAY)1
2M400429 BUTTON-PLUG1
3E676930 SEAL-O-RING1
3E690931 CLIP (LOOP)1
3J190732 SEAL-O-RING1
3P383933 GROMMET1
3T266234 CIRCUIT BREAKER AS (15-AMPERE, AUTOMATIC RESET)(RUNNING LIGHTS)1
6V8376SCREW-MACHINE (8-32X0.25-IN)2
9B7233LOCKWASHER2
4K886435 CLIP (LOOP)1
4P813436 CLIP (LADDER)1
4S196237 CLIP (LOOP)1
5L450738 SCREW-MACHINE (10-32X0.875-IN)8
5M666839 SCREW-MACHINE (8-32X0.75-IN)6
6D424440 CLIP (LOOP)1
6T364441 CIRCUIT BREAKER AS (20-AMPERE)(HOOD TILT ACTUATOR)1
6T364441A CIRCUIT BREAKER AS (20-AMPERE)(UNSWITCHED BAT POWER TO CAB)1
6V8376SCREW-MACHINE (8-32X0.25-IN)2
9B7233LOCKWASHER2
7C435442 CLIP3
7D723343 CLIP (LOOP)5
1391398CLIP (LOOP)1
4D779444 CLIP1
8S758345 GROMMET1
8T412146 WASHER-HARD (11X21X2.5-MM THK)25
8T413347 NUT (M10X1.5-THD)9
8T413748 BOLT (M10X1.5X20-MM)11
8T419149 BOLT (M10X1.5X16-MM)1
8T497050 BOLT (M6X1X14-MM)7
9X825651 WASHER (6.6X12X2-MM THK)7
118636552 PLATE AS1
139139853 CLIP (LOOP)1
8T543654 BOLT (M10X1.5X130-MM)4
188625256 FILM-INSTRUCTION (HOOD TILT)1
226029157 LOCK AS1
2260321CAM1
