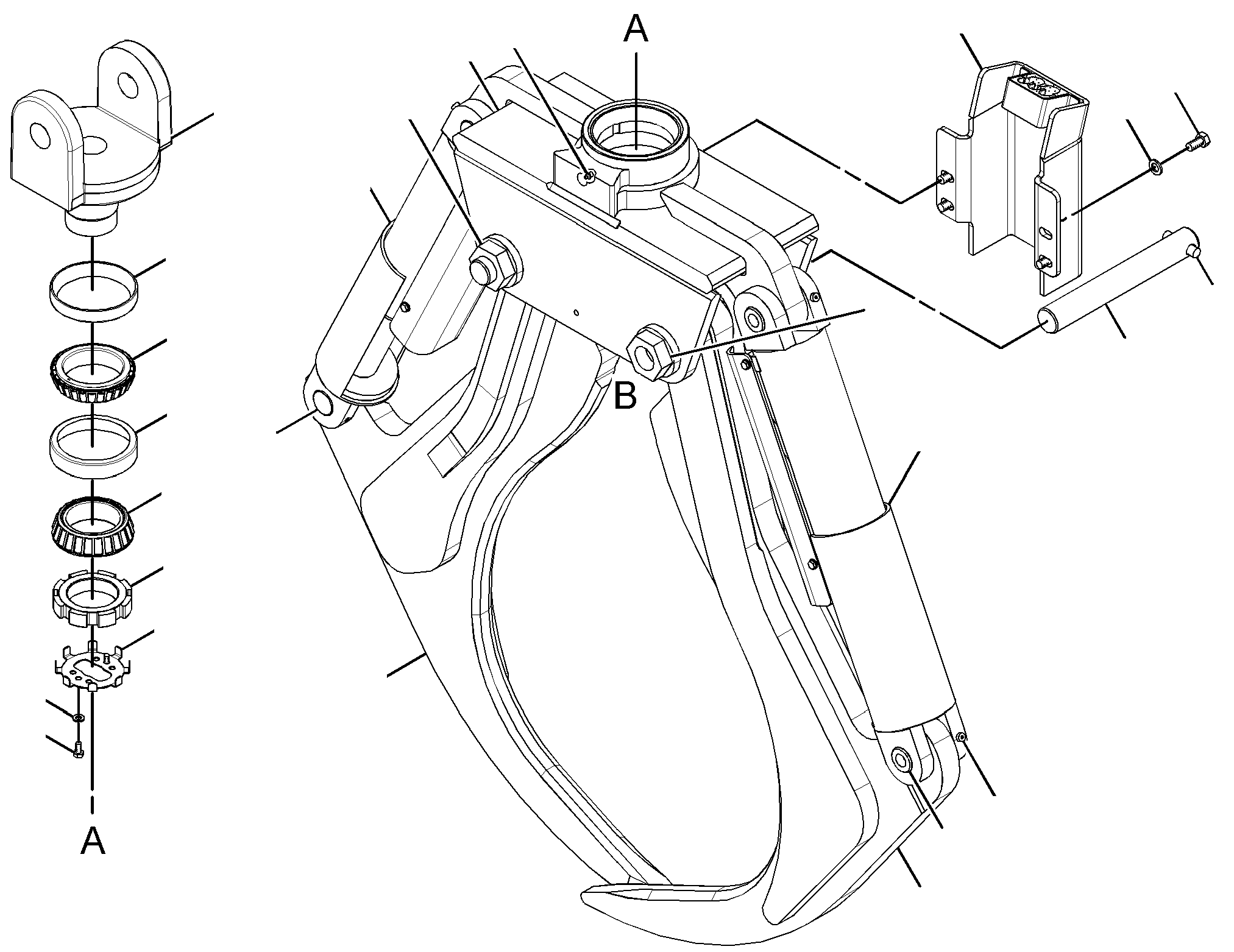

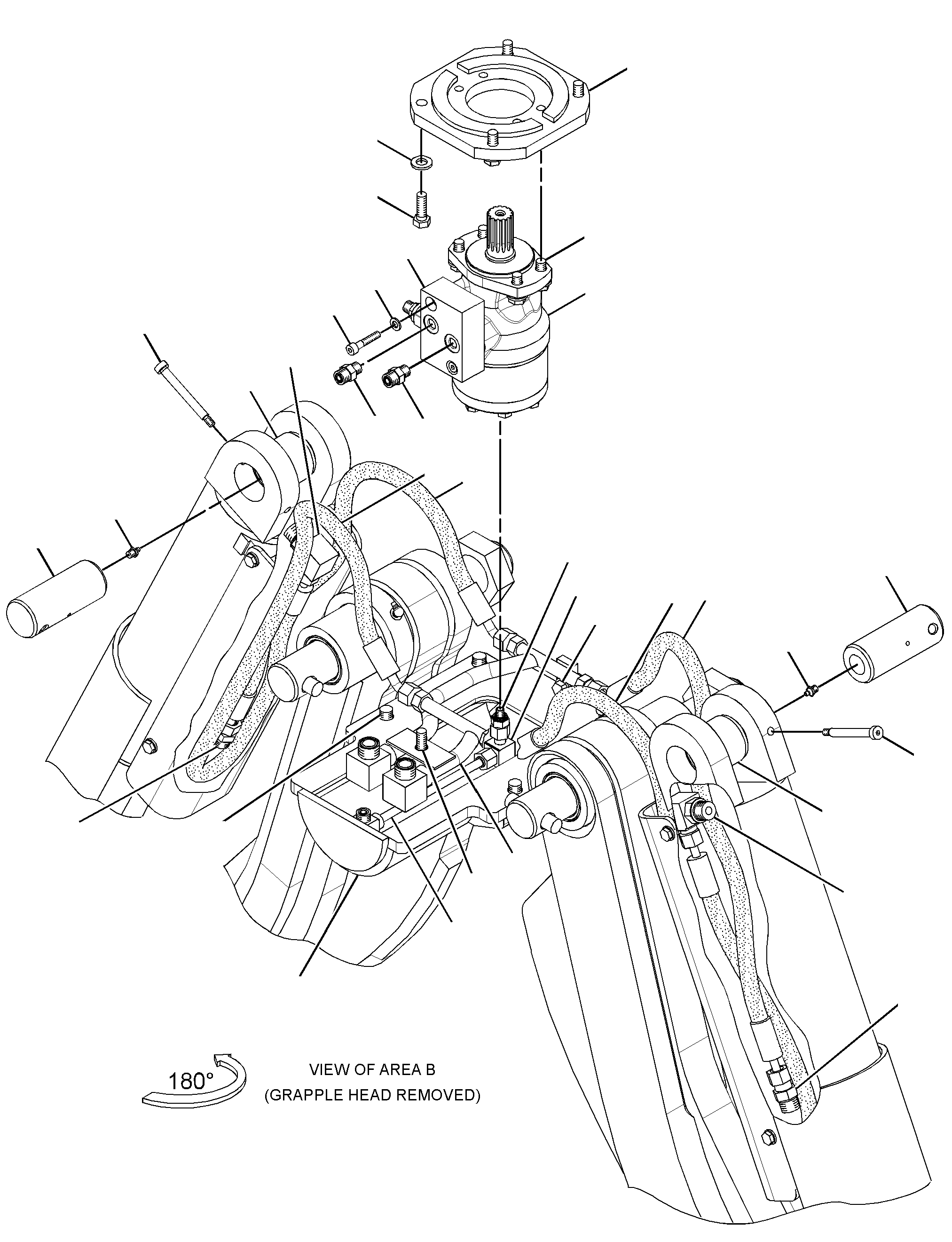

247-5016 HEAD GP-GRAPPLES/N 4NS1-UP

Group No: 247-5016 · Commonality

Part Number	Part Name	Qty
2N3253	1 CUP-BEARING	1
2N3254	2 CONE-BEARING	1
3B8489	3 FITTING-GREASE	5
8I3633	4 ADAPTER AS	1
6V8397	SEAL-O-RING	1
1626816	SEAL	1
8S9075	5 CONE-BEARING	1
8S9076	6 CUP-BEARING	1
1252884	7 CYLINDER GP-TONG	2
1942487	8 PLATE	1
1965490	9 PIN	2
2787121	10 NUT	1
2787123	11 PIN	2
2787124	12 PLATE-LOCK	1
2787130	13 HOSE AS	2
2787131	14 HOSE AS	2
2787133	15 MOTOR GP-GEROTOR (GRAPPLE ROTATION)	1
2787136	16 PIN	4
2787137	17 BUSHING	2
2787138	18 TUBE AS	1
2828431	19 GUARD AS	1
2828438	20 HEAD AS-GRAPPLE	1
2828436	PLATE AS	1
2828439	21 TONG GP-GRAPPLE	2
3B8488	FITTING-GREASE (1/8-27 PTF)	1
2405401	BUSHING	2
2787137	BUSHING	1
2828451	22 TUBE AS	1
2832451	23 CLEVIS	1
2833456	24 VALVE GP-RELIEF (IMPLEMENT PILOT PRESSURE)	1
2925185	25 GUARD GP-GRAPPLE LINES	1
0451578	26 NUT (2-12-THD)	2
0960001	27 BOLT-SOCKET HEAD (M8X1.25X40-MM)	2
1488336	28 CONNECTOR AS	2
3J1907	SEAL-O-RING	1
6V8397	SEAL-O-RING	1
6V8636	CONNECTOR	1
1488345	29 CONNECTOR AS	2
2M9780	SEAL-O-RING	1
6V8398	SEAL-O-RING	1
6V8638	CONNECTOR	1
1488367	30 ELBOW AS	1
6V8397	SEAL-O-RING	1
6V9850	ELBOW	1
1488372	31 ELBOW AS	2
2M9780	SEAL-O-RING	1
6V8398	SEAL-O-RING	1
6V8721	ELBOW	1
1861573	32 BOLT-SPECIAL (M8X1.25-THD)	4
6V8397	33 SEAL-O-RING	1
7X2552	34 BOLT (M16X2X30-MM)	8
8C3093	35 SEAL-O-RING	2
8T4121	36 WASHER-HARD (11X21X2.5-MM THK)	2
8T4137	37 BOLT (M10X1.5X20-MM)	2
8T4139	38 BOLT (M12X1.75X30-MM)	6
8T4223	39 WASHER-HARD (13.5X25.5X3-MM THK)	10
8T4224	40 WASHER-HARD (8.8X16X2-MM THK)	2
8T4956	41 BOLT (M12X1.75X35-MM)	4
9X8257	42 WASHER (17.5X30X3.5-MM THK)	8
2976911	KIT-MOTOR SEAL (GRAPPLE ROTATION)
