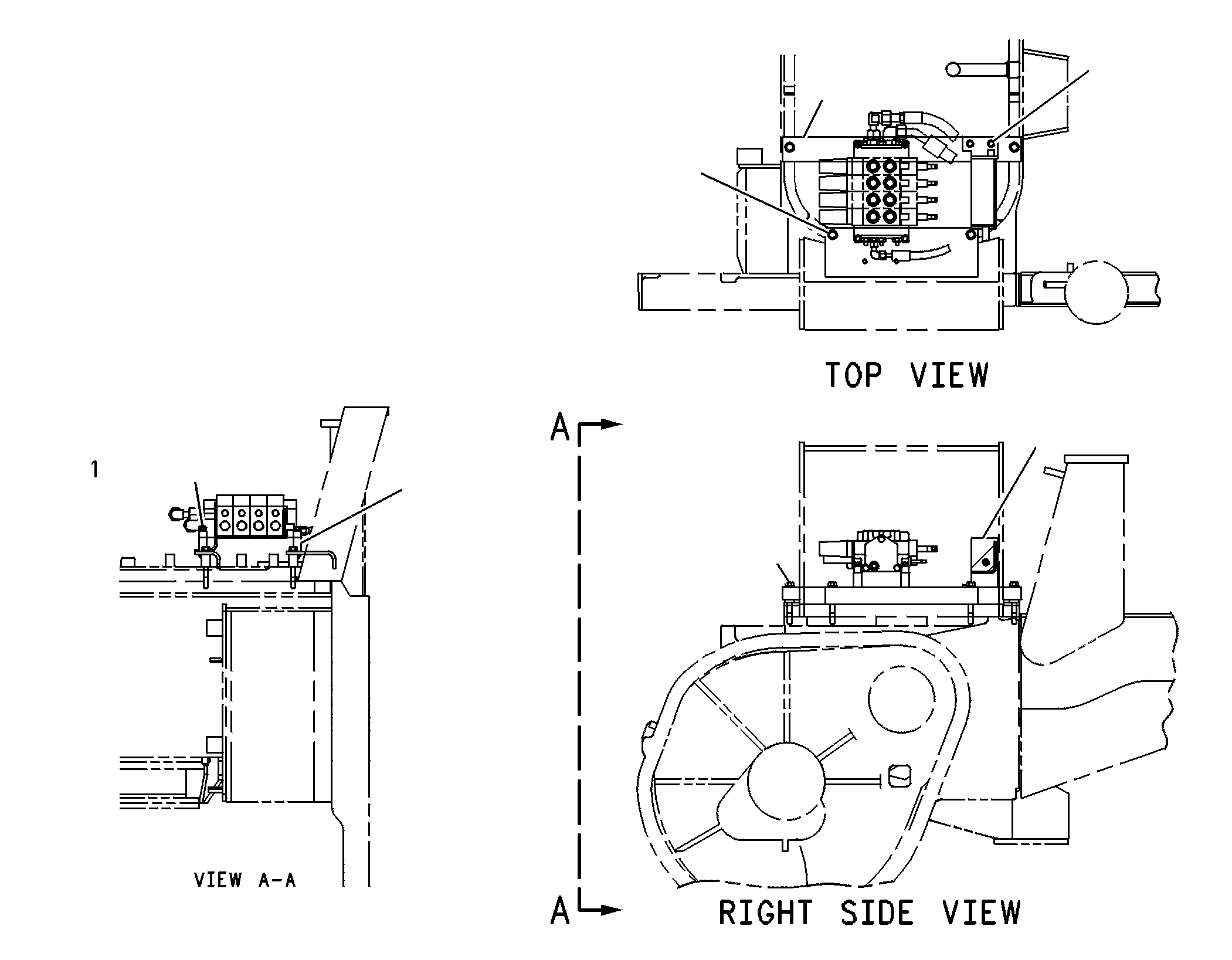

Assembly
100%

113-7262 MOUNTING GP-VALVES/N 9TK1000-UP

Group No: 113-7262
Part NumberPart NameQty
1D45691 BOLT (1/2-13X4.25-IN)3
5P82452 WASHER-HARD (13.5X25.5X3-MM THK)3
8V97083 SPACER (14.3X25.4X35-MM THK)3
8T89154 BOLT (3/8-16X3.25-IN)2
8T48965 WASHER-HARD (10.2X18.5X2.5-MM THK)4
6N05086 SPACER (11.13X22.23X40.64-MM THK)4
10823727 ANGLE AS1
9F2978NUT-WELD (3/8-16-THD)2
10155188 ANGLE AS1
9F2978NUT-WELD (3/8-16-THD)2
10970269 BRACKET AS1
6V3232BOSS-WELD1
5V7003BOSS-WELD1
8T250210 BOLT (3/8-16X1.125-IN)2
5P107511 WASHER-HARD (10.2X22.5X3-MM THK)2
6V880112 NUT (3/8-16-THD)2
