System And Components

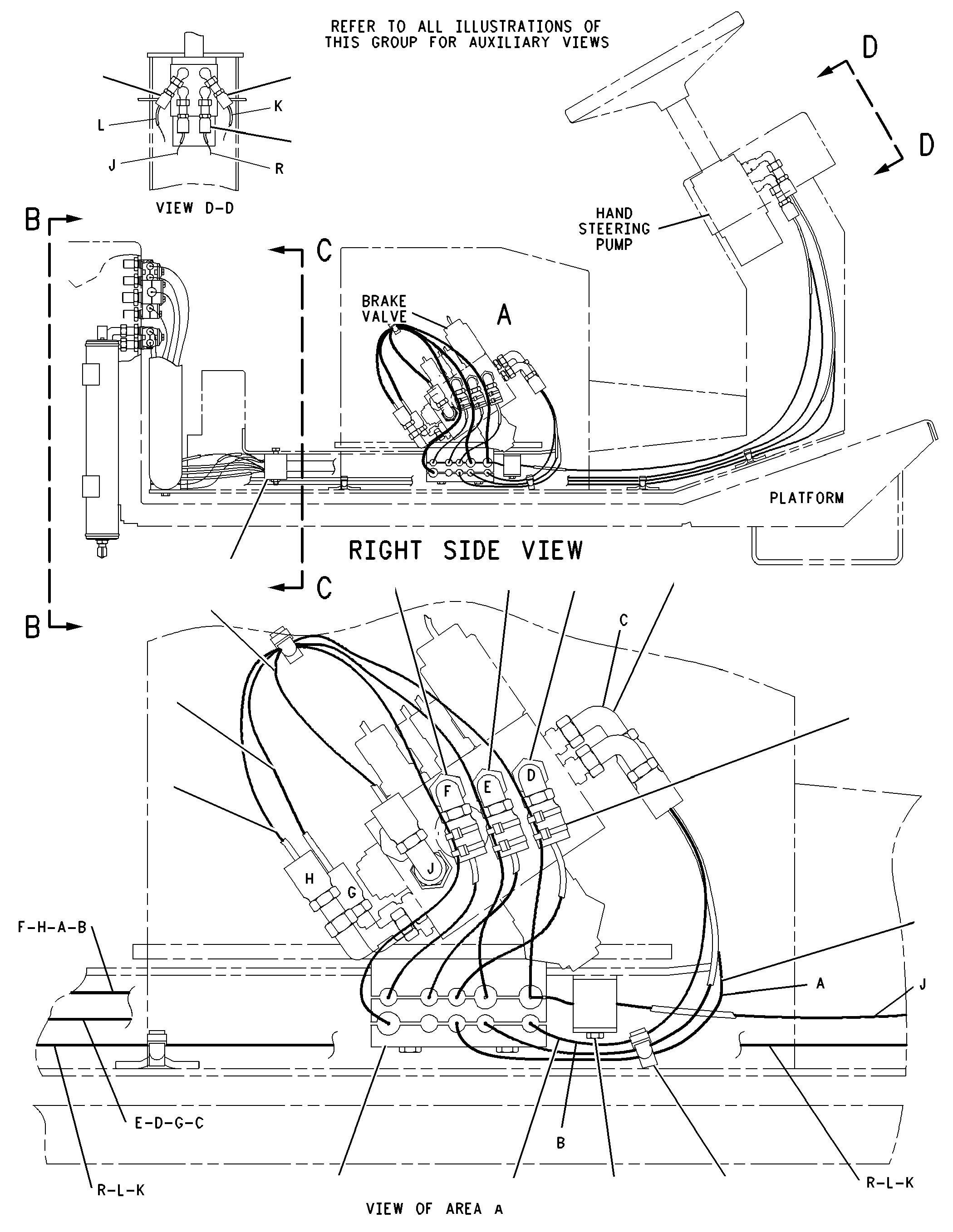

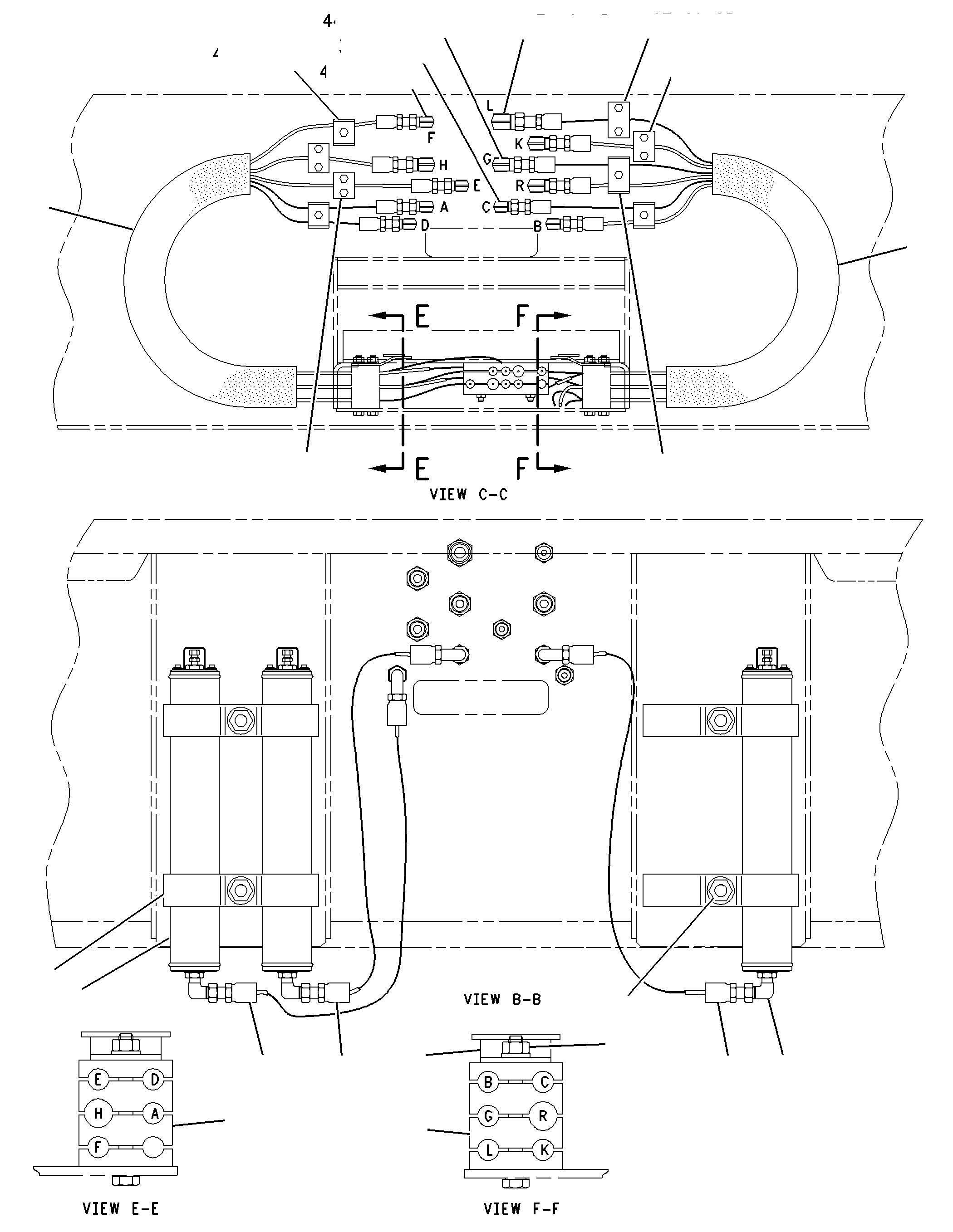

187-4850 LINES GP-CONTROLS/N 6HM413-UP; 4PN526-UP
Group No: 187-4850
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1173704 | 1 HOSE AS | 1 | |
| 1287633 | 2 HOSE AS | 1 | |
| 1101181 | 3 HOSE AS | 1 | |
| 7X2533 | 4 BOLT (M6X1X35-MM) | 9 | |
| 1173709 | 5 HOSE AS | 1 | |
| 1164410 | 6 CLAMP-DOUBLE | 1 | |
| 1028703 | 7 PLATE-COVER | 1 | |
| 1173712 | 8 HOSE AS | 3 | |
| 7X2537 | 9 BOLT (M8X1.25X35-MM) | 1 | |
| 1173736 | 10 HOSE AS | 2 | |
| 1164407 | 11 CLAMP | 1 | |
| 1173738 | 12 HOSE AS | 1 | |
| 1178713 | 13 BLOCK-CLAMP | 1 | |
| 7K1181 | 14 STRAP-CABLE | 9 | |
| 1178711 | 15 BLOCK-CLAMP | 1 | |
| 1028701 | 16 PLATE | 3 | |
| 1164408 | 17 CLAMP | 3 | |
| 3S2093 | 18 STRAP-CABLE | 6 | |
| 1602248 | 19 SLEEVE-ABRASION (31.5-IN EACH) | ||
| 8T4224 | 20 WASHER-HARD (8.8X16X2-MM THK) | 8 | |
| 5C7261 | 21 NUT (M8X1.25-THD) | 8 | |
| 1163748 | 22 PLATE AS | 2 | |
| 1178714 | 23 BLOCK-CLAMP | 1 | |
| 1178712 | 24 BLOCK-CLAMP | 1 | |
| 8C8451 | 25 BOLT (M6X1X40-MM) | 2 | |
| 7V5628 | 26 PLATE (TOP) | 1 | |
| 1178911 | 27 CLAMP | 1 | |
| 1874790 | 28 HOSE AS | 2 | |
| 1164415 | 29 PLATE-COVER | 3 | |
| 8T4971 | 30 BOLT (M6X1X30-MM) | 1 | |
| 1158160 | 31 HOSE AS | 3 | |
| 1164414 | 32 PLATE | 1 | |
| 1141151 | 33 ACCUMULATOR GP-HYDRAULIC (CHARGED) | 3 | |
| 6D8305 | 34 CLAMP | 4 | |
| 8T4122 | 35 WASHER-HARD (17X32X3.5-MM THK) | 4 | |
| 8T4132 | 36 NUT (M16X2-THD) | 4 | |
| 4J5477 | 37 SEAL-O-RING | 11 | |
| 6V8627 | 38 ELBOW | 3 | |
| 3J1907 | 39 SEAL-O-RING | 3 | |
| 6V8979 | 40 ELBOW | 4 | |
| 2P1279 | 41 LOCKNUT (9/16-18-THD) | 4 | |
| 6V8980 | 42 ELBOW | 5 | |
| 6V9168 | 43 NUT (11/16-16-THD) | 5 | |
| 6V8397 | 44 SEAL-O-RING | 11 | |
| 6V8981 | 45 ELBOW | 1 | |
| 6V9169 | 46 NUT (13/16-16-THD) | 2 | |
| 6V8398 | 47 SEAL-O-RING | 3 | |
| 1164409 | 48 CLAMP-DOUBLE | 3 | |
| 8T5465 | 49 ELBOW | 1 |
