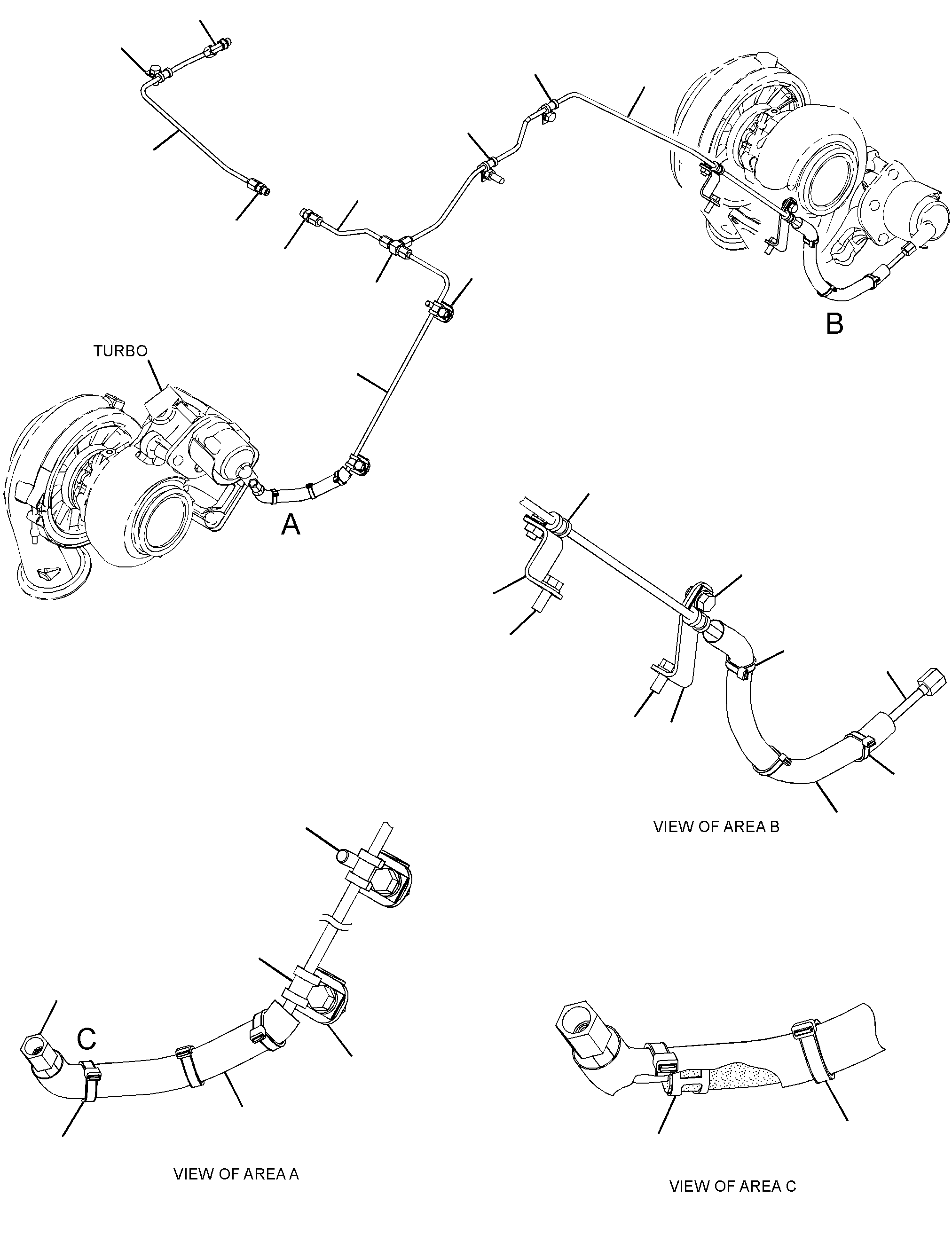

350-1091 LINES GP-TURBOCHARGER AIRS/N MHM1-UP

Group No: 350-1091
Part NumberPart NameQty
9M19741 WASHER-HARD (8.8X16X2-MM THK)7
36420032 TUBE AS-AIR1
31770123 CLAMP-BAND4
36420044 TUBE AS-AIR1
36420055 TUBE AS-AIR1
35910196 BRACKET AS1
4K9097NUT-WELD (5/16-18-THD)1
39542407 TUBE AS-AIR1
36216158 BRACKET AS3
4K9097NUT-WELD (5/16-18-THD)1
36721739 TUBE AS-AIR1
367217410 TUBE AS-AIR1
281584911 TEE-UNION1
214104812 SPACER (8.8X16X4-MM THK)1
0L135113 BOLT (3/8-16X0.875-IN)1
0S050914 BOLT (3/8-16X0.75-IN)1
0S161715 BOLT (5/16-18X0.75-IN)1
174959916 STUD (3/8-16-THD)1
365059217 CONNECTOR AS1
3649633CONNECTOR1
2147566SEAL-O-RING1
1W747418 STUD (3/8-16X2.25-IN)1
364962219 CONNECTOR AS1
2147567SEAL-O-RING1
3649621CONNECTOR1
290199320 STRAP-CABLE6
2B269521 BOLT (5/16-18X0.875-IN)2
2H375522 BOLT (5/16-18X0.43-IN)44
342213423 CLIP3
345335024 CLIP4
347445025 ADAPTER AS1
1716469ELBOW1
2147566SEAL-O-RING1
5M289426 WASHER-HARD (10.2X18.5X2.5-MM THK)3
337417828 HOSE (11-CM)
337417828A HOSE (18-CM)
330437429 SLEEVE (17-CM)
330437429A SLEEVE (30-CM)
