System And Components

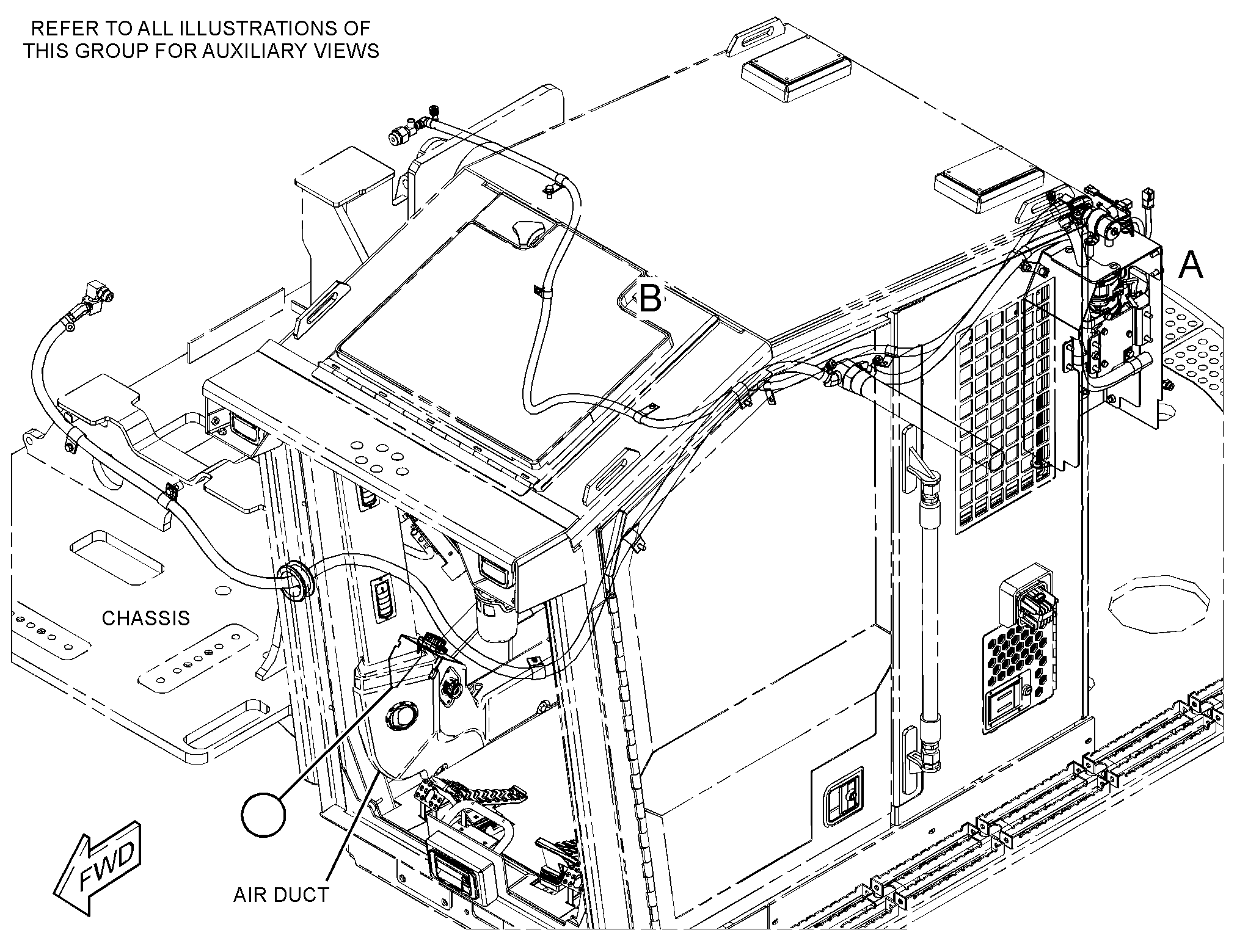

508-6768 PREHEATER GP-MACHINES/N SJE1-UP
Group No: 508-6768
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1P4022 | 1 FITTING | 1 | |
| 3K5178 | 2 GROMMET | 1 | |
| 3S2093 | 3 STRAP-CABLE | 2 | |
| 4P7428 | 4 CLIP (LADDER) | 1 | |
| 5G2944 | 5 VALVE AS-SHUTOFF | 1 | |
| 5K5068 | 6 FITTING-PIPE (1/8-27 PTF) | 1 | |
| 7X7958 | 7 CLAMP-HOSE | 2 | |
| 1634300 | 8 ADAPTER AS | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 3779605 | ADAPTER | 1 | |
| 1939131 | 9 BRACKET AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 1 | |
| 1947632 | 10 ELBOW AS | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 1947631 | ELBOW | 1 | |
| 4264168 | 11 ELBOW AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 0905725 | ELBOW | 1 | |
| 4891531 | 12 ADAPTER | 1 | |
| 5042753 | 13 PLUG | 1 | |
| 5088474 | 14 HEATER-HYDRAULIC TANK | 1 | |
| 5197308 | 15 TUBE AS | 1 | |
| 5197310 | 16 SHEET-RUBBER | 1 | |
| 0308316 | 17 ELBOW | 1 | |
| 0324036 | 18 FITTING | 2 | |
| 0683255 | 19 ELBOW | 1 | |
| 1P4278 | 20 CLAMP-HOSE | 6 | |
| 2233490 | 21 CLIP | 2 | |
| 2363404 | 22 CLIP | 2 | |
| 3368614 | 23 CLIP (LOOP) | 5 | |
| 3523971 | 24 CLIP | 1 | |
| 3E4353 | 25 WASHER-HARD (11X25X3-MM THK) | 2 | |
| 3L0593 | 26 SPACER (11/32X5/8X3/8-IN THK) | 3 | |
| 4V4125 | 27 CLIP | 5 | |
| 5136298 | 28 BRACKET AS | 1 | |
| 8T3612 | NUT-WELD (M8X1.25-THD) | 1 | |
| 5154835 | 29 PLATE | 1 | |
| 5154837 | 30 PLATE AS | 1 | |
| 9R2672 | BOSS-THREADED (M10X1.5X20-MM) | 1 | |
| 1183094 | BOSS-THREADED (M8X1.25-THD) | 1 | |
| 1785457 | BOSS (M8X1.25X40-MM) | 2 | |
| 5157391 | 31 PLATE | 1 | |
| 5168597 | 32 PREHEATER GP-MACHINE | 1 | |
| 5479644 | 33 HOSE | 1 | |
| 5479645 | 34 HOSE | 1 | |
| 5479646 | 35 HOSE | 1 | |
| 5663391 | 36 HOSE | 1 | |
| 5P7854 | 37 CLIP (LOOP) | 2 | |
| 5P9299 | 38 CLIP (LOOP) | 1 | |
| 6D4246 | 39 CLIP (LOOP) | 2 | |
| 6V1889 | 40 CLIP (LOOP) | 1 | |
| 7Y8165 | 41 GROMMET | 1 | |
| 8L2786 | 42 SEAL-O-RING | 1 | |
| 8T4121 | 43 WASHER-HARD (11X21X2.5-MM THK) | 22 | |
| 8T4136 | 44 BOLT (M10X1.5X25-MM) | 18 | |
| 8T4137 | 45 BOLT (M10X1.5X20-MM) | 4 | |
| 8T4189 | 46 BOLT (M8X1.25X20-MM) | 2 | |
| 8T4195 | 47 BOLT (M10X1.5X30-MM) | 2 | |
| 8T4224 | 48 WASHER-HARD (8.8X16X2-MM THK) | 8 | |
| 8T4908 | 49 BOLT (M8X1.25X25-MM) | 3 | |
| 8T7547 | 50 BOLT (M8X1.25X30-MM) | 3 | |
| 9X2488 | 51 CLAMP-HOSE | 8 | |
| 9X2133 | 52 HOSE (291-CM) | ||
| 5P0765 | 53 HOSE (332.5-CM) | ||
| 5P0765 | 53A HOSE (81.4-CM) | ||
| 5P0765 | 53B HOSE (48.5-CM) |
