System And Components

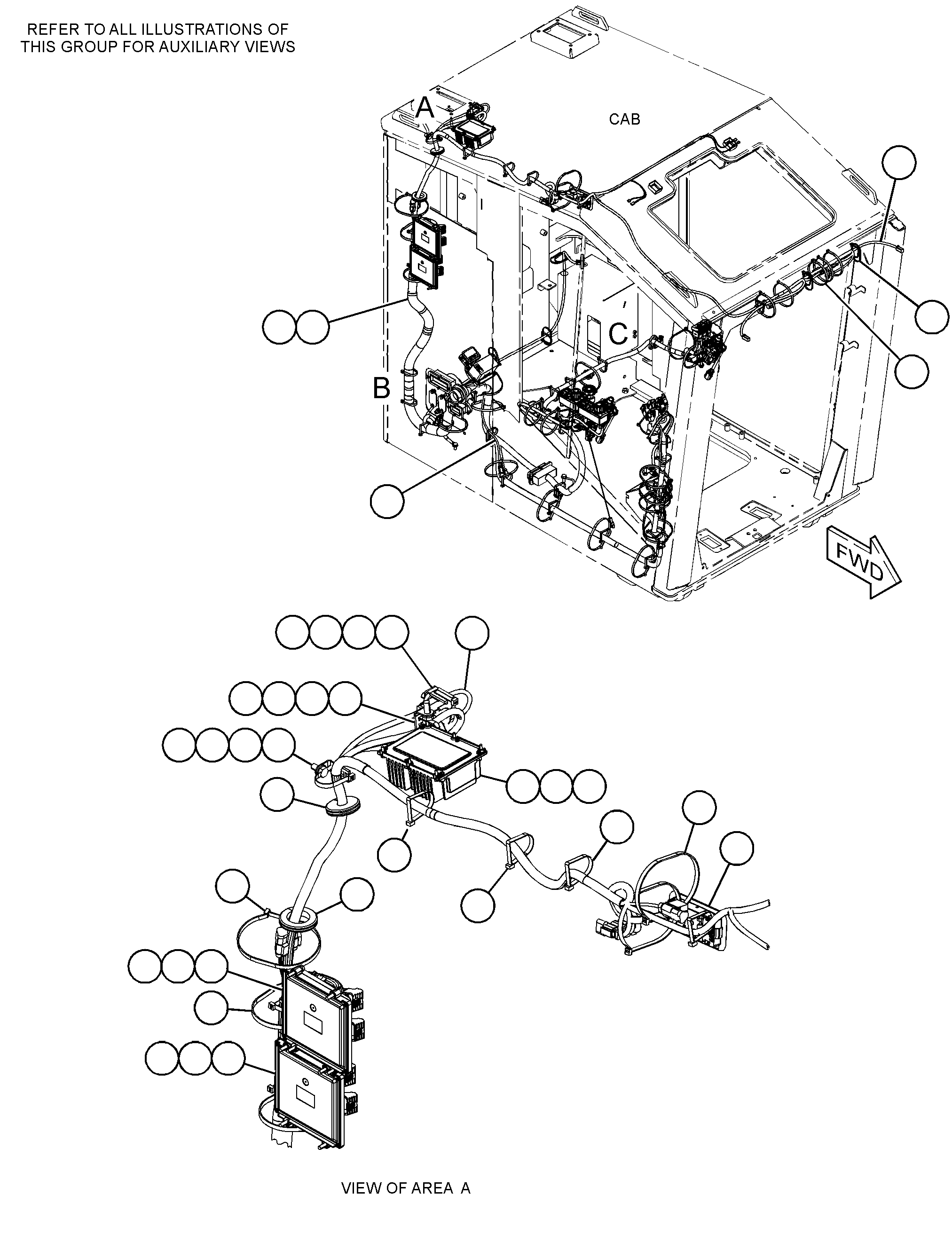

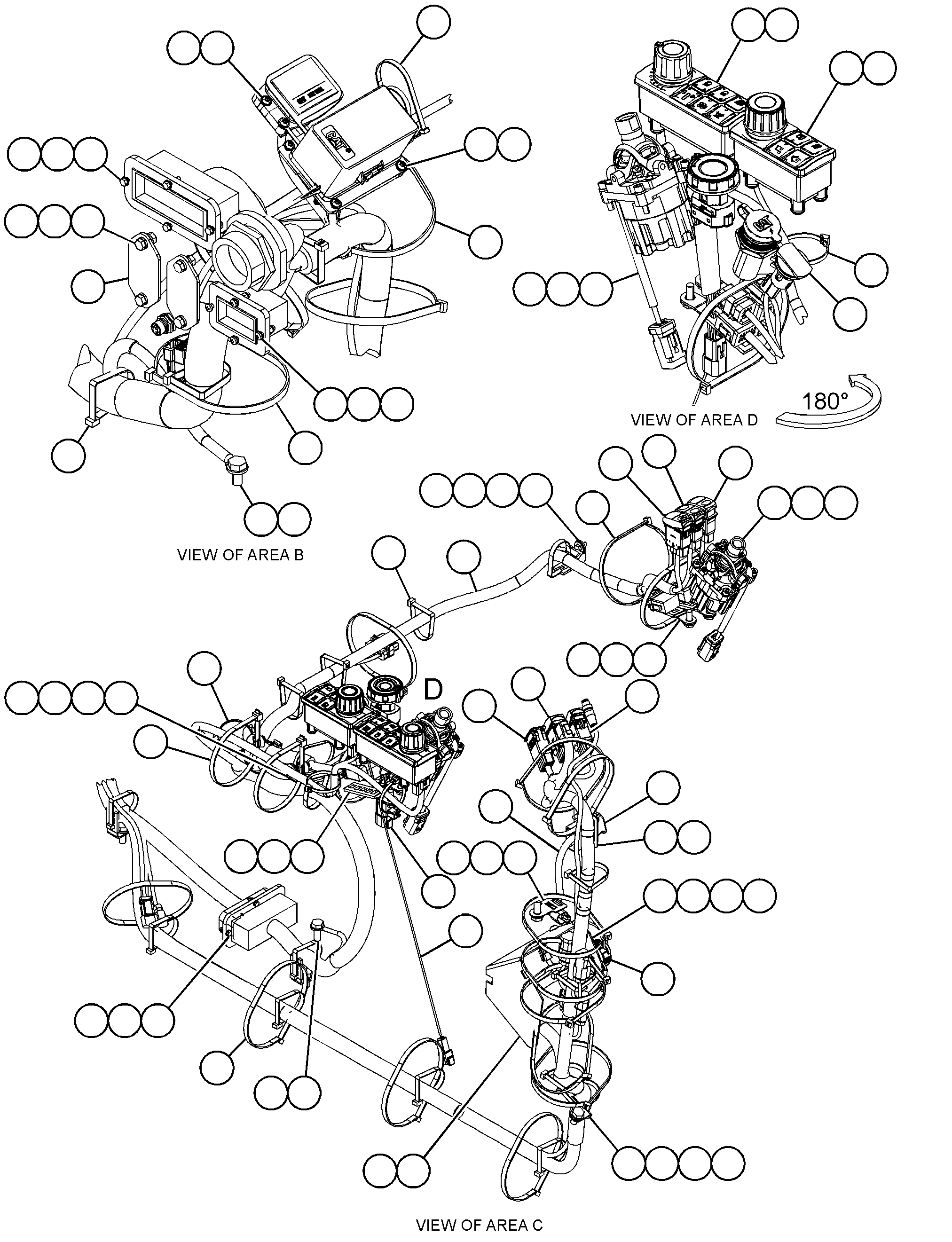

506-9530 WIRING GP-CABS/N FKB1-UP
Group No: 506-9530
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 3470802 | 1 SWITCH AS-ROCKER (LADDER LIGHTS) | 1 | |
| 3523968 | 2 CLIP (LADDER) | 1 | |
| 3E5169 | 3 GUARD-SWITCH | 1 | |
| 3S2093 | 4 STRAP-CABLE | 13 | |
| 7K1181 | 5 STRAP-CABLE | 60 | |
| 1668075 | 6 WASHER (5.2X11.2X0.8-MM THK) | 8 | |
| 1781781 | 7 CLIP | 1 | |
| 2039007 | 8 NUT (1-1/2-18-THD) | 1 | |
| 2286089 | 9 PLUG (ROCKER SWITCH) | 1 | |
| 2631487 | 10 SWITCH AS-ROCKER (HOOD TILT ACTUATOR) | 1 | |
| 2631490 | 11 SWITCH AS-ROCKER (24-VOLT)(HORN) | 1 | |
| 2702679 | 12 LOCKWASHER | 1 | |
| 2891210 | 13 COVER | 1 | |
| 3352252 | 14 MOUNTING-CABLE TIE | 2 | |
| 3355365 | 15 SOCKET-AUXILIARY POWER (12-VOLT) | 1 | |
| 3487842 | 16 CONVERTER-POWER (24-VOLT TO 12-VOLT) | 1 | |
| 3497699 | 17 BRACKET | 1 | |
| 3601763 | 18 SWITCH AS-ROCKER (12-VOLT)(CAB LIGHT) | 1 | |
| 4319515 | 19 LAMP GP-DOME (12/24-VOLT, LED) | 1 | |
| 4481297 | 20 TIE | 1 | |
| 4878455 | 21 CONTROL GP-JOYSTICK | 2 | |
| 8T8737 | PLUG-SEAL | 2 | |
| 9X3401 | PIN-CONNECTOR (16-GA TO 18-GA) | 4 | |
| 3617886 | RECEPTACLE AS-CONNECTOR (6-PIN) | 1 | |
| 5030672 | 22 PLATE | 1 | |
| 5038899 | 23 PLATE | 1 | |
| 5049212 | 24 CONTROLLER AS | 2 | |
| 5106171 | 25 SWITCH AS-ROCKER (SAW ON, OFF) | 1 | |
| 0966166 | 26 WASHER-HARD (4.5X9X1-MM THK) | 30 | |
| 1305300 | 27 CLIP | 1 | |
| 1325789 | 28 CLIP (LADDER) | 5 | |
| 1934623 | 29 SCREW-BUTTON HEAD (10-32X0.5-IN) | 8 | |
| 2149035 | 30 BOLT (M4X0.7X16-MM) | 14 | |
| 3523964 | 31 CLIP (LADDER) | 4 | |
| 3534515 | 32 SWITCH GP-TOGGLE | 1 | |
| 3E3371 | WEDGE-RECEPTACLE LOCK (3-PIN) | 1 | |
| 3E3390 | PIN-CONNECTOR (16-GA TO 18-GA) | 3 | |
| 1028803 | KIT-RECEPTACLE (3-PIN) | 1 | |
| 3775603 | 33 CAP AS | 1 | |
| 6V2689 | TUBE-HEAT SHRINK (6.35-MM DIA)(0.1-M) | ||
| 3395442 | WIRE (16-GA, BLACK) | ||
| 2L8077 | TERMINAL-RING (14-GA TO 16-GA, 1/4-IN SCREW) | 1 | |
| 4244322 | COVER-CONNECTOR | 1 | |
| 3E6328 | 34 ALARM GP (24-VOLT)(ACTION) | 1 | |
| 8T8729 | PIN-CONNECTOR (16-GA TO 20-GA) | 2 | |
| 1028802 | KIT-RECEPTACLE (2-PIN) | 1 | |
| 3E6754 | 35 GROMMET | 1 | |
| 3K5178 | 36 GROMMET | 1 | |
| 3T0849 | 37 BOLT-SOCKET HEAD (M6X1X25-MM) | 8 | |
| 4279771 | 38 TIE | 3 | |
| 4788975 | 39 MODULE GP-KEYPAD (JOG DIAL) | 1 | |
| 5069527 | 40 HARNESS AS-CONSOLE (CAB) | 1 | |
| 5069528 | 41 HARNESS AS-CONSOLE (RH) | 1 | |
| 2743779 | 42 CAP-SEAL | 1 | |
| 5170212 | 43 MODULE GP-KEYPAD (ROTARY DIAL) | 1 | |
| 5172258 | 44 HARNESS AS-LIGHTING | 1 | |
| 5194092 | 45 CONNECTOR AS | 1 | |
| 5265708 | 46 SWITCH AS-PUSH BUTTON | 1 | |
| 8T8729 | PIN-CONNECTOR (16-GA TO 20-GA) | 6 | |
| 1028805 | KIT-RECEPTACLE (6-PIN) | 1 | |
| 5363626 | 47 PLATE | 2 | |
| 5393587 | 48 HARNESS AS-WIRING (USB CHARGER)(DUAL) | 1 | |
| 1028802 | KIT-RECEPTACLE (2-PIN) | 1 | |
| 5C2890 | 49 NUT (M6X1-THD) | 4 | |
| 5C8312 | 50 NUT (M4X0.7-THD) | 8 | |
| 5C9553 | 51 BOLT (M6X1X16-MM) | 4 | |
| 5P4116 | 52 WASHER-HARD (8.8X20.5X2-MM THK) | 4 | |
| 6V9491 | 53 SCREW-MACHINE (M4X0.7X20-MM) | 4 | |
| 8T2659 | 54 LOCKNUT (M4X0.7-THD) | 4 | |
| 8T4121 | 55 WASHER-HARD (11X21X2.5-MM THK) | 10 | |
| 8T4136 | 56 BOLT (M10X1.5X25-MM) | 6 | |
| 8T4137 | 57 BOLT (M10X1.5X20-MM) | 4 | |
| 8T4171 | 58 BOLT (M6X1X12-MM) | 1 | |
| 8T4189 | 59 BOLT (M8X1.25X20-MM) | 4 | |
| 8T4970 | 60 BOLT (M6X1X14-MM) | 1 | |
| 8T4971 | 61 BOLT (M6X1X30-MM) | 8 | |
| 9X2038 | 63 WASHER (7X19X2-MM THK) | 2 | |
| 9X2042 | 64 SCREW-TRUSS HEAD (M6X1X12-MM) | 10 | |
| 9X2043 | 65 SCREW-TRUSS HEAD (M6X1X14-MM) | 4 | |
| 9X8256 | 66 WASHER (6.6X12X2-MM THK) | 24 |
