System And Components

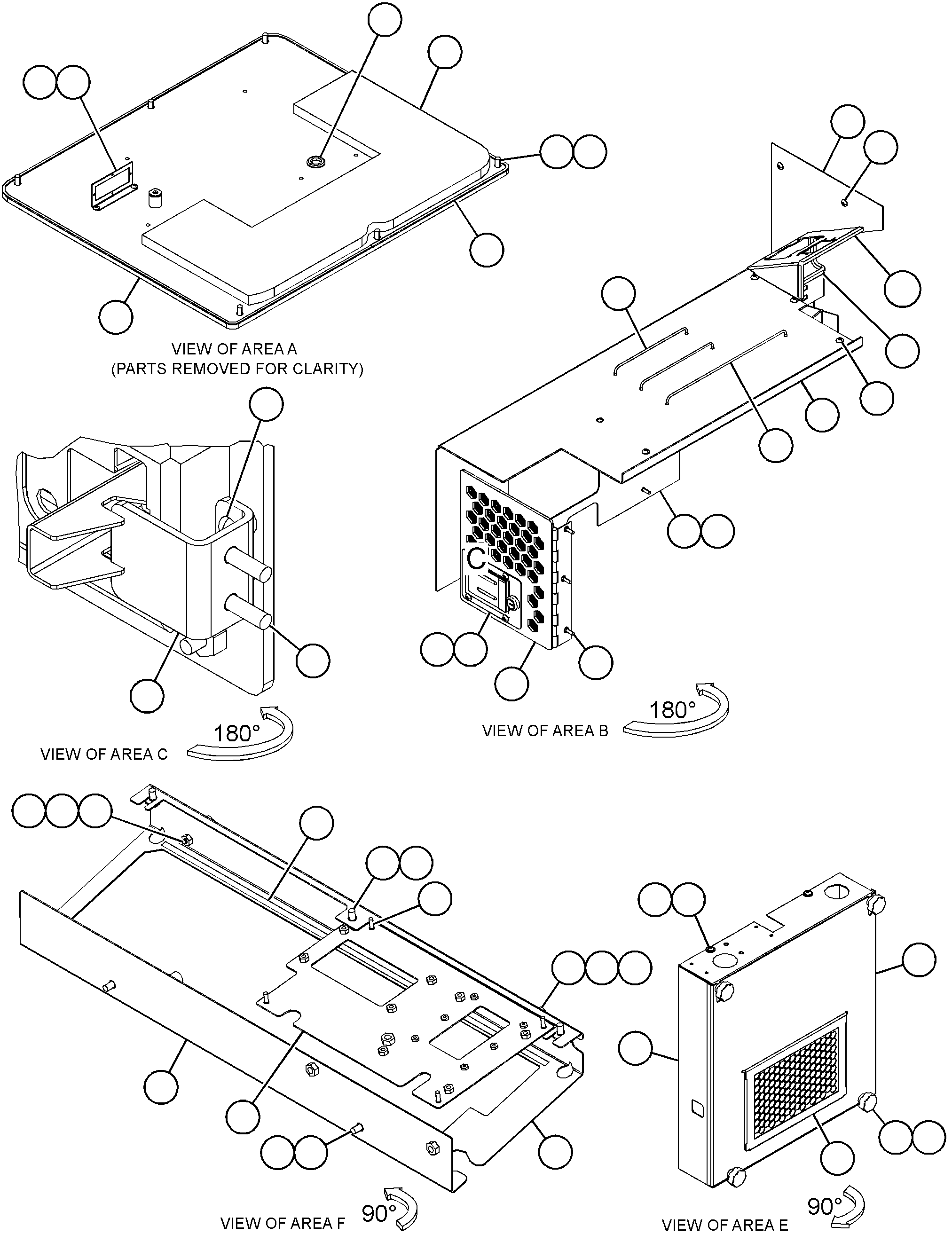

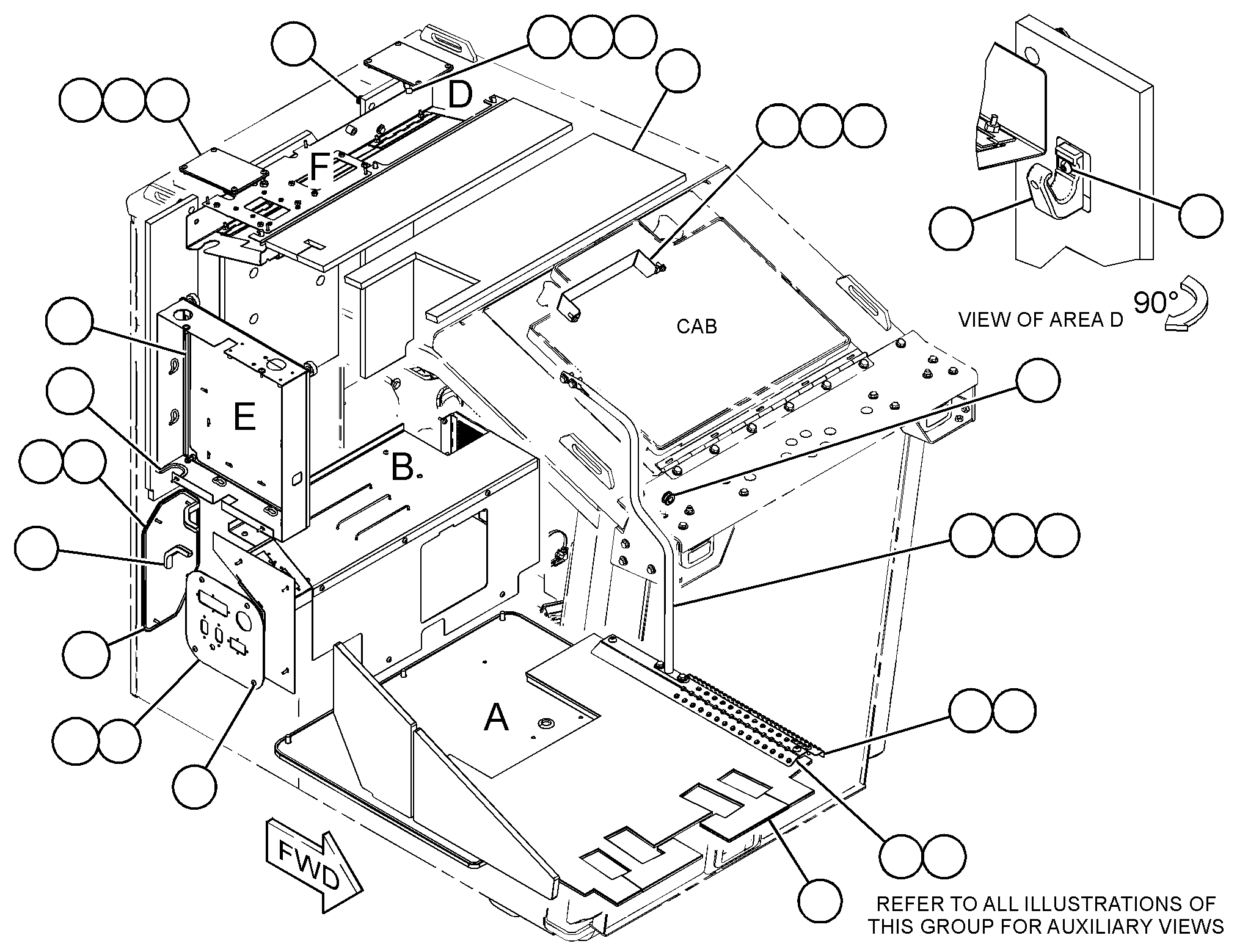

502-6624 TRIM GP-CABS/N FKB1-UP
Group No: 502-6624
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 3T0852 | 1 LOCKNUT (M8X1.25-THD) | 4 | |
| 5171244 | 2 BRACKET | 1 | |
| 5203711 | 3 COVER | 1 | |
| 5611725 | 4 PLATE-TREAD | 1 | |
| 5611730 | 5 PLATE-TREAD | 1 | |
| 3670794 | 6 PLUG | 2 | |
| 4198564 | 7 STRAP | 2 | |
| 4246355 | 8 NET AS-STORAGE | 1 | |
| 5837887 | 9 HANDLE AS | 1 | |
| 2451094 | 10 NUT-RETAINING | 2 | |
| 4483613 | 11 STRAP | 1 | |
| 5027107 | 12 PLATE AS | 1 | |
| 5063240 | BOSS AS | 1 | |
| 5027108 | 13 FOAM | 1 | |
| 5027109 | 14 FLOOR MAT | 1 | |
| 5047289 | 15 DOOR AS-ACCESS | 1 | |
| 6V9632 | NUT-WELD (M6X1-THD) | 4 | |
| 5158369 | 16 COVER AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 1 | |
| 5213109 | 17 BRACKET | 1 | |
| 5P4115 | 18 WASHER-HARD (7.2X19X2-MM THK) | 2 | |
| 5050187 | 19 COVER | 1 | |
| 5050189 | 20 COVER AS | 1 | |
| 6V9632 | NUT-WELD (M6X1-THD) | 2 | |
| 7T1099 | LINK | 6 | |
| 8T3612 | NUT-WELD (M8X1.25-THD) | 4 | |
| 5079679 | 21 COVER AS | 1 | |
| 8T3612 | NUT-WELD (M8X1.25-THD) | 2 | |
| 9R2672 | BOSS-THREADED (M10X1.5X20-MM) | 1 | |
| 5081082 | 22 INSULATION GP-HEAT | 1 | |
| 5110725 | 23 PLATE | 1 | |
| 5156784 | 24 PLATE AS | 1 | |
| 6V9632 | NUT-WELD (M6X1-THD) | 8 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 1 | |
| 9X2032 | NUT-WELD (M4X0.7-THD) | 6 | |
| 6S4039 | 25 GROMMET | 1 | |
| 5158370 | 26 PLATE AS | 1 | |
| 6V9632 | NUT-WELD (M6X1-THD) | 2 | |
| 5161563 | 27 PLATE | 1 | |
| 6V8928 | 28 HOOK-COAT | 1 | |
| 5217770 | 29 COVER AS | 1 | |
| 5158368 | COVER | 1 | |
| 6V9632 | NUT-WELD (M6X1-THD) | 3 | |
| 7X0613 | 30 WASHER-HARD (8.8X25.5X5-MM THK) | 2 | |
| 2241940 | 31 KNOB | 6 | |
| 9X2045 | 32 SCREW-TRUSS HEAD (M6X1X20-MM) | 55 | |
| 7X4780 | 33 GROMMET | 1 | |
| 7X7729 | 34 WASHER (11X25X3-MM THK) | 9 | |
| 8T4195 | 35 BOLT (M10X1.5X30-MM) | 4 | |
| 8T4137 | 36 BOLT (M10X1.5X20-MM) | 5 | |
| 5658956 | 37 COVER AS | 1 | |
| 6V9632 | NUT-WELD (M6X1-THD) | 4 | |
| 8T4189 | 38 BOLT (M8X1.25X20-MM) | 2 | |
| 8T4223 | 39 WASHER-HARD (13.5X25.5X3-MM THK) | 6 | |
| 8T4224 | 40 WASHER-HARD (8.8X16X2-MM THK) | 2 | |
| 8T4956 | 41 BOLT (M12X1.75X35-MM) | 6 | |
| 8V7010 | 42 BUMPER | 2 | |
| 9X2040 | 43 SCREW-TRUSS HEAD (M10X1.5X25-MM) | 2 | |
| 9X2299 | 44 LATCH AS | 1 | |
| 5535022 | 45 SEAL | 2 | |
| 5162795 | 46 WINDOW | 2 | |
| 8T3425 | 47 CHANNEL-TRIM (0.2-M EACH) | ||
| 5P5942 | 48 SEAL (3.4-M) | ||
| 5P5942 | 48A SEAL (1.1-M EACH) | ||
| 2449631 | 49 SEAL (8.2-DM) | ||
| 2449631 | 49A SEAL (4.6-DM EACH) | ||
| 8C7332 | 50 TRIM-EDGE (26.2-CM) | ||
| 8C7332 | 50A TRIM-EDGE (24.4-CM) | ||
| 8C7332 | 50B TRIM-EDGE (13.9-CM) | ||
| 8T7338 | 51 BOLT (M16X2X45-MM) | 1 | |
| 8T4132 | 52 NUT (M16X2-THD) | 1 | |
| 5V5521 | 53 SEAL-WASHER | 1 |
