System And Components

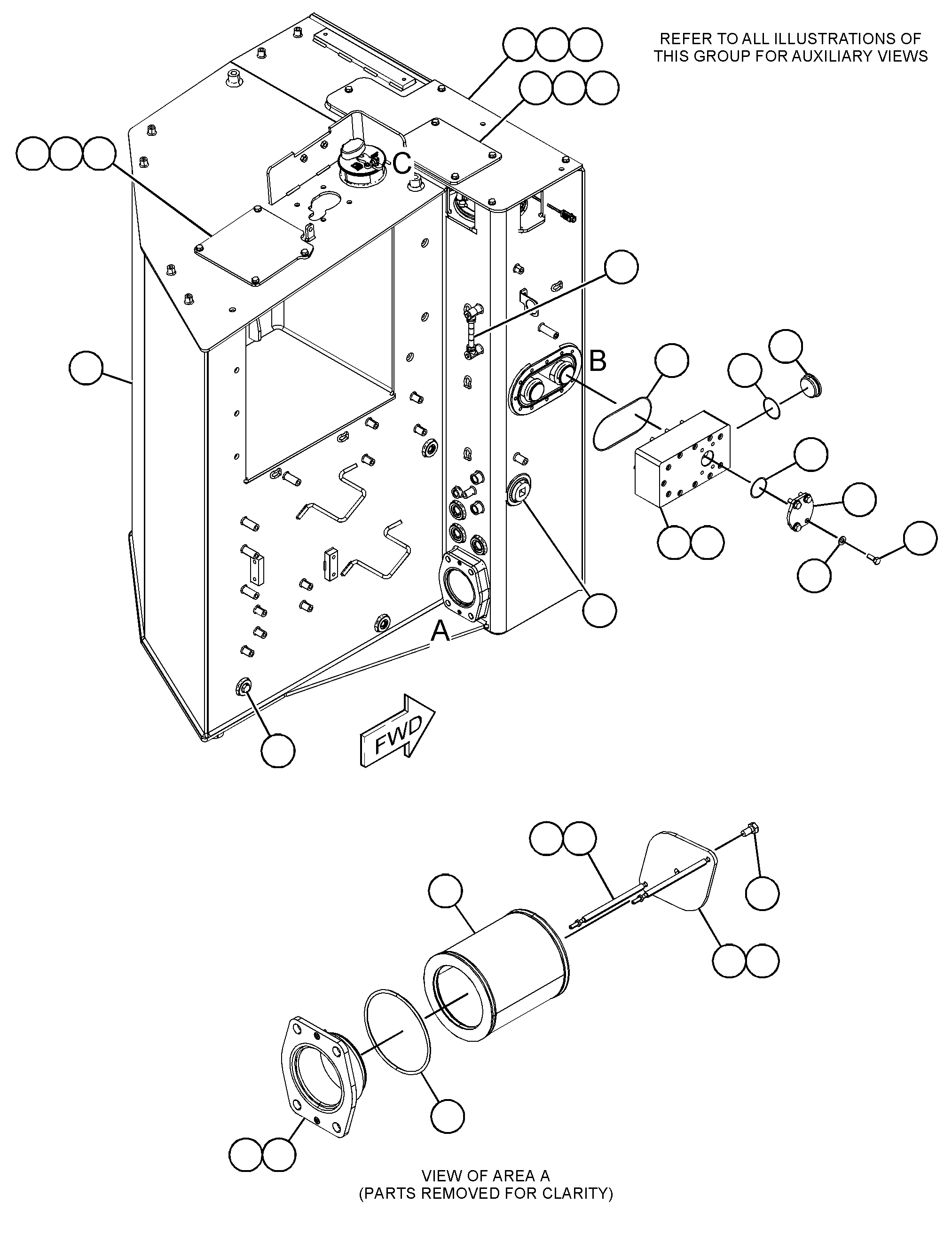

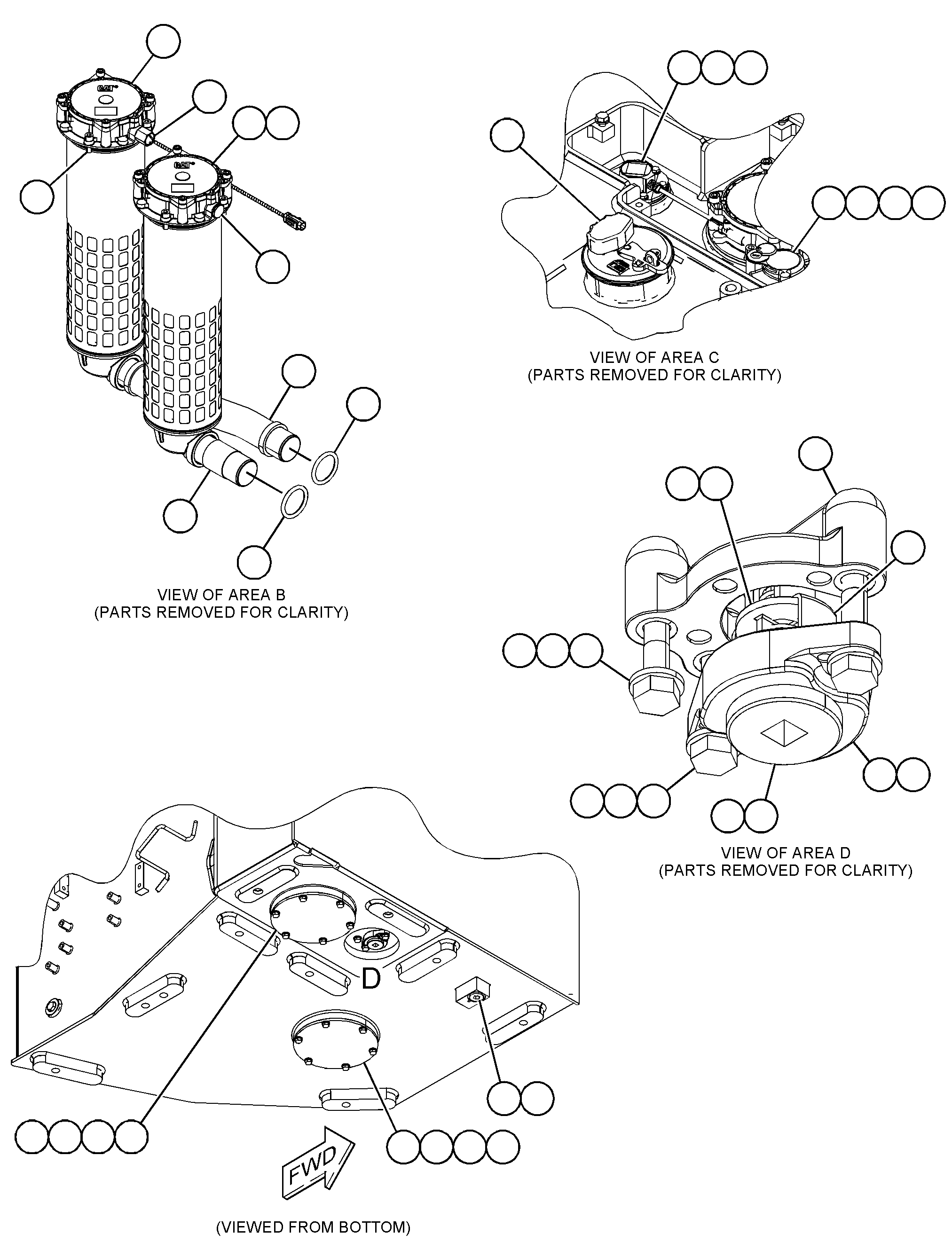

571-0630 TANK GP-FUELS/N SJN1-UP
Group No: 571-0630
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1U2827 | 1 GUIDE-VALVE | 1 | |
| 4H6520 | 2 SEAL-O-RING | 1 | |
| 6E3635 | 3 RETAINER | 1 | |
| 8J8782 | 4 BODY-DRAIN VALVE | 1 | |
| 8J8783 | 5 VALVE-DRAIN | 1 | |
| 9J7031 | 6 PLUG-DRAIN | 1 | |
| 0931588 | 7 COVER | 2 | |
| 1653256 | 8 PIPE AS | 1 | |
| 3476081 | 9 GAUGE GP-SIGHT (HYDRAULIC OIL LEVEL) | 1 | |
| 3497059 | 10 CAP AS-FUEL (LOCKABLE, VENTED) | 1 | |
| 3507735 | KIT-CAP FILTER (FUEL TANK) | 1 | |
| 3615312 | 11 PLATE | 1 | |
| 3632518 | 12 BREATHER GP (HYDRAULIC TANK) | 1 | |
| 3845243 | 13 ROD | 2 | |
| 3960751 | 14 SCREEN AS (HYDRAULIC TANK) | 1 | |
| 5H5672 | SEAL-O-RING | 1 | |
| 4866151 | 15 SENSOR AS-FUEL LEVEL | 1 | |
| 8C3107 | SEAL-O-RING | 1 | |
| 9X3401 | PIN-CONNECTOR (16-GA TO 18-GA) | 6 | |
| 2304014 | RECEPTACLE AS-CONNECTOR (3-PIN) | 1 | |
| 3634122 | GASKET | 1 | |
| 4888581 | 16 FILTER GP-OIL (HYDRAULIC RETURN) | 2 | |
| 5049586 | 17 SWITCH AS-DIFF PRESSURE (RETURN FILTER) | 1 | |
| 8T8729 | PIN-CONNECTOR (16-GA TO 20-GA) | 2 | |
| 1927510 | SEAL-O-RING | 1 | |
| 5124914 | SEAL-FACE | 1 | |
| 5098281 | 18 PIPE | 1 | |
| 5257522 | 19 PLUG AS | 1 | |
| 1927510 | SEAL-O-RING | 1 | |
| 5124914 | SEAL-FACE | 1 | |
| 0951706 | 20 SEAL-O-RING | 1 | |
| 0951730 | 21 SEAL-O-RING | 2 | |
| 1017404 | 22 BOLT-SOCKET HEAD (M10X1.5X30-MM) | 8 | |
| 1488406 | 23 PLUG AS | 1 | |
| 7M8485 | SEAL-O-RING | 1 | |
| 9S9334 | PLUG (1-5/16-12-THD) | 1 | |
| 1756176 | 24 SEAL-O-RING | 2 | |
| 1H8306 | 25 SCREW-PURGE (1/2-20X1.625-IN) | 1 | |
| 2609188 | 26 PLUG | 1 | |
| 2744556 | 27 PLUG AS | 1 | |
| 8L2786 | SEAL-O-RING | 1 | |
| 9S4185 | PLUG (3/4-16-THD) | 1 | |
| 3J2903 | 28 COVER | 1 | |
| 4H9027 | 29 PLUG-PIPE | 1 | |
| 4J0527 | 30 SEAL-O-RING | 2 | |
| 5194639 | 31 COVER AS-ACCESS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 6 | |
| 5261068 | 32 TUBE AS | 1 | |
| 5279342 | 33 PLATE | 1 | |
| 5533981 | 34 MANIFOLD | 1 | |
| 5710622 | 35 PLATE-COVER | 1 | |
| 5710629 | 36 TANK AS-FUEL | 1 | |
| 5C9553 | 37 BOLT (M6X1X16-MM) | 9 | |
| 5H6005 | 38 SEAL-O-RING | 3 | |
| 5M2057 | 39 SEAL-O-RING | 1 | |
| 6D9157 | 40 SEAL-O-RING | 1 | |
| 6V7743 | 41 LOCKNUT (M6X1-THD) | 2 | |
| 7B3039 | 42 SPRING | 1 | |
| 8T0267 | 43 BOLT-SOCKET HEAD (M6X1X12-MM) | 2 | |
| 8T3298 | 44 SEAL-RECTANGULAR | 1 | |
| 8T4121 | 45 WASHER-HARD (11X21X2.5-MM THK) | 28 | |
| 8T4137 | 46 BOLT (M10X1.5X20-MM) | 12 | |
| 8T4139 | 47 BOLT (M12X1.75X30-MM) | 4 | |
| 8T4182 | 48 BOLT (M10X1.5X45-MM) | 1 | |
| 9X8256 | 49 WASHER (6.6X12X2-MM THK) | 3 | |
| 8T4195 | 50 BOLT (M10X1.5X30-MM) | 13 | |
| 8T4201 | 51 BOLT-LOCKING (M10X1.5X20-MM) | 1 | |
| 8T4205 | 52 WASHER-HARD (7.2X14.5X2-MM THK) | 6 | |
| 8T4223 | 53 WASHER-HARD (13.5X25.5X3-MM THK) | 4 | |
| 8T6466 | 54 BOLT (M10X1.5X60-MM) | 2 | |
| 8T7586 | 55 BOLT (M10X1.5X100-MM) | 11 | |
| 8T7964 | 56 NUT (M6X1-THD) | 2 |
