System And Components

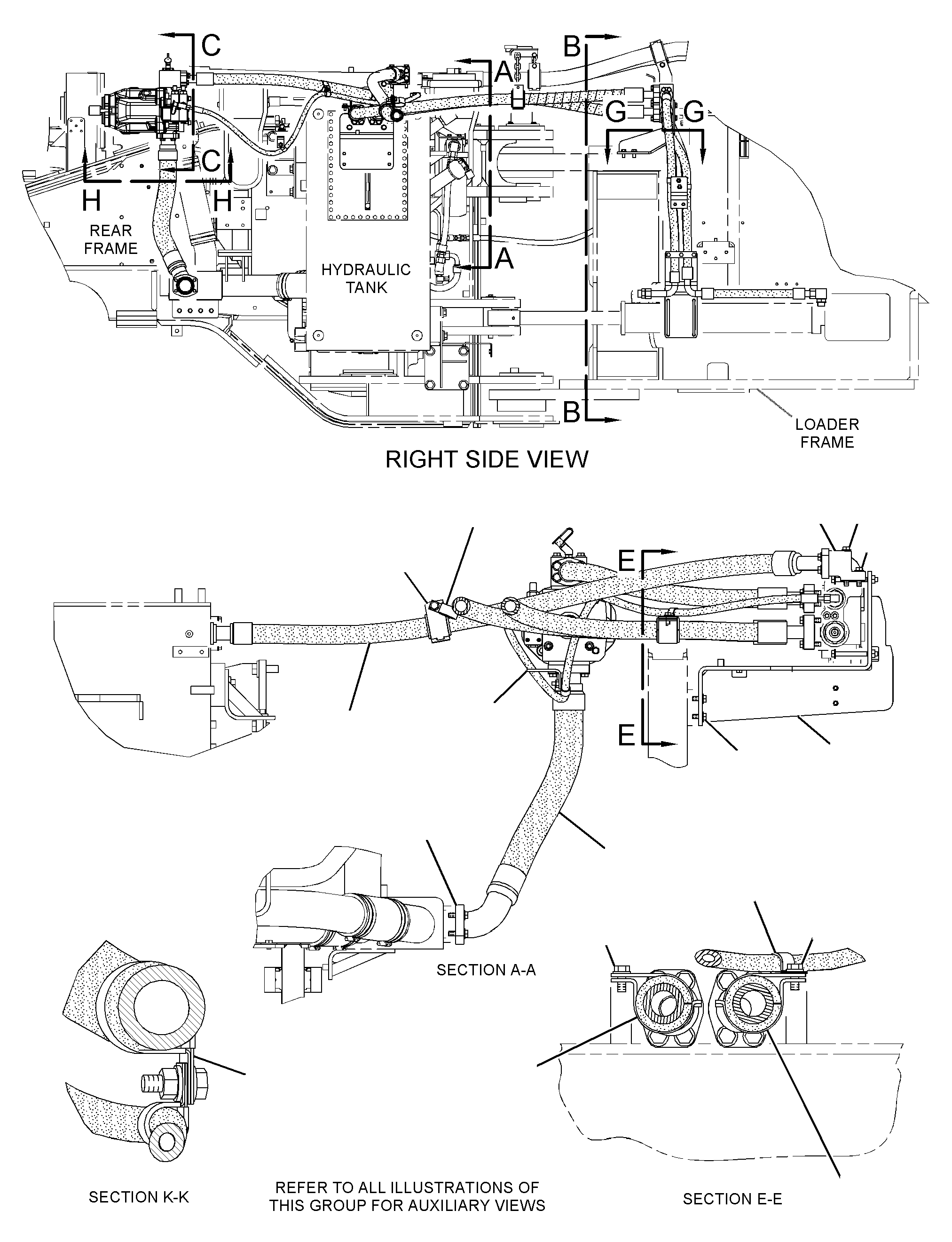

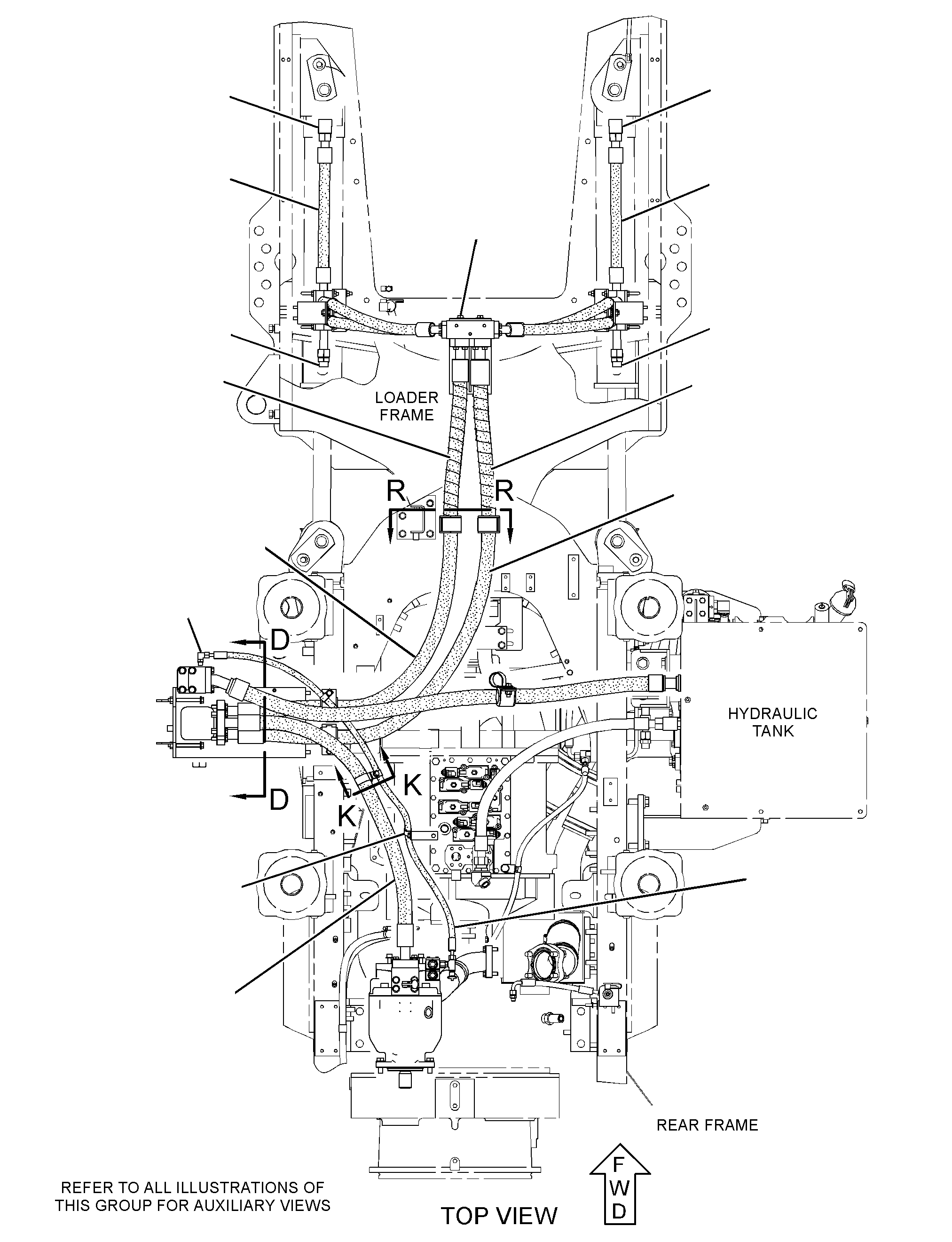

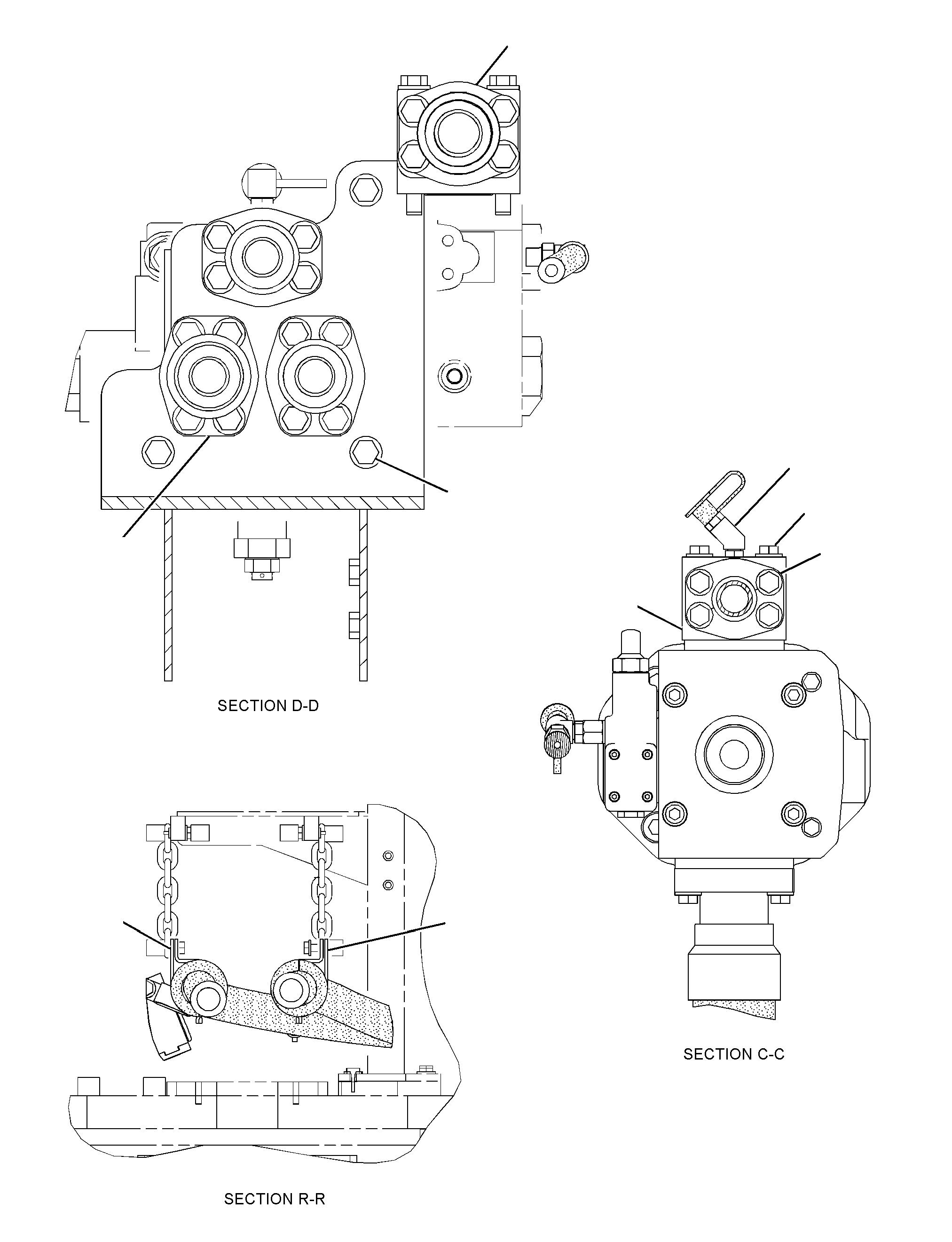

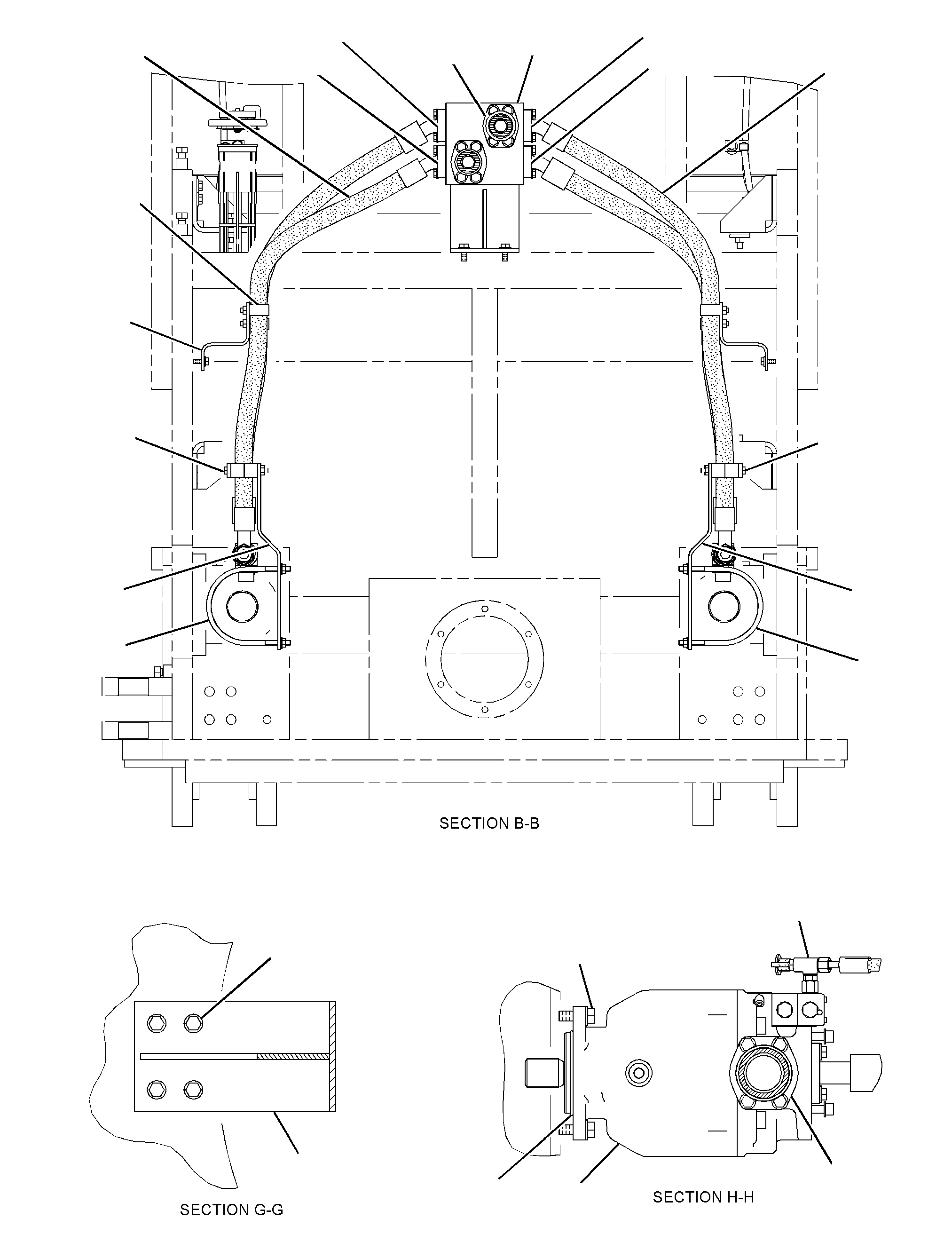

270-0497 LINES GP-STEERINGS/N BTX1-UP
Group No: 270-0497
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 6V0852 | 1 CAP-DUST | 2 | |
| 1369699 | 2 BRACKET AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 1 | |
| 1419521 | 3 HOSE AS | 1 | |
| 1488443 | 4 TEE AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 7X2459 | ADAPTER-TEE | 1 | |
| 1530148 | 5 BLOCK-MANIFOLD | 1 | |
| 1530149 | 6 BRACKET | 1 | |
| 1536396 | 7 HOSE AS | 1 | |
| 1536399 | 8 HOSE AS | 1 | |
| 1536408 | 9 BRACKET AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 2 | |
| 8T3597 | NUT-WELD (M12X1.75-THD) | 3 | |
| 8T3612 | NUT-WELD (M8X1.25-THD) | 2 | |
| 9R2672 | BOSS-THREADED (M10X1.5X120-MM) | 2 | |
| 1634507 | 10 BRACKET AS | 2 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 2 | |
| 1711470 | 11 ELBOW | 1 | |
| 2059342 | 12 CLAMP | 4 | |
| 2059343 | 13 COVER | 2 | |
| 2102120 | 14 HOSE AS | 1 | |
| 2102121 | 15 HOSE AS | 1 | |
| 2102455 | 16 HOSE AS | 1 | |
| 2102456 | 17 HOSE AS | 1 | |
| 2111645 | 18 HOSE AS | 1 | |
| 2119014 | 19 BRACKET AS | 2 | |
| 1599541 | NUT-WELD (M10X1.5-THD) | 3 | |
| 2169195 | 20 MANIFOLD | 1 | |
| 2256721 | 21 HOSE AS | 1 | |
| 3214317 | 22 HOSE AS | 1 | |
| 1488335 | 23 CONNECTOR AS | 2 | |
| 5K9090 | SEAL-O-RING | 1 | |
| 6V8635 | CONNECTOR | 1 | |
| 7M8485 | SEAL-O-RING | 1 | |
| 1488378 | 24 ELBOW AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V8724 | ELBOW | 1 | |
| 1539624 | 25 PUMP GP-PISTON | 1 | |
| 1557328 | 26 ELBOW AS | 2 | |
| 5P7701 | SEAL-O-RING | 1 | |
| 6V9008 | ELBOW | 1 | |
| 8C3093 | SEAL-O-RING | 1 | |
| 1645567 | 27 COUPLER AS-QUICK DISCONNECT (MALE) | 2 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V3965 | FITTING (QUICK DISCONNECT) | 1 | |
| 1654931 | 28 ELBOW AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8077 | ELBOW | 1 | |
| 1P3704 | 29 SEAL-RECTANGULAR | 7 | |
| 1P4579 | 30 FLANGE-HALF | 2 | |
| 1P4584 | 31 FLANGE-HALF | 4 | |
| 1P5767 | 32 FLANGE-HALF | 12 | |
| 1S0994 | 33 CLIP (LOOP) | 3 | |
| 4J0520 | 34 SEAL-O-RING | 4 | |
| 4J0524 | 35 SEAL-O-RING | 3 | |
| 5F3106 | 36 SEAL-O-RING | 1 | |
| 5P7470 | 37 CLIP (SLOT) | 3 | |
| 5P7471 | 38 CLIP (TAB) | 3 | |
| 5P7703 | 39 GROMMET (52-MM ID) | 1 | |
| 5P8182 | 40 GROMMET (46-MM ID) | 2 | |
| 6H3977 | 41 SEAL-O-RING | 1 | |
| 6V1572 | 42 CLIP (SLOT) | 2 | |
| 6V1573 | 43 CLIP (TAB) | 2 | |
| 6V1875 | 44 GROMMET (48-MM ID) | 2 | |
| 7D1553 | 45 CLIP | 2 | |
| 7D7233 | 46 CLIP | 4 | |
| 7X2549 | 47 BOLT (M12X1.75X100-MM) | 6 | |
| 7X7729 | 48 WASHER (11X25X3-MM THK) | 8 | |
| 7Y1275 | 49 U-BOLT | 4 | |
| 8C3206 | 50 FLANGE-HALF | 8 | |
| 8T4121 | 51 WASHER-HARD (11X21X2.5-MM THK) | 29 | |
| 8T4133 | 52 NUT (M10X1.5-THD) | 9 | |
| 8T4136 | 53 BOLT (M10X1.5X25-MM) | 10 | |
| 8T4139 | 54 BOLT (M12X1.75X30-MM) | 12 | |
| 8T4178 | 55 BOLT (M10X1.5X90-MM) | 6 | |
| 8T4183 | 56 BOLT (M12X1.75X40-MM) | 5 | |
| 8T4184 | 57 BOLT (M12X1.75X45-MM) | 10 | |
| 8T4194 | 58 BOLT (M12X1.75X50-MM) | 24 | |
| 8T4195 | 59 BOLT (M10X1.5X30-MM) | 2 | |
| 8T4196 | 60 BOLT (M10X1.5X35-MM) | 16 | |
| 8T4223 | 61 WASHER-HARD (13.5X25.5X3-MM THK) | 61 | |
| 8T4244 | 62 NUT (M12X1.75-THD) | 1 | |
| 8T5041 | 63 BOLT (M12X1.75X120-MM) | 3 | |
| 8T7338 | 64 BOLT (M16X2X45-MM) | 2 | |
| 9X8257 | 65 WASHER (17.5X30X3.5-MM THK) | 2 | |
| 2062736 | 66 GUARD-HOSE (51-CM EACH) | 2 |
