System And Components

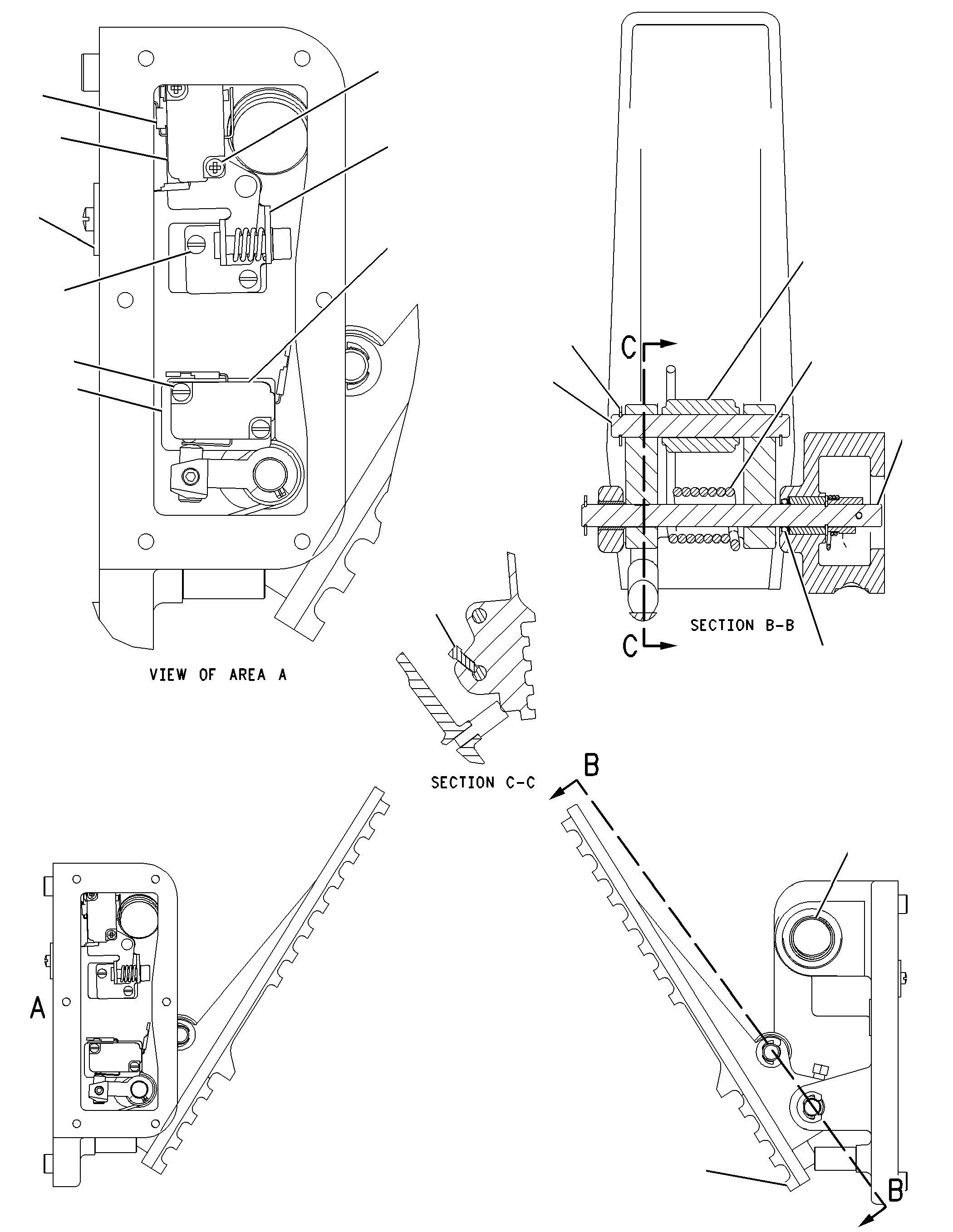

188-7496 PEDAL GP-BRAKE -PEDAL, LHS/N 3SW674-1224
Group No: 188-7496
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 4E9664 | 1 PIN | 1 | |
| 6V8672 | 2 SCREW-MACHINE (M2.5X0.45X16-MM) | 2 | |
| 8S2225 | 3 SEAL-LIP TYPE | 1 | |
| 8T2899 | 4 SCREW-MACHINE (M2.5X0.45X6-MM) | 2 | |
| 0093101 | 5 RING-RETAINING | 3 | |
| 1056117 | 6 SWITCH AS-LIMIT (STOP LIGHT) | 1 | |
| 1056118 | 7 SWITCH AS-LIMIT (TRANSMISSION NEUTRALIZER) | 1 | |
| 1137752 | 8 PEDAL-BRAKE | 1 | |
| 1149493 | 9 HARNESS AS-WIRING (LEFT FOOT BRAKE BASE) | 1 | |
| 1152247 | 10 SPRING | 1 | |
| 1253295 | 11 SCREW-PAN HEAD (M2.5X0.45X12-MM) | 2 | |
| 1322169 | 12 INSULATOR | 1 | |
| 1536273 | 13 SETSCREW (M6X1X16-MM) | 1 | |
| 1610022 | 14 SWITCH AS-ADJUSTABLE (STOP LIGHT LIMIT) | 2 | |
| 1633926 | 15 ROLLER | 1 | |
| 1634065 | 16 SEAL-O-RING | 1 | |
| 1872108 | 17 TERMINAL | 1 | |
| 1708583 | 18 SHAFT AS | 1 | |
| 7L8316 | SETSCREW-SOCKET (10-32X2.54-IN) | 1 | |
| 0093101 | RING-RETAINING | 1 | |
| 1149490 | CAM-SWITCH | 1 | |
| 1150602 | SPRING | 1 | |
| 1150603 | KNOB | 1 | |
| 1151045 | SETSCREW-SOCKET | 1 | |
| 1169895 | PIN | 1 |
