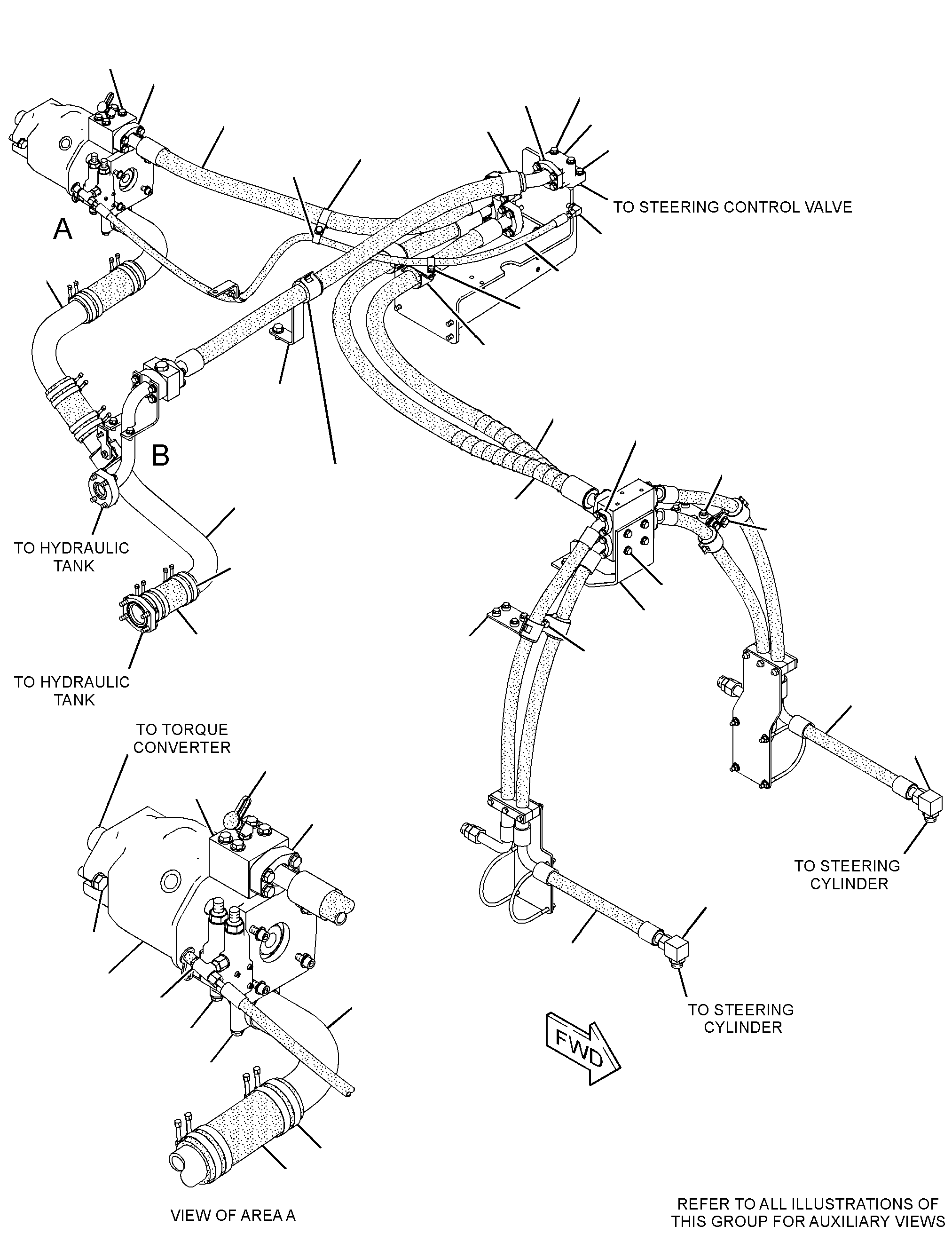

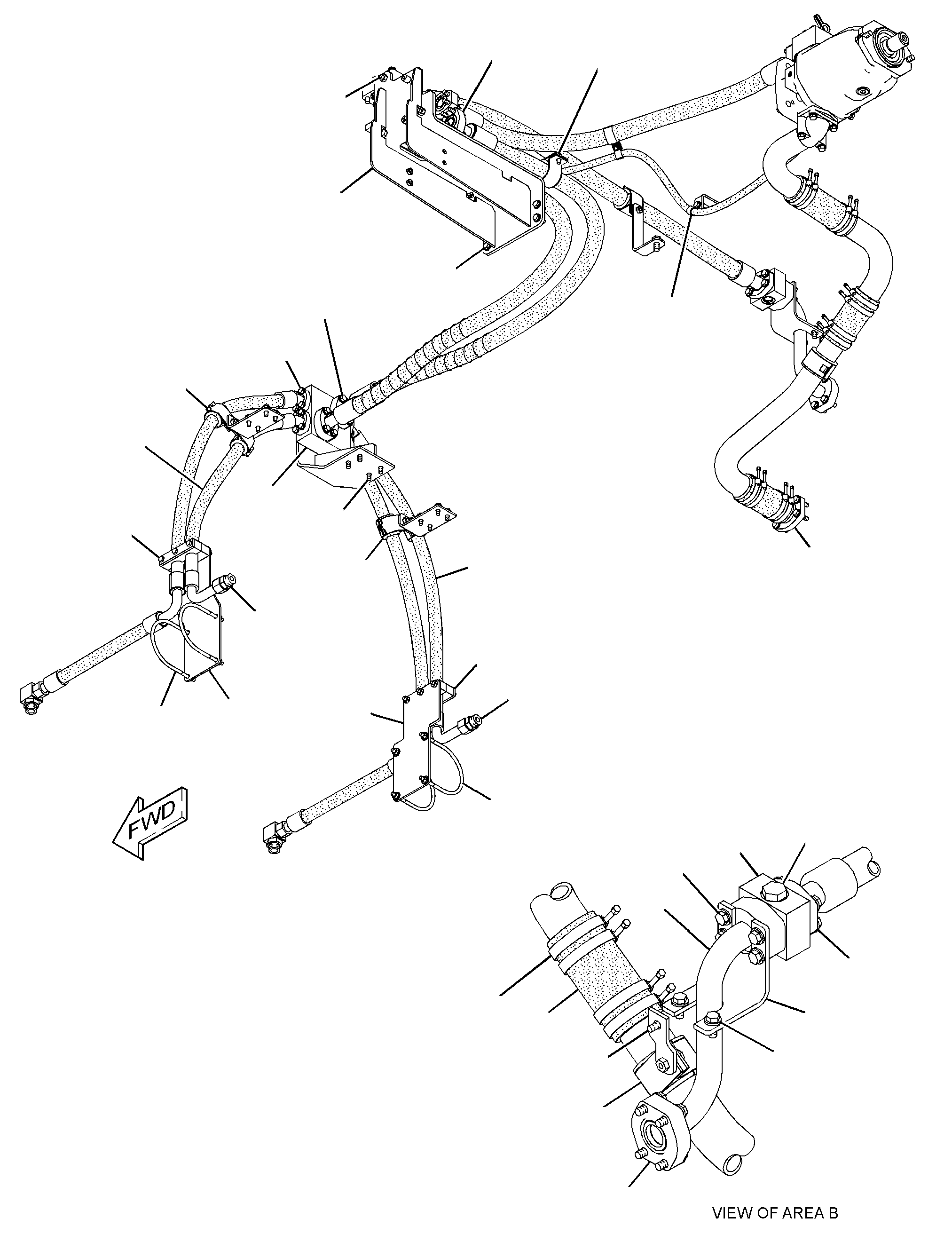

System And Components
230-2404 LINES GP-STEERINGS/N BTX1200-UP
Group No: 230-2404
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 6V0852 | 1 CAP-DUST | 2 | |
| 8T4985 | 2 CLAMP-HOSE | 12 | |
| 1319889 | 3 HOSE | 1 | |
| 1355050 | 4 HOSE | 2 | |
| 1369699 | 5 BRACKET AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 1 | |
| 1488443 | 6 TEE AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 7X2459 | ADAPTER-TEE | 1 | |
| 1530148 | 7 BLOCK-MANIFOLD | 1 | |
| 1530149 | 8 BRACKET | 1 | |
| 1536396 | 9 HOSE AS | 1 | |
| 1536399 | 10 HOSE AS | 1 | |
| 1536408 | 11 BRACKET AS | 1 | |
| 1616608 | 12 TUBE AS | 1 | |
| 1616903 | 13 PLATE | 1 | |
| 1629245 | 14 BRACKET AS | 1 | |
| 1640719 | 15 TUBE AS | 1 | |
| 1640720 | 16 TUBE | 1 | |
| 1640721 | 17 TUBE | 1 | |
| 1640722 | 18 TUBE AS | 1 | |
| 1711470 | 19 ELBOW | 1 | |
| 2059342 | 20 CLAMP | 4 | |
| 2059343 | 21 COVER | 2 | |
| 2102121 | 22 HOSE AS | 1 | |
| 2102455 | 23 HOSE AS | 1 | |
| 2111645 | 24 HOSE AS | 1 | |
| 2119014 | 25 BRACKET AS | 2 | |
| 2169195 | 26 MANIFOLD | 1 | |
| 2256721 | 27 HOSE AS | 1 | |
| 2462823 | 28 BLOCK | 1 | |
| 2470821 | 29 HOSE AS | 1 | |
| 2733225 | 30 ANGLE AS | 1 | |
| 3181476 | 31 PLATE AS | 2 | |
| 3210866 | 32 HOSE AS | 1 | |
| 3210867 | 33 HOSE AS | 1 | |
| 1065125 | 34 CLIP (SLOT) | 1 | |
| 1065126 | 35 CLIP (TAB) | 1 | |
| 3574381 | 36 CONNECTOR AS | 2 | |
| 5K9090 | SEAL-O-RING | 1 | |
| 6V8635 | CONNECTOR | 1 | |
| 7M8485 | SEAL-O-RING | 1 | |
| 3574432 | 37 ELBOW AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V8724 | ELBOW | 1 | |
| 1539624 | 38 PUMP GP-PISTON (STEERING) | 1 | |
| 3196220 | 39 ELBOW AS | 2 | |
| 6V9008 | ELBOW (90-DEG) | 1 | |
| 2287093 | SEAL-O-RING | 1 | |
| 2385084 | SEAL-O-RING | 1 | |
| 1645567 | 40 COUPLER AS-QUICK DISCONNECT (MALE) | 2 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V3965 | FITTING (QUICK DISCONNECT) | 1 | |
| 1654931 | 41 ELBOW AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8077 | ELBOW | 1 | |
| 1984777 | 42 WASHER-HARD (11X25X10-MM THK) | 8 | |
| 1H7339 | 43 SEAL-O-RING | 1 | |
| 1P3704 | 44 SEAL-RECTANGULAR | 7 | |
| 1P3706 | 45 SEAL-RECTANGULAR | 2 | |
| 1P4579 | 46 FLANGE-HALF | 4 | |
| 1P5767 | 47 FLANGE-HALF | 12 | |
| 1S0994 | 48 CLIP (LOOP) | 3 | |
| 2416185 | 49 PLUG AS | 1 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 5P9436 | PLUG | 1 | |
| 4J0520 | 50 SEAL-O-RING | 4 | |
| 4J0524 | 51 SEAL-O-RING | 3 | |
| 5F3106 | 52 SEAL-O-RING | 1 | |
| 5P7468 | 53 CLIP (SLOT) | 4 | |
| 5P7469 | 54 CLIP (TAB) | 4 | |
| 5P7470 | 55 CLIP (SLOT) | 3 | |
| 5P7471 | 56 CLIP (TAB) | 3 | |
| 5P7703 | 57 GROMMET (52-MM ID) | 1 | |
| 5P8182 | 58 GROMMET (46-MM ID) | 2 | |
| 5P8444 | 59 GROMMET (37-MM ID) | 4 | |
| 6H3977 | 60 SEAL-O-RING | 1 | |
| 7D1553 | 61 CLIP | 1 | |
| 7X0343 | 62 BOLT (5/8-11X1.25-IN) | 1 | |
| 7X2549 | 63 BOLT (M12X1.75X100-MM) | 6 | |
| 7X7729 | 64 WASHER (11X25X3-MM THK) | 8 | |
| 7Y1275 | 65 U-BOLT | 4 | |
| 8C3206 | 66 FLANGE-HALF | 8 | |
| 8T4121 | 67 WASHER-HARD (11X21X2.5-MM THK) | 24 | |
| 8T4122 | 68 WASHER-HARD (17X32X3.5-MM THK) | 1 | |
| 8T4133 | 69 NUT (M10X1.5-THD) | 9 | |
| 8T4136 | 70 BOLT (M10X1.5X25-MM) | 3 | |
| 8T4139 | 71 BOLT (M12X1.75X30-MM) | 14 | |
| 8T4176 | 72 BOLT (M12X1.75X90-MM) | 6 | |
| 8T4178 | 73 BOLT (M10X1.5X90-MM) | 6 | |
| 8T4183 | 74 BOLT (M12X1.75X40-MM) | 4 | |
| 8T4184 | 75 BOLT (M12X1.75X45-MM) | 12 | |
| 8T4192 | 76 BOLT (M12X1.75X25-MM) | 4 | |
| 8T4194 | 77 BOLT (M12X1.75X50-MM) | 24 | |
| 8T4195 | 78 BOLT (M10X1.5X30-MM) | 11 | |
| 8T4196 | 79 BOLT (M10X1.5X35-MM) | 17 | |
| 8T4223 | 80 WASHER-HARD (13.5X25.5X3-MM THK) | 77 | |
| 8T5041 | 81 BOLT (M12X1.75X120-MM) | 3 | |
| 8T7338 | 82 BOLT (M16X2X45-MM) | 2 | |
| 9X7456 | 83 GROMMET | 1 | |
| 9X8257 | 84 WASHER (17.5X30X3.5-MM THK) | 2 | |
| 8T4956 | 86 BOLT (M12X1.75X35-MM) | 4 |
