System And Components

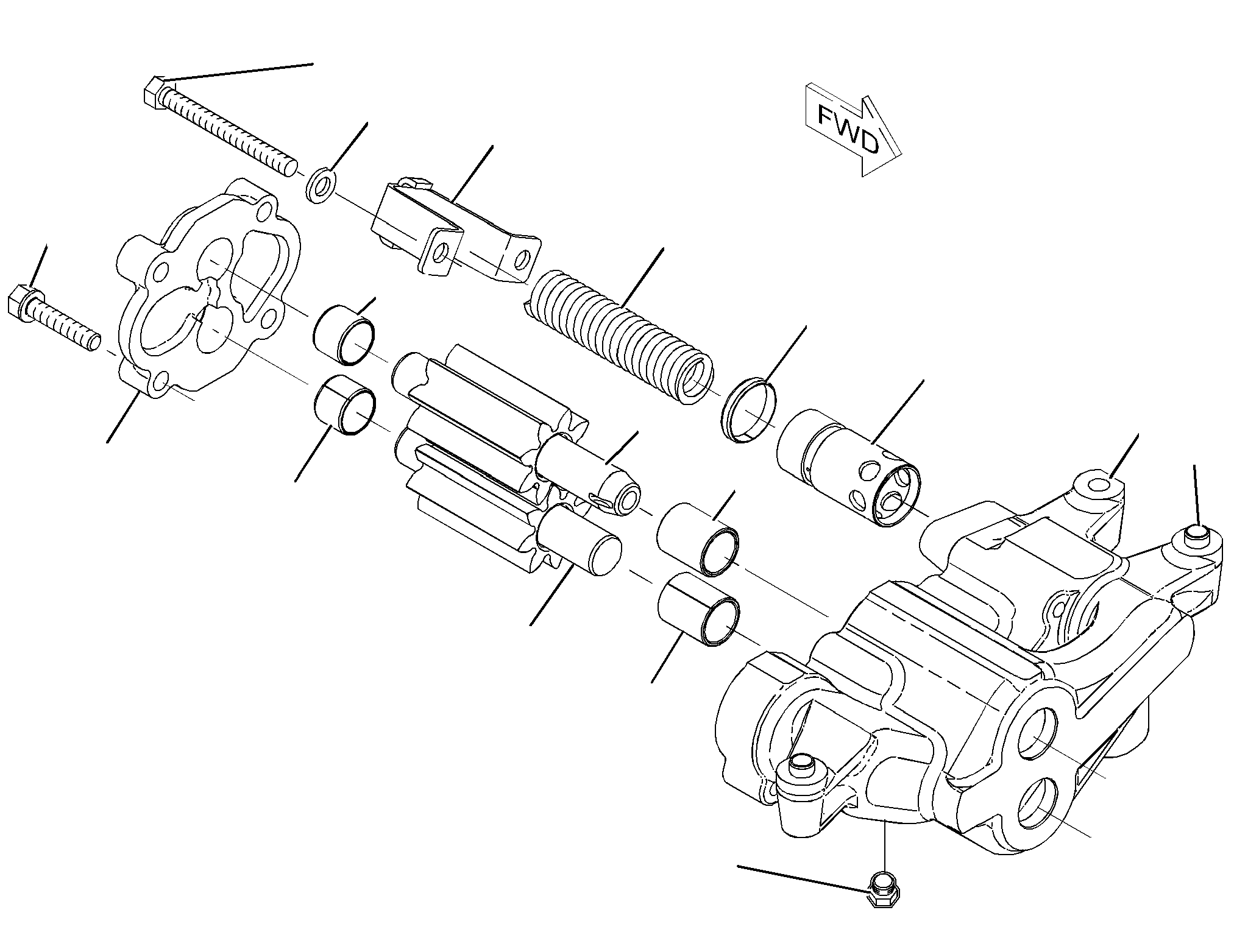

226-1191 PUMP GP-ENGINE OILS/N JHL1-UP; GPT1-UP
Group No: 226-1191
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1W7238 | 1 SHAFT AS-PUMP DRIVE | 1 | |
| 1W7239 | 2 SHAFT AS-IDLER | 1 | |
| 2P3205 | 3 BOLT-WASHER HEAD (3/8-16X1.75-IN) | 4 | |
| 7C1511 | 4 RING-PLUNGER | 1 | |
| 7C1512 | 5 PLUNGER | 1 | |
| 9Y1792 | 6 RETAINER | 1 | |
| 2369918 | 7 BODY AS | 1 | |
| 7N2156 | 7A BUSHING | 2 | |
| 8M8489 | 7B DOWEL | 2 | |
| 2S7905 | 7C PLUG-PIPE | 1 | |
| 2366733 | 8 SPRING | 1 | |
| 1276356 | 9 COVER AS-PUMP | 1 | |
| 8S6511 | 9A BUSHING | 2 | |
| 1M0644 | 10 BOLT (3/8-16X2.25-IN) | 2 | |
| 2S7905 | 11 PLUG-PIPE | 1 | |
| 5M2894 | 12 WASHER-HARD (10.2X18.5X2.5-MM THK) | 2 |
