System And Components

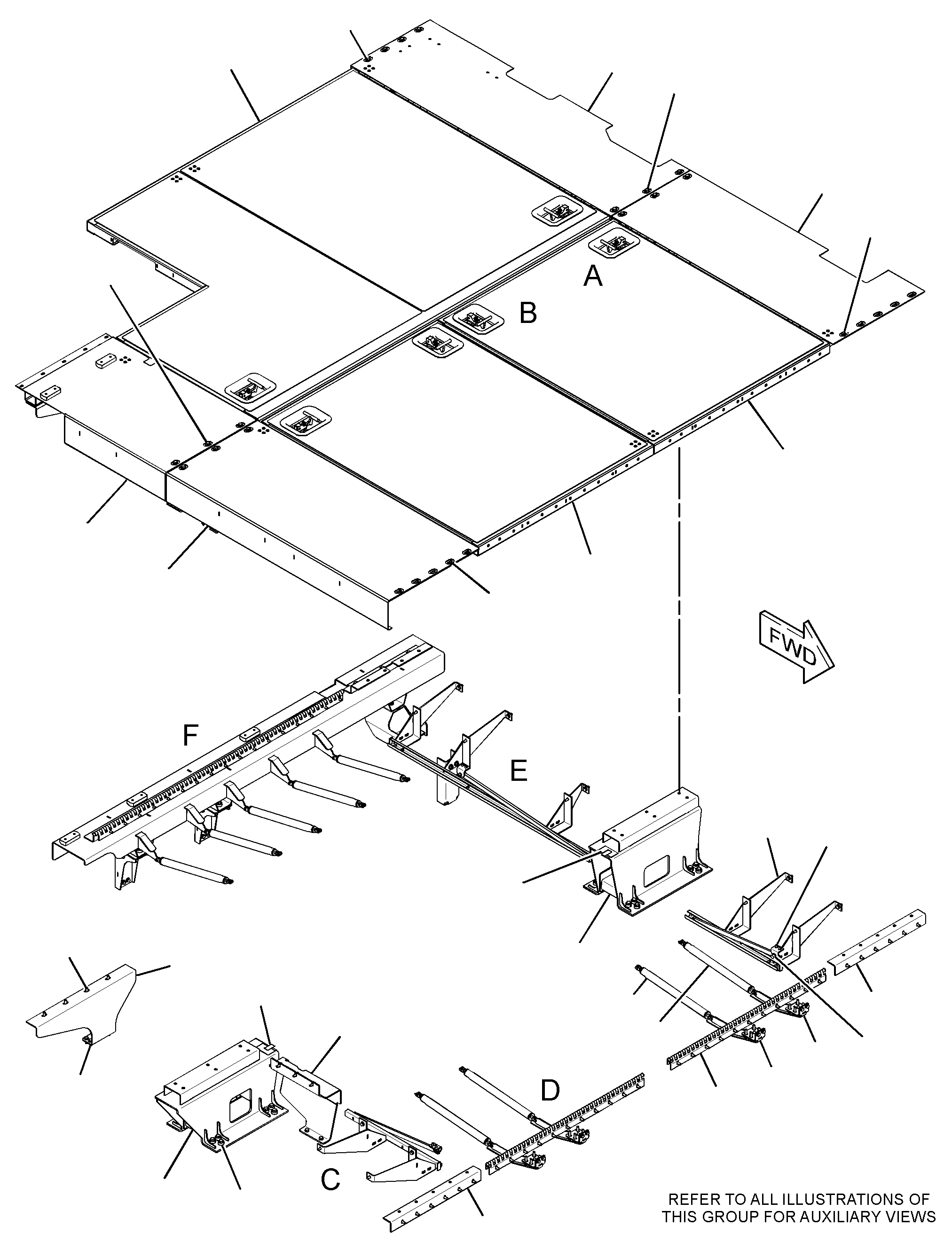

272-3282 HOOD GP-TRUCKS/N LAJ551-599
Group No: 272-3282
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 3T7857 | 1 PLUG-BUTTON | 12 | |
| 4525010 | 3 LATCH AS | 6 | |
| 3069504 | 4 HINGE AS | 2 | |
| 3206679 | 5 PROP AS | 2 | |
| 6V3538 | DOWEL | 1 | |
| 4533334 | 6 PANEL AS-HOOD | 1 | |
| 4533332 | 7 PANEL AS-HOOD | 1 | |
| 8Y6368 | PAN-MOUNT | 2 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 12 | |
| 8T3612 | NUT-WELD (M8X1.25-THD) | 2 | |
| 4549355 | 8 PLATE AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 4 | |
| 4533350 | 9 PLATE AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 4 | |
| 3464228 | 10 PLATE AS | 2 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 5 | |
| 4549356 | 11 PLATE AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 6 | |
| 8X3178 | PLATE | 3 | |
| 3464335 | 12 BRACKET AS | 4 | |
| 3464337 | 13 PLATE | 2 | |
| 4533336 | 14 PANEL AS-HOOD | 1 | |
| 8Y6368 | PAN-MOUNT | 2 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 17 | |
| 8T3612 | NUT-WELD (M8X1.25-THD) | 2 | |
| 3464386 | 15 PLATE AS | 1 | |
| 3464398 | 16 HINGE AS | 1 | |
| 3464411 | 17 PLATE AS | 1 | |
| 3470991 | 18 PLATE AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 4 | |
| 3471000 | 19 PLATE AS | 1 | |
| 3474474 | 20 STRUT AS | 4 | |
| 3474475 | 21 STRUT AS | 5 | |
| 0950843 | PIN-COTTER | 2 | |
| 0951313 | PIN-CLEVIS | 2 | |
| 3585498 | 22 PLATE | 1 | |
| 3716258 | 25 PLATE AS | 1 | |
| 7X0752 | BOSS-WELD (M10X1.5X65-MM) | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 6 | |
| 3716259 | 26 PLATE AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 6 | |
| 4331548 | 27 SUPPORT AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 24 | |
| 4331576 | 28 PLATE AS | 1 | |
| 8T3597 | NUT-WELD (M12X1.75-THD) | 2 | |
| 4331577 | 29 BRACKET AS | 2 | |
| 8T3597 | NUT-WELD (M12X1.75-THD) | 2 | |
| 4549354 | 30 PLATE AS | 1 | |
| 8X3178 | PLATE | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 4 | |
| 4499142 | 31 PROP AS | 1 | |
| 6V3535 | DOWEL | 1 | |
| 4499144 | 32 PLATE AS | 1 | |
| 4507656 | 33 PLATE | 1 | |
| 1984766 | 34 WASHER-HARD (11X25X10-MM THK) | 16 | |
| 1984778 | 35 WASHER-HARD (13.5X30X12-MM THK) | 28 | |
| 3B4618 | 36 PIN-COTTER | 1 | |
| 3B4627 | 37 PIN-COTTER | 2 | |
| 4H4641 | 38 PIN | 1 | |
| 5P1076 | 39 WASHER-HARD (13.5X30X4-MM THK) | 2 | |
| 5P4116 | 40 WASHER-HARD (8.8X20.5X2-MM THK) | 6 | |
| 7X7729 | 41 WASHER (11X25X3-MM THK) | 56 | |
| 8T4121 | 42 WASHER-HARD (11X21X2.5-MM THK) | 130 | |
| 8T4133 | 43 NUT (M10X1.5-THD) | 14 | |
| 8T4136 | 44 BOLT (M10X1.5X25-MM) | 93 | |
| 8T4137 | 45 BOLT (M10X1.5X20-MM) | 41 | |
| 8T4139 | 46 BOLT (M12X1.75X30-MM) | 2 | |
| 8T4183 | 47 BOLT (M12X1.75X40-MM) | 24 | |
| 8T4186 | 48 BOLT (M10X1.5X40-MM) | 16 | |
| 8T4189 | 49 BOLT (M8X1.25X20-MM) | 6 | |
| 8T4195 | 50 BOLT (M10X1.5X30-MM) | 50 | |
| 8T4223 | 51 WASHER-HARD (13.5X25.5X3-MM THK) | 3 | |
| 8T4956 | 52 BOLT (M12X1.75X35-MM) | 4 | |
| 9D8353 | 53 PIN | 2 | |
| 5P5661 | 54 SEAL (0.1-M EACH) | ||
| 4533329 | 55 PLATE | 1 | |
| 4525011 | 56 PAWL | 6 | |
| 2519567 | 57 NUT (M20X1.5-THD) | 12 | |
| 6V7688 | 58 LOCKNUT (M20X2.5-THD) | 6 |
