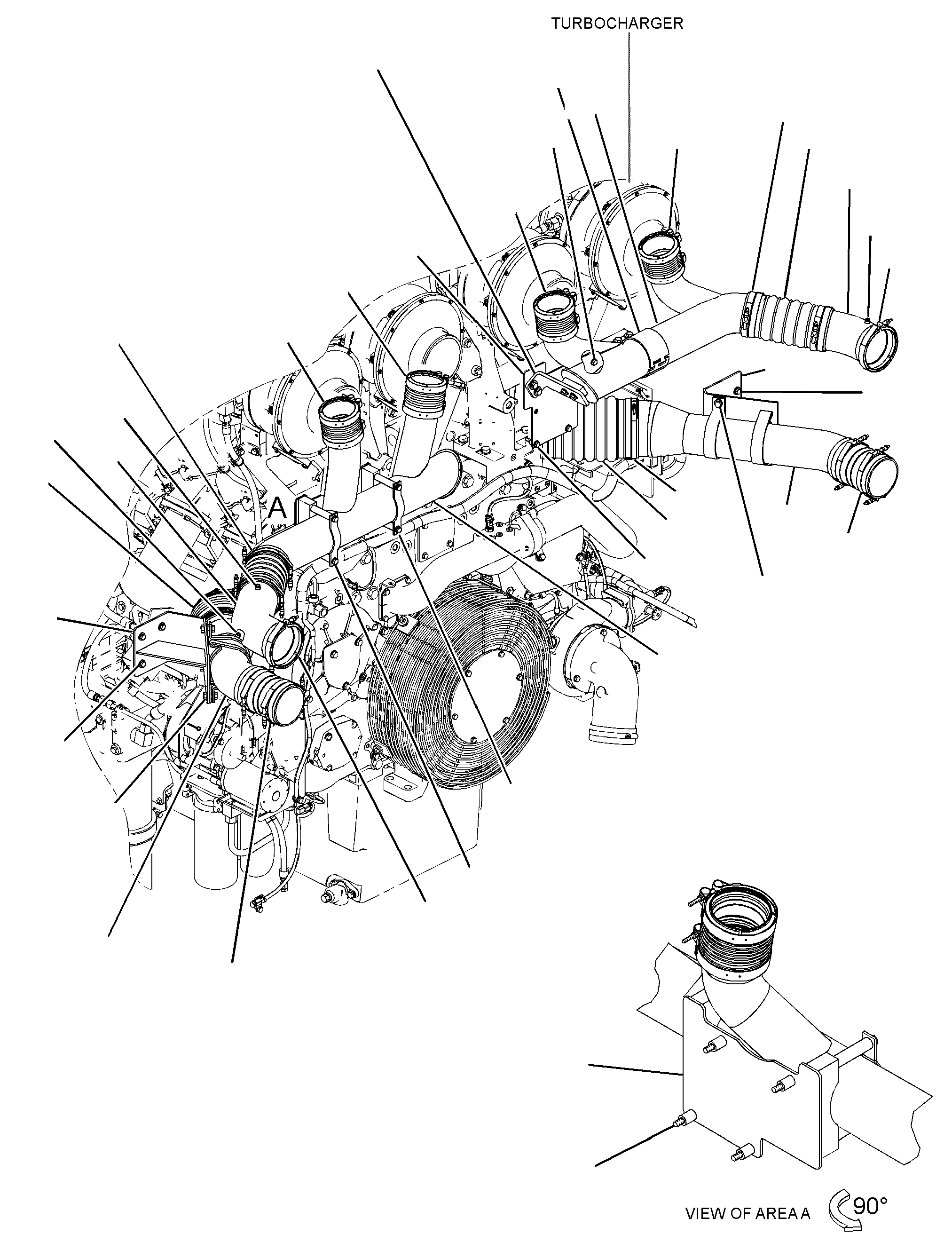

326-8934 LINES GP-AIR -AFTERCOOLERS/N SSP1-199

Group No: 326-8934
Part NumberPart NameQty
9N19411 CLAMP-V BAND2
13562602 CLAMP-HOSE16
19258213 CLAMP-HALF2
25141844 CLAMP8
28559255 HOSE2
30268496 HOSE2
30289947 TUBE AS1
30289988 TUBE AS1
30331319 CLAMP-BAND8
304959510 BELLOWS AS4
312478411 HOSE2
314567912 TUBE AS1
314568013 TUBE AS1
317109414 PLATE2
328684515 TUBE AS1
328684616 TUBE AS1
328686317 BRACKET AS1
8T4935BOSS-WELD (M10X1.5X45-MM)1
328686418 BRACKET AS1
8T3490NUT-WELD (M10X1.5-THD)2
8T3597NUT-WELD (M12X1.75-THD)4
333127219 BRACKET1
336153920 BRACKET AS1
8T3597NUT-WELD (M12X1.75-THD)2
336154021 BRACKET AS1
8T3597NUT-WELD (M12X1.75-THD)2
173209022 SPACER (11X20X15-MM THK)4
1M338123 SPACER (0.438X0.75X1-IN THK)4
5J580124 PIPE4
5M621425 PLUG (1/8-27 PTF)3
5P107626 WASHER-HARD (13.5X30X4-MM THK)4
7W203327 CLIP (TAB)4
7W203428 CLIP (SLOT)4
7X254329 BOLT (M10X1.5X120-MM)4
7X772930 WASHER (11X25X3-MM THK)8
8T412131 WASHER-HARD (11X21X2.5-MM THK)12
8T413732 BOLT (M10X1.5X20-MM)8
8T413933 BOLT (M12X1.75X30-MM)10
8T418234 BOLT (M10X1.5X45-MM)2
8T418535 BOLT (M10X1.5X50-MM)4
8T418636 BOLT (M10X1.5X40-MM)2
8T422337 WASHER-HARD (13.5X25.5X3-MM THK)6
