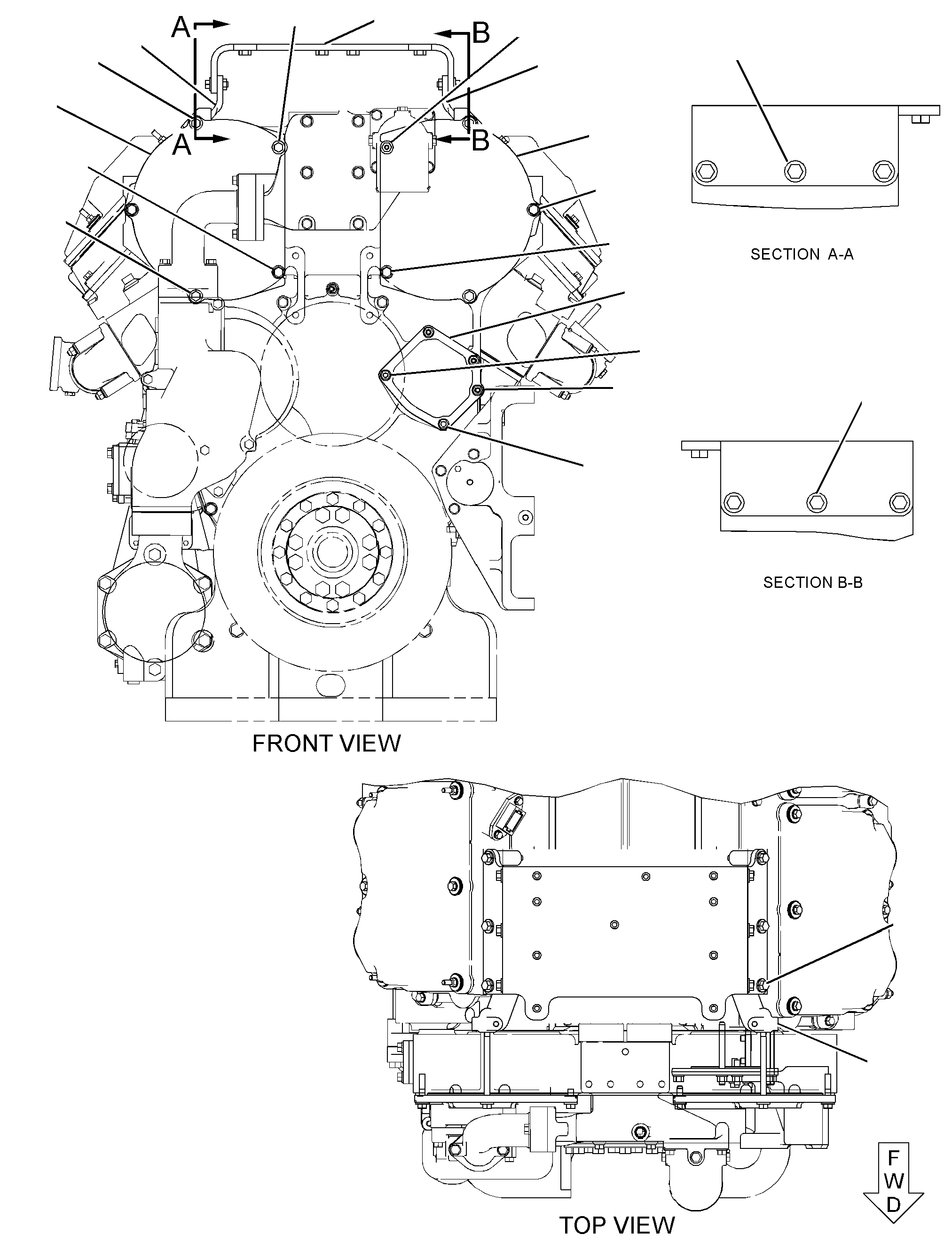

224-3170 COVER GP-CYLINDER BLOCK -FRONT STRUCTURES/N TWM1-UP

Group No: 224-3170
Part NumberPart NameQty
4P78201 COVER-ACCESSORY DRIVE1
22890933 SUPPORT AS1
8T3490NUT-WELD (M10X1.5-THD)11
7T1099LINK1
23434414 SUPPORT-HOUSING (LH)2
27440515 COVER-CAMSHAFT2
23911396 SEAL2
23914187 BRACKET AS1
1F0750NUT-WELD (3/8-16-THD)3
23914198 BRACKET AS1
1F0750NUT-WELD (3/8-16-THD)3
0S15889 BOLT (3/8-16X1.25-IN)6
0S159010 BOLT (3/8-16X2-IN)4
0S159412 BOLT (3/8-16X1-IN)3
0S161913 BOLT (3/8-16X3-IN)6
125979415 SEAL-O-RING1
2M153817 STUD-TAPERLOCK (3/8-16X1.6-IN)1
2P197418 STUD-TAPERLOCK (3/8-16X4.2-IN)3
3K325619 STUD-TAPERLOCK (3/8-16X1.7-IN)1
5F489920 BOLT (3/8-16X5.5-IN)2
5M289421 WASHER-HARD (10.2X18.5X2.5-MM THK)5
9S875222 NUT-FULL (3/8-16-THD)6
9X645823 WASHER-HARD (10.2X22.5X3-MM THK)22
