System And Components

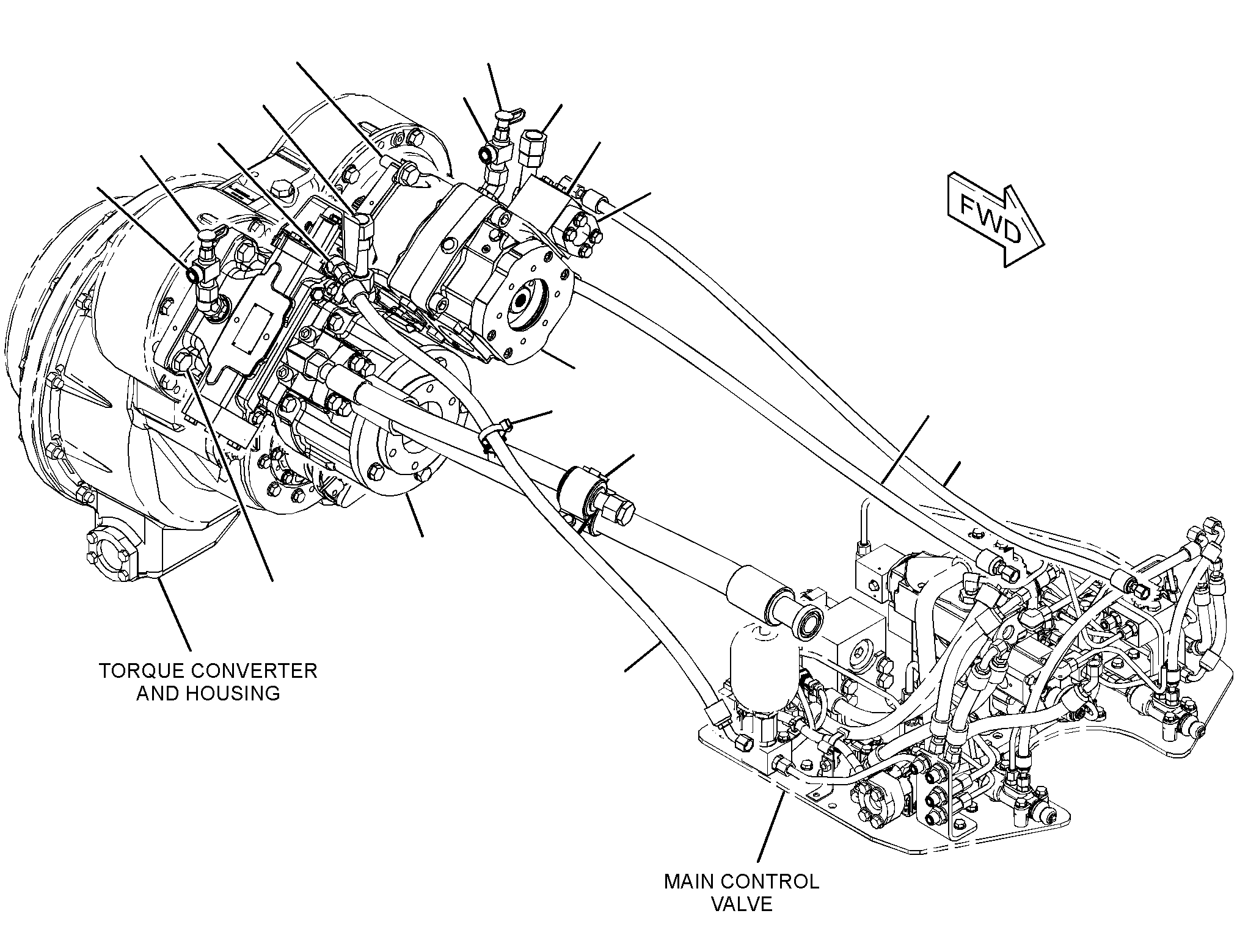

347-5023 PUMP & MTG GP-IMPL & STEERINGS/N TWX1-200
Group No: 347-5023
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 6V0852 | 1 CAP-DUST | 2 | |
| 3309389 | 2 PUMP GP-PISTON (IMPLEMENT) | 1 | |
| 3574489 | 3 ELBOW AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 9X2085 | ELBOW | 1 | |
| 3574493 | 4 ELBOW AS | 1 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 7M8485 | SEAL-O-RING | 1 | |
| 8T4149 | ELBOW | 1 | |
| 3574494 | 5 ELBOW AS | 1 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 6V9004 | ELBOW | 1 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 3574497 | 6 ELBOW AS | 1 | |
| 5K9090 | SEAL-O-RING | 1 | |
| 6V9005 | ELBOW | 1 | |
| 7M8485 | SEAL-O-RING | 1 | |
| 3574498 | 7 ELBOW AS | 1 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 5K9090 | SEAL-O-RING | 1 | |
| 8T7970 | ELBOW | 1 | |
| 3629620 | 8 PUMP GP-PISTON (STEERING) | 1 | |
| 3733214 | 9 COUPLING AS | 1 | |
| 2043975 | PIN-SPRING | 1 | |
| 3740557 | 10 TUBE AS | 2 | |
| 1645567 | 11 COUPLER AS-QUICK DISCONNECT (MALE) | 2 | |
| 6V3965 | FITTING (QUICK DISCONNECT) | 1 | |
| 2147568 | SEAL-O-RING | 1 | |
| 3048026 | 12 TEE AS | 2 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 3048025 | TEE | 1 | |
| 3295518 | 13 ADAPTER AS | 2 | |
| 8T2353 | ADAPTER | 1 | |
| 2147566 | SEAL-O-RING | 1 | |
| 5D4311 | 14 SEAL-O-RING | 1 | |
| 5K9090 | 15 SEAL-O-RING | 2 | |
| 6F4718 | 16 SEAL-O-RING | 1 | |
| 6V9833 | 17 CAP | 2 | |
| 7X2563 | 18 BOLT (M20X2.5X60-MM) | 8 | |
| 8T5439 | 19 WASHER-HARD (21.5X45X6-MM THK) | 8 | |
| 1P3704 | 20 SEAL-RECTANGULAR | 1 | |
| 1P3706 | 21 SEAL-RECTANGULAR | 1 | |
| 1P5767 | 22 FLANGE-HALF | 2 | |
| 2042281 | 23 STRAP-CABLE | 2 | |
| 2006345 | 24 SADDLE-MOUNTING (DUAL SWIVEL) | 1 | |
| 2169195 | 25 MANIFOLD | 1 | |
| 3574432 | 26 ELBOW AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V8724 | ELBOW | 1 | |
| 3574439 | 27 ELBOW AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 8T6876 | ELBOW | 1 | |
| 3768020 | 28 HOSE AS | 1 | |
| 6V8201 | 29 BOLT-SOCKET HEAD (M16X2X45-MM) | 4 | |
| 3768021 | 30 HOSE AS | 1 | |
| 7X2549 | 31 BOLT (M12X1.75X100-MM) | 4 | |
| 3778836 | 32 HOSE AS | 1 | |
| 8T4194 | 33 BOLT (M12X1.75X50-MM) | 4 | |
| 8T4223 | 34 WASHER-HARD (13.5X25.5X3-MM THK) | 8 | |
| 3785380 | 35 LINES GP-HYDRAULIC (MODULE) | 1 |
