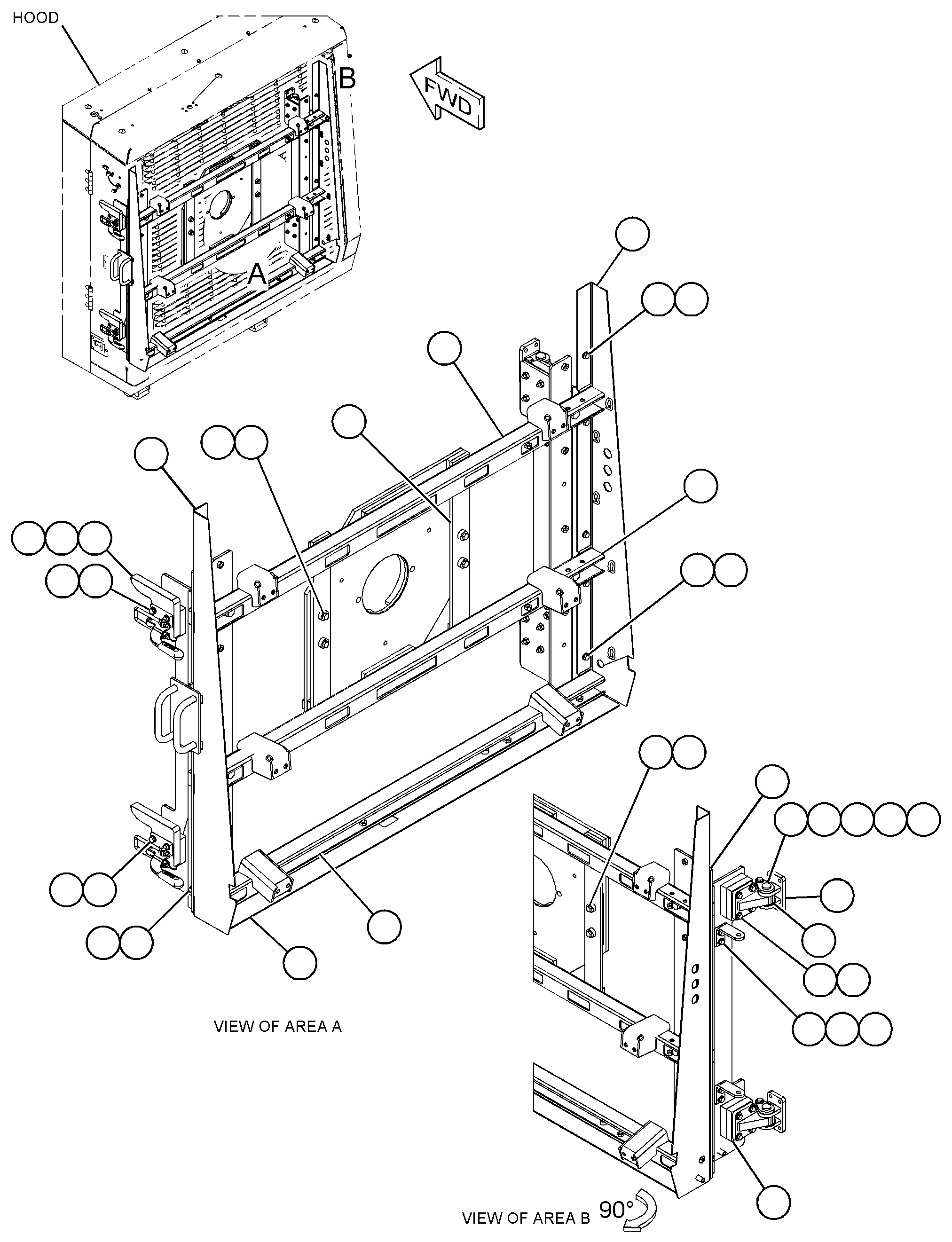

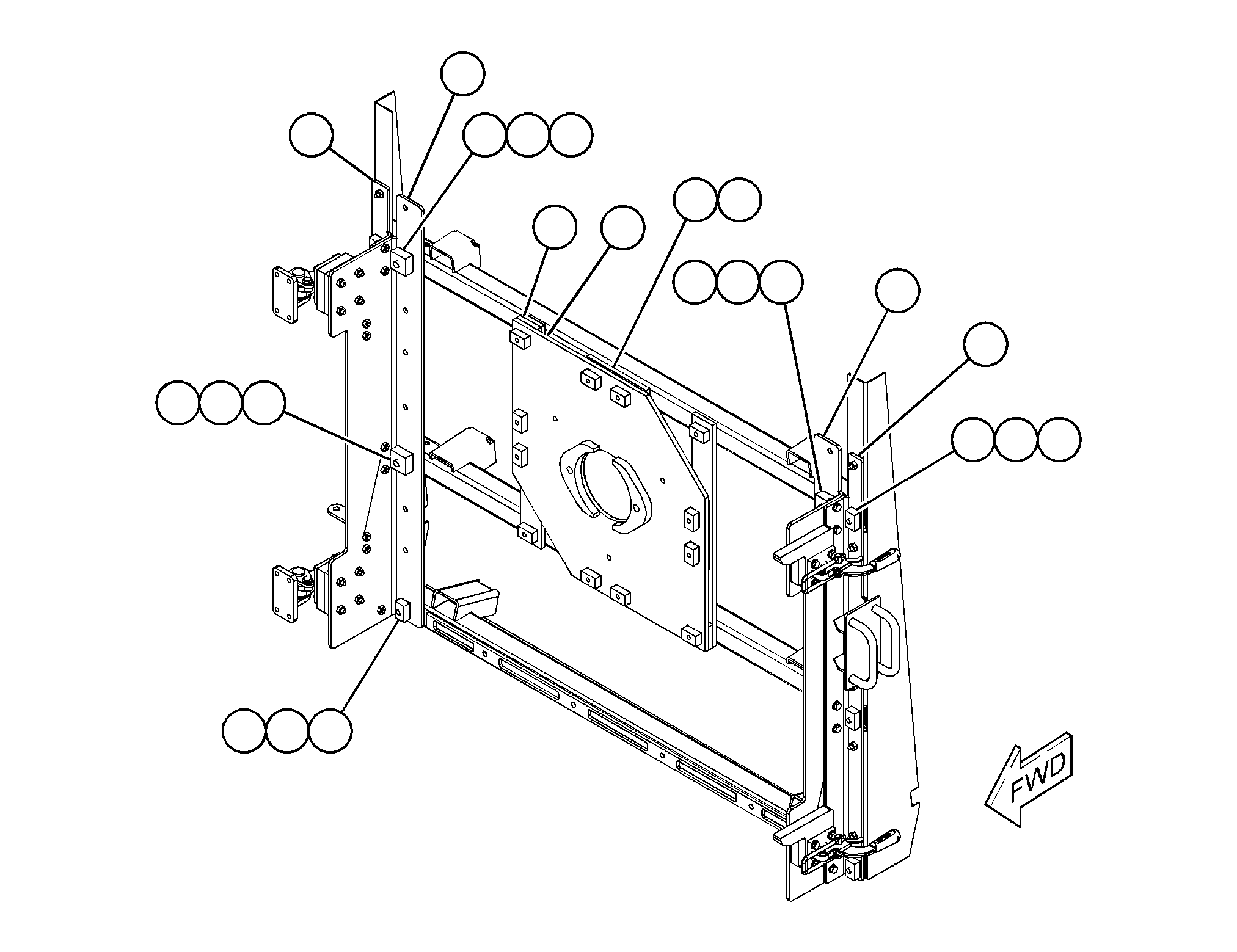

486-1508 SUPPORT GP-FAN DRIVES/N TWZ560-UP

Group No: 486-1508
Part NumberPart NameQty
11549681 BUSHING2
18872702 PIN AS2
24925193 CLAMP AS2
36333484 PLATE4
36333525 CHANNEL AS1
8T3490NUT-WELD (M10X1.5-THD)4
36333536 CHANNEL AS1
8T3490NUT-WELD (M10X1.5-THD)8
9R2613BOSS-WELD (M10X1.5X25-MM)1
36333547 PLATE2
36333558 PLATE2
36333759 PLATE1
363338510 BRACKET2
363339811 PLATE2
373774212 PLATE1
373774713 PLATE2
373774814 ANGLE AS1
373774915 ANGLE AS1
8T3490NUT-WELD (M10X1.5-THD)21
8T3851BOSS-WELD (M10X1.5X17.5-MM)1
373775016 ANGLE AS1
8T3490NUT-WELD (M10X1.5-THD)5
373775117 ANGLE AS1
373775218 CHANNEL AS1
8T3490NUT-WELD (M10X1.5-THD)4
373775919 PLATE4
373776320 PLATE AS1
7T1099LINK5
8T3851BOSS-WELD (M10X1.5X17.5-MM)1
433712821 SPACER (17X30X35-MM THK)4
433752122 BLOCK10
433752223 PLATE4
433785324 HINGE AS2
433785425 HINGE AS2
483901226 PLATE2
484886127 SUPPORT AS-FAN1
198477828 WASHER-HARD (13.5X30X12-MM THK)20
5C911929 WASHER6
7X255530 BOLT (M16X2X80-MM)4
7X772931 WASHER (11X25X3-MM THK)10
8T412132 WASHER-HARD (11X21X2.5-MM THK)36
8T413733 BOLT (M10X1.5X20-MM)2
8T417234 BOLT (M10X1.5X80-MM)8
8T417835 BOLT (M10X1.5X90-MM)8
8T419436 BOLT (M12X1.75X50-MM)10
8T419537 BOLT (M10X1.5X30-MM)28
8T464838 BOLT (M12X1.75X70-MM)10
