System And Components

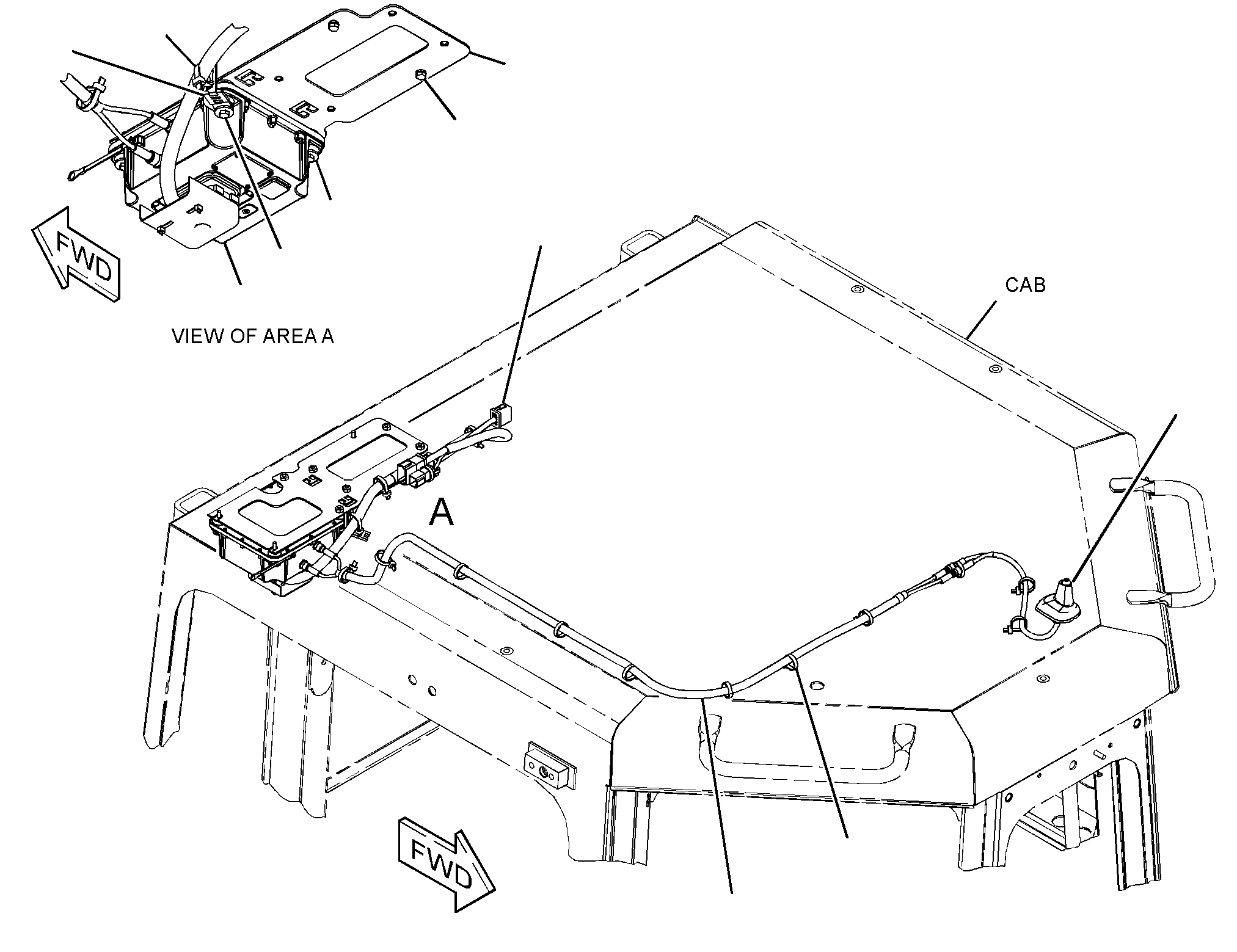

390-3469 INSTALLATION GP-COMMUNICATION -PRODUCT LINK 523S/N AMA1-515
Group No: 390-3469
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 8C5608 | 1 SPACER (6.5X9.5X25.4-MM THK) | 4 | |
| 3732726 | 2 PLATE AS | 1 | |
| 3348229 | 3 HARNESS AS-CONTROL | 1 | |
| 1028804 | KIT-RECEPTACLE (4-PIN) | 1 | |
| 1028801 | KIT-RECEPTACLE (12-PIN) | 1 | |
| 8T8729 | PIN-CONNECTOR (16-GA TO 20-GA) | 2 | |
| 8T8730 | SOCKET-CONNECTOR (16-GA TO 20-GA) | 4 | |
| 8T8737 | PLUG-SEAL | 54 | |
| 9X3401 | PIN-CONNECTOR (16-GA TO 18-GA) | 13 | |
| 9X3402 | SOCKET-CONNECTOR (16-GA TO 18-GA) | 25 | |
| 7K1181 | STRAP-CABLE | 2 | |
| 1257874 | TUBE-HEAT SHRINK (5.72-MM DIA)(20-CM) | ||
| 1261774 | COVER-CONNECTOR | 1 | |
| 1552255 | KIT-CONNECTING PLUG (12-PIN) | 1 | |
| 1607690 | PLUG AS-CONNECTOR (70-PIN) | 1 | |
| 1599322 | SEAL-O-RING | 1 | |
| 2743779 | CAP-SEAL | 1 | |
| 3469376 | 4 ANTENNA AS | 1 | |
| 3512352 | 5 CABLE AS | 1 | |
| 3518492 | 6 CONTROL GP-UNPROGRAMMED (PRODUCT LINK 523) | 1 | |
| 1566175 | 7 CLIP (LADDER) | 1 | |
| 5C9553 | 8 BOLT (M6X1X16-MM) | 2 | |
| 7K1181 | 9 STRAP-CABLE | 16 | |
| 9X2480 | 10 BOLT (M6X1X45-MM) | 3 | |
| 9X6165 | 11 WASHER (6.5X22X2.5-MM THK) | 9 | |
| 9X8256 | 12 WASHER (6.6X12X2-MM THK) | 2 | |
| 9X9896 | 13 MOUNT (ISOLATION) | 8 | |
| 7X2534 | 14 BOLT (M6X1X50-MM) | 1 | |
| 4P7581 | 15 CLIP (LADDER) | 1 |
