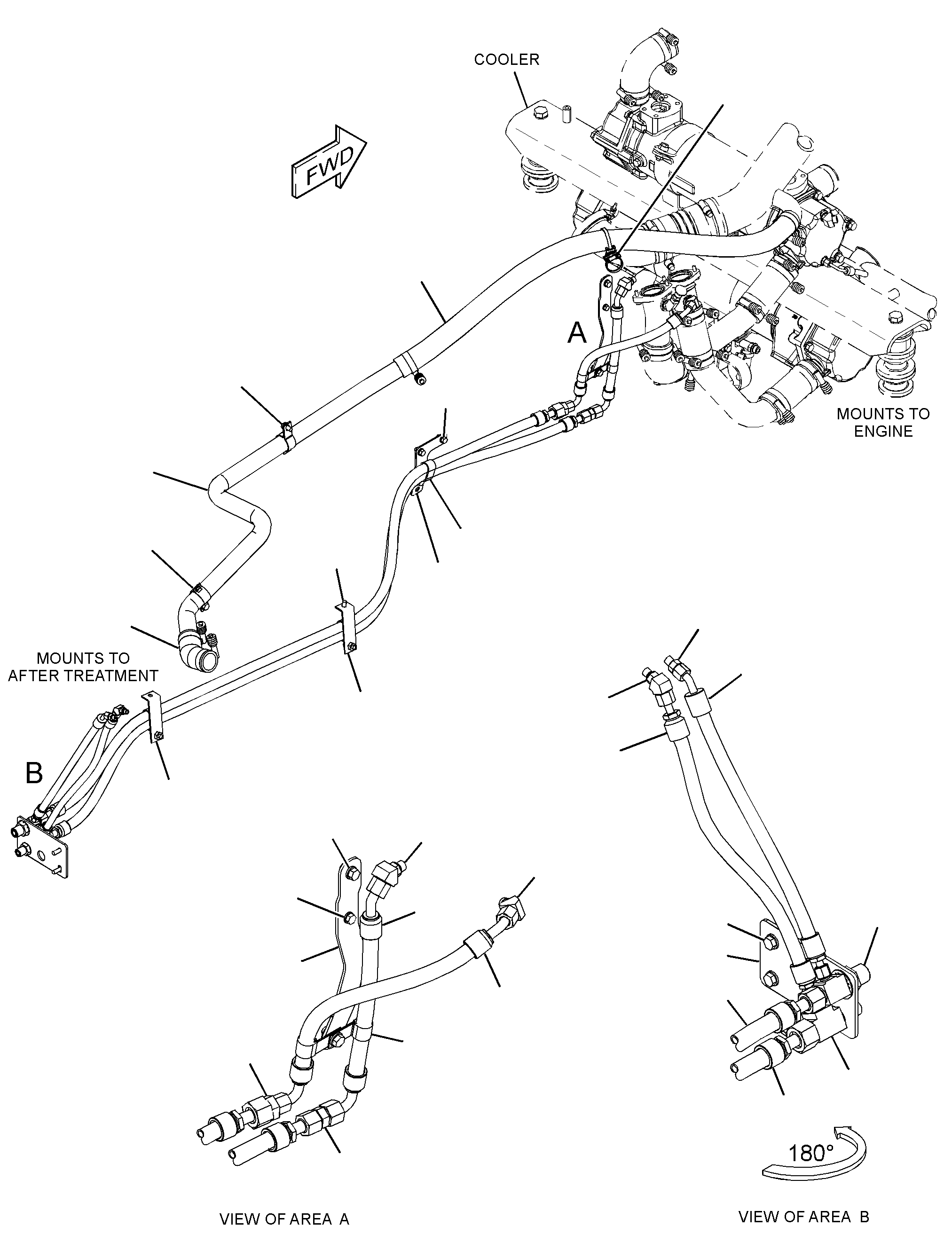

Assembly
100%

361-7259 LINES GP-EXHAUSTS/N KEX132-251

Group No: 361-7259
Part NumberPart NameQty
7K11811 STRAP-CABLE2
20063452 SADDLE-MOUNTING (DUAL SWIVEL)1
26816113 TEE AS1
2681610TEE-BULKHEAD1
4J5477SEAL-O-RING1
7J9108SEAL-O-RING2
33534594 HOSE-AIR1
36172435 BRACKET AS1
8T3490NUT-WELD (M10X1.5-THD)1
36172446 BRACKET AS1
8T3490NUT-WELD (M10X1.5-THD)2
36233687 BRACKET AS2
8T3490NUT-WELD (M10X1.5-THD)1
36596628 HOSE1
45835319 HOSE AS1
458353010 HOSE AS1
365966811 HOSE AS1
365966912 HOSE AS1
365967113 HOSE AS1
365967414 TUBE1
458297315 PLATE1
416831016 HOSE AS1
148831617 CONNECTOR AS1
6V8647CONNECTOR1
3J7354SEAL-O-RING1
4J5477SEAL-O-RING1
153623318 UNION AS1
6V8732UNION1
7J9108SEAL-O-RING1
164558019 TEE AS1
6V9489TEE-BULKHEAD1
6V8398SEAL-O-RING2
6V9746SEAL-O-RING1
164562420 ELBOW AS2
9X2085ELBOW1
3J1907SEAL-O-RING1
6V8398SEAL-O-RING1
164790821 ELBOW AS1
8T7546ELBOW1
3J7354SEAL-O-RING1
6V8397SEAL-O-RING1
171646722 UNION AS1
8T5082UNION1
6V8398SEAL-O-RING1
6V9746SEAL-O-RING1
336861423 CLIP (LOOP)2
2H392424 LOCKWASHER2
3G688325 CLIP (SLOT)2
3G688426 CLIP (TAB)2
4M006127 BOLT (5/16-18X0.75-IN)1
5K109428 LOCKWASHER2
5M306229 BOLT (3/8-16X0.75-IN)3
6D164130 CLIP (LOOP)3
6V916931 NUT (13/16-16-THD)1
6V917032 NUT-BULKHEAD (1-14-THD)1
8T412133 WASHER-HARD (11X21X2.5-MM THK)9
8T413634 BOLT (M10X1.5X25-MM)2
8T413735 BOLT (M10X1.5X20-MM)3
8T419536 BOLT (M10X1.5X30-MM)2
8T422437 WASHER-HARD (8.8X16X2-MM THK)1
8T489638 WASHER-HARD (10.2X18.5X2.5-MM THK)3
8T670339 CLAMP-HOSE4
8T419640 BOLT (M10X1.5X35-MM)2
