System And Components

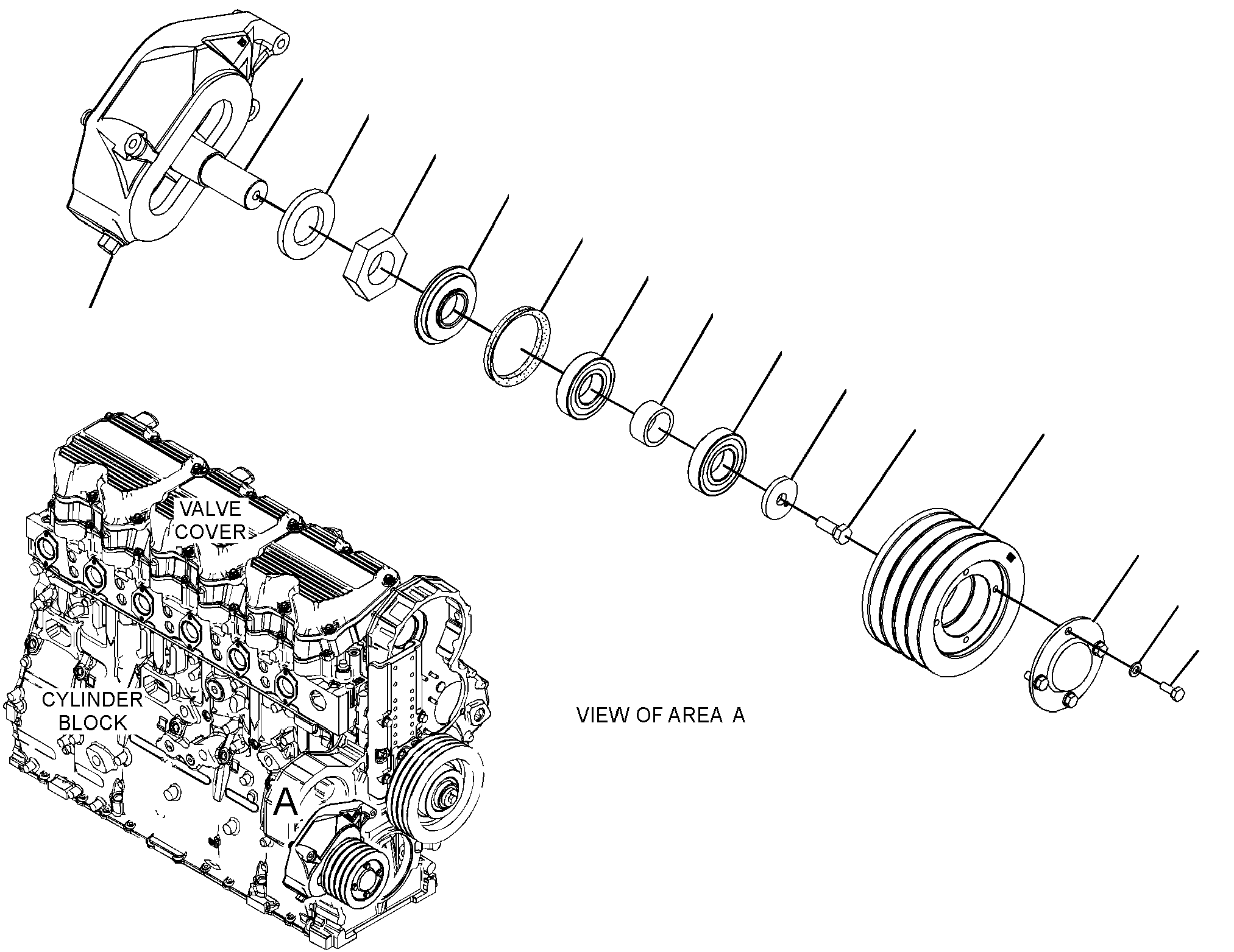

348-8109 BELT TIGHTENER GPS/N ELM1-UP
Group No: 348-8109
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 8C5238 | 1 SEAL-V-RING | 1 | |
| 2968187 | 2 BOLT (M12X1.75X191.5-MM) | 1 | |
| 3474674 | 3 WASHER-RETAINING (14X47.5X6.3-MM THK) | 1 | |
| 9M1974 | 4 WASHER-HARD (8.8X16X2-MM THK) | 4 | |
| 3510502 | 5 SPACER-BEARING (35X44.45X20.75-MM THK) | 1 | |
| 3510503 | 6 COVER | 1 | |
| 3510505 | 7 SHAFT | 1 | |
| 3510506 | 8 PULLEY-TIGHTENER (4-GROOVE) | 1 | |
| 3510627 | 9 SPACER-SPECIAL | 1 | |
| 6V5217 | 10 BOLT (M8X1.25X20-MM) | 4 | |
| 1293180 | 11 LOCKNUT (M12X1.75-THD) | 1 | |
| 3B1250 | 12 NUT (2.625X0.75-IN) | 1 | |
| 5P8245 | 13 WASHER-HARD (13.5X25.5X3-MM THK) | 1 | |
| 6H3956 | 14 PIN | 1 | |
| 6V3668 | 15 BOLT (M12X1.75X30-MM) | 1 | |
| 7X7740 | 16 WASHER (45X78X8-MM THK) | 1 | |
| 9F3212 | 17 BALL BEARING | 2 |
