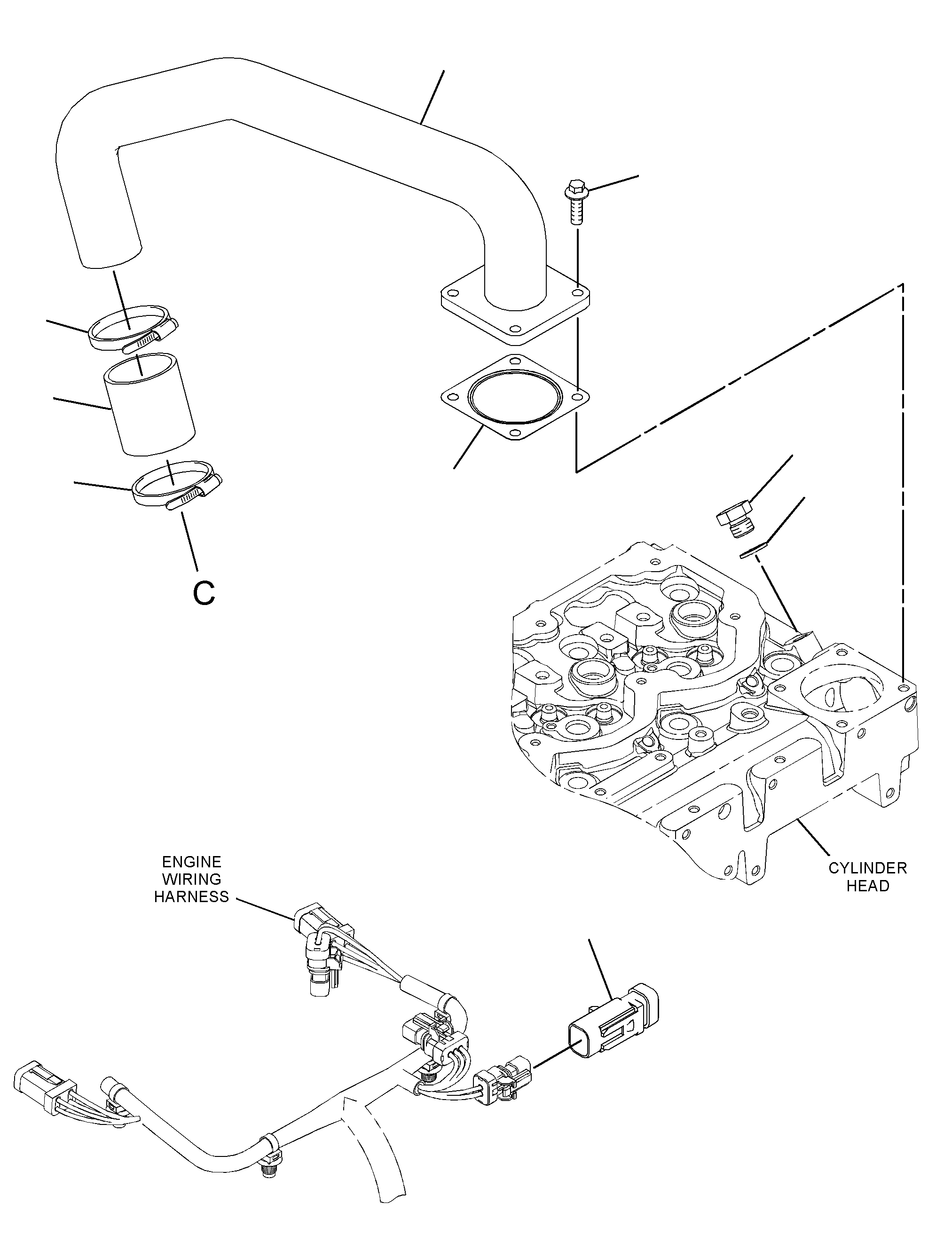

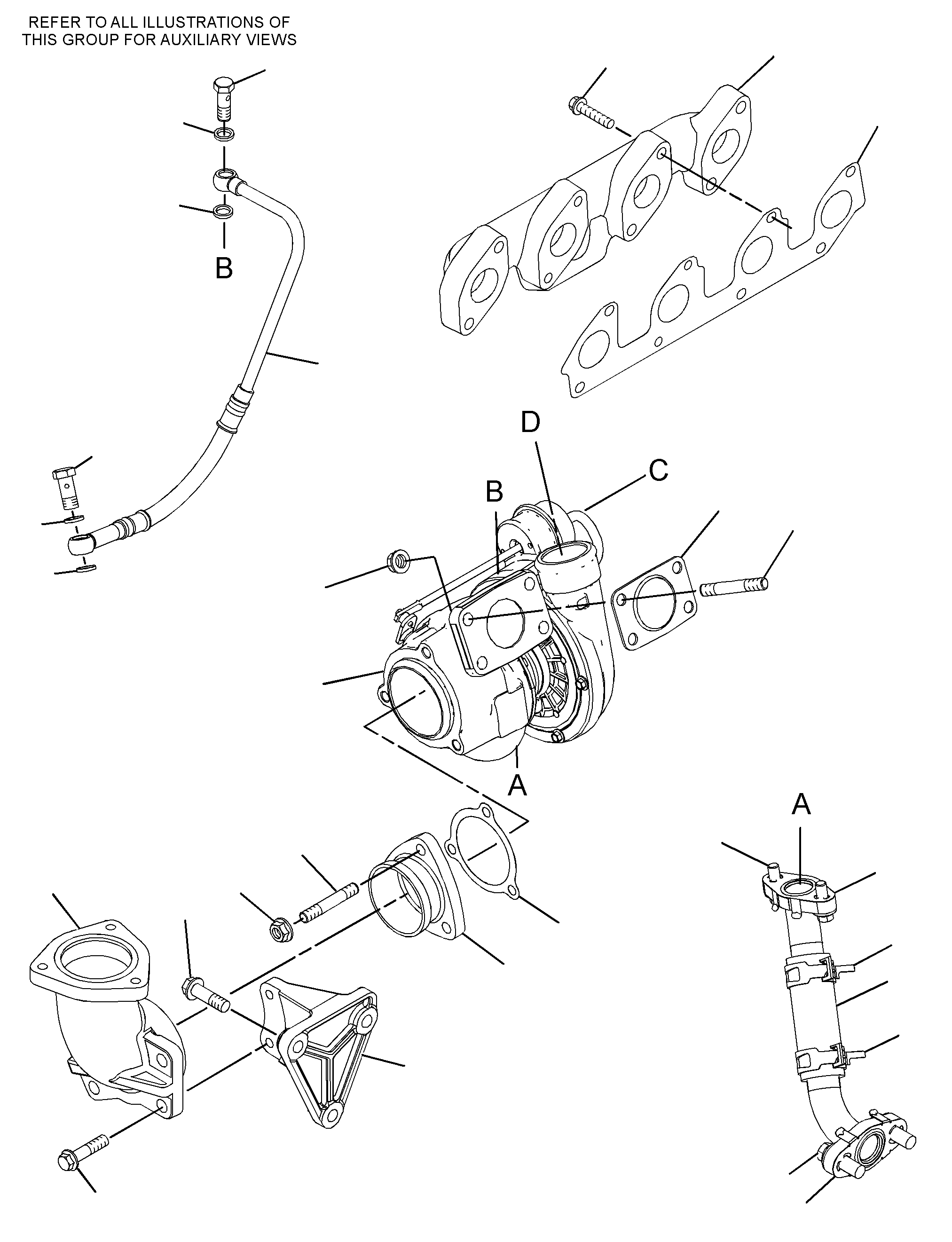

483-9390 TURBOCHARGER GPS/N E3L1-UP; E3N1-UP

Group No: 483-9390
Part NumberPart NameQty
6I02171 BOLT (M8X1.25X20-MM)2
6I02603 BOLT (M8X1.25X25-MM)6
6I05634 NUT (M10X1.5-THD)7
6I05935 BOLT (M10X1.5X30-MM)2
6I06546 BOLT (M10X1.5X25-MM)3
6I07897 BOLT (M10X1.5X60-MM)4
9Y93818 WASHER-HARD1
10689169 BOLT (M6X1X16-MM)2
194539010 GASKET-MANIFOLD1
225853011 GASKET1
227456212 ELBOW-EXHAUST1
232386113 PLUG (BLANKING)1
507501914 LINE AS-OIL1
269308614A CLAMP-BAND2
234302915 HOSE1
492331016 GASKET1
266709217 CLAMP-HOSE2
278036118 BOLT (M10X1.5X45-MM)8
286012619 PLUG1
293059820 CLIP1
298457021 GASKET-EXHAUST MANIFOLD1
301825522 TUBE AS1
225852422A BOLT-SPECIAL (M10X1.5X23-MM)2
225852622B WASHER (10.4X13.75X1.37-MM THK)4
301825623 MANIFOLD-EXHAUST1
302058124 ADAPTER-EXHAUST1
305065725 TUBE (CROSSOVER)1
307280526 BRACKET1

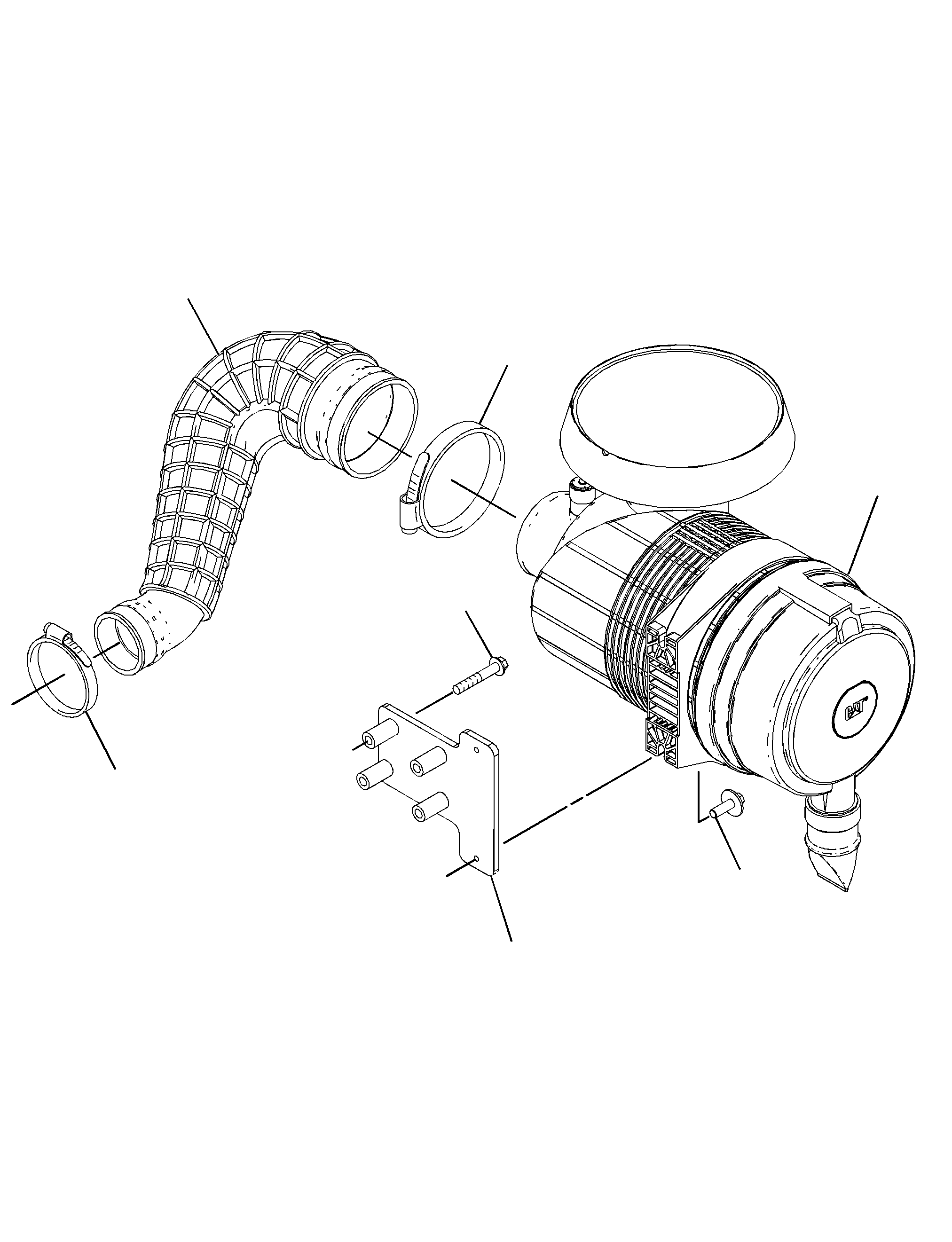

449736627 AIR CLEANER GP (TURBOCHARGER)1
317638828 TURBOCHARGER1
353347729 GASKET-TURBOCHARGER1
353347830 GASKET-TURBOCHARGER1
361751931 ROD-THREADED7
445143432 BRACKET AS1
385731733 CLAMP-HOSE1
385731834 HOSE-AIR1
217009935 SPACER (8.2X25X2-MM THK)2
