System And Components

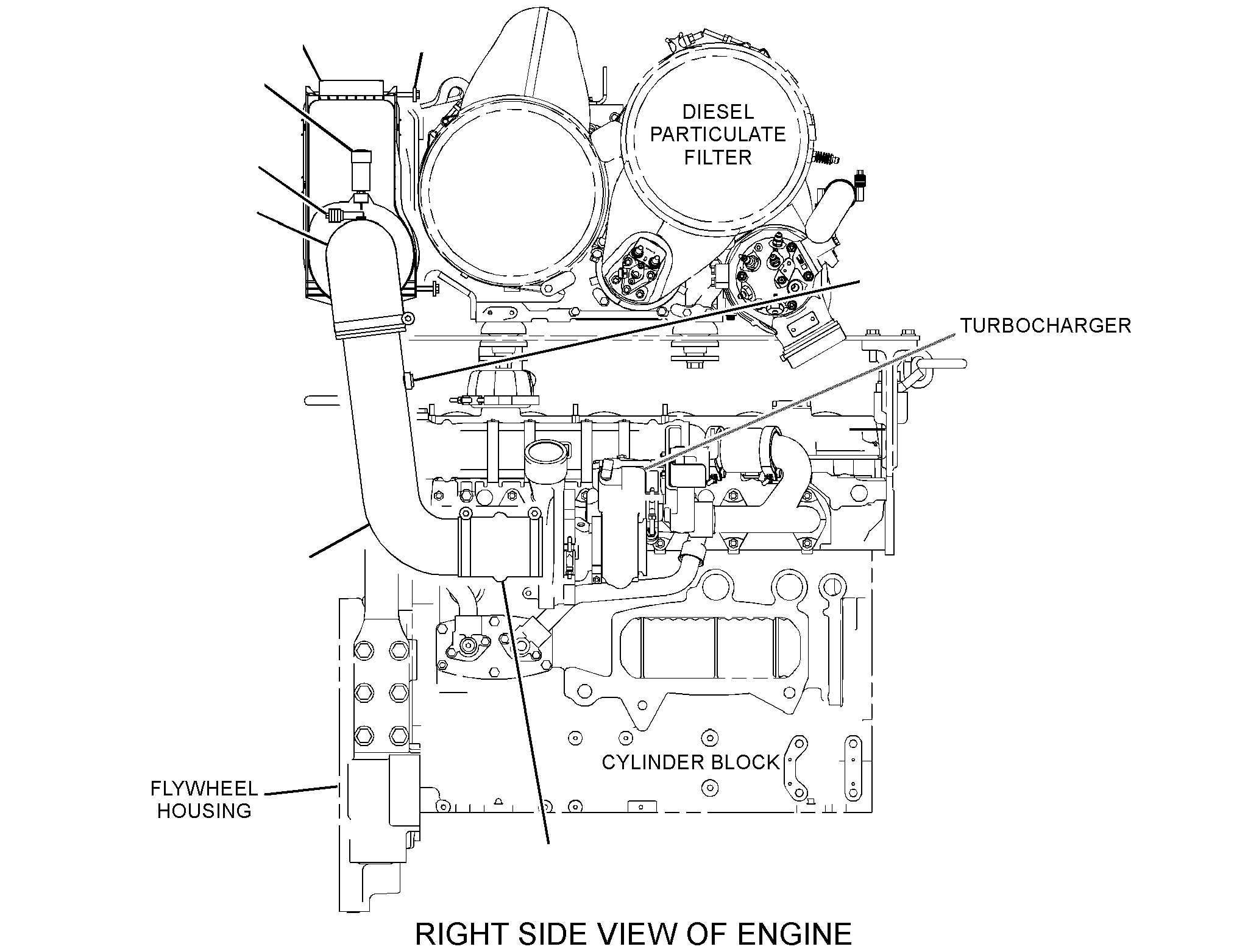

389-9598 AIR CLEANER GPPROVIDES AN INSTALLED AIR CLEANER ABOVE THE FLYWHEEL HOUSING. TO PROVIDE CLEARANCE BETWEEN AIR CLEANER LATCHES AND BRACKET SUPPORT DURING FILTER CHANGE
Group No: 389-9598
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 6I2933 | 1 INDICATOR-AIR FILTER SERVICE (AIR FILTER) | 1 | |
| 7E8630 | 2 HOSE-AIR INLET | 1 | |
| 3496259 | 3 AIR CLEANER GP | 1 | |
| 3925099 | 4 TUBE AS-AIR | 1 | |
| 3962282 | 5 HOSE AS-AIR | 1 | |
| 8T6912 | 6 BOLT (M8X1.25X50-MM) | 4 | |
| 1492090 | 7 SEAL-O-RING | 1 | |
| 2681623 | 8 CONNECTOR | 1 | |
| 3072673 | 9 PLUG AS | 1 | |
| 9S8005 | PLUG (3/4-16-THD) | 1 | |
| 2385080 | SEAL-O-RING | 1 | |
| 7X0613 | 10 WASHER-HARD (8.8X25.5X5-MM THK) | 4 | |
| 9X2201 | 11 CLAMP-HOSE | 2 | |
| 9X6654 | 12 CLAMP-HOSE | 2 |
