System And Components

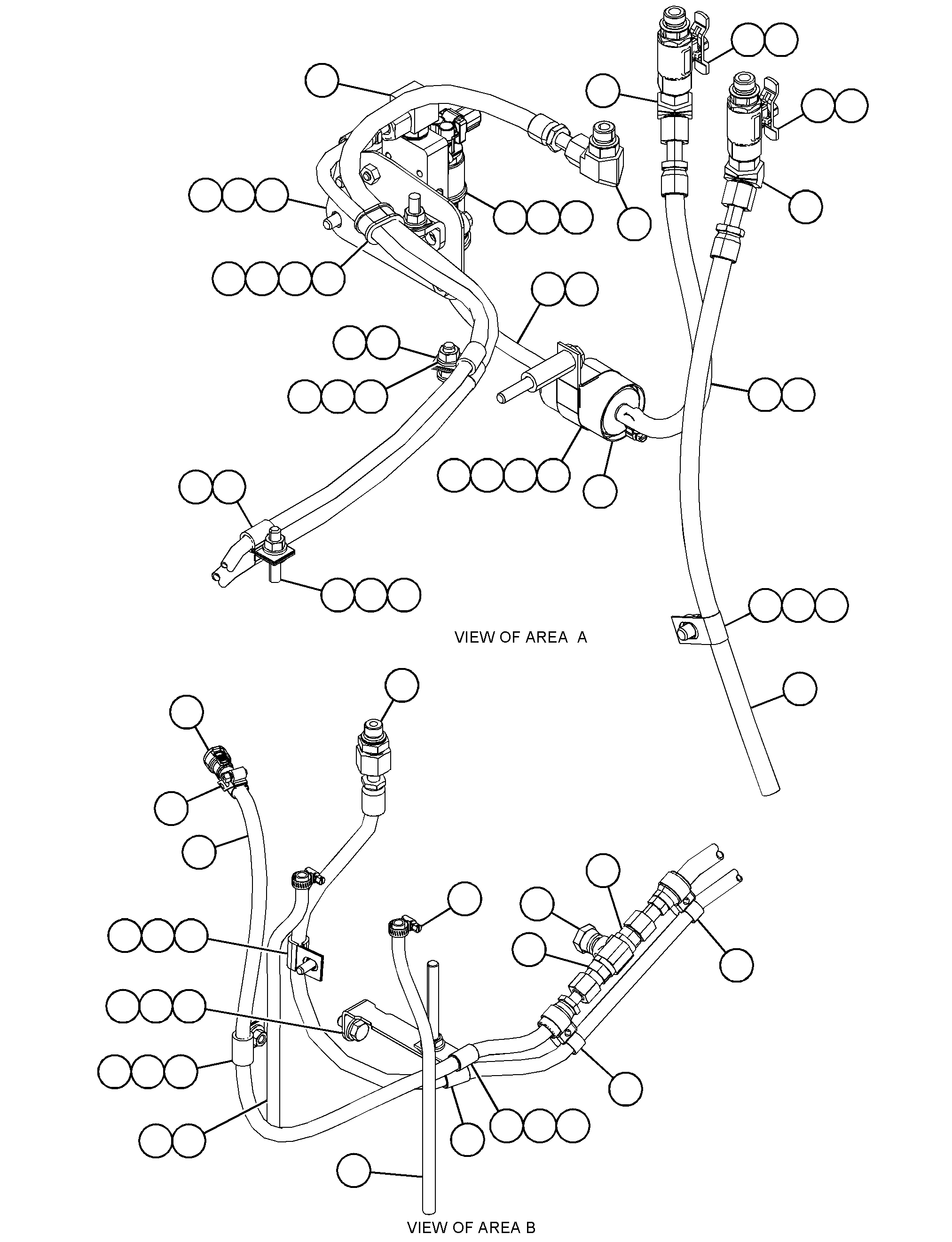

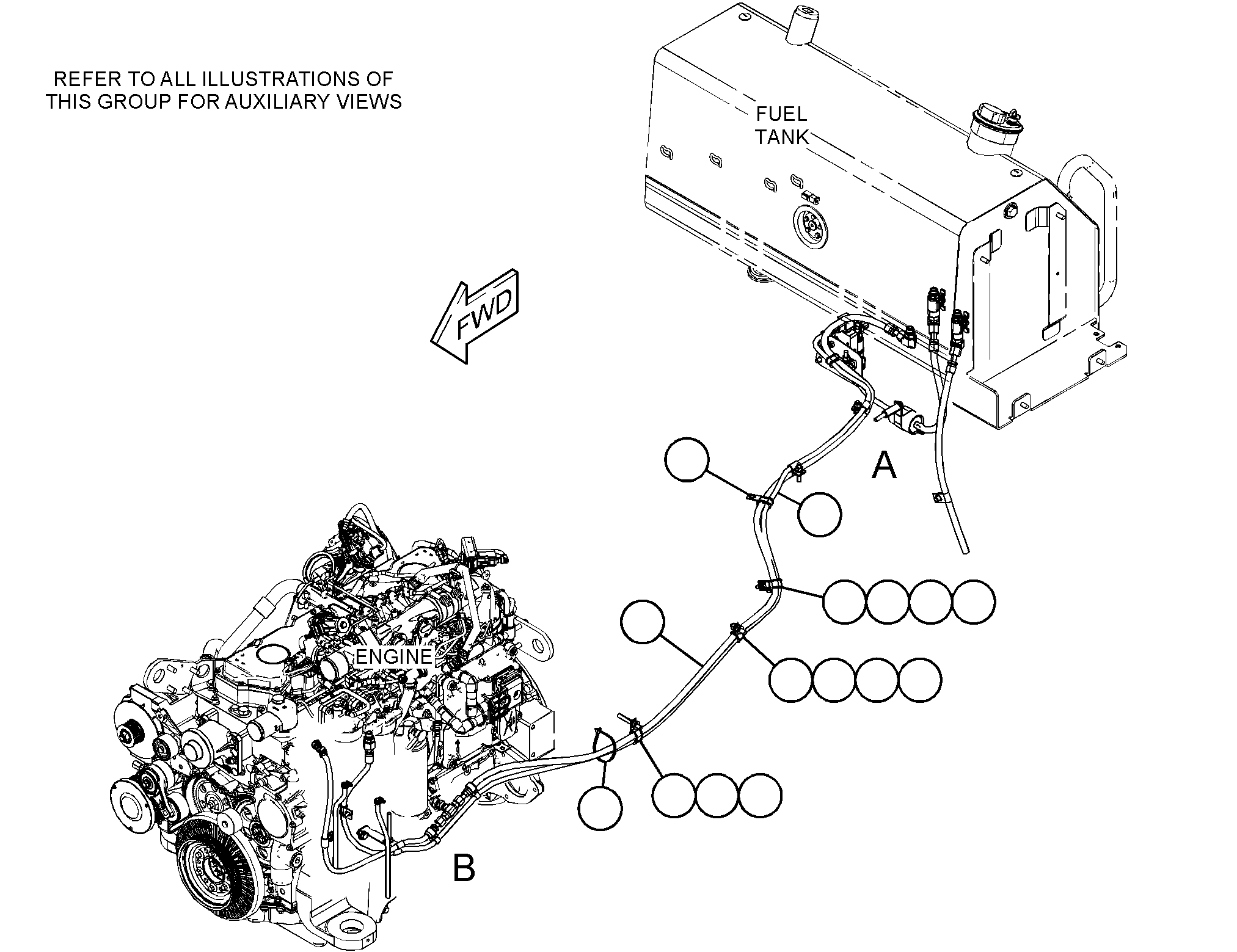

500-3234 LINES GP-FUELS/N GB61-UP
Group No: 500-3234
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1P4278 | 1 CLAMP-HOSE | 2 | |
| 2B3243 | 2 CLIP | 1 | |
| 4B9302 | 3 CLIP (LOOP) | 2 | |
| 4D9517 | 4 CLIP | 2 | |
| 5P4116 | 5 WASHER-HARD (8.8X20.5X2-MM THK) | 5 | |
| 5P4325 | 6 CLIP (LOOP) | 1 | |
| 5P4961 | 7 CLAMP-HOSE | 4 | |
| 7K1181 | 8 STRAP-CABLE | 1 | |
| 7X2548 | 9 BOLT (M12X1.75X16-MM) | 1 | |
| 7X7729 | 10 WASHER (11X25X3-MM THK) | 1 | |
| 8T4121 | 11 WASHER-HARD (11X21X2.5-MM THK) | 16 | |
| 8T4137 | 12 BOLT (M10X1.5X20-MM) | 3 | |
| 8T4178 | 13 BOLT (M10X1.5X90-MM) | 1 | |
| 8T4189 | 14 BOLT (M8X1.25X20-MM) | 1 | |
| 8T4195 | 15 BOLT (M10X1.5X30-MM) | 1 | |
| 8T7971 | 16 WASHER-HARD (13.5X25.5X5-MM THK) | 1 | |
| 0993649 | 17 BOLT (M8X1.25X40-MM) | 3 | |
| 1013129 | 18 STUD (M10X1.5-THD) | 2 | |
| 1F7854 | 19 SPACER (11.01X19.05X49.21-MM THK) | 1 | |
| 1562525 | 20 VALVE-SHUTOFF | 2 | |
| 1803998 | 21 STUD (M10X1.5X55-MM) | 1 | |
| 1977481 | 22 STUD (M10X1.5X83-MM) | 1 | |
| 2032789 | 23 BRACKET AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 1 | |
| 1246998 | PLATE | 1 | |
| 2033847 | 24 BRACKET AS | 1 | |
| 2815922 | 25 UNION AS | 1 | |
| 8T7488 | CONNECTOR | 1 | |
| 2287090 | SEAL-O-RING | 1 | |
| 2287102 | SEAL-O-RING | 1 | |
| 2385080 | 26 SEAL-O-RING | 2 | |
| 3039449 | 27 STUD (M10X1.5-THD) | 1 | |
| 3196218 | 28 ELBOW AS | 2 | |
| 6V9002 | ELBOW | 1 | |
| 2287090 | SEAL-O-RING | 1 | |
| 2385080 | SEAL-O-RING | 1 | |
| 3196225 | 29 ELBOW AS | 1 | |
| 6V8625 | ELBOW | 1 | |
| 2287090 | SEAL-O-RING | 1 | |
| 2385080 | SEAL-O-RING | 1 | |
| 3445674 | 30 NUT (M8X1.25-THD) | 1 | |
| 3445675 | 31 NUT (M10X1.5-THD) | 4 | |
| 3597115 | 32 CONNECTOR-FUEL | 1 | |
| 5256205 | 33 FILTER-FUEL (IN-LINE) | 1 | |
| 4465409 | 34 PUMP AS-FUEL TRANSFER (24-VOLT) | 1 | |
| 4488998 | 35 ELBOW AS | 1 | |
| 2287090 | SEAL-O-RING | 1 | |
| 2287102 | SEAL-O-RING | 1 | |
| 4167151 | RING-RETAINER | 1 | |
| 4492324 | 36 CLIP | 5 | |
| 3884900 | 37 BRACKET AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 1 | |
| 4563188 | 38 BRACKET AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 1 | |
| 8T3612 | NUT-WELD (M8X1.25-THD) | 3 | |
| 5005897 | 39 HOSE AS | 1 | |
| 5005898 | 40 HOSE AS | 1 | |
| 5005899 | 41 HOSE AS | 1 | |
| 5005900 | 42 HOSE AS | 1 | |
| 5005901 | 43 HOSE AS | 1 | |
| 5105019 | 44 HOSE AS | 2 | |
| 5105020 | 45 HOSE AS | 1 | |
| 1232511 | 46 TEE | 1 | |
| 1772215 | 47 STRAP-DUAL CLAMP | 2 | |
| 3218673 | 48 CONNECTOR AS | 2 | |
| 8T9041 | CONNECTOR | 1 | |
| 2147568 | SEAL-O-RING | 1 | |
| 2287089 | SEAL-O-RING | 1 | |
| 5P9299 | 49 CLIP (LOOP) | 4 |
