System And Components

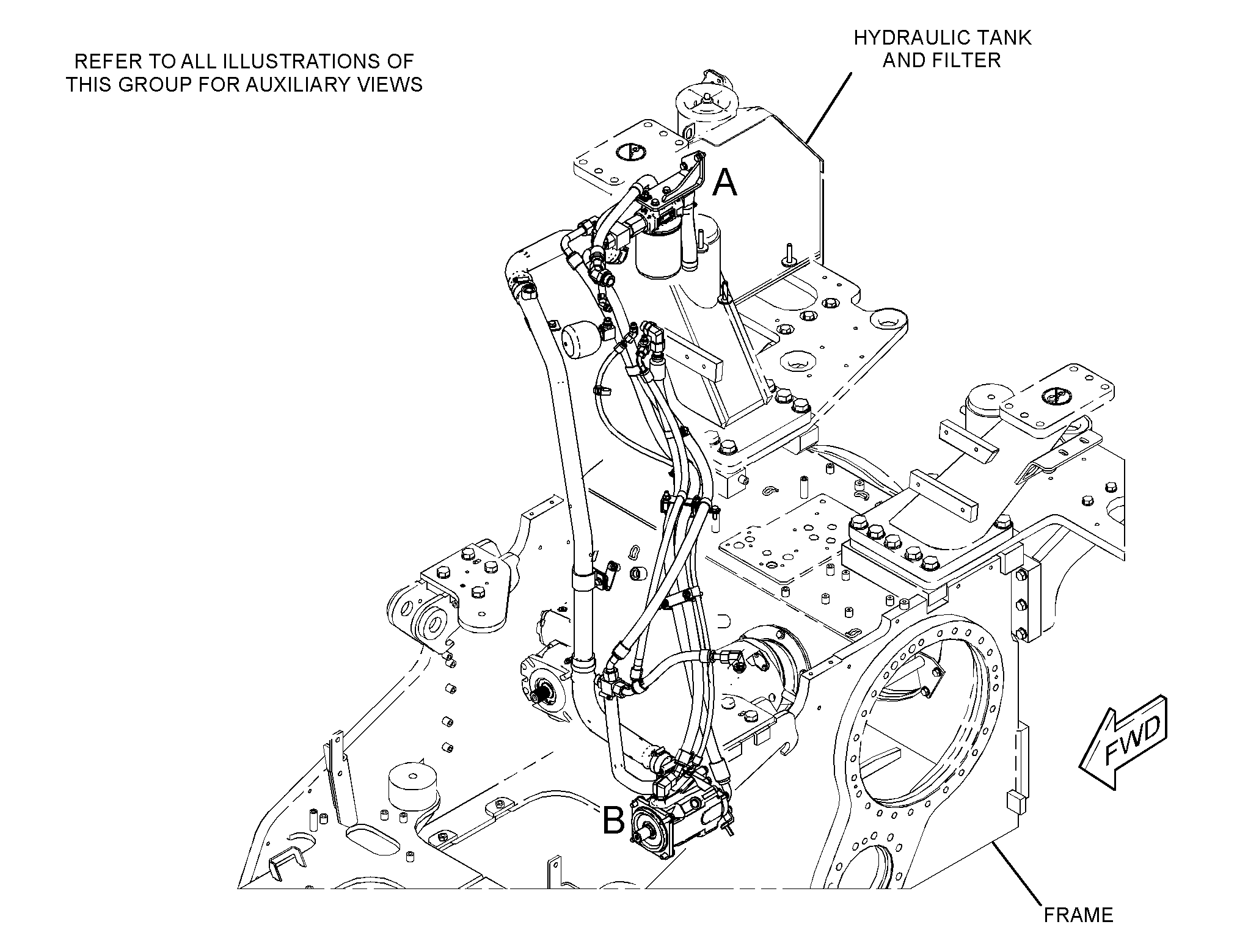

397-4777 LINES GP-PUMP -IMPLEMENTS/N MG51-UP; GB61-UP
Group No: 397-4777
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1488442 | 1 TEE AS | 1 | |
| 6V9746 | SEAL-O-RING | 2 | |
| 7M8485 | SEAL-O-RING | 1 | |
| 8T1685 | TEE | 1 | |
| 1645574 | 2 TEE AS | 1 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 6V8784 | TEE-FACE SEAL | 1 | |
| 6V9746 | SEAL-O-RING | 2 | |
| 1602669 | 3 ACCUMULATOR GP-HYDRAULIC (CHARGED) | 1 | |
| 1608616 | 4 VALVE GP-CHECK | 1 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 1694019 | 5 FILTER GP-OIL (HYDRAULIC) | 1 | |
| 3188481 | 6 PUMP GP-PISTON (IMPLEMENT) | 1 | |
| 3974809 | 7 HOSE AS | 1 | |
| 3974924 | 8 HOSE AS | 1 | |
| 3980068 | 9 HOSE AS | 1 | |
| 4172400 | 10 HOSE AS | 1 | |
| 4172402 | 11 HOSE AS | 1 | |
| 5777487 | 12 HOSE | 1 | |
| 4206372 | 13 HOSE AS | 1 | |
| 4206374 | 14 HOSE AS | 1 | |
| 5909143 | 15 HOSE | 1 | |
| 4568410 | 16 HOSE (67-CM) | ||
| 4368105 | 17 TUBE AS | 1 | |
| 4469653 | 18 HOSE AS | 1 | |
| 4479443 | 19 BRACKET AS | 1 | |
| 5P2094 | 20 HOSE (22-CM) | ||
| 4495044 | 21 CLAMP AS | 2 | |
| 4509730 | 22 BRACKET AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 1 | |
| 4638061 | 23 TUBE AS | 1 | |
| 4760700 | 24 PLATE | 2 | |
| 4805360 | 25 BRACKET AS | 1 | |
| 1712419 | STUD-WELD (M10X1.5X35-MM) | 1 | |
| 1093001 | 26 STUD-TAPERLOCK (M10X1.5X65-MM) | 1 | |
| 1337810 | 27 STUD-TAPERLOCK (M10X1.5X45-MM) | 1 | |
| 1488316 | 28 CONNECTOR AS | 1 | |
| 3J7354 | SEAL-O-RING | 1 | |
| 4J5477 | SEAL-O-RING | 1 | |
| 6V8647 | CONNECTOR | 1 | |
| 1488345 | 29 CONNECTOR AS | 1 | |
| 2M9780 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 6V8638 | CONNECTOR | 1 | |
| 1488347 | 30 ELBOW AS | 1 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 6V9007 | ELBOW | 1 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 1488353 | 31 ELBOW AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V9001 | ELBOW | 1 | |
| 1488365 | 32 ELBOW AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 8T6876 | ELBOW | 1 | |
| 1488388 | 33 ELBOW AS | 1 | |
| 2M9780 | SEAL-O-RING | 1 | |
| 6V8629 | ELBOW | 1 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 1488390 | 34 ELBOW AS | 1 | |
| 2M9780 | SEAL-O-RING | 1 | |
| 6V8626 | ELBOW | 1 | |
| 7J9108 | SEAL-O-RING | 1 | |
| 1488392 | 35 ELBOW AS | 1 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 6V9853 | ELBOW | 1 | |
| 1497738 | 36 CLIP (LOOP) | 1 | |
| 1503030 | 37 ELBOW AS | 2 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 7X1448 | ELBOW | 1 | |
| 1504049 | 38 ELBOW AS | 1 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 7M8485 | SEAL-O-RING | 1 | |
| 8T4149 | ELBOW | 1 | |
| 1772215 | 39 STRAP-DUAL CLAMP | 1 | |
| 1942903 | 40 ELBOW AS | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 8T0119 | ELBOW | 1 | |
| 1984777 | 41 WASHER-HARD (11X25X10-MM THK) | 2 | |
| 1P4577 | 42 FLANGE-HALF | 2 | |
| 2006345 | 43 SADDLE-MOUNTING (DUAL SWIVEL) | 1 | |
| 2042281 | 44 STRAP-CABLE | 2 | |
| 2245445 | 45 STUD-TAPERLOCK (M10X1.5X75-MM) | 4 | |
| 3159860 | 46 ADAPTER AS | 1 | |
| 7M8485 | SEAL-O-RING | 1 | |
| 8C3051 | ADAPTER | 1 | |
| 3410108 | 47 ELBOW AS | 1 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 3410107 | ELBOW | 1 | |
| 3445675 | 48 NUT (M10X1.5-THD) | 3 | |
| 3918044 | 49 CLIP (LOOP) | 1 | |
| 3K0360 | 50 SEAL-O-RING | 1 | |
| 4D7735 | 51 CLIP | 1 | |
| 4J0520 | 52 SEAL-O-RING | 1 | |
| 4J0527 | 53 SEAL-O-RING | 1 | |
| 4P7581 | 54 CLIP (LADDER) | 1 | |
| 4S4455 | 55 CLIP | 1 | |
| 5F3106 | 56 SEAL-O-RING | 1 | |
| 5P4961 | 57 CLAMP-HOSE | 2 | |
| 5P7468 | 58 CLIP (SLOT) | 1 | |
| 5P7469 | 59 CLIP (TAB) | 1 | |
| 6D3479 | 60 CLIP (LOOP) | 2 | |
| 6K8178 | 61 CLIP (LOOP) | 1 | |
| 6V1889 | 62 CLIP (LOOP) | 3 | |
| 7X0618 | 63 WASHER-HARD (13.5X40X5-MM THK) | 3 | |
| 8S0948 | 64 CLIP | 1 | |
| 8T4121 | 65 WASHER-HARD (11X21X2.5-MM THK) | 16 | |
| 8T4136 | 66 BOLT (M10X1.5X25-MM) | 6 | |
| 8T4137 | 67 BOLT (M10X1.5X20-MM) | 1 | |
| 8T4183 | 68 BOLT (M12X1.75X40-MM) | 2 | |
| 8T4185 | 69 BOLT (M10X1.5X50-MM) | 2 | |
| 8T4186 | 70 BOLT (M10X1.5X40-MM) | 1 | |
| 8T4191 | 71 BOLT (M10X1.5X16-MM) | 1 | |
| 8T4195 | 72 BOLT (M10X1.5X30-MM) | 2 | |
| 1837121 | 73 BOLT (M10X1.5X35-MM) | 2 | |
| 8T4223 | 74 WASHER-HARD (13.5X25.5X3-MM THK) | 8 | |
| 8T4648 | 75 BOLT (M12X1.75X70-MM) | 2 | |
| 8T4910 | 76 BOLT (M12X1.75X60-MM) | 3 | |
| 8T4956 | 77 BOLT (M12X1.75X35-MM) | 4 | |
| 7X7958 | 78 CLAMP-HOSE | 4 | |
| 8T6703 | 79 CLAMP-HOSE | 4 | |
| 9U6994 | 80 ADAPTER AS | 1 | |
| 5P4362 | CONNECTOR | 1 | |
| 7M8485 | SEAL-O-RING | 1 | |
| 9U6999 | 81 ELBOW AS | 1 | |
| 7M8485 | SEAL-O-RING | 1 | |
| 0344202 | ELBOW | 1 | |
| 1757141 | 82 NUT-HEX FLANGE (M10X1.5-THD) | 4 |
