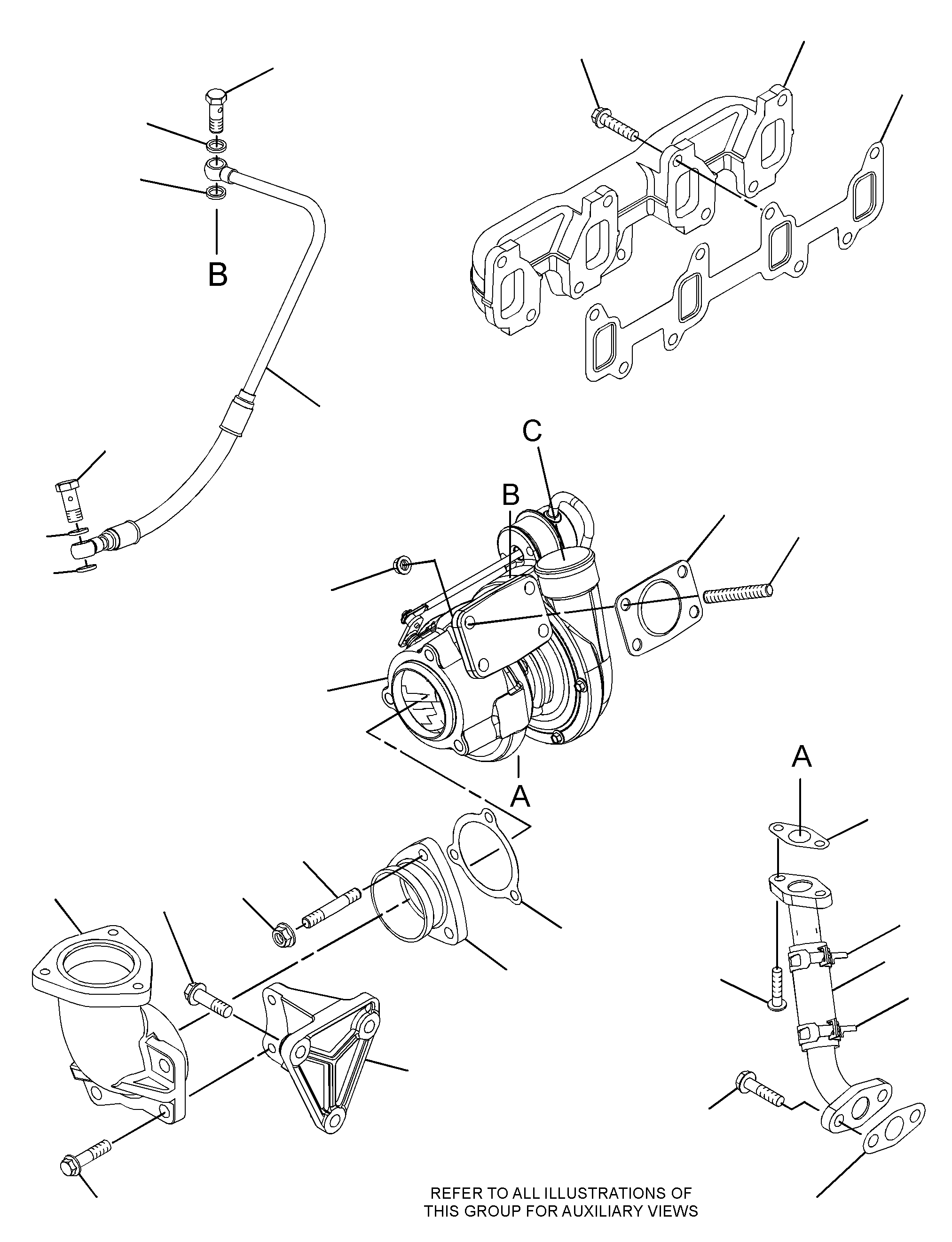

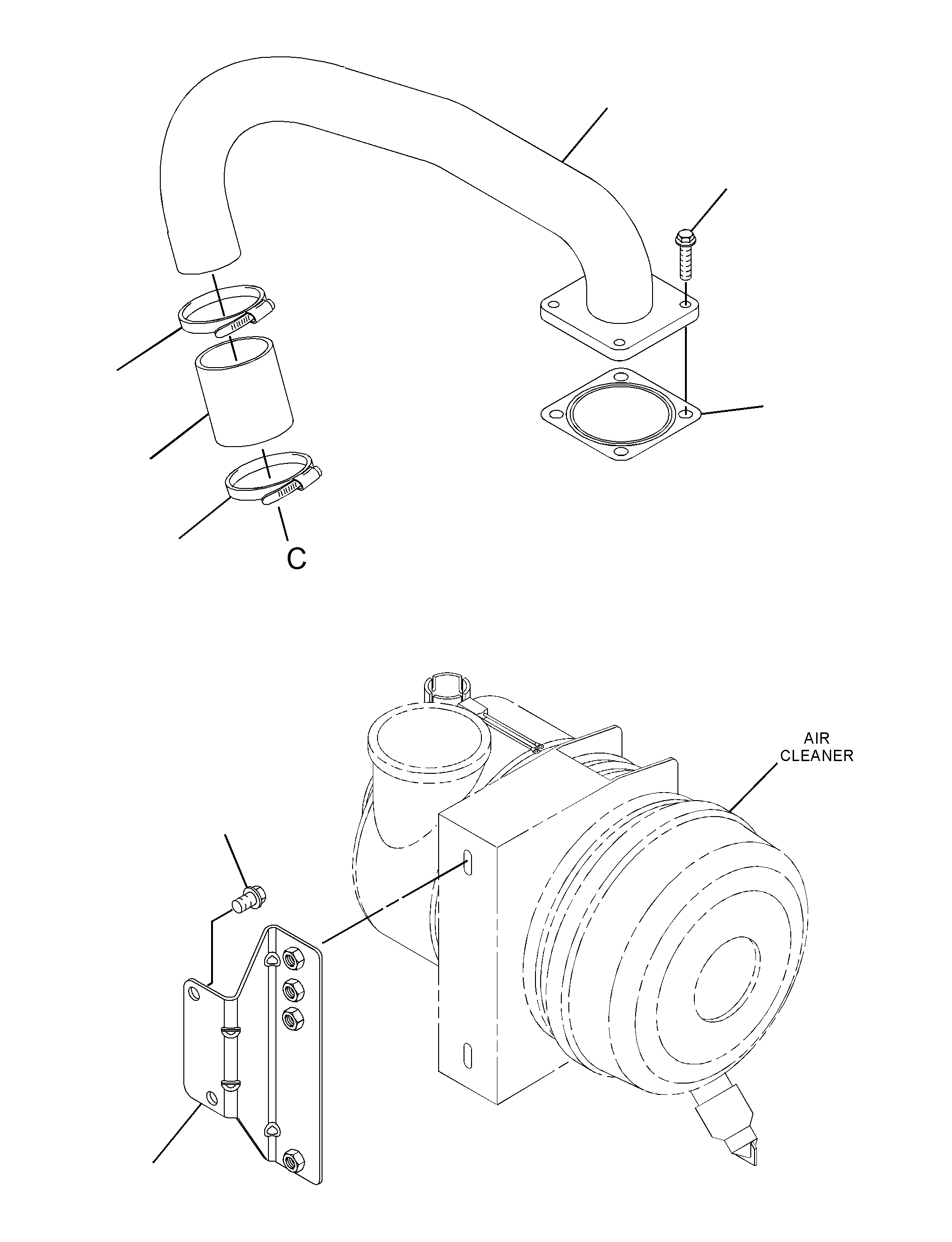

323-4824 TURBOCHARGER GPS/N E3L1-UP

Group No: 323-4824
Part NumberPart NameQty
6I02171 BOLT (M8X1.25X20-MM)2
6I05632 NUT (M10X1.5-THD)7
6I05723 BOLT (M8X1.25X20-MM)4
6I05934 BOLT (M10X1.5X30-MM)2
6I06545 BOLT (M10X1.5X25-MM)3
10048306 BOLT (M10X1.5X20-MM)1
10689167 BOLT (M6X1X16-MM)2
14116678 CLAMP-HOSE2
36175199 ROD-THREADED7
174963810 BOLT (M10X1.5X30-MM)8
194539011 GASKET-MANIFOLD1
225852512 TUBE AS1
225852412A BOLT-SPECIAL (M10X1.5X23-MM)2
225852612B WASHER (10.4X13.75X1.37-MM THK)4
225853013 GASKET1
353347714 GASKET-TURBOCHARGER1
353347815 GASKET-TURBOCHARGER1
225853616 GASKET1
227456217 ELBOW-EXHAUST1
507501918 LINE AS-OIL1
269308618A CLAMP-BAND2
234302919 HOSE1
492331020 GASKET1
367579921 TUBE1
371605922 MANIFOLD-EXHAUST1
286433923 BRACKET-MOUNTING1
302058124 ADAPTER-EXHAUST1
307280525 BRACKET1
558699426 TURBOCHARGER AS1
