System And Components

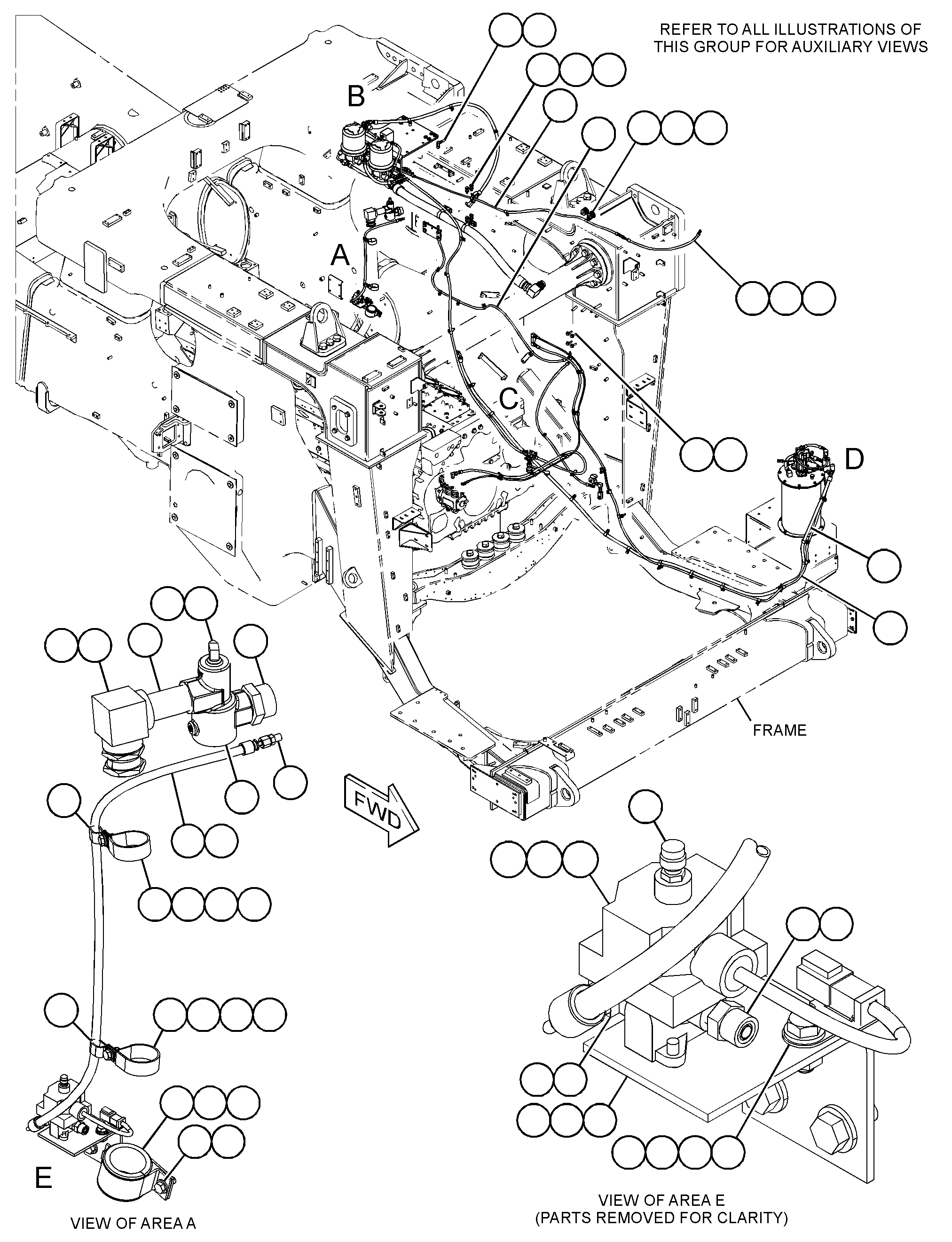

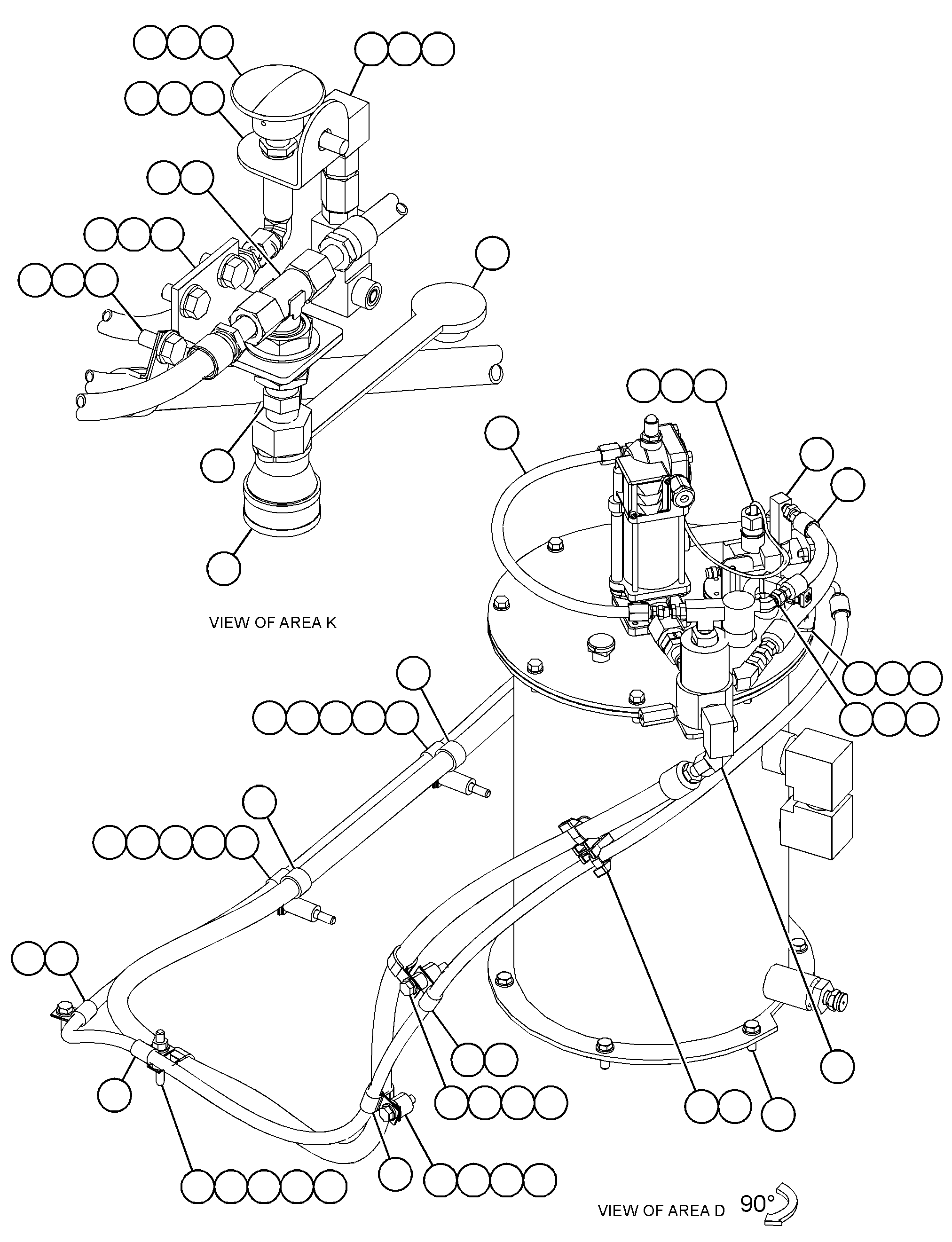

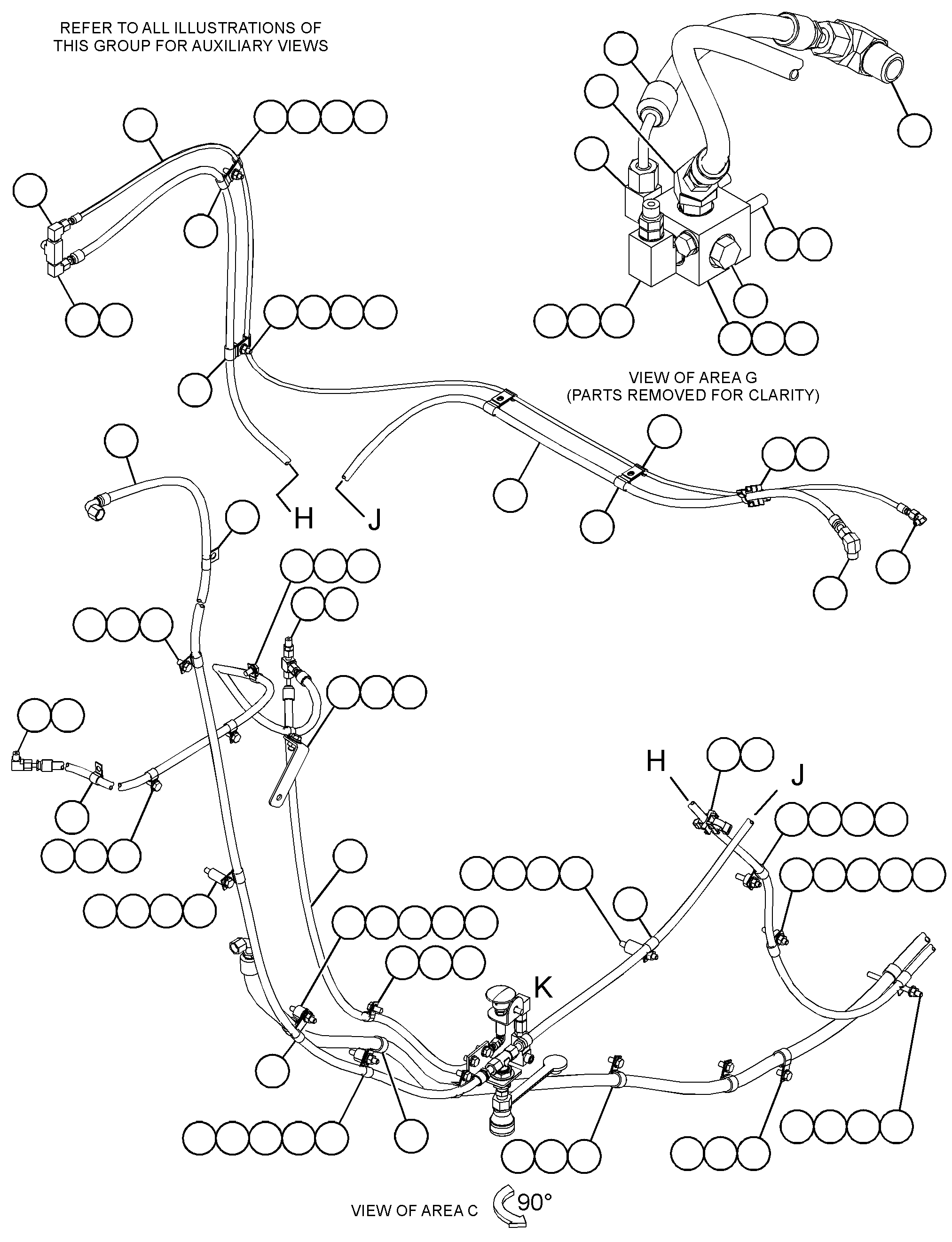

288-2628 LINES GP-AIR STARTINGS/N LAJ637-644
Group No: 288-2628
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 3D6370 | 1 ELBOW | 1 | |
| 3D7587 | 2 ELBOW | 1 | |
| 3E2343 | 3 TEE | 3 | |
| 3R4825 | 4 VALVE GP-AIR CONTROL (AIR TANK DRAIN) | 1 | |
| 4D0487 | 5 VALVE AS-CHECK (AIR STARTING CONTROL) | 1 | |
| 4N3411 | 6 VALVE GP-RELAY (AIR STARTING MOTOR) | 1 | |
| 5C9762 | 7 MANIFOLD | 1 | |
| 5F5434 | 8 VALVE AS-VENT (AIR START) | 1 | |
| 5F5434 | 8A VALVE AS-VENT (AUTOLUBE) | 1 | |
| 6B9664 | 9 VALVE-AIR RELIEF | 1 | |
| 5240073 | VALVE-AIR RELIEF | 1 | |
| 7D5206 | 10 CAP-DUST | 1 | |
| 7D5208 | 11 FITTING (QUICK DISCONNECT, FEMALE) | 1 | |
| 7T8331 | 12 MOUNT AS | 2 | |
| 8D4765 | 13 REGULATOR | 1 | |
| 8D9423 | 14 COUPLING | 1 | |
| 0025299 | 15 TEE-PIPE | 1 | |
| 1085678 | 16 UNION | 1 | |
| 1322453 | 17 UNION | 1 | |
| 1837258 | 18 ELBOW AS | 2 | |
| 4J5477 | SEAL-O-RING | 1 | |
| 7X5331 | ELBOW | 1 | |
| 1941986 | 19 AIR DRYER GP | 2 | |
| 2081628 | 20 ELBOW AS | 1 | |
| 2T1922 | ELBOW | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 2174184 | 21 VALVE AS-CONTROL (AIR DRYER) | 1 | |
| 2219576 | 22 VALVE GP-SOLENOID (24-VOLT)(LUBE) | 1 | |
| 2219576 | 22A VALVE GP-SOLENOID (24-VOLT)(AIR STARTING) | 1 | |
| 2219578 | KIT-VALVE (SOLENOID) | 1 | |
| 2220570 | 23 VALVE GP-RELIEF (PRESSURE) | 1 | |
| 2928224 | 24 BRACKET | 1 | |
| 2929086 | 25 PLATE | 1 | |
| 3028496 | 26 CONNECTOR | 3 | |
| 3057509 | 27 HOSE AS | 1 | |
| 3079418 | 28 HOSE AS | 1 | |
| 3399752 | 29 PLATE | 1 | |
| 3433303 | 30 PLATE AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 1 | |
| 3526494 | 31 ADAPTER AS | 1 | |
| 8C6865 | CONNECTOR | 1 | |
| 2287088 | SEAL-O-RING | 1 | |
| 3526504 | 32 ELBOW AS | 4 | |
| 7X0492 | ELBOW | 1 | |
| 2287088 | SEAL-O-RING | 1 | |
| 3653245 | 33 HOSE AS | 1 | |
| 3653247 | 34 PLATE | 1 | |
| 3855780 | 35 ELBOW AS | 1 | |
| 2T2170 | ELBOW | 1 | |
| 2287089 | SEAL-O-RING | 1 | |
| 3893737 | 36 ELBOW AS | 1 | |
| 2T1922 | ELBOW | 1 | |
| 2287090 | SEAL-O-RING | 1 | |
| 3960375 | 37 ELBOW AS | 1 | |
| 8T0164 | ELBOW | 1 | |
| 2147568 | SEAL-O-RING | 1 | |
| 2287088 | SEAL-O-RING | 1 | |
| 4629764 | 38 HOSE AS | 1 | |
| 4661752 | 39 HOSE AS | 1 | |
| 4661753 | 40 HOSE AS | 1 | |
| 4685711 | 41 HOSE AS | 1 | |
| 4685712 | 42 HOSE AS | 1 | |
| 4699239 | 43 HOSE AS | 1 | |
| 4717944 | 44 HOSE AS | 1 | |
| 4763355 | 45 PLATE AS | 2 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 1 | |
| 4792171 | 46 BOLT AS | 9 | |
| 4792172 | 47 BOLT AS | 7 | |
| 4819864 | 48 PUMP GP-LUBRICATION | 1 | |
| 4880133 | 49 HOSE AS | 1 | |
| 5000506 | 50 PLATE AS | 1 | |
| 5029051 | 51 HOSE AS | 1 | |
| 5053568 | 52 BRACKET AS | 1 | |
| 6V9632 | NUT-WELD (M6X1-THD) | 2 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 13 | |
| 8T3597 | NUT-WELD (M12X1.75-THD) | 3 | |
| 9R2613 | BOSS-WELD (M10X1.5X25-MM) | 1 | |
| 5053570 | 53 HOSE AS | 1 | |
| 5053571 | 54 HOSE AS | 1 | |
| 5053572 | 55 HOSE AS | 1 | |
| 5053573 | 56 HOSE AS | 1 | |
| 5053574 | 57 HOSE AS | 1 | |
| 5053575 | 58 HOSE AS | 1 | |
| 5053576 | 59 HOSE AS | 1 | |
| 5287413 | 60 HOSE AS | 1 | |
| 0020639 | 61 ADAPTER-PIPE | 1 | |
| 0026454 | 62 CONNECTOR | 2 | |
| 0308324 | 63 ELBOW | 1 | |
| 0444101 | 64 COUPLING-PIPE | 1 | |
| 0919035 | 65 SPACER (11X25X20-MM THK) | 5 | |
| 1010387 | 66 CONNECTOR | 1 | |
| 1043173 | 67 CLIP (LOOP) | 2 | |
| 1093001 | 68 STUD-TAPERLOCK (M10X1.5X65-MM) | 3 | |
| 1163715 | 69 STUD-TAPERLOCK (M10X1.5X85-MM) | 1 | |
| 1305300 | 70 CLIP | 1 | |
| 1337810 | 71 STUD-TAPERLOCK (M10X1.5X45-MM) | 2 | |
| 1364992 | 72 SPACER (11X20X40-MM THK) | 1 | |
| 1504052 | 73 UNION AS | 1 | |
| 4J5477 | SEAL-O-RING | 2 | |
| 6V8993 | UNION | 1 | |
| 1803998 | 74 STUD (M10X1.5X55-MM) | 1 | |
| 1976355 | 75 ELBOW AS | 3 | |
| 3E7449 | ELBOW | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 1984775 | 76 WASHER-HARD (6.6X15X6-MM THK) | 2 | |
| 1984777 | 77 WASHER-HARD (11X25X10-MM THK) | 2 | |
| 1F7854 | 78 SPACER (11.01X19.05X49.21-MM THK) | 1 | |
| 1S0994 | 79 CLIP (LOOP) | 3 | |
| 2006345 | 80 SADDLE-MOUNTING (DUAL SWIVEL) | 3 | |
| 2042281 | 81 STRAP-CABLE | 6 | |
| 2110264 | 82 SPACER (9X18X24-MM THK) | 2 | |
| 2147566 | 83 SEAL-O-RING | 2 | |
| 2245445 | 84 STUD-TAPERLOCK (M10X1.5X75-MM) | 1 | |
| 2287088 | 85 SEAL-O-RING | 5 | |
| 2287089 | 86 SEAL-O-RING | 5 | |
| 2287090 | 87 SEAL-O-RING | 6 | |
| 2443712 | 88 PLUG AS | 1 | |
| 9S4191 | PLUG (9/16-18-THD) | 1 | |
| 2147568 | SEAL-O-RING | 1 | |
| 2887158 | 89 STUD (M10X1.5X125-MM) | 1 | |
| 2922491 | 90 CLIP | 4 | |
| 2977976 | 91 ELBOW AS | 1 | |
| 6V9850 | ELBOW | 1 | |
| 2287089 | SEAL-O-RING | 1 | |
| 2P1279 | 92 LOCKNUT (9/16-18-THD) | 1 | |
| 2T1925 | 93 ELBOW | 2 | |
| 2T2305 | 94 ELBOW | 1 | |
| 3196227 | 95 ELBOW AS | 1 | |
| 6V9851 | ELBOW | 1 | |
| 2287090 | SEAL-O-RING | 1 | |
| 3275216 | 96 CLIP (LOOP) | 1 | |
| 3293356 | 97 NUT (M12X1.75-THD) | 4 | |
| 3309757 | 98 ELBOW AS | 1 | |
| 8T1905 | ELBOW | 1 | |
| 2147568 | SEAL-O-RING | 1 | |
| 2287089 | SEAL-O-RING | 1 | |
| 3309763 | 99 CONNECTOR AS | 1 | |
| 8C6872 | CONNECTOR | 1 | |
| 2287090 | SEAL-O-RING | 1 | |
| 3309764 | 100 ELBOW AS | 1 | |
| 8C6712 | ELBOW | 1 | |
| 2147568 | SEAL-O-RING | 1 | |
| 3328542 | 101 TEE AS | 1 | |
| 6V9844 | TEE-SWIVEL | 1 | |
| 2287090 | SEAL-O-RING | 2 | |
| 3353982 | 102 ELBOW AS | 1 | |
| 6V8627 | ELBOW | 1 | |
| 2147568 | SEAL-O-RING | 1 | |
| 2287088 | SEAL-O-RING | 1 | |
| 3378785 | 103 CONNECTOR AS | 2 | |
| 8C6866 | CONNECTOR | 1 | |
| 2287088 | SEAL-O-RING | 1 | |
| 3445675 | 104 NUT (M10X1.5-THD) | 14 | |
| 3526496 | 105 ADAPTER AS | 1 | |
| 8C6871 | CONNECTOR | 1 | |
| 2287090 | SEAL-O-RING | 1 | |
| 3557217 | 106 STUD (M10X1.5X90-MM) | 2 | |
| 3979301 | 107 WASHER-HARD (11.5X20X15-MM THK) | 1 | |
| 3B7738 | 108 FITTING | 1 | |
| 3E2315 | 109 ADAPTER-PIPE | 1 | |
| 3L1258 | 110 NIPPLE-PIPE | 1 | |
| 3P9847 | 111 CLIP | 2 | |
| 4D0124 | 112 ELBOW | 1 | |
| 4D6466 | 113 CLIP | 2 | |
| 4I7889 | 114 SPACER (11X25X45-MM THK) | 1 | |
| 4K8864 | 115 CLIP (LOOP) | 6 | |
| 4L9337 | 116 BOLT (3/8-16X1.5-IN) | 2 | |
| 4M5281 | 117 BOLT (1/4-20X0.75-IN) | 4 | |
| 5P1076 | 118 WASHER-HARD (13.5X30X4-MM THK) | 22 | |
| 5T6374 | 119 SPACER (11X20X40-MM THK) | 3 | |
| 6D3479 | 120 CLIP (LOOP) | 22 | |
| 6K8178 | 121 CLIP (LOOP) | 1 | |
| 6V1867 | 122 CLIP (SLOT) | 1 | |
| 6V1868 | 123 CLIP (TAB) | 1 | |
| 6V1869 | 124 GROMMET (65-MM ID) | 1 | |
| 6V7349 | 125 ELBOW | 2 | |
| 6V9835 | 126 TEE | 1 | |
| 7G8839 | 127 SPACER (13.5X57X6-MM THK) | 2 | |
| 7X0465 | 128 BOLT (M6X1X100-MM) | 2 | |
| 7X5331 | 129 ELBOW | 3 | |
| 7X7729 | 130 WASHER (11X25X3-MM THK) | 8 | |
| 8B9913 | 131 ELBOW-REDUCING | 1 | |
| 8C6868 | 132 CONNECTOR | 1 | |
| 8T4121 | 133 WASHER-HARD (11X21X2.5-MM THK) | 31 | |
| 8T4137 | 134 BOLT (M10X1.5X20-MM) | 12 | |
| 8T4139 | 135 BOLT (M12X1.75X30-MM) | 1 | |
| 8T4183 | 136 BOLT (M12X1.75X40-MM) | 4 | |
| 8T4184 | 137 BOLT (M12X1.75X45-MM) | 4 | |
| 8T4186 | 138 BOLT (M10X1.5X40-MM) | 9 | |
| 8T4192 | 139 BOLT (M12X1.75X25-MM) | 2 | |
| 8T4194 | 140 BOLT (M12X1.75X50-MM) | 4 | |
| 8T4205 | 141 WASHER-HARD (7.2X14.5X2-MM THK) | 4 | |
| 8T4223 | 142 WASHER-HARD (13.5X25.5X3-MM THK) | 5 | |
| 8T4224 | 143 WASHER-HARD (8.8X16X2-MM THK) | 2 | |
| 8T4910 | 144 BOLT (M12X1.75X60-MM) | 2 | |
| 8T4956 | 145 BOLT (M12X1.75X35-MM) | 8 | |
| 8T6466 | 146 BOLT (M10X1.5X60-MM) | 2 | |
| 8T6764 | 147 PLUG-PIPE (1/8-27-THD) | 1 | |
| 8T6870 | 148 BOLT (M8X1.25X70-MM) | 2 | |
| 9X8250 | 149 CLIP (LOOP) | 12 | |
| 7C5105 | KIT-VALVE SEAL (AIR STARTING) | 1 |
