System And Components

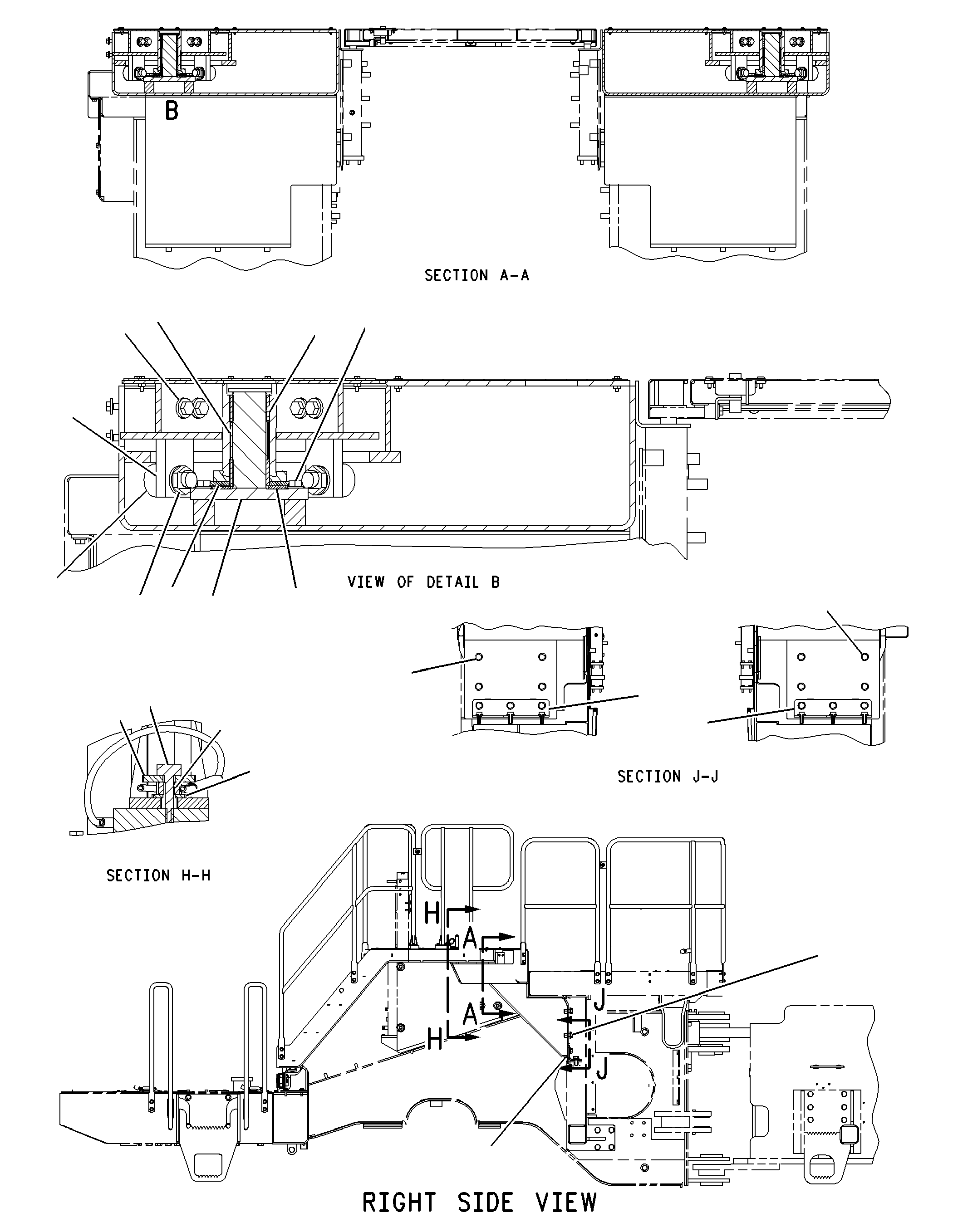

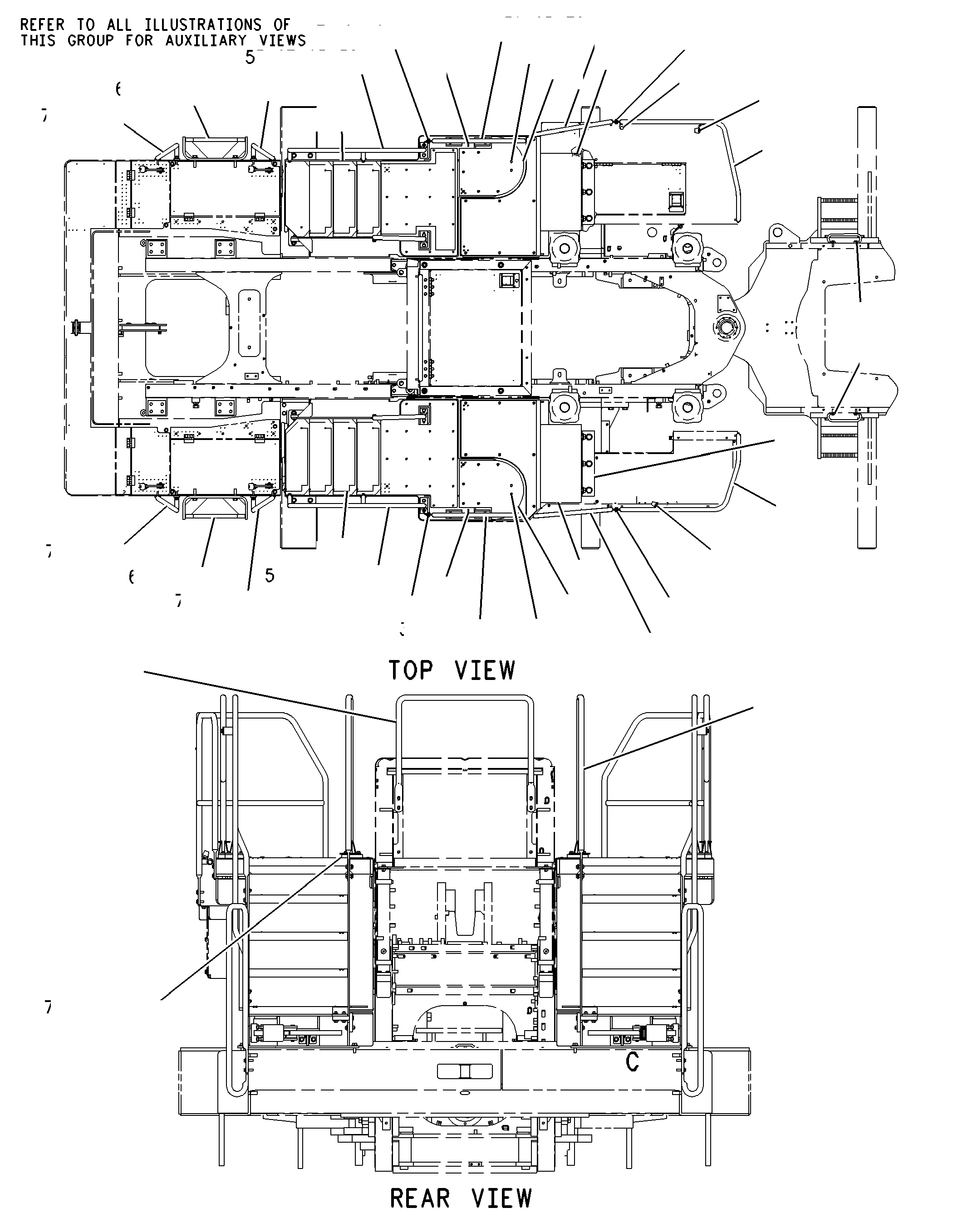

167-9618 LADDER GP-SWINGOUTS/N 7MZ417-UP
Group No: 167-9618
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1D4164 | 1 HANDRAIL | 3 | |
| 3B4611 | 2 PIN-COTTER | 2 | |
| 4E8852 | 3 HANDLE (LH) | 2 | |
| 4E8892 | 4 HANDLE (RH) | 2 | |
| 7X2393 | 5 BUMPER-CONICAL | 3 | |
| 1306604 | 6 NUT (1-1/4-12-THD) | 4 | |
| 1369773 | 7 BAR | 2 | |
| 1496378 | 8 STEP AS | 2 | |
| 1512767 | 9 HANDRAIL AS | 1 | |
| 1574864 | 10 SHAFT AS | 2 | |
| 1580443 | 11 PLATE | 4 | |
| 1582861 | 13 BEARING | 2 | |
| 1582952 | 14 HANDRAIL AS (RH) | 1 | |
| 1582955 | 15 HANDRAIL AS (LH) | 1 | |
| 1588660 | 16 HANDRAIL AS (RH) | 1 | |
| 1593532 | 17 BUSHING | 4 | |
| 1593533 | 18 BEARING | 4 | |
| 1619201 | 19 HANDRAIL | 1 | |
| 1664473 | 20 HANDRAIL AS | 1 | |
| 1669015 | 21 HANDRAIL AS (LH) | 1 | |
| 1677470 | 22 PIN AS | 2 | |
| 1954537 | 23 BRACKET AS (RH) | 1 | |
| 1954538 | 24 BRACKET AS (LH) | 1 | |
| 1954539 | 25 PLATE AS (HANDLE) | 2 | |
| 1954540 | 26 BAR | 2 | |
| 1954542 | 27 PLATE | 2 | |
| 1954543 | 28 BRACKET AS | 2 | |
| 1954544 | 29 BRACKET AS | 1 | |
| 1954545 | 30 BRACKET AS | 1 | |
| 1955989 | 31 PLATE AS | 2 | |
| 1955990 | 32 PLATE AS | 2 | |
| 2032847 | 33 BRACKET AS | 2 | |
| 1964041 | 34 HANDLE AS | 2 | |
| 2032848 | 35 LADDER AS (RH) | 1 | |
| 2032849 | 36 LADDER AS (LH) | 1 | |
| 1964481 | 37 HANDRAIL AS (RH) | 1 | |
| 1964482 | 38 HANDRAIL AS (LH) | 1 | |
| 1964483 | 39 HANDHOLD AS | 2 | |
| 1964845 | 40 TREAD | 1 | |
| 1964846 | 41 TREAD | 1 | |
| 1966981 | 42 PLATFORM GP-OPERATOR | 1 | |
| 1966982 | 43 PLATFORM GP (LH) | 1 | |
| 2032850 | 44 TUBE | 2 | |
| 1364182 | 45 BOLT (M16X2X100-MM) | 4 | |
| 1V9376 | 46 PIN | 2 | |
| 2L9343 | 47 PIN | 2 | |
| 3B4628 | 48 PIN-COTTER | 2 | |
| 3E9411 | 49 WASHER-HARD (17.5X38X6-MM THK) | 16 | |
| 3K8280 | 50 PIN-CLEVIS | 2 | |
| 4H3119 | 51 PIN | 2 | |
| 5C7261 | 52 NUT (M8X1.25-THD) | 3 | |
| 5P1076 | 53 WASHER-HARD (13.5X30X4-MM THK) | 60 | |
| 5P4116 | 54 WASHER-HARD (8.8X20.5X2-MM THK) | 3 | |
| 6V7357 | 55 BOLT (M6X1X25-MM) | 18 | |
| 7X0515 | 56 WASHER-HARD (17X35X5-MM THK) | 4 | |
| 7X0533 | 57 WASHER-HARD (34X55X6-MM THK) | 4 | |
| 7X0550 | 58 WASHER-HARD (13.5X32X5-MM THK) | 12 | |
| 7X2553 | 59 BOLT (M16X2X40-MM) | 4 | |
| 7X2575 | 60 BOLT (M24X3X60-MM) | 20 | |
| 7X7729 | 61 WASHER (11X25X3-MM THK) | 8 | |
| 8T1482 | 62 WASHER-HARD (26X50X8-MM THK) | 20 | |
| 8T4132 | 63 NUT (M16X2-THD) | 4 | |
| 8T4133 | 64 NUT (M10X1.5-THD) | 4 | |
| 8T4139 | 65 BOLT (M12X1.75X30-MM) | 20 | |
| 8T4140 | 66 BOLT (M16X2X60-MM) | 8 | |
| 8T4183 | 67 BOLT (M12X1.75X40-MM) | 46 | |
| 8T4187 | 68 BOLT (M20X2.5X80-MM) | 8 | |
| 8T4193 | 69 BOLT (M16X2X50-MM) | 16 | |
| 8T4194 | 70 BOLT (M12X1.75X50-MM) | 20 | |
| 8T4195 | 71 BOLT (M10X1.5X30-MM) | 4 | |
| 8T4223 | 72 WASHER-HARD (13.5X25.5X3-MM THK) | 22 | |
| 8T4778 | 73 LOCKNUT (M16X2-THD) | 4 | |
| 8T4910 | 75 BOLT (M12X1.75X60-MM) | 4 | |
| 8T4994 | 76 WASHER-HARD (20X36.5X3.5-MM THK) | 2 | |
| 8T5439 | 77 WASHER-HARD (21.5X45X6-MM THK) | 8 | |
| 9X2026 | 78 WASHER (6.5X17X1-MM THK) | 18 | |
| 9X8257 | 79 WASHER (17.5X30X3.5-MM THK) | 8 | |
| 7X0618 | 80 WASHER-HARD (13.5X40X5-MM THK) | 2 | |
| 9G5211 | 81 SPACER (12.95X19.05X9-MM THK) | 2 | |
| 0925524 | 82 BOLT (M12X1.75X80-MM) | 4 | |
| 8D3251 | 83 WASHER (70X151X1.22-MM THK) | 16 |
