System And Components

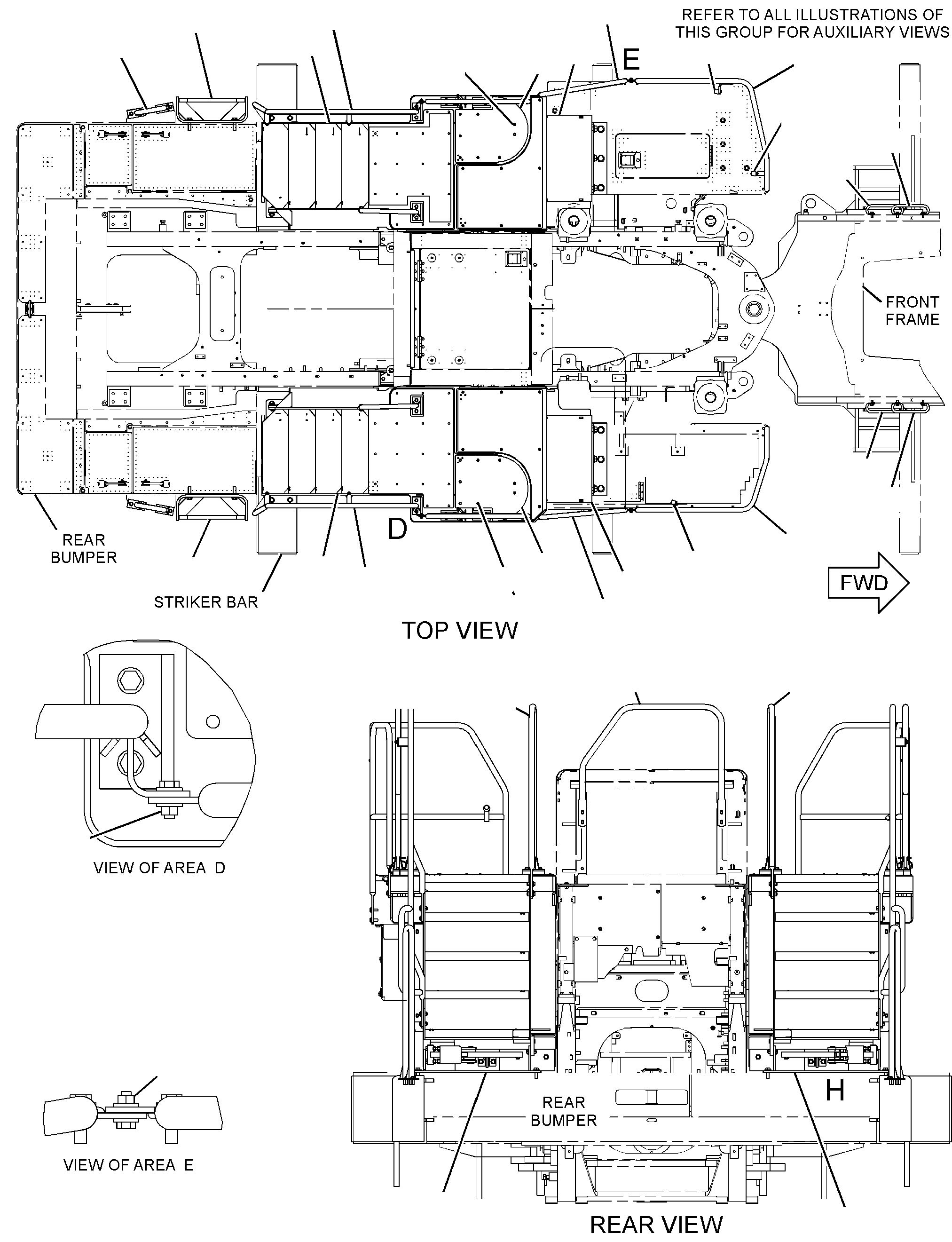

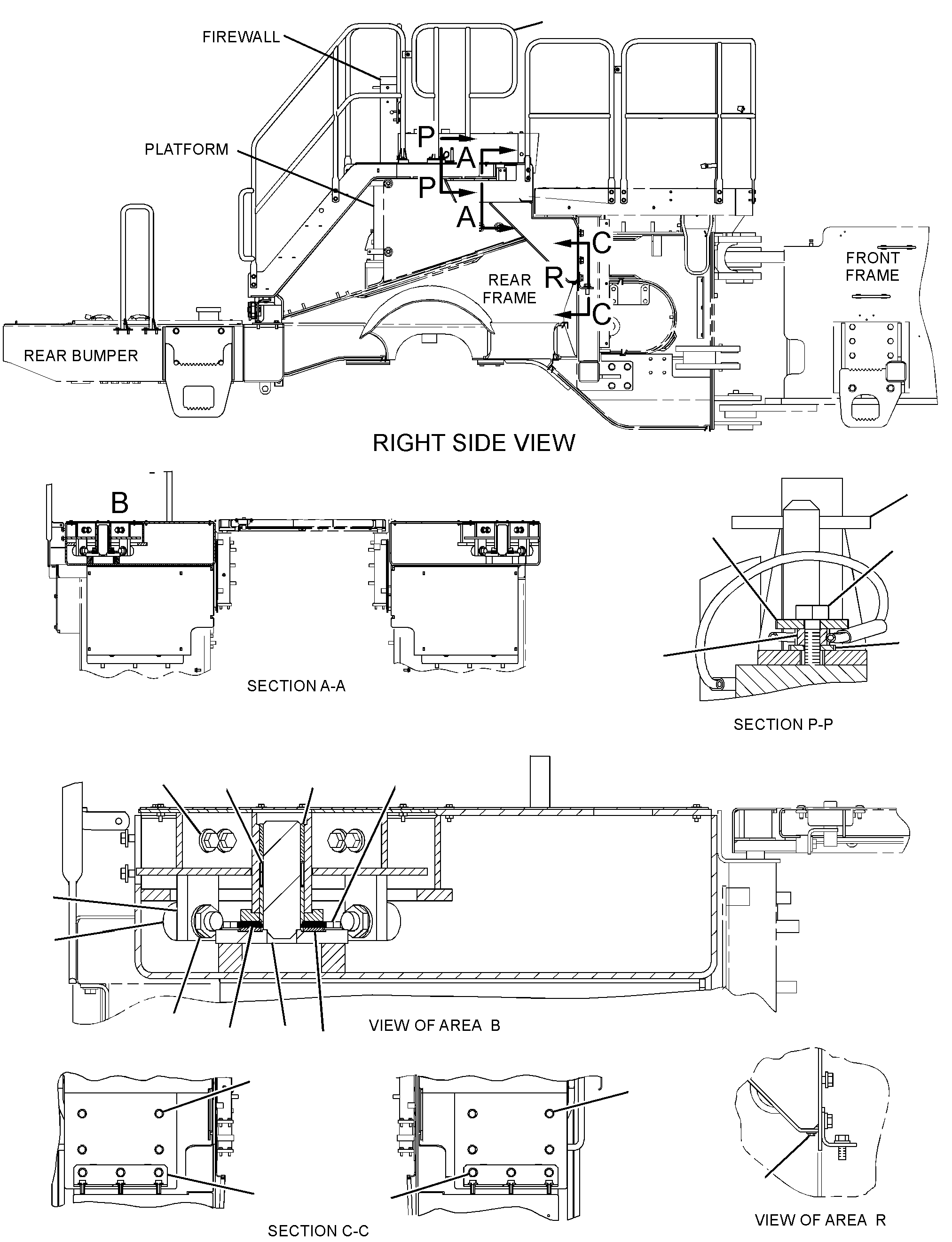

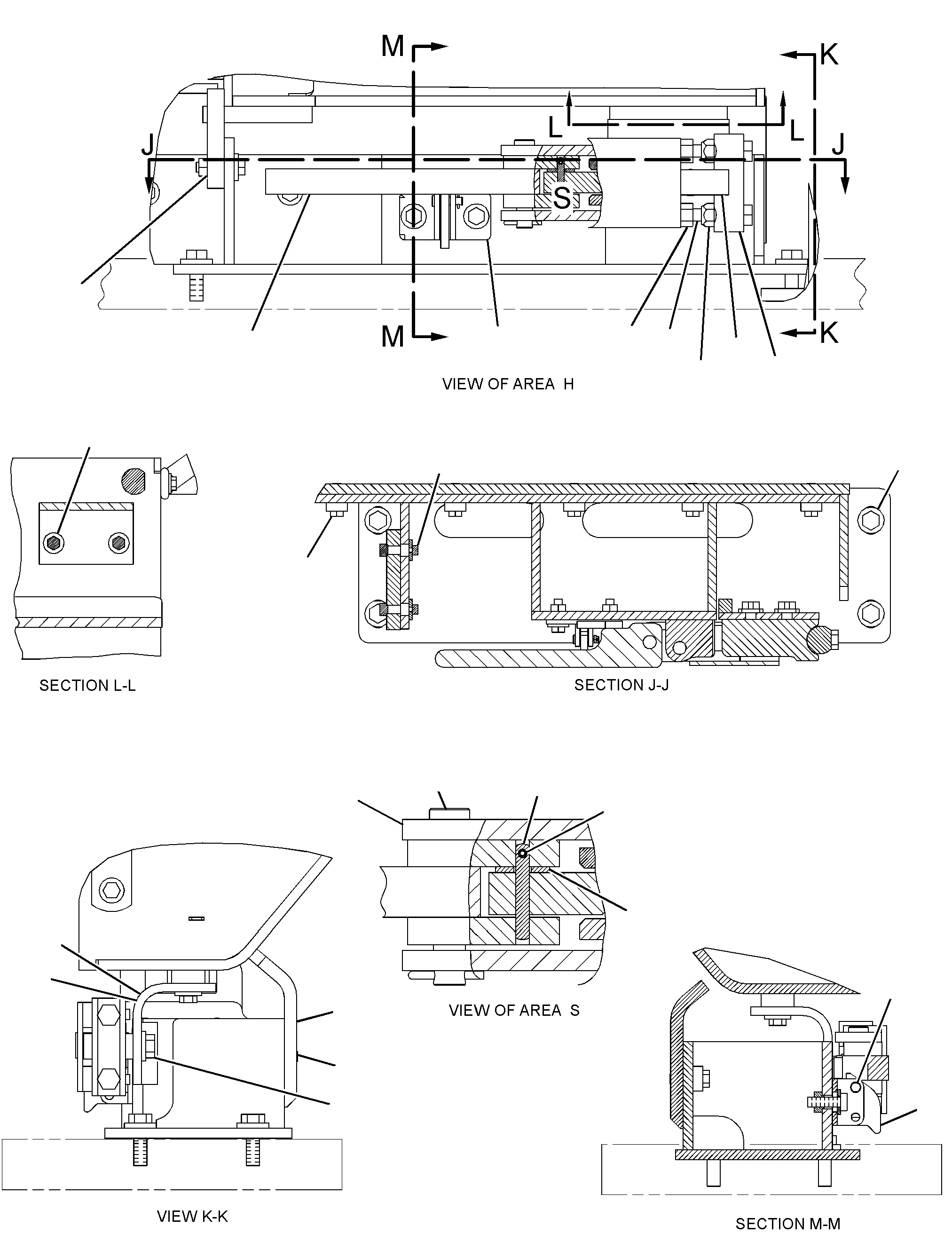

256-7876 LADDER GPS/N BXD600-UP
Group No: 256-7876
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1D4164 | 1 HANDRAIL | 4 | |
| 3B4611 | 2 PIN-COTTER | 2 | |
| 7X2393 | 3 BUMPER-CONICAL | 3 | |
| 8D3251 | 4 WASHER (70X151X1.22-MM THK) | 16 | |
| 3076603 | 5 TUBE | 2 | |
| 8D8168 | 6 BEARING (63.65-MM ID) | ||
| 1306604 | 7 NUT (1-1/4-12-THD) | 4 | |
| 1369773 | 8 BAR | 2 | |
| 1496378 | 9 STEP AS | 2 | |
| 1512767 | 10 HANDRAIL AS | 1 | |
| 3205073 | 11 SHAFT AS | 2 | |
| 1580443 | 12 PLATE | 4 | |
| 1582861 | 13 BEARING | 2 | |
| 1582952 | 14 HANDRAIL AS (RH) | 1 | |
| 1582955 | 15 HANDRAIL AS (LH) | 1 | |
| 1588660 | 16 HANDRAIL AS (RH) | 1 | |
| 1593533 | 17 BEARING | 4 | |
| 1619201 | 18 HANDRAIL | 1 | |
| 1669015 | 19 HANDRAIL AS (LH) | 1 | |
| 1677470 | 20 PIN AS | 2 | |
| 6W1886 | CABLE | 1 | |
| 0307678 | PIN-SPRING | 2 | |
| 1954539 | 21 PLATE AS (HANDLE) | 2 | |
| 1954542 | 22 PLATE | 2 | |
| 1954543 | 23 BRACKET AS | 2 | |
| 1955989 | 24 PLATE AS | 2 | |
| 1955990 | 25 PLATE AS | 2 | |
| 1964041 | 26 HANDLE AS | 2 | |
| 1964483 | 27 HANDHOLD AS | 2 | |
| 1964845 | 28 TREAD | 1 | |
| 1964846 | 29 TREAD | 1 | |
| 1966981 | 30 PLATFORM GP-OPERATOR | 1 | |
| 1966982 | 31 PLATFORM GP (LH) | 1 | |
| 2032847 | 32 BRACKET AS | 2 | |
| 2032848 | 33 LADDER AS (RH) | 1 | |
| 2032849 | 34 LADDER AS (LH) | 1 | |
| 2159191 | 35 HANDRAIL AS | 1 | |
| 2561369 | 36 HANDRAIL GP (RH) | 1 | |
| 2561370 | 37 HANDRAIL AS (LH) | 1 | |
| 2754283 | 38 HANDRAIL AS | 2 | |
| 3021259 | 39 PLATE | 1 | |
| 3021260 | 40 BRACKET AS (RH) | 1 | |
| 3021261 | 41 BRACKET AS (LH) | 1 | |
| 3021429 | 42 PLATE | 1 | |
| 3048593 | 43 BRACKET AS (RH) | 1 | |
| 3048594 | 44 BRACKET AS (LH) | 1 | |
| 0925524 | 45 BOLT (M12X1.75X80-MM) | 4 | |
| 1364182 | 46 BOLT (M16X2X100-MM) | 4 | |
| 1984778 | 47 WASHER-HARD (13.5X30X12-MM THK) | 10 | |
| 1V9376 | 48 PIN | 2 | |
| 2L9343 | 49 PIN | 2 | |
| 3B4628 | 50 PIN-COTTER | 2 | |
| 3E9411 | 51 WASHER-HARD (17.5X38X6-MM THK) | 16 | |
| 3K8280 | 52 PIN-CLEVIS | 2 | |
| 4H3119 | 53 PIN | 2 | |
| 5C7261 | 54 NUT (M8X1.25-THD) | 3 | |
| 5P1076 | 55 WASHER-HARD (13.5X30X4-MM THK) | 52 | |
| 5P4116 | 56 WASHER-HARD (8.8X20.5X2-MM THK) | 3 | |
| 6V7357 | 57 BOLT (M6X1X25-MM) | 18 | |
| 7X0515 | 58 WASHER-HARD (17X35X5-MM THK) | 4 | |
| 7X0533 | 59 WASHER-HARD (34X55X6-MM THK) | 4 | |
| 7X0550 | 60 WASHER-HARD (13.5X32X5-MM THK) | 12 | |
| 7X0618 | 61 WASHER-HARD (13.5X40X5-MM THK) | 2 | |
| 7X2553 | 62 BOLT (M16X2X40-MM) | 4 | |
| 7X2575 | 63 BOLT (M24X3X60-MM) | 20 | |
| 7X7729 | 64 WASHER (11X25X3-MM THK) | 8 | |
| 8T1482 | 65 WASHER-HARD (26X50X8-MM THK) | 20 | |
| 8T4132 | 66 NUT (M16X2-THD) | 4 | |
| 8T4133 | 67 NUT (M10X1.5-THD) | 4 | |
| 8T4139 | 68 BOLT (M12X1.75X30-MM) | 22 | |
| 8T4140 | 69 BOLT (M16X2X60-MM) | 8 | |
| 8T4183 | 70 BOLT (M12X1.75X40-MM) | 54 | |
| 8T4187 | 71 BOLT (M20X2.5X80-MM) | 8 | |
| 8T4193 | 72 BOLT (M16X2X50-MM) | 16 | |
| 8T4194 | 73 BOLT (M12X1.75X50-MM) | 4 | |
| 8T4195 | 74 BOLT (M10X1.5X30-MM) | 4 | |
| 8T4223 | 75 WASHER-HARD (13.5X25.5X3-MM THK) | 24 | |
| 8T4778 | 76 LOCKNUT (M16X2-THD) | 4 | |
| 8T4994 | 77 WASHER-HARD (20X36.5X3.5-MM THK) | 2 | |
| 8T5439 | 78 WASHER-HARD (21.5X45X6-MM THK) | 8 | |
| 9G5211 | 79 SPACER (12.95X19.05X9-MM THK) | 2 | |
| 9X2026 | 80 WASHER (6.5X17X1-MM THK) | 18 | |
| 9X8257 | 81 WASHER (17.5X30X3.5-MM THK) | 8 |
