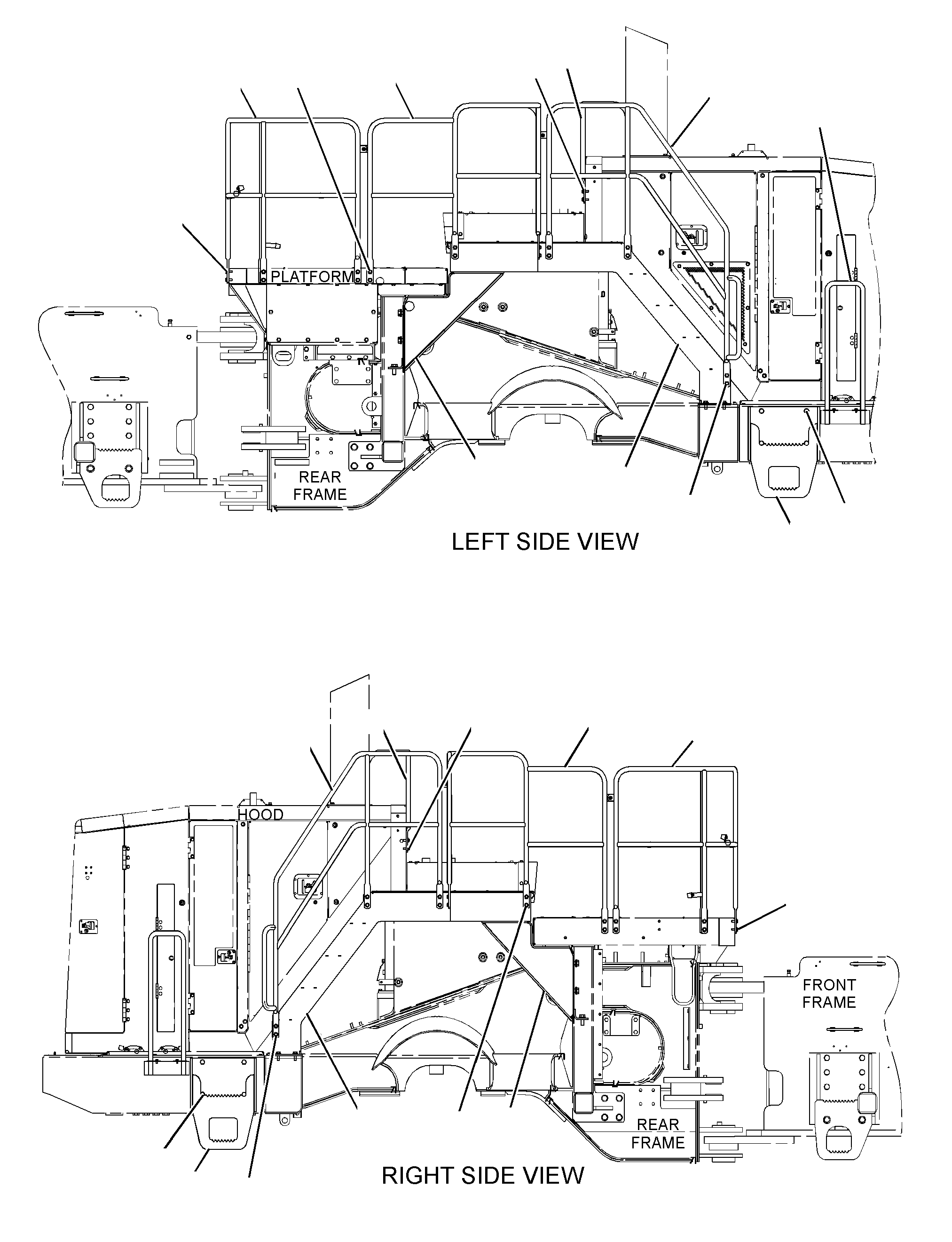

261-3265 LADDER GPS/N BXD1-UP

Group No: 261-3265
Part NumberPart NameQty
1D41641 HANDRAIL4
7X23932 BUMPER-CONICAL3
14963783 STEP AS2
15127674 HANDRAIL AS1
15148275 HANDRAIL AS (LH)1
15148296 HANDRAIL AS (RH)1
16432807 SUPPORT AS1
8T4001NUT (M24X3-THD)4
9X6269NUT-WELD (M16X2-THD)8
16432828 SUPPORT AS1
8T4001NUT (M24X3-THD)4
9X6269NUT-WELD (M16X2-THD)8
16556199 TREAD1
165562010 TREAD1
166447111 HANDRAIL AS1
166447212 HANDRAIL AS1
213376113 LADDER AS (RH)1
6V1634RIVET-POP11
6V9632NUT-WELD (M6X1-THD)9
8T3597NUT-WELD (M12X1.75-THD)12
213376214 LADDER AS (LH)1
6V1634RIVET-POP11
6V9632NUT-WELD (M6X1-THD)9
8T3597NUT-WELD (M12X1.75-THD)12
215919115 HANDRAIL AS1
254733116 HANDRAIL AS (RH)1
254733217 HANDRAIL AS (LH)1
275428318 HANDRAIL AS2
3E941119 WASHER-HARD (17.5X38X6-MM THK)24
5C726120 NUT (M8X1.25-THD)3
5P107621 WASHER-HARD (13.5X30X4-MM THK)52
6V735722 BOLT (M6X1X25-MM)18
7X257523 BOLT (M24X3X60-MM)14
7X772924 WASHER (11X25X3-MM THK)8
8T148225 WASHER-HARD (26X50X8-MM THK)14
8T412327 WASHER (22X35X3.5-MM THK)8
8T413328 NUT (M10X1.5-THD)4
8T413930 BOLT (M12X1.75X30-MM)8
8T418331 BOLT (M12X1.75X40-MM)52
8T418732 BOLT (M20X2.5X80-MM)8
8T419333 BOLT (M16X2X50-MM)24
8T419534 BOLT (M10X1.5X30-MM)4
8T422335 WASHER-HARD (13.5X25.5X3-MM THK)8
8T422436 WASHER-HARD (8.8X16X2-MM THK)3
9X202637 WASHER (6.5X17X1-MM THK)18
