System And Components

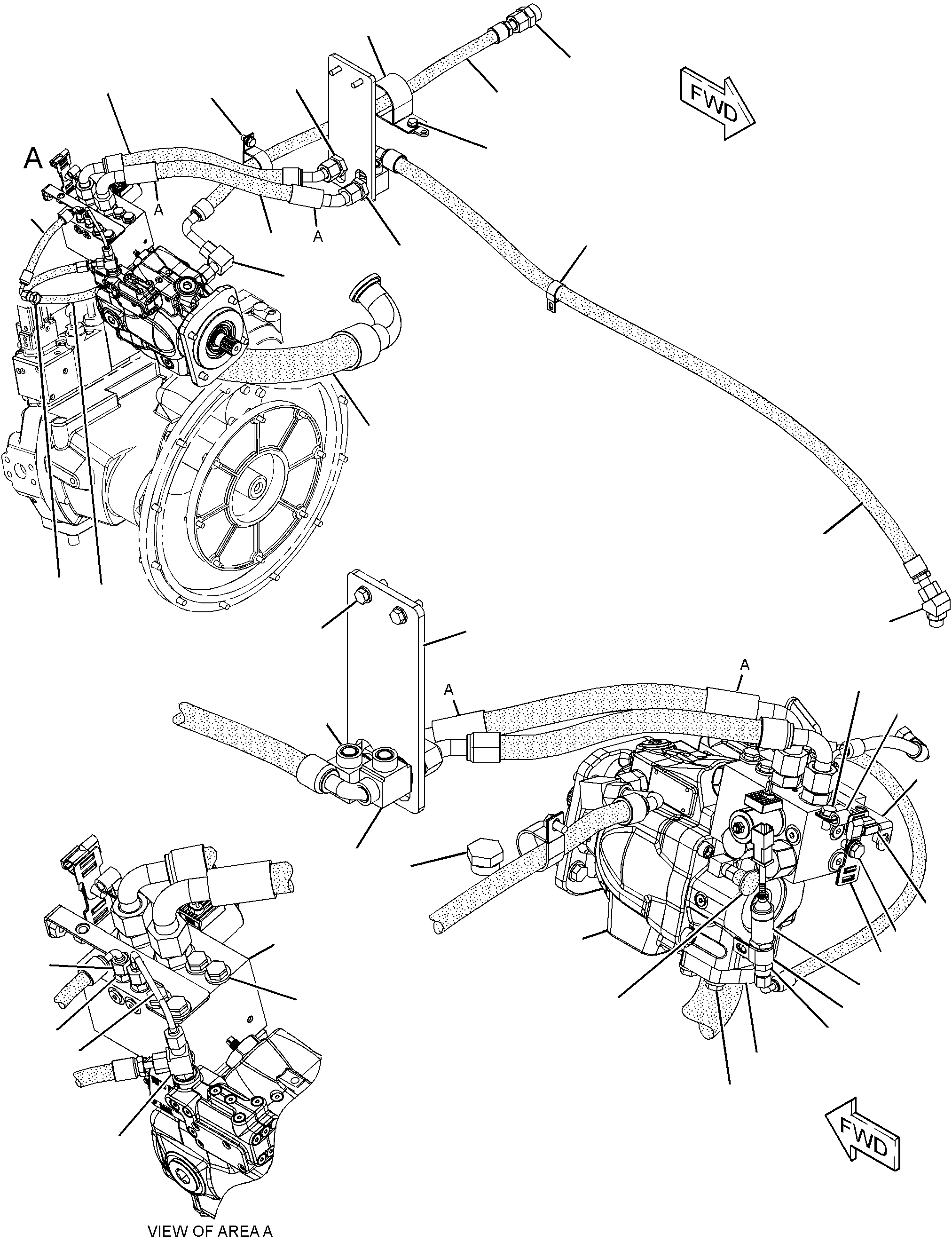

282-3071 LINES GP-PUMPS/N 1041175-UP
Group No: 282-3071
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 8P8701 | 1 WASHER-THRUST | 2 | |
| 8W6687 | 2 HOSE AS | 1 | |
| 1653144 | 3 HOSE AS | 1 | |
| 1756209 | 4 HOSE AS | 1 | |
| 1893158 | 5 SUPPRESSOR-ARC | 1 | |
| 1992856 | 6 TUBE AS | 1 | |
| 2218208 | 7 HOSE AS | 1 | |
| 2225781 | 8 VALVE GP-SOLENOID & MANIFOLD (DISC SAW) | 1 | |
| 2242335 | 9 PLATE | 1 | |
| 2252605 | 10 BRACKET AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 2 | |
| 2255475 | 11 HOSE AS | 1 | |
| 2255476 | 12 HOSE AS | 1 | |
| 2255477 | 13 PLATE | 1 | |
| 2283649 | 14 SENSOR GP-PRESSURE (LOAD SENSING) | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 2585058 | 15 HOSE AS | 1 | |
| 2688259 | 16 PUMP GP-PISTON (SAW) | 1 | |
| 0338248 | 17 CLIP (LOOP) | 1 | |
| 1195917 | 18 CLIP (LOOP) | 1 | |
| 1305300 | 19 CLIP | 3 | |
| 1488315 | 20 CONNECTOR AS | 1 | |
| 2M9780 | SEAL-O-RING | 1 | |
| 6V8642 | CONNECTOR | 1 | |
| 7J9108 | SEAL-O-RING | 1 | |
| 1488316 | 21 CONNECTOR AS | 2 | |
| 3J7354 | SEAL-O-RING | 1 | |
| 4J5477 | SEAL-O-RING | 1 | |
| 6V8647 | CONNECTOR | 1 | |
| 1488327 | 22 CONNECTOR AS | 2 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 6V8637 | CONNECTOR | 1 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 1488339 | 23 CONNECTOR AS | 1 | |
| 6V8716 | CONNECTOR (STRAIGHT) | 1 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 7M8485 | SEAL-O-RING | 1 | |
| 1488376 | 24 ELBOW AS | 1 | |
| 6V8983 | ELBOW | 1 | |
| 6V9746 | SEAL-O-RING | 2 | |
| 1488393 | 25 ELBOW AS | 1 | |
| 6V9852 | ELBOW (SWIVEL) | 1 | |
| 7J9108 | SEAL-O-RING | 1 | |
| 1488413 | 26 REDUCER AS | 2 | |
| 4J5477 | SEAL-O-RING | 1 | |
| 6V8934 | ADAPTER | 1 | |
| 1504029 | 27 TEE AS | 1 | |
| 3J7354 | SEAL-O-RING | 1 | |
| 4J5477 | SEAL-O-RING | 2 | |
| 6V8780 | TEE | 1 | |
| 1536237 | 28 ELBOW AS | 1 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 6V9004 | ELBOW | 1 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 1536248 | 29 ADAPTER AS | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 8T6663 | ADAPTER-PORT | 1 | |
| 1644180 | 30 PLUG AS | 1 | |
| 7M8485 | SEAL-O-RING | 1 | |
| 9S4181 | PLUG (1-5/16-12-THD) | 1 | |
| 1646862 | 31 TEE AS | 1 | |
| 6V9160 | TEE-FACE SEAL | 1 | |
| 6V9746 | SEAL-O-RING | 3 | |
| 1P4582 | 32 FLANGE-HALF | 2 | |
| 1S0994 | 33 CLIP (LOOP) | 1 | |
| 2P1293 | 34 LOCKNUT (1-3/16-12-THD) | 2 | |
| 3J1907 | 35 SEAL-O-RING | 1 | |
| 4J0527 | 36 SEAL-O-RING | 1 | |
| 6V0852 | 37 CAP-DUST | 1 | |
| 6V1889 | 38 CLIP (LOOP) | 1 | |
| 7D1553 | 39 CLIP | 1 | |
| 7X2550 | 40 BOLT (M12X1.75X110-MM) | 4 | |
| 8T4121 | 41 WASHER-HARD (11X21X2.5-MM THK) | 6 | |
| 8T4133 | 42 NUT (M10X1.5-THD) | 1 | |
| 8T4137 | 43 BOLT (M10X1.5X20-MM) | 4 | |
| 8T4139 | 44 BOLT (M12X1.75X30-MM) | 4 | |
| 8T4184 | 45 BOLT (M12X1.75X45-MM) | 4 | |
| 8T4196 | 46 BOLT (M10X1.5X35-MM) | 2 | |
| 8T4223 | 47 WASHER-HARD (13.5X25.5X3-MM THK) | 12 | |
| 8T5041 | 48 BOLT (M12X1.75X120-MM) | 4 |
