System And Components

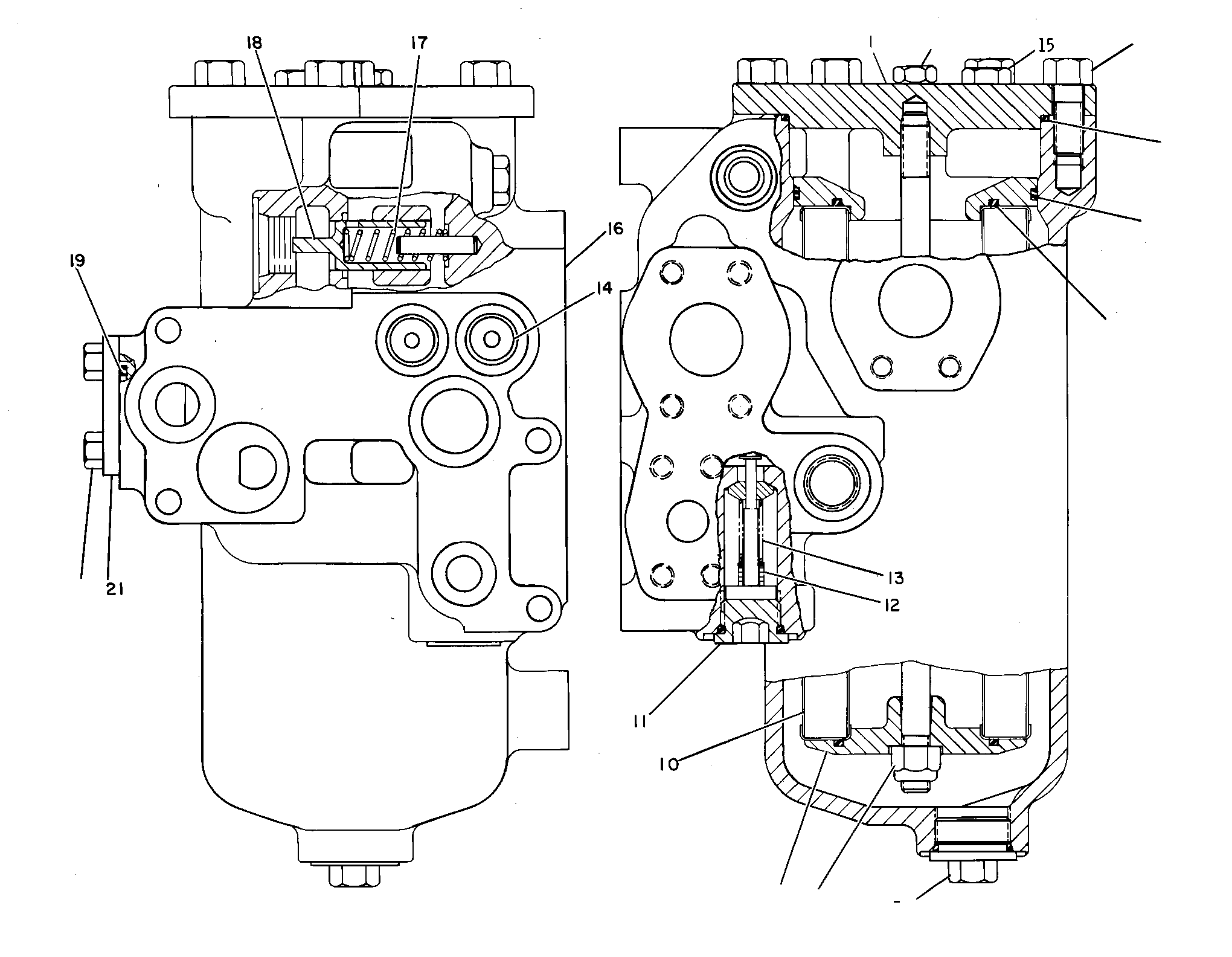

8G-4435 FILTER GP-OILS/N 4NK1-UP
Group No: 8G-4435
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 7S8700 | 1 COVER AS | 1 | |
| 3S4398 | STUD-TAPERLOCK (1/2-13-THD) | 1 | |
| 0S1595 | 2 BOLT (1/2-13X1.25-IN) | 6 | |
| 2H3928 | 3 SEAL-O-RING | 1 | |
| 5K1770 | 4 SEAL-O-RING | 1 | |
| 8F8882 | 5 SEAL-O-RING | 2 | |
| 9S4205 | 6 PLUG (1-5/16-12-THD) | 1 | |
| 7M8485 | 7 SEAL-O-RING | 1 | |
| 2H3788 | 8 LOCKNUT (1/2-13-THD) | 1 | |
| 2S6462 | 9 RETAINER | 1 | |
| 1391533 | 10 FILTER ELEMENT-TRANSMISSION | 1 | |
| 9S8008 | 11 PLUG (1-1/16-12-THD) | 1 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 6T2768 | 12 VALVE AS | 1 | |
| 6T2767 | STEM | 1 | |
| 5S7001 | SPACER (7.54X14.15X0.9-MM THK) | 9 | |
| 0339139 | RING-RETAINING | 1 | |
| 3T3771 | 13 SPRING | 1 | |
| 8S0568 | 14 PLUG-ORIFICE | 2 | |
| 9S4191 | 15 PLUG (9/16-18-THD) | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 8G4716 | 16 HOUSING AS | 1 | |
| 4D0514 | PLUG-PIPE | 1 | |
| 6T9223 | 17 SPRING | 1 | |
| 6T9222 | 18 SPOOL | 1 | |
| 2H3932 | 19 SEAL-O-RING | 1 | |
| 0L1351 | 20 BOLT (3/8-16X0.875-IN) | 2 | |
| 7G1577 | 21 COVER-FLANGE | 1 | |
| 9S4182 | 22 PLUG (7/16-20-THD) | 1 | |
| 3J7354 | SEAL-O-RING | 1 |
