System And Components

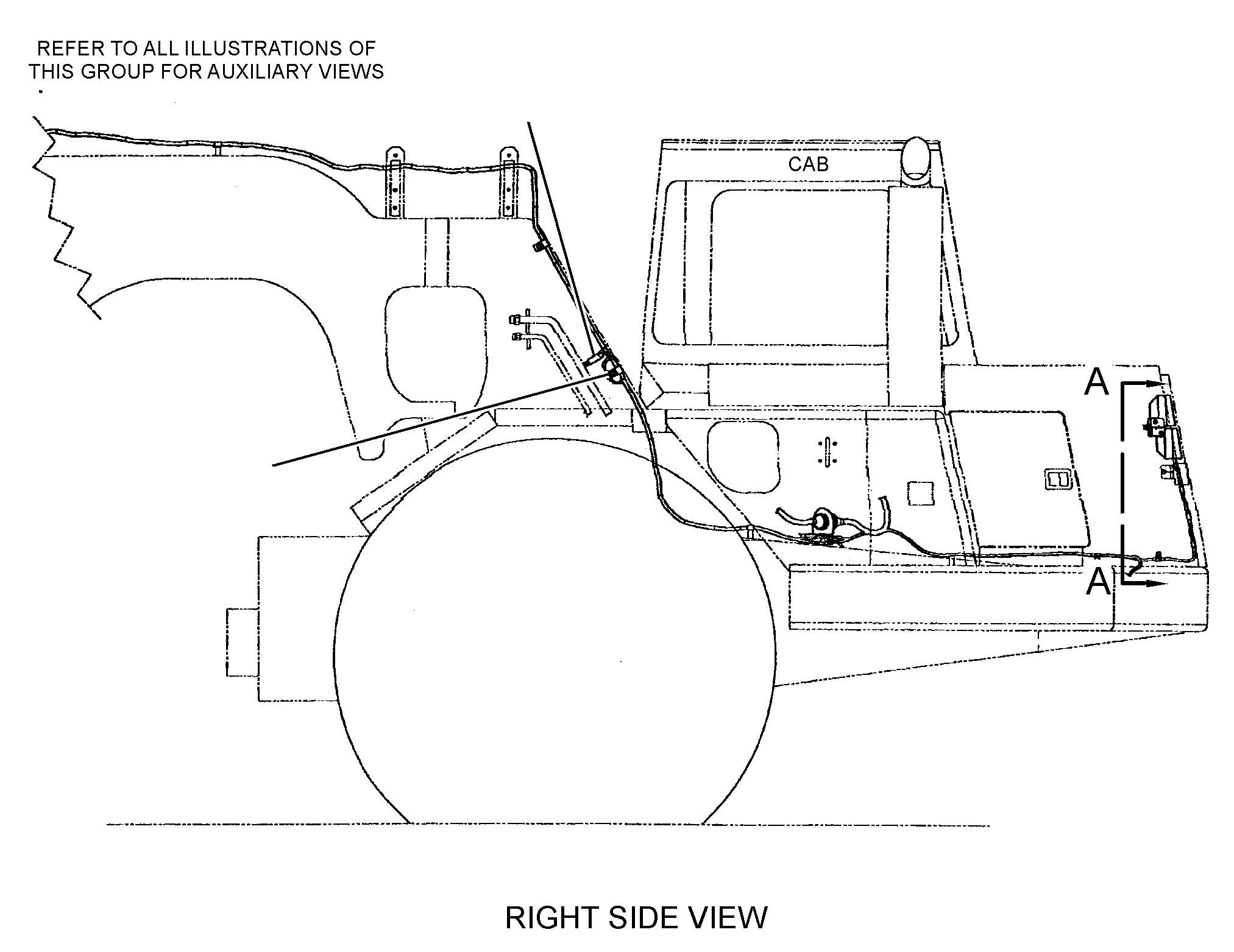

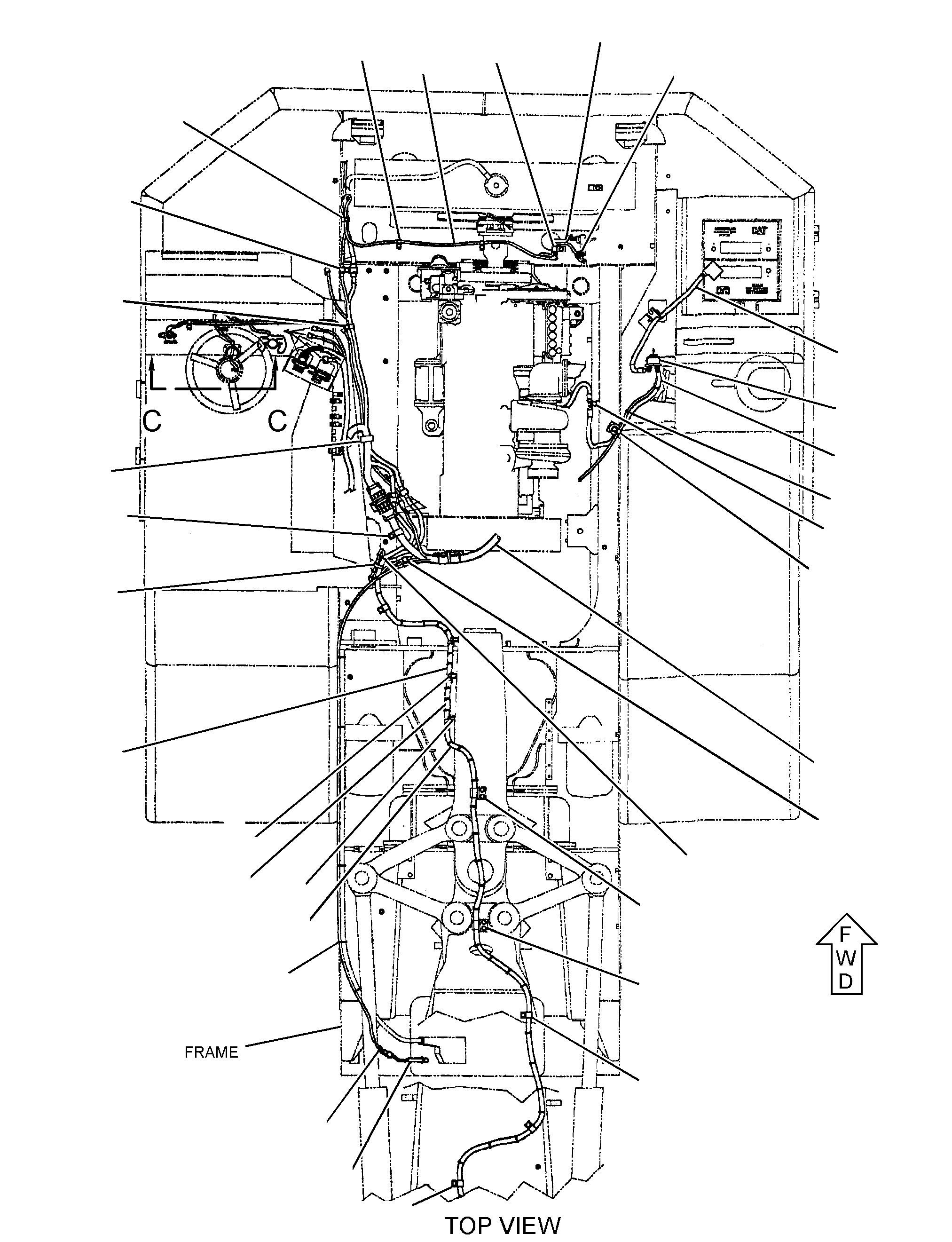

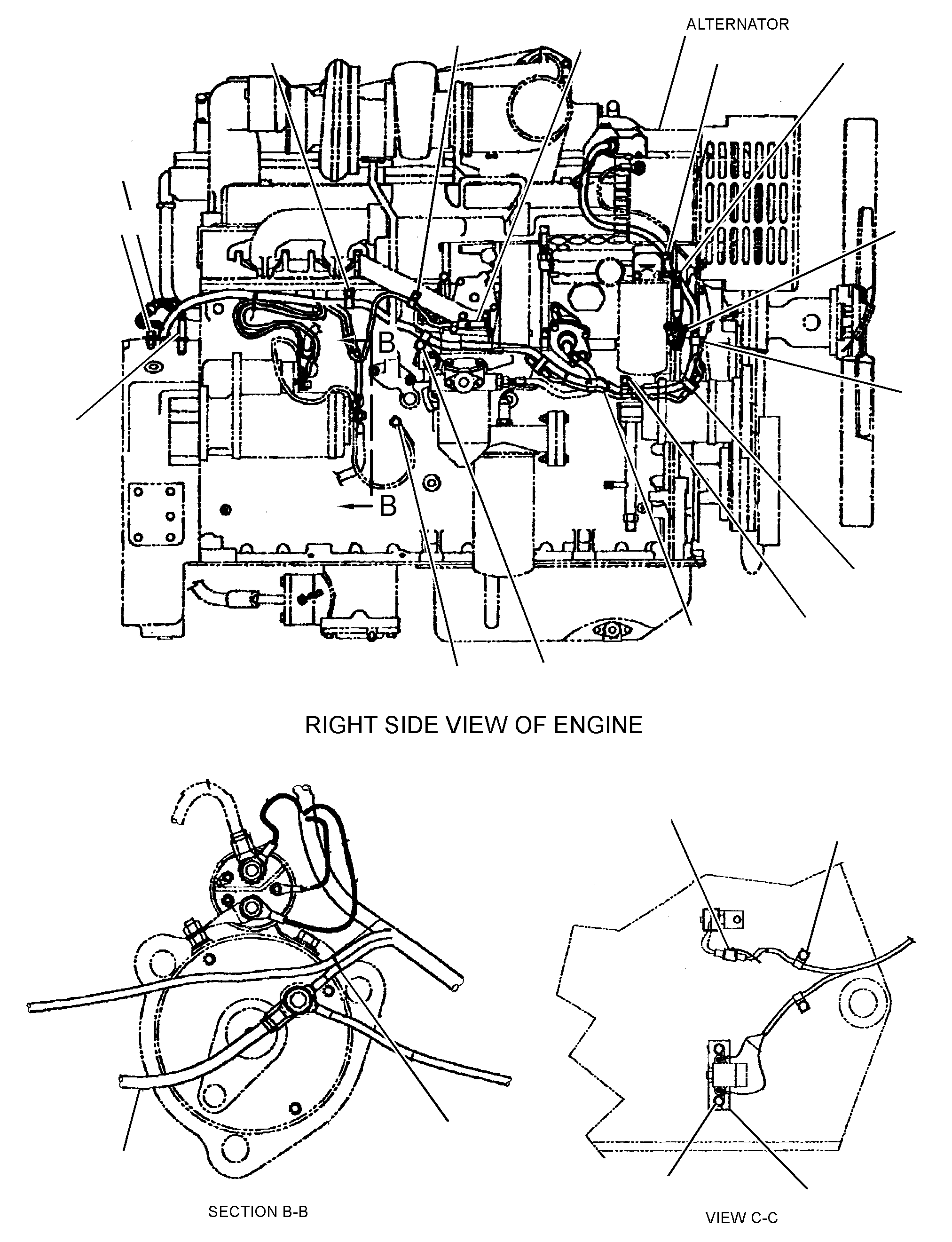

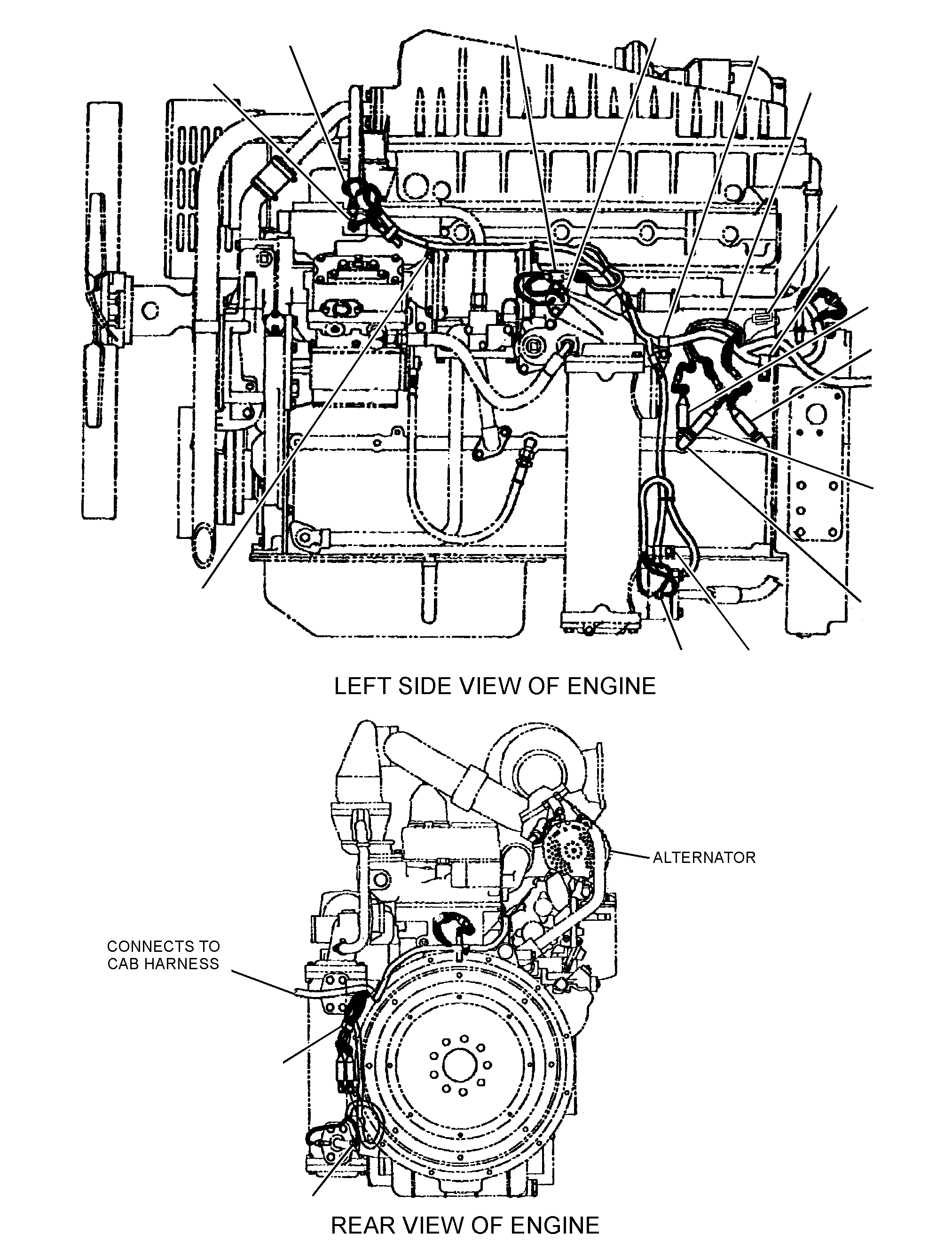

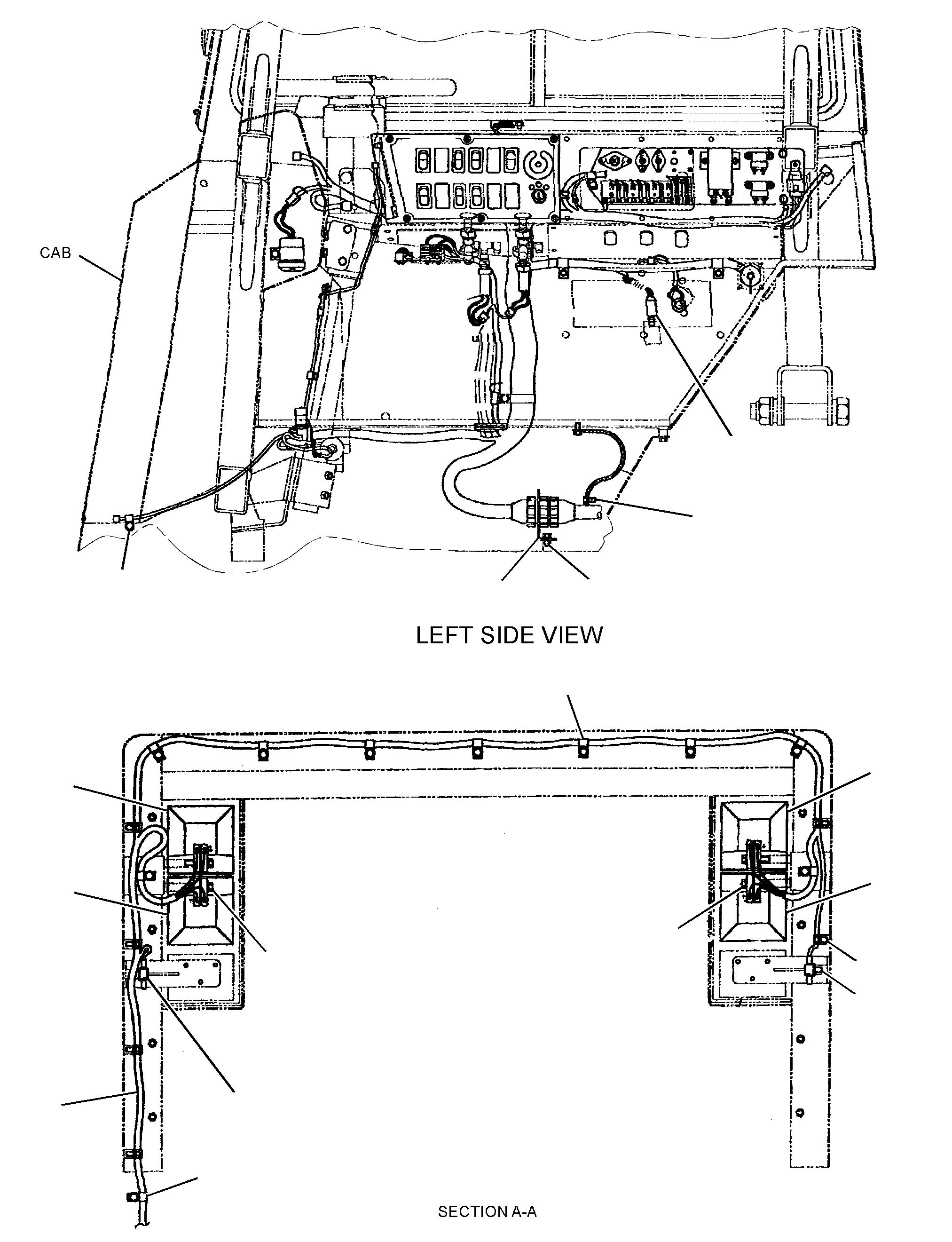

298-5660 WIRING GP-TRACTORS/N 9XG2090-2100
Group No: 298-5660 · Commonality
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 3B6552 | 1 ELBOW-PIPE | 1 | |
| 3B7255 | 2 BUSHING-REDUCER | 1 | |
| 2D7325 | 9 TEE-PIPE | 1 | |
| 4D7794 | 10 CLIP | 9 | |
| 6D4246 | 12 CLIP (LOOP) | 2 | |
| 6D4636 | 13 CLIP (LOOP) | 1 | |
| 1602445 | 14 SWITCH GP-PRESSURE | 1 | |
| 3E7259 | 21 SENDER AS-TEMPERATURE (TORQUE CONVERTER OIL) | 1 | |
| 4B2049 | NUT (10-32-THD) | 1 | |
| 7X0620 | WASHER-HARD (5.5X13X1.6-MM THK) | 1 | |
| 8F1434 | LOCKWASHER | 1 | |
| 3E7886 | 23 SENSOR GP-SPEED (TRANSMISSION SPEED) | 1 | |
| 3E7886 | 23A SENSOR GP-SPEED (ENGINE SPEED) | 1 | |
| 3E8320 | 24 PLATE-INSTRUCTION (BATTERY) | 1 | |
| 3F6166 | 25 EXTENSION | 1 | |
| 2G8767 | 26 WASHER (10.5X60X3-MM THK) | 2 | |
| 6G2256 | 27 CLAMP | 1 | |
| 6G2263 | 28 SPACER (10.5X19X28.5-MM THK) | 1 | |
| 9G9150 | 36 CLIP | 3 | |
| 9G9152 | 37 CLIP | 4 | |
| 9G9154 | 38 CLIP | 2 | |
| 7J8611 | 42 ELBOW-PIPE | 2 | |
| 8J8197 | 43 CLIP | 1 | |
| 3K0360 | 44 SEAL-O-RING | 1 | |
| 5K0906 | 46 BOLT (5/16-18X0.625-IN) | 1 | |
| 7K1181 | 47 STRAP-CABLE | 44 | |
| 4L6454 | 48 BOLT (3/8-16X1-IN) | 6 | |
| 4M0061 | 49 BOLT (5/16-18X0.75-IN) | 2 | |
| 5M3062 | 50 BOLT (3/8-16X0.75-IN) | 38 | |
| 8M2770 | 51 CLIP (LOOP) | 7 | |
| 9M8406 | 53 CLIP (LOOP) | 4 | |
| 4N3841 | 55 GASKET | 1 | |
| 6N5926 | 56 SENDER AS-TEMPERATURE (ENGINE COOLANT) | 1 | |
| 7N0718 | 57 SWITCH GP-DISCONNECT (BATTERY DISCONNECT) | 1 | |
| 2033221 | 58 SWITCH AS-TEMPERATURE (TORQUE CONVERTER) | 1 | |
| 6V8376 | SCREW-MACHINE (8-32X0.25-IN) | 2 | |
| 9B7233 | LOCKWASHER | 2 | |
| 2033222 | 59 SWITCH AS-TEMPERATURE (ENGINE COOLANT) | 1 | |
| 6V8376 | SCREW-MACHINE (8-32X0.25-IN) | 2 | |
| 9B7233 | LOCKWASHER | 2 | |
| 1922887 | 60 GUARD | 1 | |
| 5P7854 | 61 CLIP (LOOP) | 1 | |
| 5P4116 | 62 WASHER-HARD (8.8X20.5X2-MM THK) | 4 | |
| 5S7379 | 67 BOLT (3/8-16X0.875-IN) | 1 | |
| 8I2127 | 70 ANGLE | 1 | |
| 2T3068 | 72 PLATE | 1 | |
| 2T3204 | 73 HARNESS AS-FRONT LIGHTING | 1 | |
| 2T3245 | 75 CABLE AS | 1 | |
| 5P0747 | CABLE (00-GA, BLACK)(45-CM) | ||
| 1S7251 | TERMINAL-CABLE (00-GA, 1/2-IN SCREW) | 2 | |
| 8I1573 | 79 HARNESS AS-ENGINE | 1 | |
| 8N1518 | PLUG AS-CONNECTOR (25-PIN) | 1 | |
| 8N1521 | BELL AS-END | 1 | |
| 8T8827 | BOOT (RED) | 1 | |
| 1028802 | KIT-RECEPTACLE (2-PIN) | 2 | |
| 1552270 | KIT-CONNECTING PLUG (2-PIN) | 7 | |
| 2T3350 | 84 HARNESS AS-CHASSIS | 1 | |
| 9X0194 | TERMINAL AS | 2 | |
| 7N9737 | HOUSING-RECEPTACLE (14-GA TO 18-GA) | 1 | |
| 2T3738 | 87 LAMP GP-HEAD (24-VOLT)(VERTICAL, RH, LH) | 2 | |
| 2T3739 | 88 LAMP GP-HEAD (24-VOLT)(SUSPENDED, RH, LH) | 2 | |
| 2T3321 | 89 CABLE AS | 1 | |
| 5P0747 | CABLE (00-GA, BLACK)(85-CM) | ||
| 1S7252 | TERMINAL-CABLE (00-GA, 3/8-IN SCREW) | 1 | |
| 9G0005 | COVER AS-TERMINAL (BLACK) | 1 | |
| 9G8909 | COVER-TERMINAL (BLACK) | 1 | |
| 8C5918 | TERMINAL AS-BATTERY (NEGATIVE) | 1 | |
| 3T0050 | 90 CLIP | 1 | |
| 3T3045 | 93 CLIP AS | 2 | |
| 3T3048 | 94 CLIP AS | 5 | |
| 6T2217 | 96 RESISTOR AS | 1 | |
| 7N9737 | HOUSING-RECEPTACLE (14-GA TO 18-GA) | 1 | |
| 7N7780 | PIN-CONNECTOR (14-GA TO 18-GA) | 1 | |
| 7N7779 | SOCKET-CONNECTOR (14-GA TO 18-GA) | 1 | |
| 6T3610 | RESISTOR | 1 | |
| 5P5677 | WIRE (18-GA, BLACK)(0.1-M) | ||
| 1070613 | 98 SWITCH AS-PRESSURE (FUEL PUMP RELAY) | 1 | |
| 1070613 | 98A SWITCH AS-PRESSURE (ENGINE OIL PRESSURE) | 1 | |
| 1070613 | 98B SWITCH AS-PRESSURE (EJECTOR) | 1 | |
| 1028802 | KIT-RECEPTACLE (2-PIN) | 1 | |
| 1863735 | PIN-CONNECTOR (16-GA TO 18-GA) | 2 | |
| 8T8911 | 99 BOLT (5/16-18X2-IN) | 4 | |
| 6D4244 | 101 CLIP (LOOP) | 1 | |
| 8T4224 | 102 WASHER-HARD (8.8X16X2-MM THK) | 6 | |
| 8T4896 | 103 WASHER-HARD (10.2X18.5X2.5-MM THK) | 46 | |
| 8T5391 | 104 BOLT (5/16-18X0.5-IN) | 3 | |
| 6D3479 | 105 CLIP (LOOP) | 7 | |
| 8T8915 | 109 BOLT (3/8-16X3.25-IN) | 1 | |
| 2912432 | 111 HARNESS AS-WIRING | 1 | |
| 1552255 | KIT-CONNECTING PLUG (12-PIN) | 1 | |
| 2912433 | 112 HARNESS AS-LIGHTING | 1 | |
| 1028801 | KIT-RECEPTACLE (12-PIN) | 1 | |
| 7N7782 | HOUSING-PLUG (14-GA TO 18-GA) | 1 | |
| 7N8205 | HOUSING-PLUG | 1 | |
| 4V9764 | 113 CABLE AS | 1 | |
| 5P0747 | CABLE (00-GA, BLACK)(92-CM) | ||
| 1S7251 | TERMINAL-CABLE (00-GA, 1/2-IN SCREW) | 1 | |
| 1S7252 | TERMINAL-CABLE (00-GA, 3/8-IN SCREW) | 1 | |
| 9G8909 | COVER-TERMINAL (BLACK) | 1 | |
| 6V8801 | 117 NUT (3/8-16-THD) | 2 | |
| 1070616 | 119 SWITCH AS-PRESSURE (FUEL) | 1 | |
| 1028802 | KIT-RECEPTACLE (2-PIN) | 1 | |
| 1863735 | PIN-CONNECTOR (16-GA TO 18-GA) | 2 | |
| 7X1598 | 120 SWITCH AS-PRESSURE (HYDRAULIC OIL PRESSURE) | 1 | |
| 7N7779 | SOCKET-CONNECTOR (14-GA TO 18-GA) | 1 | |
| 7N7780 | PIN-CONNECTOR (14-GA TO 18-GA) | 2 | |
| 7N7781 | HOUSING-RECEPTACLE (14-GA TO 18-GA) | 1 | |
| 1718710 | 123 SWITCH GP-FLOW (PRESSURE, FLOW COMPENSATOR)(COOLANT) | 1 | |
| 0338248 | 126 CLIP (LOOP) | 14 | |
| 3S8665 | 130 CLIP (LOOP) | 3 | |
| 4S4455 | 135 CLIP | 1 | |
| 3S2093 | 136 STRAP-CABLE | 1 | |
| 1305300 | 137 CLIP | 5 | |
| 5P1075 | 138 WASHER-HARD (10.2X22.5X3-MM THK) | 3 |
