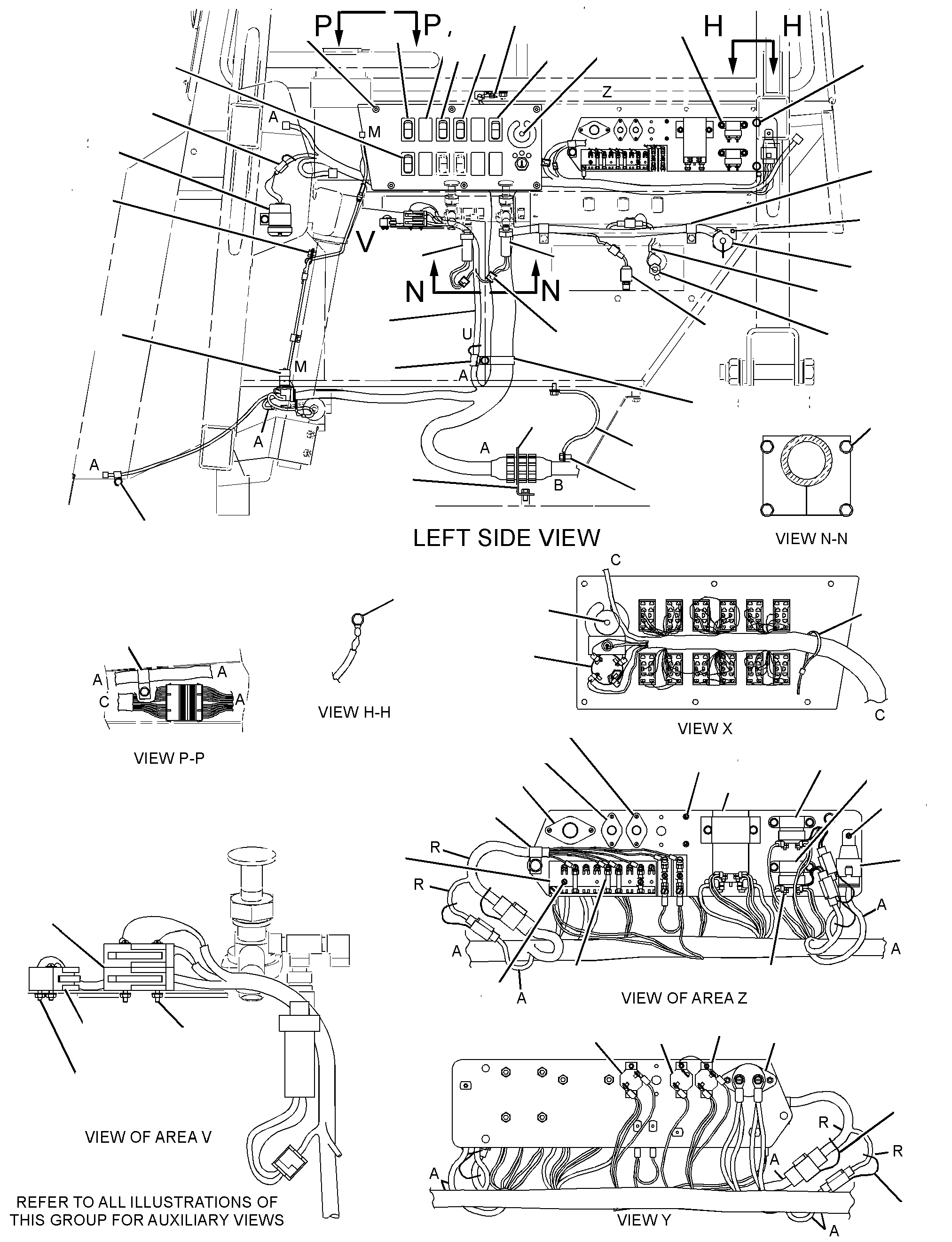

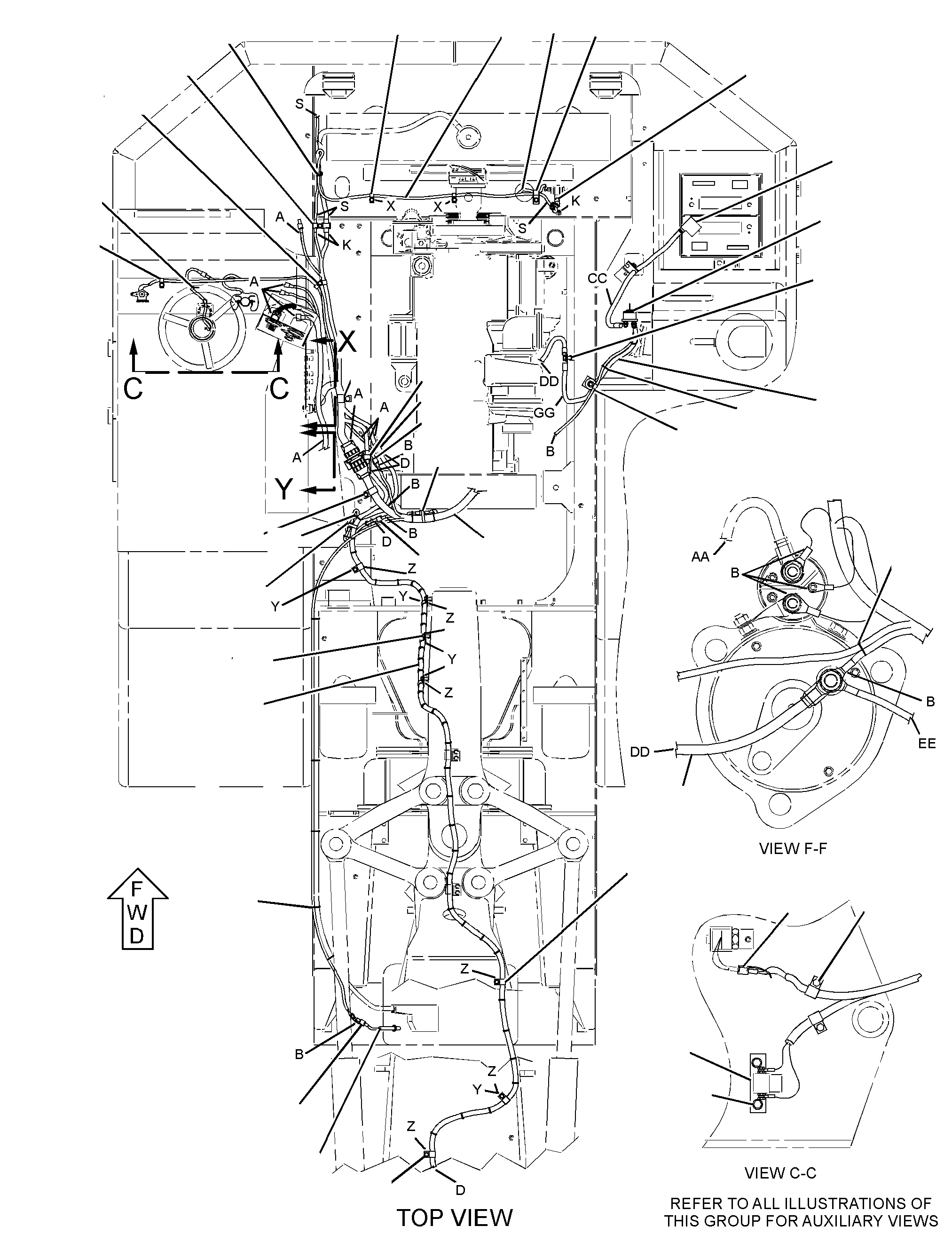

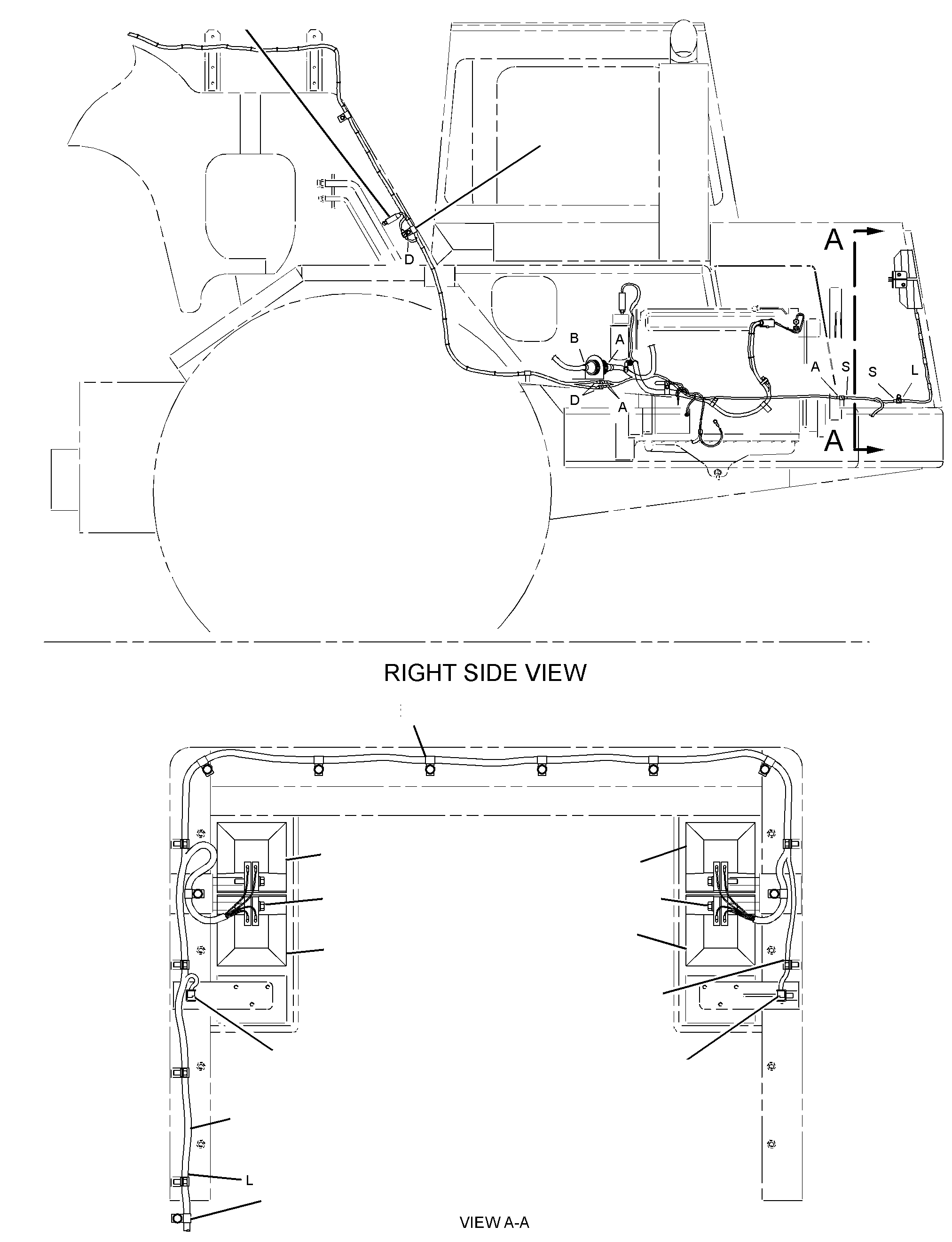

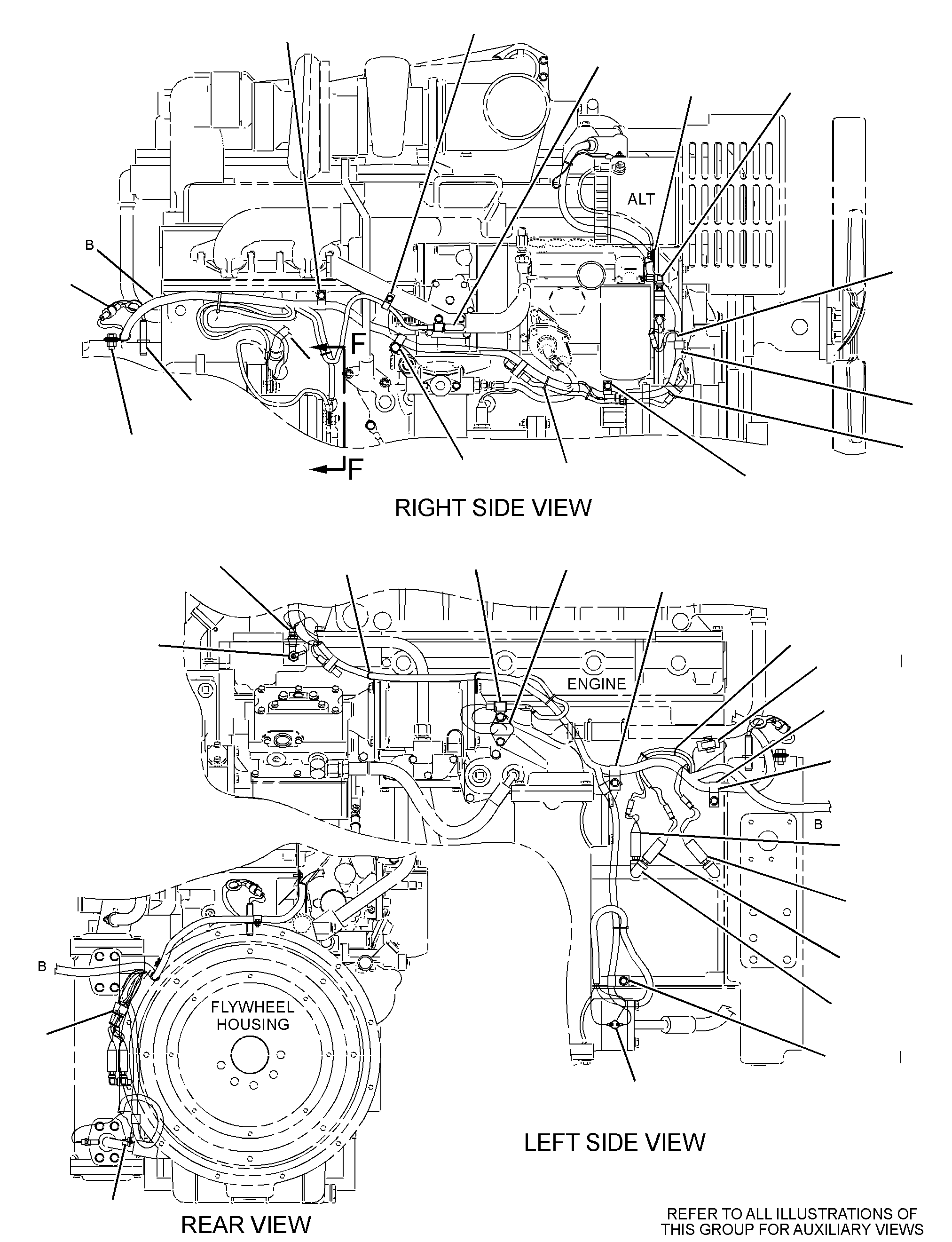

2T-3184 WIRING GP-TRACTORS/N 9XG1426-2092

Group No: 2T-3184 · Commonality
Part NumberPart NameQty
3B65521 ELBOW-PIPE1
3B72552 BUSHING-REDUCER1
4B20413 NUT (6-32-THD)2
4B48634 WASHER (4.7X11X1.2-MM THK)9
6B45405 NUT (4-40-THD)2
5C28906 NUT (M6X1-THD)4
8C33987 LOCKWASHER4
2D73259 TEE-PIPE1
4D779410 CLIP13
6D399311 SCREW-MACHINE (4-40X1-IN)2
6D424612 CLIP (LOOP)2
6D463613 CLIP (LOOP)1
160244514 SWITCH GP-PRESSURE (TORQUE CONVERTER LOCKUP)1
7N7779SOCKET-CONNECTOR (14-GA TO 18-GA)1
7N7780PIN-CONNECTOR (14-GA TO 18-GA)1
7N9738HOUSING-RECEPTACLE (14-GA TO 18-GA)1
3E010915 PLUG (ROCKER SWITCH)5
3E523916 RELAY AS (24-VOLT)(HEADLIGHTS)1
3E715017 SWITCH AS-ROCKER (HEADLIGHTS)1
3E8773SWITCH AS-ROCKER (HEADLIGHTS)1
3E8788ACTUATOR1
3E8825LAMP (24-VOLT)2
3E715118 SWITCH AS-ROCKER (DASH LIGHT)1
3E8858SWITCH AS (FLOODLIGHT)1
3E8789ACTUATOR1
3E8825LAMP (24-VOLT)2
3E716419 SWITCH AS-ROCKER (EMS TEST)1
3E9045SWITCH AS (SUSPENSION AXLE)1
3E8802ACTUATOR1
3E8825LAMP (24-VOLT)1
3E717120 SWITCH AS-ROCKER (FUEL PUMP)1
3E9045SWITCH AS (FUEL PUMP)1
3E8809ACTUATOR1
3E8825LAMP (24-VOLT)1
3E725921 SENDER AS-TEMPERATURE (HYDRAULIC OIL)1
4B2049NUT (10-32-THD)1
7X0620WASHER-HARD (5.5X13X1.6-MM THK)1
8F1434LOCKWASHER1
125130222 SWITCH GP-MAGNETIC (24-VOLT)(START RELAY)1
125130222A SWITCH GP-MAGNETIC (24-VOLT)(FUEL PUMP RELAY)1
3E788623 SENSOR GP-SPEED (TRANSMISSION OUTPUT)1
3E788623A SENSOR GP-SPEED (ENGINE RPM)1
3E832024 PLATE-INSTRUCTION (BATTERY)1
3F616625 EXTENSION1
2G876726 WASHER (10.5X60X3-MM THK)2
6G225627 CLAMP1
6G226328 SPACER (10.5X19X28.5-MM THK)1
6G419529 SWITCH AS-LIMIT (BACKUP ALARM)1
3L8187LOCKWASHER3
6V8373SCREW-MACHINE (6-32X0.187-IN)3
9G074730 BLOCK AS-FUSE1
4B5324WASHER (3.9X9.6X1.2-MM THK)9
6V8373SCREW-MACHINE (6-32X0.187-IN)9
6V8376SCREW-MACHINE (8-32X0.25-IN)1
8C9660WASHER (4.6X7.9X0.8-MM THK)1
9G226431 CLIP-CONNECTOR3
9G226532 CLIP2
9G365933 CLIP2
9G436034 CAP-CONNECTOR1
9G764135 SWITCH GP-START (ENGINE, KEY)1
9G915036 CLIP3
9G915237 CLIP4
9G915438 CLIP2
6T364239 CIRCUIT BREAKER AS (10-AMPERE)(KEY SWITCH)1
6V8376SCREW-MACHINE (8-32X0.25-IN)2
9B7233LOCKWASHER2
9G981340 ALARM GP (24-VOLT)(ACTION)1
7J861142 ELBOW-PIPE2
8J819743 CLIP1
3K036044 SEAL-O-RING1
3K878245 FUSE (10-AMPERE)6
5K090646 BOLT (5/16-18X0.625-IN)1
7K118147 STRAP-CABLE64
4L645448 BOLT (3/8-16X1-IN)9
4M006149 BOLT (5/16-18X0.75-IN)3
5M306250 BOLT (3/8-16X0.75-IN)43
8M277051 CLIP (LOOP)8
9M630252 WASHER-SPECIAL2
9M840653 CLIP (LOOP)6
5B218354 NUT-JAM (9/16-18-THD)1
4N384155 GASKET1
6N592656 SENDER AS-TEMPERATURE (COOLANT)1
7N071857 SWITCH GP-DISCONNECT1
203322158 SWITCH AS-TEMPERATURE (EMS TORQUE CONVERTER)1
6V8376SCREW-MACHINE (8-32X0.25-IN)2
9B7233LOCKWASHER2
203322259 SWITCH AS-TEMPERATURE (COOLANT)1
6V8376SCREW-MACHINE (8-32X0.25-IN)2
9B7233LOCKWASHER2
253024360 GUARD-HOSE1
5P785461 CLIP (LOOP)1
5P411662 WASHER-HARD (8.8X20.5X2-MM THK)4
3R285363 STRAP1
5S734966 BOLT (1/4-20X0.5-IN)6
5S737967 BOLT (3/8-16X0.875-IN)1
6S234268 SCREW-MACHINE (6-32X1.75-IN)2
171220869 CIRCUIT BREAKER AS (60-AMPERE)(ALTERNATOR)1
2532111LOCKWASHER2
6V8187NUT (1/4-28-THD)2
8T4205WASHER-HARD (7.2X14.5X2-MM THK)2
8I212770 ANGLE1
4B505971 WASHER (15X29.5X2.5-MM THK)3
2T306872 PLATE1
2T320473 HARNESS AS-FRONT LIGHTING1
2T324575 CABLE AS1
1S7251TERMINAL-CABLE (00-GA, 1/2-IN SCREW)2
5P0747CABLE (00-GA, BLACK)(45-CM)
8I154077 HARNESS AS-MONITOR1
3S2093STRAP-CABLE4
1552260KIT-CONNECTING PLUG (3-PIN)2
8I157379 HARNESS AS-ENGINE1
1028802KIT-RECEPTACLE (2-PIN)2
1552270KIT-CONNECTING PLUG (2-PIN)7
8N1518PLUG AS-CONNECTOR (25-PIN)1
2T331080 HARNESS AS-CHASSIS1
2T335084 HARNESS AS-CHASSIS1
9X0194TERMINAL AS2
2T373887 LAMP GP-HEAD (24-VOLT)(HIGH BEAM)2
2T373988 LAMP GP-HEAD (24-VOLT)(LOW BEAM)2
2T377789 CABLE AS1
5P0747CABLE (00-GA, BLACK)(228-CM)
1S7252TERMINAL-CABLE (00-GA, 3/8-IN SCREW)1
9G0005COVER AS-TERMINAL (BLACK)1
9G8909COVER-TERMINAL (BLACK)1
8C5918TERMINAL AS-BATTERY (NEGATIVE)1
3S6050TERMINAL AS-BATTERY (NEGATIVE)1
1M6119BOLT (5/16-18X1.375-IN)1
1M6120NUT (5/16-18-THD)1
3T005090 CLIP2
165402691 SWITCH AS-MAGNETIC (24-VOLT)(MAIN RELAY)1
4F2294NUT-JAM (5/16-24-THD)2
6V8186NUT-FULL (5/16-24-THD)2
6V8378NUT (10-32-THD)2
3T266292 CIRCUIT BREAKER AS (15-AMPERE, AUTOMATIC RESET)(HEADLIGHT, PANEL, TAIL, PARK)1
6V8376SCREW-MACHINE (8-32X0.25-IN)2
9B7233LOCKWASHER2
3T304593 CLIP AS2
3T304894 CLIP AS5
3T312395 RESISTOR AS (PANEL LIGHT)1
3T3270WIRE AS (16-GA)1
3T3272CLIP1
5P6008TUBE-HEAT SHRINK (6.35-MM DIA)
6T221796 RESISTOR AS (STARTING SYSTEM DIAGNOSTIC)1
5P5677WIRE (18-GA, BLACK)
6T3610RESISTOR1
7N7779SOCKET-CONNECTOR (14-GA TO 18-GA)1
7N7780PIN-CONNECTOR (14-GA TO 18-GA)1
7N9737HOUSING-RECEPTACLE (14-GA TO 18-GA)1
189013597 SWITCH AS-LIMIT (NEUTRAL START)2
1028803KIT-RECEPTACLE (3-PIN)1
1863735PIN-CONNECTOR (16-GA TO 18-GA)3
107061398 SWITCH AS-PRESSURE (EJECTOR)1
107061398A SWITCH AS-PRESSURE (FUEL PUMP)1
107061398B SWITCH AS-PRESSURE (ENGINE OIL PRESSURE)1
1028802KIT-RECEPTACLE (2-PIN)1
3E3365WEDGE-RECEPTACLE LOCK (2-PIN)1
1863735PIN-CONNECTOR (16-GA TO 18-GA)2
8T891199 BOLT (5/16-18X2-IN)4
8T4205100 WASHER-HARD (7.2X14.5X2-MM THK)9
6D4244101 CLIP (LOOP)1
8T4224102 WASHER-HARD (8.8X16X2-MM THK)5
8T4896103 WASHER-HARD (10.2X18.5X2.5-MM THK)66
8T5391104 BOLT (5/16-18X0.5-IN)4
8T9364107 BOLT (1/4-20X0.625-IN)3
8T9371108 BOLT (3/8-16X0.5-IN)7
8T8915109 BOLT (3/8-16X3.25-IN)1
1602445110 SWITCH GP-PRESSURE (PARKING BRAKE)1
1602445110A SWITCH GP-PRESSURE (LOW AIR)1
7N7779SOCKET-CONNECTOR (14-GA TO 18-GA)1
7N7780PIN-CONNECTOR (14-GA TO 18-GA)1
7N9738HOUSING-RECEPTACLE (14-GA TO 18-GA)1
4V9764113 CABLE AS1
1S7251TERMINAL-CABLE (00-GA, 1/2-IN SCREW)1
1S7252TERMINAL-CABLE (00-GA, 3/8-IN SCREW)1
5P0747CABLE (00-GA, BLACK)(92-CM)
9G8909COVER-TERMINAL (BLACK)1
5P2369114 CLIP (LOOP)1
6V4283115 PLATE-IDENTIFICATION (ALTERNATOR RESET)1
6V4285116 PLATE-KEY SWITCH1
6V8801117 NUT (3/8-16-THD)3
9W1581118 SWITCH AS-NEUTRAL START1
6V8376SCREW-MACHINE (8-32X0.25-IN)2
9B7233LOCKWASHER2
1070616119 SWITCH AS-PRESSURE (FUEL)1
1028802KIT-RECEPTACLE (2-PIN)1
1863735PIN-CONNECTOR (16-GA TO 18-GA)1
7X1598120 SWITCH AS-PRESSURE (HYDRAULIC OIL)1
7N7779SOCKET-CONNECTOR (14-GA TO 18-GA)1
7N7780PIN-CONNECTOR (14-GA TO 18-GA)2
7N7781HOUSING-RECEPTACLE (14-GA TO 18-GA)1
7X2058121 LAMP (24-VOLT)1
9X2042122 SCREW-TRUSS HEAD (M6X1X12-MM)6
1718710123 SWITCH GP-FLOW (PRESSURE, FLOW COMPENSATOR)(COOLANT)1
9X8486124 SCREW-MACHINE (8-32X0.75-IN)11
3Y6047125 PLUG-BUTTON1
0338248126 CLIP (LOOP)14
2T3684127 PLATE2
3V4791129 GROMMET1
3S8665130 CLIP (LOOP)7
6V4286131 PLATE-DOME LIGHT1
6T3644132 CIRCUIT BREAKER AS (20-AMPERE)(DOME LIGHT, SEAT, STOP, TURN)1
6V8376SCREW-MACHINE (8-32X0.25-IN)2
9B7233LOCKWASHER2
2T3605133 FILM-CONTROL (SWITCH PANEL)1
4S4455135 CLIP1
3S2093136 STRAP-CABLE2
1305300137 CLIP4
5P1075138 WASHER-HARD (10.2X22.5X3-MM THK)3
7G7053140 GROMMET1
8T4647141 SCREW-MACHINE (M4X0.7X20-MM)4
