System And Components
Assembly
100%

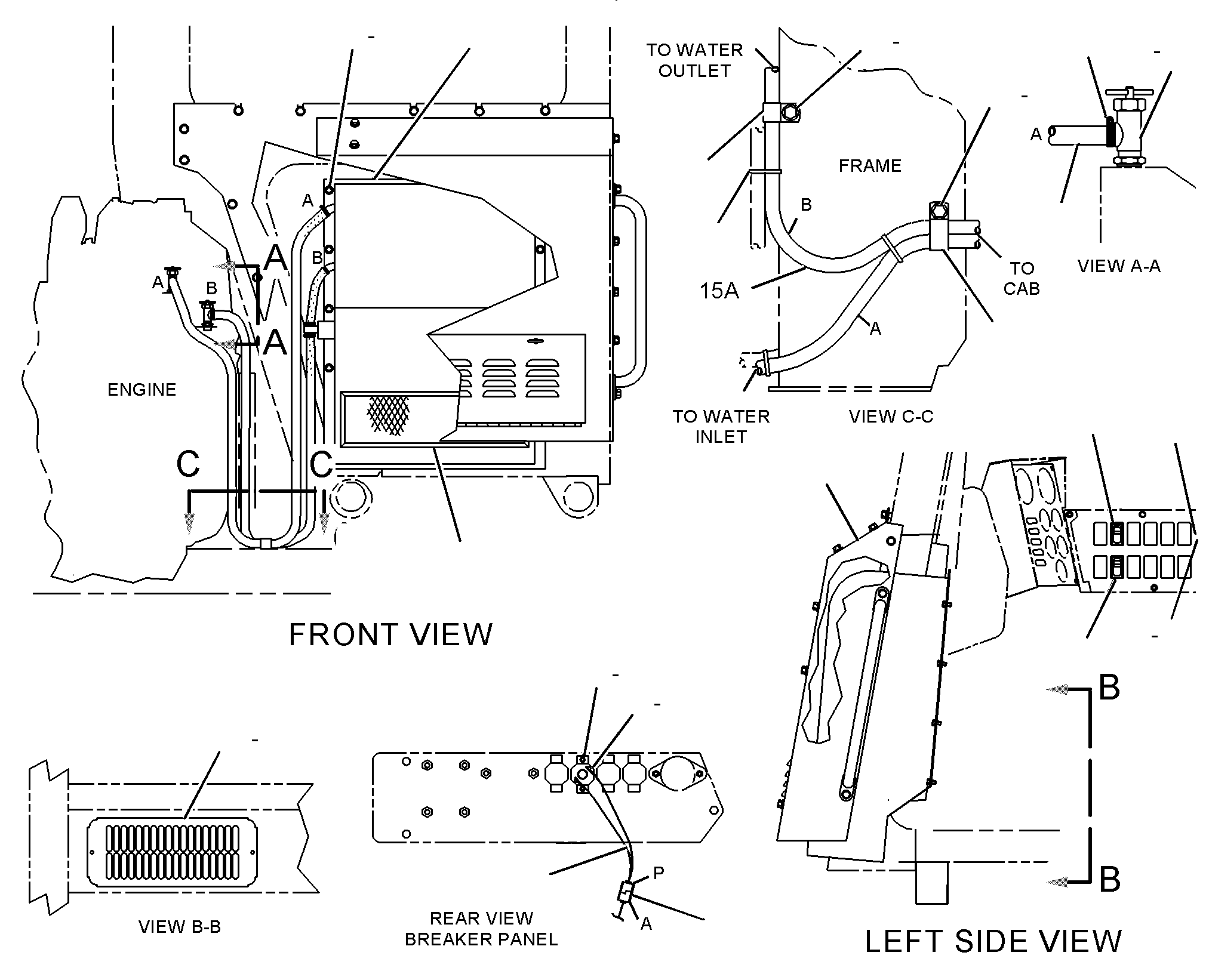

2T-3665 HEATER & MTG GP-CABS/N 9XG1-2016

Group No: 2T-3665 · Commonality
Part NumberPart NameQty
11931441 AIR CONDITIONER GP1
5S73792 BOLT (3/8-16X0.875-IN)8
5P10753 WASHER-HARD (10.2X22.5X3-MM THK)8
3T87284 CIRCUIT BREAKER AS (20-AMPERE)(AIR CONDITIONER)1
6V8376SCREW-MACHINE (8-32X0.25-IN)2
9B7233LOCKWASHER2
9X84865 SCREW-MACHINE (8-32X0.75-IN)2
4B42746 WASHER (5.5X13X1.2-MM THK)2
8C96577 FILTER ELEMENT AS-CAB AIR (HEATER, AIR CONDITIONER)1
2V00998 KNOB-CONTROL1
11686539 POTENTIOMETER AS1
1274540POTENTIOMETER AS (TEMPERATURE CONTROL)1
1863735PIN-CONNECTOR (16-GA TO 18-GA)1
1028803KIT-RECEPTACLE (3-PIN)1
2368722WASHER (10.5X22.2X1.6-MM THK)1
2369886HARNESS AS-WIRING (TEMPERATURE CONTROL)1
1552260KIT-CONNECTING PLUG (3-PIN)1
2T354910 GRILL AS1
2R2376WASHER (7X16X0.8-MM THK)2
6G3016KNOB2
3E731911 FILTER ELEMENT AS-CAB AIR (AIR CONDITIONER, HEATER FAN)1
6B162812 BUSHING-REDUCER1
3E715413 SWITCH AS-ROCKER (AIR CONDITIONER, HEATER)1
3E8772SWITCH-ROCKER (24-VOLT)(AIR CONDITIONER, HEATER)1
3E8792ACTUATOR1
3E8825LAMP (24-VOLT)2
3E715614 SWITCH AS-ROCKER (FAN BLOWER SPEED)1
3E8773SWITCH AS-ROCKER (FAN BLOWER SPEED)1
3E8794ACTUATOR1
3E8825LAMP (24-VOLT)2
5P076715 HOSE (290-CM)
5P076715A HOSE (200-CM)
5D102616 CLAMP-BAND4
8F815117 VALVE-SHUTOFF2
5T989518 HARNESS AS-CONSOLE (CIRCUIT BREAKER PANEL)1
9G226419 CLIP-CONNECTOR1
9G226520 CLIP1
7K118121 STRAP-CABLE4
6D164122 CLIP (LOOP)1
8T489623 WASHER-HARD (10.2X18.5X2.5-MM THK)2
5M306224 BOLT (3/8-16X0.75-IN)2
3S866525 CLIP (LOOP)1
2T361026 COVER GP-FRONT1
8T208527 PLATE1
