System And Components

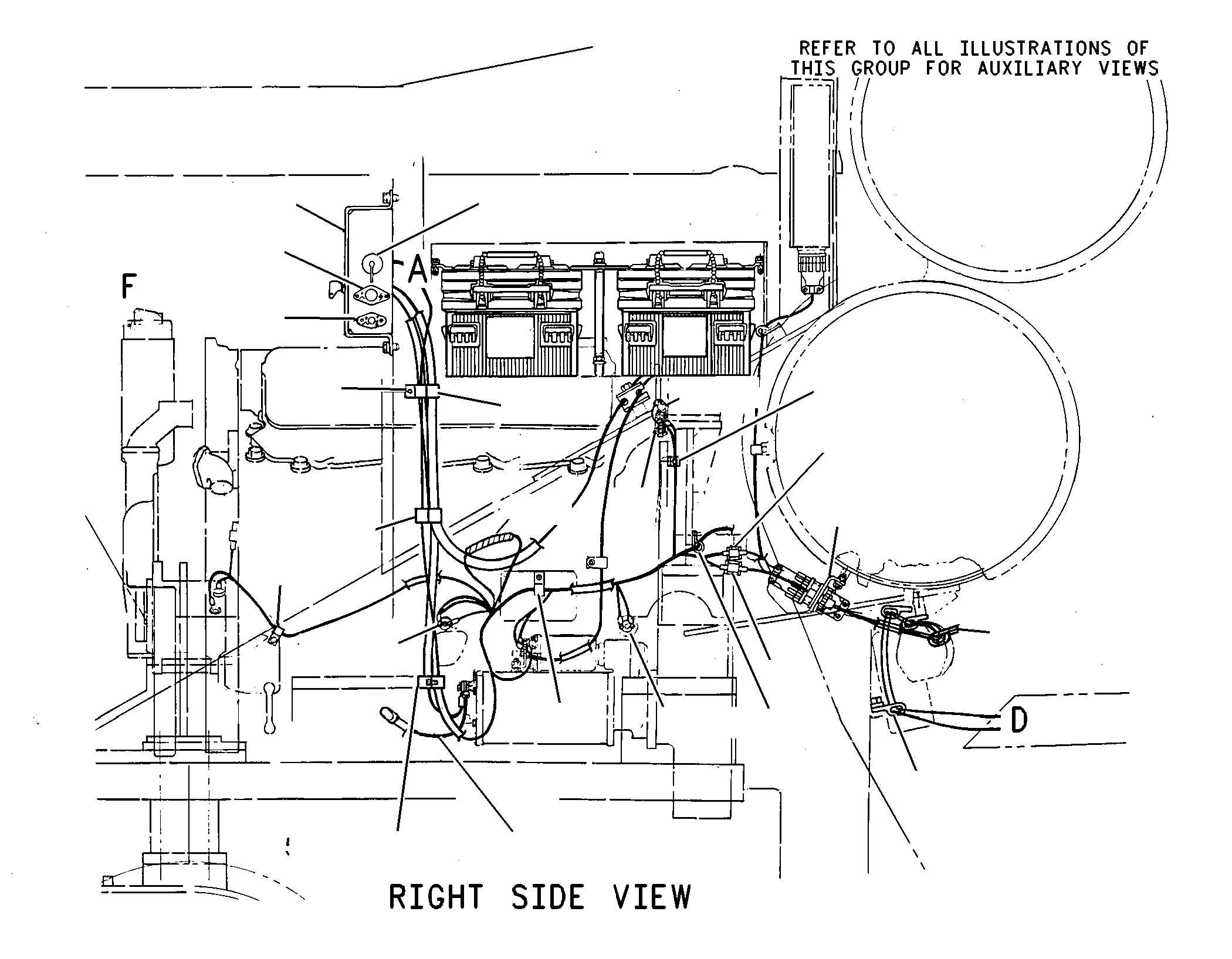

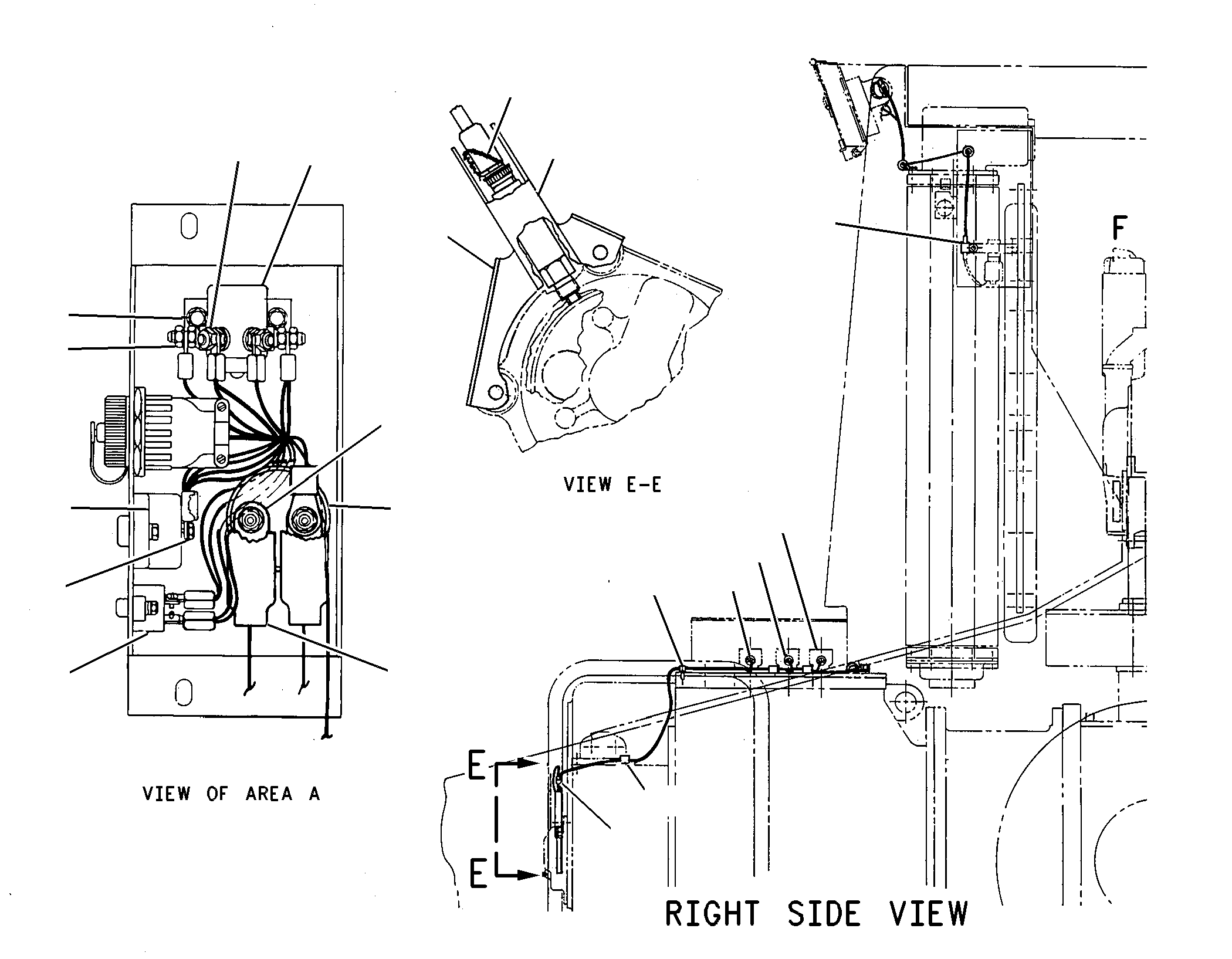

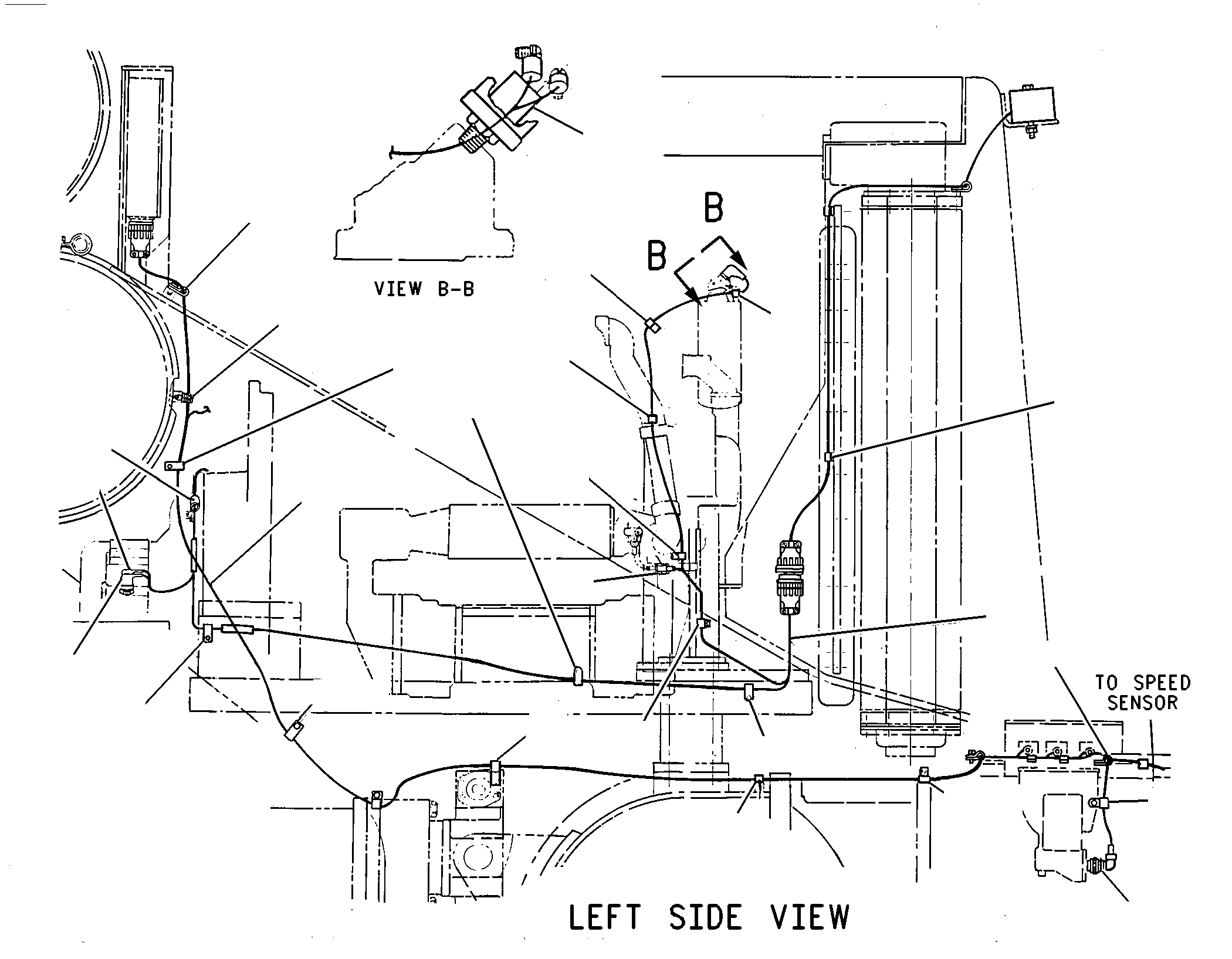

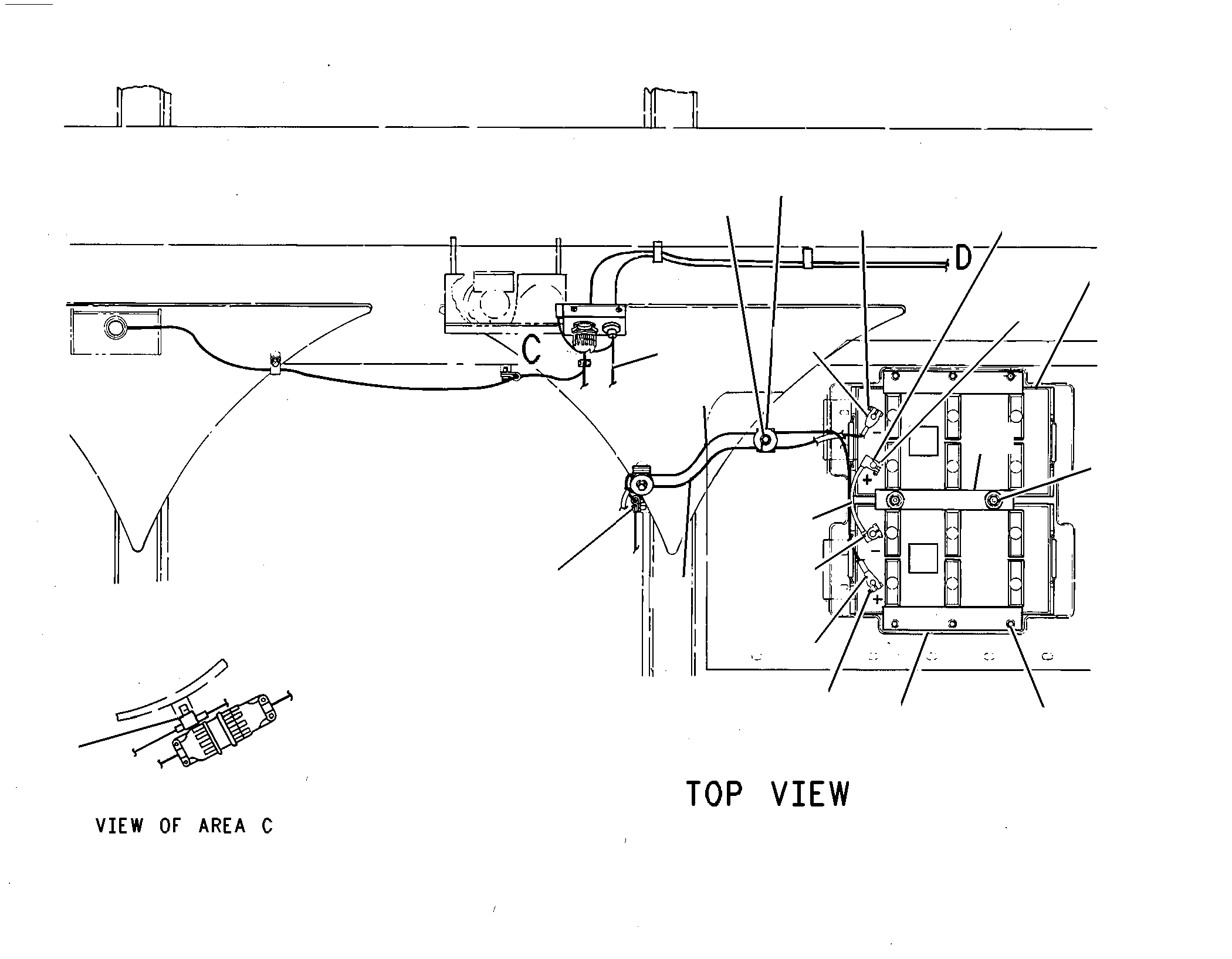

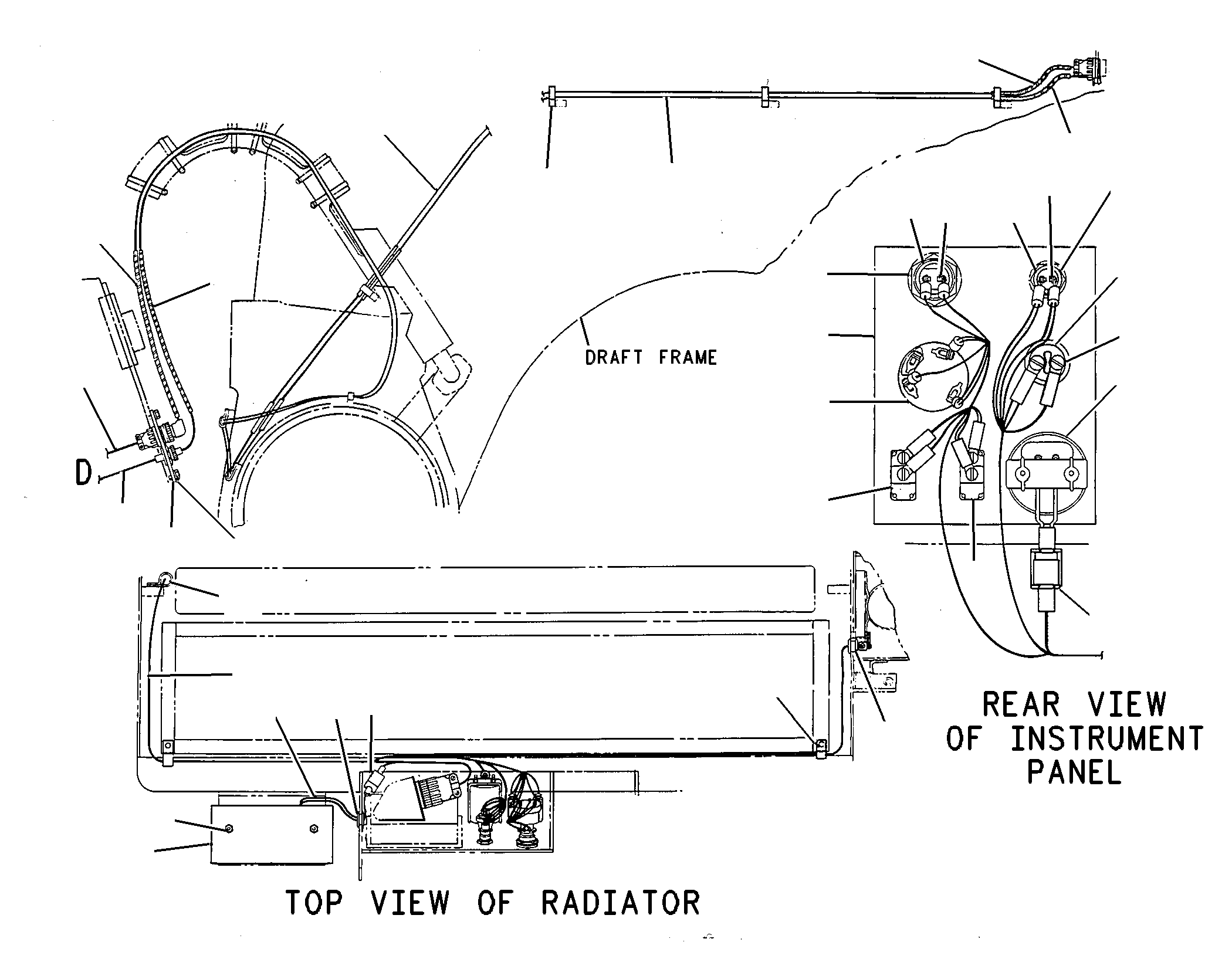

6G-5910 WIRING GP-SCRAPERS/N 86Z238-240
Group No: 6G-5910
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 3B7722 | 1 BUSHING-PIPE | 1 | |
| 9M8406 | 2 CLIP (LOOP) | 1 | |
| 3T3048 | 3 CLIP AS | 1 | |
| 6K4936 | 4 BOLT-LOCKING (3/8-16X0.625-IN) | 4 | |
| 8T4896 | 5 WASHER-HARD (10.2X18.5X2.5-MM THK) | 10 | |
| 6V4285 | 6 PLATE-KEY SWITCH | 1 | |
| 3D9799 | SCREW-MACHINE (8-32X0.875-IN) | 2 | |
| 1H4393 | 7 LOCKWASHER | 3 | |
| 6V4283 | 8 PLATE-IDENTIFICATION (ALTERNATOR RESET) | 1 | |
| 5L4507 | SCREW-MACHINE (10-32X0.875-IN) | 2 | |
| 9F8125 | LOCKWASHER | 2 | |
| 6G9894 | 9 PLATE AS | 1 | |
| 9F6445 | NUT-WELD (1/4-20-THD) | 2 | |
| 5M3062 | 10 BOLT (3/8-16X0.75-IN) | 5 | |
| 9G4360 | 11 CAP-CONNECTOR | 1 | |
| 5K8451 | 12 CLIP (LOOP) | 2 | |
| 1S0994 | 13 CLIP (LOOP) | 5 | |
| 1P0810 | 14 TAPE-ELECTRICAL | ||
| 4B1220 | SCREW-MACHINE (8-32X0.375-IN) | 1 | |
| 4B2043 | NUT (8-32-THD) | 1 | |
| 4B4863 | WASHER (4.7X11X1.2-MM THK) | 1 | |
| 7N9785 | 15 SWITCH AS-TEMPERATURE (EMS COOLANT) | 1 | |
| 6N5899 | 16 SWITCH AS-TEMPERATURE (ETHER COOLANT) | 1 | |
| 3B7255 | 17 BUSHING-REDUCER | 2 | |
| 0338248 | 18 CLIP (LOOP) | 2 | |
| 5S7379 | 19 BOLT (3/8-16X0.875-IN) | 1 | |
| 3T3047 | 20 CLIP AS | 1 | |
| 5T2883 | 21 BRACKET | 1 | |
| 4D6466 | 22 CLIP | 4 | |
| 4D6988 | 23 CLIP | 1 | |
| 6T7663 | 24 SWITCH AS (EMS OIL PRESSURE) | 2 | |
| 6V8376 | SCREW-MACHINE (8-32X0.25-IN) | 2 | |
| 9B7233 | LOCKWASHER | 2 | |
| 3P0764 | 25 PLUG | 1 | |
| 2M9780 | SEAL-O-RING | 1 | |
| 2G4177 | 26 CABLE AS | 1 | |
| 5P0747 | CABLE (00-GA, BLACK) | ||
| 1S7251 | TERMINAL-CABLE (00-GA, 1/2-IN SCREW) | 1 | |
| 1S7252 | TERMINAL-CABLE (00-GA, 3/8-IN SCREW) | 1 | |
| 5M3062 | 27 BOLT (3/8-16X0.75-IN) | 2 | |
| 5P1075 | WASHER-HARD (10.2X22.5X3-MM THK) | 2 | |
| 5T0108 | 28 PLATE | 1 | |
| 6G9836 | 29 HARNESS AS-FUEL TANK | 1 | |
| 6G9839 | 30 HARNESS AS-TRANSMISSION | 1 | |
| 8N1525 | PLUG AS-CONNECTOR (20-PIN) | 1 | |
| 8N1534 | RECEPTACLE AS-CONNECTOR (20-PIN) | 1 | |
| 5P6038 | 31 WRAP (SPIRAL) | ||
| 6G9838 | 32 HARNESS AS-TRANSMISSION | 1 | |
| 8N1525 | PLUG AS-CONNECTOR (20-PIN) | 1 | |
| 8N1534 | RECEPTACLE AS-CONNECTOR (20-PIN) | 1 | |
| 4D6466 | 33 CLIP | 7 | |
| 6G9834 | 34 HARNESS AS-FUEL TANK | 1 | |
| 7N5876 | 35 LAMP (24-VOLT, 0.2-AMPERE)(EMS FAULT) | 2 | |
| 1S0994 | 36 CLIP (LOOP) | 2 | |
| 3T3048 | 37 CLIP AS | 2 | |
| 5P6459 | 38 GROMMET | 2 | |
| 8M2770 | 39 CLIP (LOOP) | 1 | |
| 3T1444 | 40 ALARM AS | 1 | |
| 3T1815 | ALARM GP | 1 | |
| 9G6259 | 41 WIRE AS | 1 | |
| 9G3058 | 42 CAP-SHIELD | 1 | |
| 9G3057 | BASE-INDICATOR LIGHT | 1 | |
| 6V8372 | 43 NUT-FITTING (1-27-THD) | 1 | |
| 2H3924 | LOCKWASHER | 1 | |
| 6V8361 | 44 SCREW-MACHINE (5-40X0.187-IN) | 2 | |
| 3T3453 | 45 SWITCH AS-PUSH BUTTON (START AID) | 1 | |
| 2H3922 | LOCKWASHER | 1 | |
| 5L7200 | SCREW (8-32X0.375-IN) | 1 | |
| 3B4501 | LOCKWASHER | 1 | |
| 7T9517 | KNOB (STARTING AID)(START AID) | 1 | |
| 7T6184 | BOOT-SWITCH | 1 | |
| 6V8370 | NUT-HEX (3/4-32-THD) | 1 | |
| 6V8363 | 46 SCREW (10-32X0.312-IN) | 2 | |
| 8F1434 | LOCKWASHER | 2 | |
| 8S9191 | 47 BOLT (3/8-16X4-IN) | 2 | |
| 9S8752 | NUT-FULL (3/8-16-THD) | 2 | |
| 8T4896 | WASHER-HARD (10.2X18.5X2.5-MM THK) | 2 | |
| 8W6870 | 48 HARNESS AS-MONITOR (ELECTRONIC MONITORING SYSTEM) | 1 | |
| 8N1534 | RECEPTACLE AS-CONNECTOR (20-PIN) | 1 | |
| 8N1525 | PLUG AS-CONNECTOR (20-PIN) | 1 | |
| 6V4329 | 49 PLATE-SCRAPER | 1 | |
| 9G7641 | 50 SWITCH GP-START (ENGINE, KEY)(KEY) | 1 | |
| 7N8000 | 51 SWITCH GP-TOGGLE (DASH LIGHT) | 1 | |
| 7N8001 | 52 SWITCH GP-TOGGLE (EMS TEST) | 1 | |
| 2N2371 | 53 LAMP AS-INDICATOR (RED)(EMS FAULT) | 1 | |
| 2V7088 | LENS-RED (EMS FAULT) | 1 | |
| 6V8382 | 54 NUT-HEX (11/16-27-THD) | 1 | |
| 6V8367 | LOCKWASHER | 1 | |
| 6V8817 | 55 SCREW-MACHINE (4-36X4.76-IN) | 2 | |
| 9W1495 | 56 KIT-SERVICE METER | 1 | |
| 8T0701 | FILM-SERVICE METER | 1 | |
| 9W1411 | WIRE AS | 1 | |
| 1S0994 | 57 CLIP (LOOP) | 7 | |
| 6K4936 | 58 BOLT-LOCKING (3/8-16X0.625-IN) | 10 | |
| 8T4896 | WASHER-HARD (10.2X18.5X2.5-MM THK) | 10 | |
| 9W3187 | 59 SWITCH AS-PRESSURE (FUEL) | 1 | |
| 6V8376 | SCREW-MACHINE (8-32X0.25-IN) | 2 | |
| 9B7233 | LOCKWASHER | 2 | |
| 8W6016 | 60 HARNESS AS-TRANSMISSION | 1 | |
| 5S7433 | PLUG AS-CONNECTOR (2-PIN) | 3 | |
| 7D1962 | PLUG AS-CONNECTOR (10-PIN) | 1 | |
| 8N1514 | PLUG AS-CONNECTOR (37-PIN) | 1 | |
| 8N1534 | RECEPTACLE AS-CONNECTOR (20-PIN) | 1 | |
| 5P6029 | 61 LOCKWIRE | ||
| 3T3048 | 62 CLIP AS | 1 | |
| 4D7794 | 63 CLIP | 4 | |
| 8W6869 | 64 HARNESS AS-ENGINE | 1 | |
| 8N1525 | PLUG AS-CONNECTOR (20-PIN) | 1 | |
| 3T0204 | RECEPTACLE AS-CONNECTOR (20-PIN) | 1 | |
| 0338248 | 65 CLIP (LOOP) | 1 | |
| 8M2770 | 66 CLIP (LOOP) | 4 | |
| 4K8302 | 67 CLIP (LOOP) | 1 | |
| 6N5926 | 68 SENDER AS-TEMPERATURE (CONV RET) | 1 | |
| 7N9560 | 69 SWITCH AS-TEMPERATURE (CONV RET) | 1 | |
| 4S1936 | 70 CLIP | 1 | |
| 5P9298 | 71 CLIP | 1 | |
| 9M8406 | 72 CLIP (LOOP) | 4 | |
| 2G8767 | 73 WASHER (10.5X60X3-MM THK) | 4 | |
| 4D8951 | 74 ROD | 2 | |
| 1F7958 | NUT-FULL (1/2-13-THD) | 4 | |
| 5P8245 | WASHER-HARD (13.5X25.5X3-MM THK) | 4 | |
| 5M3062 | 75 BOLT (3/8-16X0.75-IN) | 6 | |
| 8T4896 | 76 WASHER-HARD (10.2X18.5X2.5-MM THK) | 9 | |
| 4D3502 | 77 HOLD-DOWN AS | 1 | |
| 8W3493 | 78 HARNESS AS-PUMP | 1 | |
| 8T2501 | 79 BOLT (3/8-16X2-IN) | 2 | |
| 6G2263 | SPACER (10.5X19X28.5-MM THK) | 2 | |
| 6K4936 | 80 BOLT-LOCKING (3/8-16X0.625-IN) | 1 | |
| 6G2256 | 81 CLAMP | 2 | |
| 9G9150 | 82 CLIP | 1 | |
| 5T0103 | 83 CABLE AS | 1 | |
| 5P0747 | CABLE (00-GA, BLACK)(188 CM) | ||
| 8N0869 | COVER-TERMINAL (RED) | 1 | |
| 1S7251 | TERMINAL-CABLE (00-GA, 1/2-IN SCREW) | 1 | |
| 8N1725 | 84 COVER AS-TERMINAL (RED) | 1 | |
| 3S6049 | TERMINAL AS-BATTERY (POSITIVE) | 1 | |
| 1M6119 | 85 BOLT (5/16-18X1.375-IN) | 1 | |
| 1M6120 | NUT (5/16-18-THD) | 1 | |
| 9M8406 | 86 CLIP (LOOP) | 1 | |
| 5T0102 | 87 CABLE AS | 1 | |
| 5P0747 | CABLE (00-GA, BLACK)(201 CM) | 1 | |
| 1S7252 | TERMINAL-CABLE (00-GA, 3/8-IN SCREW) | 1 | |
| 9G8909 | COVER-TERMINAL (BLACK) | 1 | |
| 7N5274 | 88 COVER AS-TERMINAL (BLACK) | 1 | |
| 3S6050 | TERMINAL AS-BATTERY (NEGATIVE) | 1 | |
| 1M6119 | 89 BOLT (5/16-18X1.375-IN) | 1 | |
| 1M6120 | NUT (5/16-18-THD) | 1 | |
| 9G4231 | 90 BATTERY (12-VOLT) | 2 | |
| 7N0060 | 91 VENT AS (BATTERY) | 6 | |
| 9G0549 | 92 CABLE AS | 1 | |
| 5P0747 | CABLE (00-GA, BLACK) | ||
| 5M9204 | 93 TERMINAL AS (POSITIVE) | 1 | |
| 5M9205 | 94 TERMINAL AS (NEGATIVE) | 1 | |
| 1M6119 | 95 BOLT (5/16-18X1.375-IN) | 1 | |
| 1M6120 | NUT (5/16-18-THD) | 1 | |
| 9G0004 | 96 COVER AS-TERMINAL (RED) | 1 | |
| 9G0003 | 97 COVER AS-TERMINAL (BLACK) | 1 | |
| 6T4409 | 98 GUARD AS | 1 | |
| 7N3718 | 99 CLIP | 1 | |
| 6D0058 | HOLD-DOWN-SIDE | 2 | |
| 5P6029 | 100 LOCKWIRE | ||
| 9G9150 | 101 CLIP | 1 | |
| 9G9487 | 102 CIRCUIT BREAKER AS (10-AMPERE)(KEY) | 1 | |
| 2H1507 | 103 CIRCUIT BREAKER AS (40-AMPERE)(ALTERNATOR) | 1 | |
| 6V8365 | 104 SCREW-MACHINE (1/4-28X0.5-IN) | 2 | |
| 1H3244 | LOCKWASHER | 4 | |
| 9F3099 | 105 SWITCH GP-MAGNETIC (24-VOLT)(START RELAY) | 1 | |
| 4B2043 | 106 NUT (8-32-THD) | 2 | |
| 4F2294 | 107 NUT-JAM (5/16-24-THD) | 2 | |
| 7N0718 | 108 SWITCH GP-DISCONNECT | 1 | |
| 6V8013 | PLATE-INSTRUCTION | 1 | |
| 5T4502 | 109 CABLE AS | 1 | |
| 5P0747 | CABLE (00-GA, BLACK)(115 CM) | ||
| 1S7251 | TERMINAL-CABLE (00-GA, 1/2-IN SCREW) | 1 | |
| 9G8909 | COVER-TERMINAL (BLACK) | 1 | |
| 1S7252 | 110 TERMINAL-CABLE (00-GA, 3/8-IN SCREW) | 1 | |
| 0S1614 | 111 BOLT (1/4-20X0.5-IN) | 2 | |
| 5P0537 | WASHER-HARD (7.2X14.5X2-MM THK) | 2 | |
| 7T6337 | 112 CONTROL GP-ELECTRONIC | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 5P6029 | 113 LOCKWIRE | ||
| 4D7794 | 114 CLIP | 2 | |
| 5S7379 | 115 BOLT (3/8-16X0.875-IN) | 1 | |
| 8T4896 | WASHER-HARD (10.2X18.5X2.5-MM THK) | 1 |
