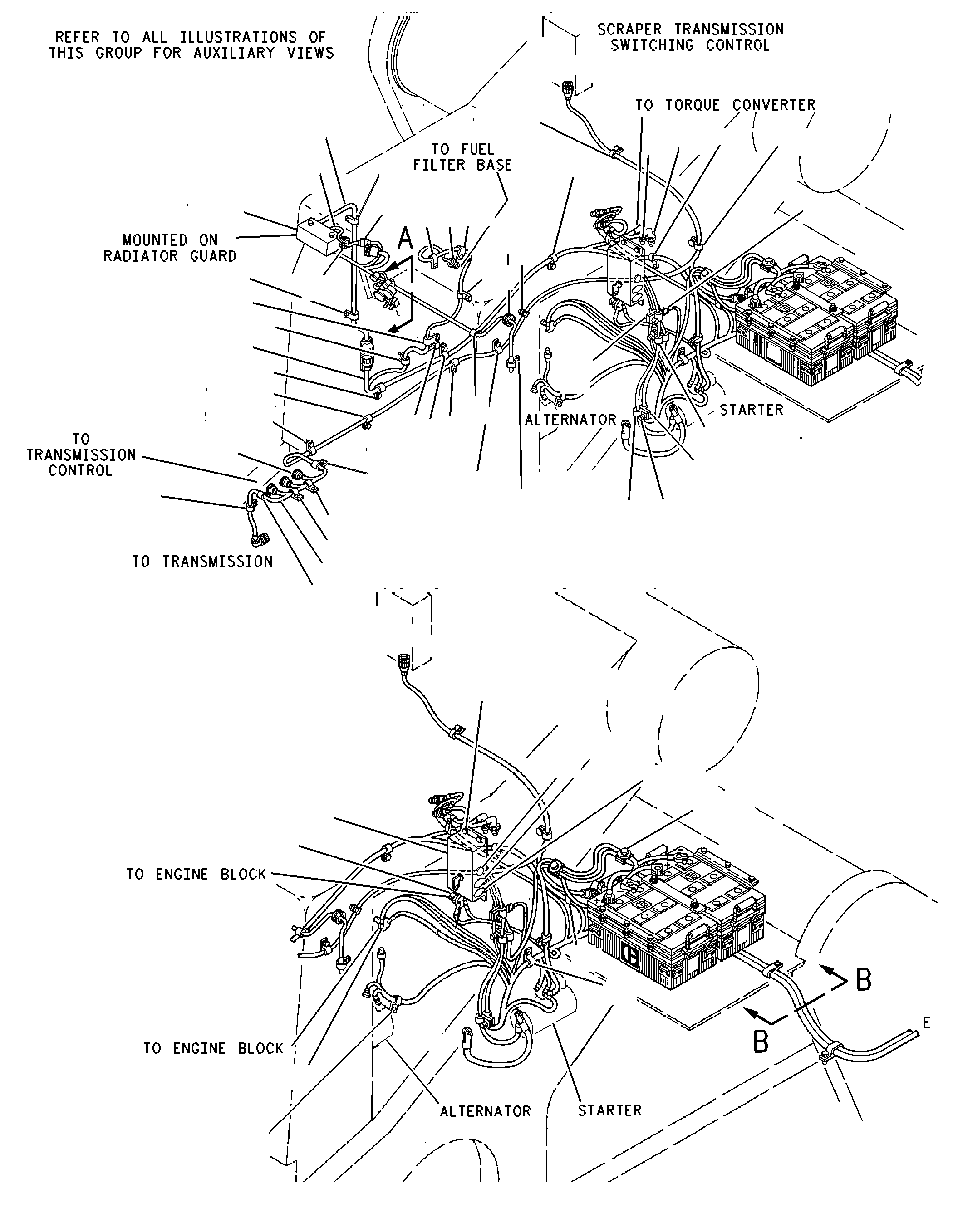

Assembly
100%

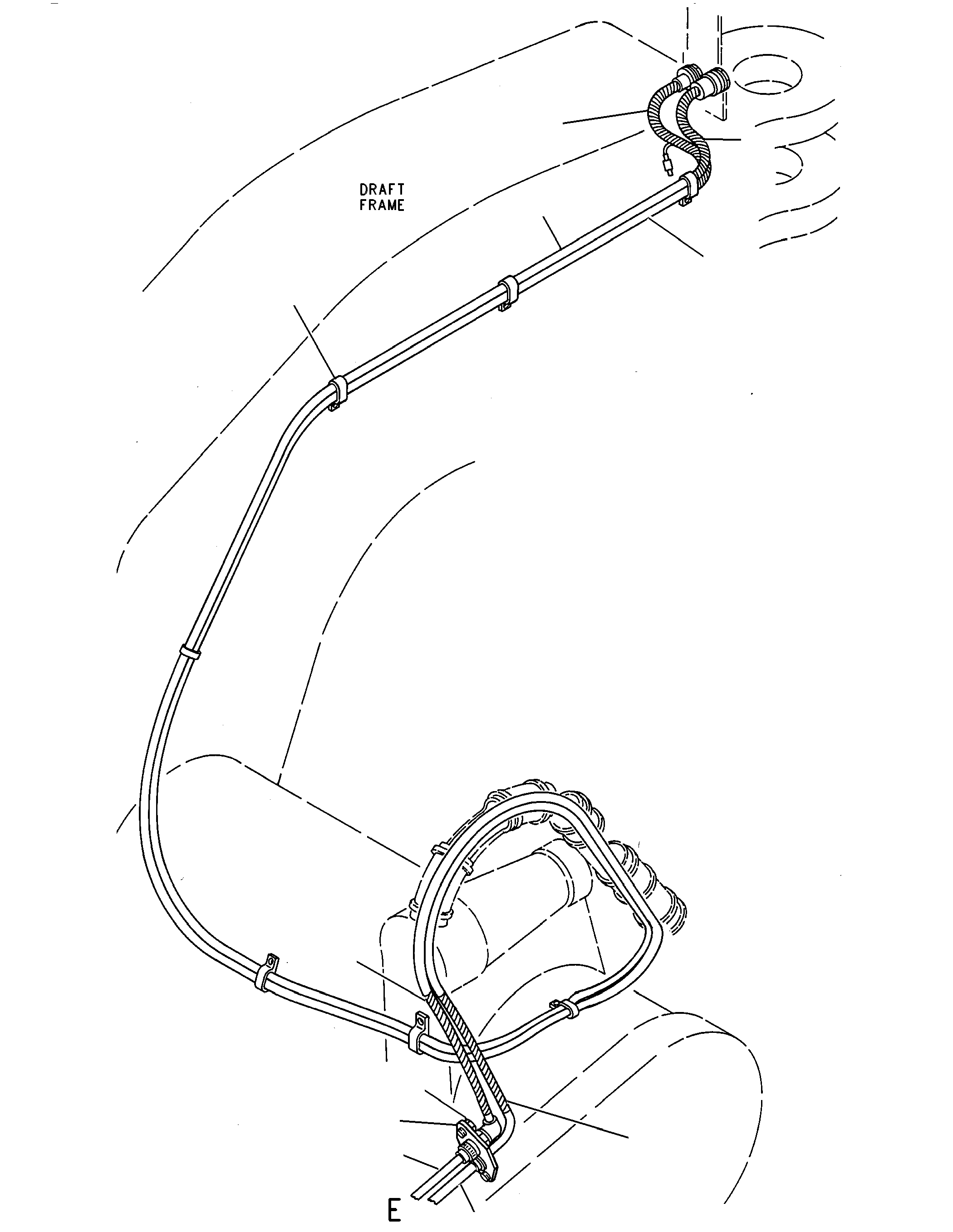

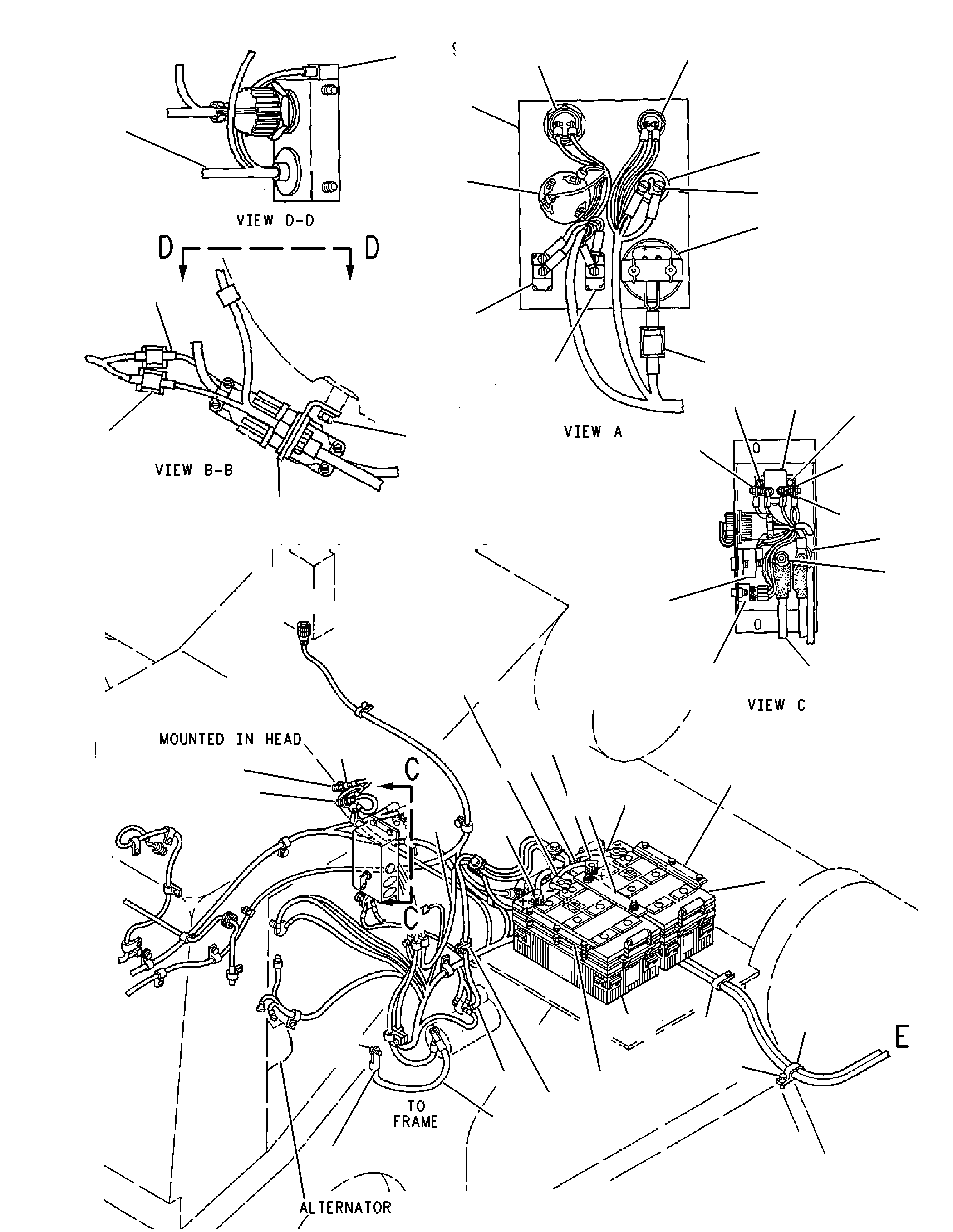

5T-6906 WIRING GP-SCRAPERS/N 6MB77-84

Group No: 5T-6906
Part NumberPart NameQty
3T18151 ALARM GP1
9G62592 WIRE AS1
8S91913 BOLT (3/8-16X4-IN)2
9S8752NUT-FULL (3/8-16-THD)2
5M28944 WASHER-HARD (10.2X18.5X2.5-MM THK)17
5P64595 GROMMET2
3T30486 CLIP AS2
6G98437 HARNESS AS-MONITOR (ELECTRONIC MONITORING SYSTEM)1
1S09948 CLIP (LOOP)12
8M27709 CLIP (LOOP)9
4D779410 CLIP4
033824811 CLIP (LOOP)2
6K493612 BOLT-LOCKING (3/8-16X0.625-IN)12
5P929813 CLIP1
5P602914 LOCKWIRE (15CM)4
5T831715 HARNESS AS-WIRING1
5K329416 CLIP1
4S193617 CLIP1
6N592618 SENDER AS-TEMPERATURE1
7N956019 SWITCH AS-TEMPERATURE1
6V8376SCREW-MACHINE (8-32X0.25-IN)2
9B7233LOCKWASHER2
9W318720 SWITCH AS-PRESSURE1
6V8376SCREW-MACHINE (8-32X0.25-IN)2
9B7233LOCKWASHER2
9G915021 CLIP1
6G984222 HARNESS AS-ENGINE1
9M840623 CLIP (LOOP)1
5K910724 BOLT-LOCKING (3/8-16X0.75-IN)2
5K845125 CLIP (LOOP)2
1P081026 TAPE-ELECTRICAL
4B1220SCREW-MACHINE (8-32X0.375-IN)1
4B2043NUT (8-32-THD)1
4B4863WASHER (4.7X11X1.2-MM THK)1
1H4393LOCKWASHER1
030853527 BOLT-LOCKING (3/8-16X0.875-IN)1
5D984428 BOLT-LOCKING (3/8-16X2-IN)2
2G8767WASHER (10.5X60X3-MM THK)4
6G2256CLAMP2
6G2263SPACER (10.5X19X28.5-MM THK)2
6G989429 PLATE AS1
9F6445NUT-WELD (1/4-20-THD)2
5K910730 BOLT-LOCKING (3/8-16X0.75-IN)2
5M289431 WASHER-HARD (10.2X18.5X2.5-MM THK)4
9G436032 CAP-CONNECTOR1
6V428333 PLATE-IDENTIFICATION (ALTERNATOR RESET)1
5L4507SCREW-MACHINE (10-32X0.875-IN)2
9F8125LOCKWASHER2
6V428534 PLATE-KEY SWITCH1
3D9799SCREW-MACHINE (8-32X0.875-IN)2
1H439335 LOCKWASHER2
1S099436 CLIP (LOOP)2
033824837 CLIP (LOOP)1
6T766338 SWITCH AS2
6V8376SCREW-MACHINE (8-32X0.25-IN)2
9B7233LOCKWASHER2
3P076439 PLUG1
2M9780SEAL-O-RING1
3B772240 BUSHING-PIPE1
6N589941 SWITCH AS-TEMPERATURE (COOLANT TEMP.)1
6V8376SCREW-MACHINE (8-32X0.25-IN)1
9B7233LOCKWASHER1
3B725542 BUSHING-REDUCER2
7N978543 SWITCH AS-TEMPERATURE1
9G423144 BATTERY (12-VOLT)2
6D005845 HOLD-DOWN-SIDE2
4D350246 HOLD-DOWN AS1
4D8951ROD2
1F7958NUT-FULL (1/2-13-THD)4
5P8245WASHER-HARD (13.5X25.5X3-MM THK)4
5K910747 BOLT-LOCKING (3/8-16X0.75-IN)7
5M289448 WASHER-HARD (10.2X18.5X2.5-MM THK)9
9G054949 CABLE AS1
5P0747CABLE (00-GA, BLACK)
9G000450 COVER AS-TERMINAL (RED)1
9G000351 COVER AS-TERMINAL (BLACK)1
5M9205TERMINAL AS (NEGATIVE)1
5M9204TERMINAL AS (POSITIVE)1
1M611952 BOLT (5/16-18X1.375-IN)2
1M6120NUT (5/16-18-THD)2
5T010353 CABLE AS1
5P0747CABLE (00-GA, BLACK)
1S7251TERMINAL-CABLE (00-GA, 1/2-IN SCREW)1
8N0869COVER-TERMINAL (RED)1
3D209854 TERMINAL AS (POS)1
1M6119BOLT (5/16-18X1.375-IN)1
1M6120NUT (5/16-18-THD)1
8N1725COVER AS-TERMINAL (RED)1
9M840655 CLIP (LOOP)1
6K493656 BOLT-LOCKING (3/8-16X0.625-IN)2
2G417757 CABLE AS1
5P0747CABLE (00-GA, BLACK)
1S7251TERMINAL-CABLE (00-GA, 1/2-IN SCREW)1
1S725258 TERMINAL-CABLE (00-GA, 3/8-IN SCREW)1
4D646659 CLIP4
5T010260 CABLE AS1
5P0747CABLE (00-GA, BLACK)
1S7252TERMINAL-CABLE (00-GA, 3/8-IN SCREW)1
9G8909COVER-TERMINAL (BLACK)1
3S605061 TERMINAL AS-BATTERY (NEGATIVE)1
1M6119BOLT (5/16-18X1.375-IN)1
1M6120NUT (5/16-18-THD)1
7N5274COVER AS-TERMINAL (BLACK)1
6G983862 HARNESS AS-TRANSMISSION1
6G983463 HARNESS AS-FUEL TANK1
4D646664 CLIP7
5P603865 WRAP (SPIRAL)(.3M EA.)2
5P603866 WRAP (SPIRAL)(.5M EA.)2
5T707667 HARNESS AS-WIRING1
5T707568 HARNESS AS-WIRING1
5T010869 PLATE1
5K910770 BOLT-LOCKING (3/8-16X0.75-IN)2
9L913271 WASHER-HARD (10.2X25.5X2.5-MM THK)2
9G915072 CLIP1
3T304773 CLIP AS1
3T304874 CLIP AS2
5T288375 BRACKET1
6K493676 BOLT-LOCKING (3/8-16X0.625-IN)2
5M289477 WASHER-HARD (10.2X18.5X2.5-MM THK)2
6V432978 PLATE-SCRAPER1
9G305779 BASE-INDICATOR LIGHT1
6V8361SCREW-MACHINE (5-40X0.187-IN)2
6V8372NUT-FITTING (1-27-THD)1
2H3924LOCKWASHER1
7N587680 LAMP (24-VOLT, 0.2-AMPERE)2
2N237181 LAMP AS-INDICATOR (RED)1
2V7088LENS-RED1
6V8367LOCKWASHER1
6V8382NUT-HEX (11/16-27-THD)1
3T345382 SWITCH AS-PUSH BUTTON1
6V8370NUT-HEX (3/4-32-THD)1
2H3922LOCKWASHER1
7T6184BOOT-SWITCH1
6V836383 SCREW (10-32X0.312-IN)2
8F1434LOCKWASHER2
7T9517KNOB (STARTING AID)1
7N800184 SWITCH GP-TOGGLE1
7N800085 SWITCH GP-TOGGLE1
3T832586 METER GP-SERVICE1
9F309987 SWITCH GP-MAGNETIC (24-VOLT)(MAGNETIC)1
4B204388 NUT (8-32-THD)2
3B4501LOCKWASHER2
4F229489 NUT-JAM (5/16-24-THD)2
3L6789LOCKWASHER2
8F0908WASHER (0.318X0.562X0.035-IN THK)2
7N071890 SWITCH GP-DISCONNECT (BATTERY)1
6V8013PLATE-INSTRUCTION1
5T450291 CABLE AS1
5P0747CABLE (00-GA, BLACK)
1S7251TERMINAL-CABLE (00-GA, 1/2-IN SCREW)1
1S725292 TERMINAL-CABLE (00-GA, 3/8-IN SCREW)1
9G8909COVER-TERMINAL (BLACK)1
9G948793 CIRCUIT BREAKER AS (10-AMPERE)1
6V8376SCREW-MACHINE (8-32X0.25-IN)2
9B7233LOCKWASHER2
2H150794 CIRCUIT BREAKER AS (40-AMPERE)1
6V8365SCREW-MACHINE (1/4-28X0.5-IN)2
1H3244LOCKWASHER4
0S161495 BOLT (1/4-20X0.5-IN)2
5P0537WASHER-HARD (7.2X14.5X2-MM THK)2
9G764196 SWITCH GP-START (ENGINE, KEY)1
8W349397 HARNESS AS-PUMP1
9G305898 CAP-SHIELD1
