System And Components

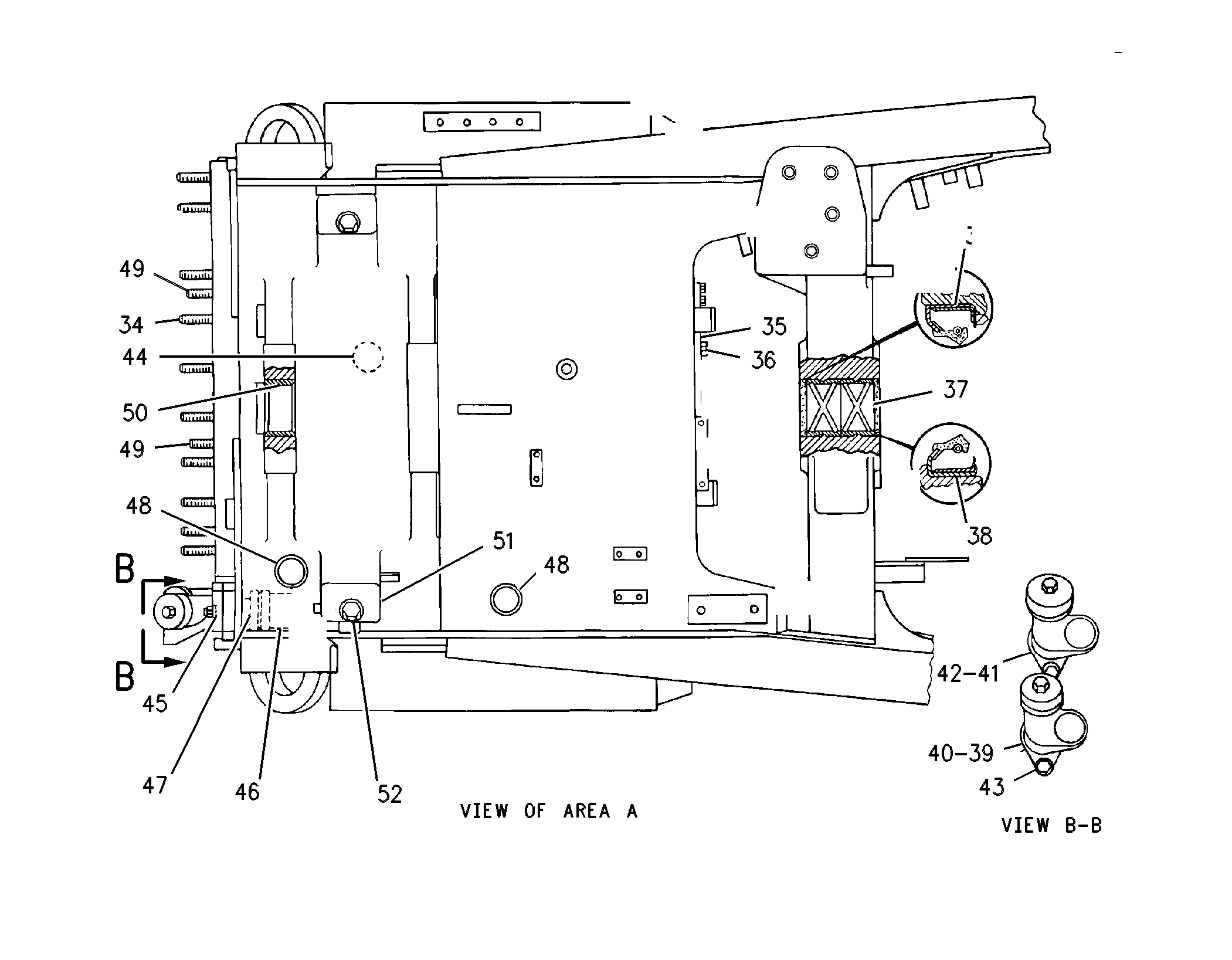

8W-8270 CASE & FRAME GPS/N 1AB1446-1639
Group No: 8W-8270
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 8W7599 | 1 CASE & FRAME AS | 1 | |
| 8W7939 | FRAME AS | 1 | |
| 8K0273 | 2 BOSS (1/2-13-THD) | 1 | |
| 9D5571 | 3 BOSS (3/8-16-THD) | 1 | |
| 9D5661 | 4 BOSS | 1 | |
| 9G0028 | 5 BOSS AS (3/8-16X0.62-IN) | 1 | |
| 8S1783 | PLATE-GROUNDING | 1 | |
| 7P3248 | 6 HINGE | 2 | |
| 9D2129 | 7 SUPPORT AS | 1 | |
| 1F0748 | 8 NUT-WELD (1/2-13-THD) | 4 | |
| 5H9394 | 9 BOSS | 1 | |
| 6G8892 | 10 BUMPER AS | 1 | |
| 2H8124 | LUG | 5 | |
| 2H8124 | 11 LUG | 1 | |
| 9D1205 | 12 BLOCK | 2 | |
| 6G8893 | 13 BUMPER AS | 1 | |
| 2H8124 | LUG | 9 | |
| 1H7263 | 14 LUG | 1 | |
| 2G7306 | 15 PLATE | 1 | |
| 5C3162 | 16 BLOCK | 1 | |
| 9D5657 | 17 BOSS | 6 | |
| 8F9836 | 18 BOSS (3/8-16-THD) | 2 | |
| 3R0451 | 19 BOSS (3/8-16-THD) | 2 | |
| 2R6816 | 20 BLOCK | 1 | |
| 8G0863 | 21 BLOCK | 1 | |
| 5K8612 | 22 BAR | 2 | |
| 5B1983 | 23 BOSS (3/8-16-THD) | 2 | |
| 9D5659 | 24 BOSS (3/8-16X1.19-IN) | 8 | |
| 2G7598 | 25 BLOCK | 1 | |
| 4D9376 | 26 BOSS (3/8-16-THD) | 4 | |
| 1U4199 | 27 BLOCK | 2 | |
| 6H3609 | 28 BOSS | 1 | |
| 8J1196 | 29 LUG (3/8-16-THD) | 1 | |
| 7J7034 | 30 BOSS | 1 | |
| 3B4610 | 31 PIN-COTTER | 1 | |
| 8T4223 | 32 WASHER-HARD (13.5X25.5X3-MM THK) | 1 | |
| 4D6082 | 33 BOLT (1/2-13X1.5-IN) | 1 | |
| 3D8439 | 34 STUD (5/8-11X3.4-IN) | 17 | |
| 6G9061 | 35 COVER | 1 | |
| 5H4909 | SEAL-O-RING | 1 | |
| 8T9393 | 36 BOLT (5/8-11X1.5-IN) | 12 | |
| 8T4122 | WASHER-HARD (17X32X3.5-MM THK) | 12 | |
| 9D4094 | 37 BEARING (STANDARD) | 2 | |
| 8W2862 | BUSHING | 2 | |
| 8S5767 | 38 SEAL-LIP TYPE | 2 | |
| 8W6112 | 39 ELBOW AS | 1 | |
| 5T5211 | GAUGE-SIGHT | 1 | |
| 4D0307 | 40 CAP-FILLER (DIFFERENTIAL) | 1 | |
| 4D0306 | GASKET-CAP | 1 | |
| 8W6111 | 41 ELBOW AS | 1 | |
| 5T5211 | GAUGE-SIGHT | 1 | |
| 4D0309 | 42 CAP-FILLER (TRANSMISSION) | 1 | |
| 6F5188 | SEAL-RING | 1 | |
| 6V8188 | 43 NUT (1/2-13-THD) | 4 | |
| 5M1932 | STUD-TAPERLOCK (1/2-13X2.17-IN) | 4 | |
| 8T4223 | WASHER-HARD (13.5X25.5X3-MM THK) | 4 | |
| 8B6599 | 44 PLUG-DRAIN (MAGNETIC) | 2 | |
| 0L1124 | GASKET-PLUG | 2 | |
| 5T7100 | 45 GASKET | 2 | |
| 5P1294 | 46 HOSE (29 CM) | ||
| 5P4868 | 47 CLAMP-HOSE | 4 | |
| 6G0078 | 48 BREATHER | 2 | |
| 2D9345 | 49 STUD (5/8-11-THD) | 2 | |
| 9J0945 | 50 BUSHING-TERMINAL (STANDARD) | 2 | |
| 8W2859 | BEARING (1.52-MM OS) | 2 | |
| 2G2827 | 51 BLOCK AS | 2 | |
| 8T9399 | 52 BOLT (3/4-10X2.25-IN) | 2 | |
| 1D5119 | NUT (3/4-10-THD) | 2 | |
| 8W3430 | 53 STEP AS | 2 | |
| 7X0365 | 54 BOLT (3/4-10X1.5-IN) | 4 | |
| 5P8502 | 55 PADLOCK GP | 1 | |
| 5P8500 | KEY | 2 | |
| 6V5874 | COVER | 1 | |
| 2Y4071 | PADLOCK (BRAZIL USAGE) | 1 | |
| 5T4704 | 56 COVER AS | 1 | |
| 9F2978 | NUT-WELD (3/8-16-THD) | 4 | |
| 4L6454 | 57 BOLT (3/8-16X1-IN) | 20 | |
| 8T4896 | 58 WASHER-HARD (10.2X18.5X2.5-MM THK) | 28 | |
| 5T0320 | 59 PLATE | 1 | |
| 5S7379 | 60 BOLT (3/8-16X0.875-IN) | 8 | |
| 1181222 | 61 TUBE AS | 1 | |
| 5T4616 | 62 PLATE AS | 1 | |
| 8D3508 | 63 BOSS (3/8-16X1-IN) | 1 | |
| 7X3193 | 64 BOLT (5/8-18X3.25-IN) | 1 | |
| 2K4821 | LOCKNUT (5/8-18-THD) | 1 | |
| 9S8184 | 65 PIN AS-DRAWBAR | 1 | |
| 7B0863 | 66 LATCH-PIN | 1 | |
| 9S1363 | 67 BOLT (1-8X2.75-IN) | 8 | |
| 8T5361 | 68 WASHER-HARD (28X49X5-MM THK) | 8 | |
| 8X0516 | 69 BUMPER AS | 1 |
