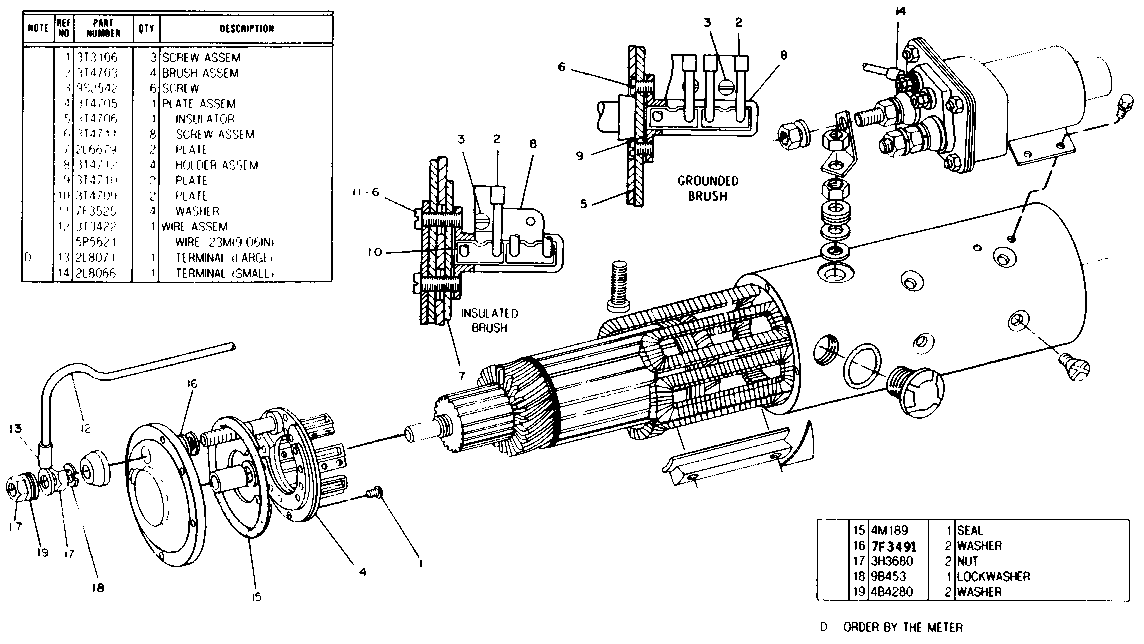

3T2649 ELECTRIC STARTING MOTOR GROUP--24 Volt--Delco-Remy--Part 2 of 3Part of 6N1889 Electric Starting Motor Group listed on Page 95
Group No: 3T2649
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 3T3106 | 1 SCREW ASSEM | 3 | |
| 3T4703 | 2 BRUSH ASSEM. | 4 | |
| 9S2542 | 3 SCREW | 6 | |
| 3T4705 | 4 PLATE ASSEM. | 1 | |
| 3T4706 | 5 INSULATOR | 1 | |
| 3T4711 | 6 SCREW ASSEM. | 8 | |
| 2L6679 | 7 PLATE | 2 | |
| 3T4712 | 8 HOLDER ASSEM. | 4 | |
| 3T4710 | 9 PLATE | 2 | |
| 3T4709 | 10 PLATE | 2 | |
| 7F3525 | 11 WASHER | 4 | |
| 3T3422 | 12 WIRE ASSEM. | 1 | |
| 5P5621 | WIRE .23M(9.06IN) | ||
| 2L8071 | 13 TERMINAL (LARGE) | 1 | |
| 2L8066 | 14 TERMINAL (SMALL) | 1 | |
| 4M0189 | 15 SEAL | 1 | |
| 7F3491 | 16 WASHER | 2 | |
| 3H3680 | 17 NUT | 2 | |
| 9B0453 | 18 LOCKWASHER | 1 | |
| 4B4280 | 19 WASHER | 2 |
