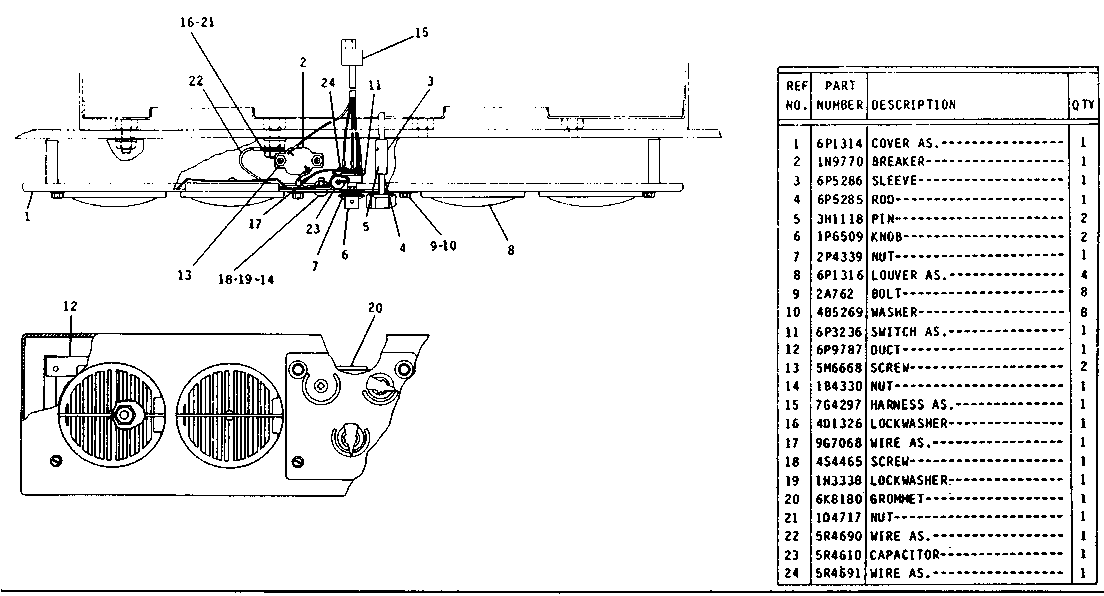

5R4838 CONTROL CONSOLE GROUPPart of 5R6681 Heater and Mounting Group shown on Page 226
Group No: 5R4838
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 6P1314 | 1 COVER AS. | 1 | |
| 1N9770 | 2 BREAKER | 1 | |
| 6P5286 | 3 SLEEVE | 1 | |
| 6P5285 | 4 ROD | 1 | |
| 3H1118 | 5 PIN | 2 | |
| 1P6509 | 6 KNOB | 2 | |
| 2P4339 | 7 NUT | 1 | |
| 6P1316 | 8 LOUVER AS. | 4 | |
| 2A0762 | 9 BOLT | 8 | |
| 4B5269 | 10 WASHER | 8 | |
| 6P3236 | 11 SWITCH AS. | 1 | |
| 6P9787 | 12 DUCT | 1 | |
| 5M6668 | 13 SCREW | 2 | |
| 1B4330 | 14 NUT | 1 | |
| 7G4297 | 15 HARNESS AS. | 1 | |
| 4D1326 | 16 LOCKWASHER | 1 | |
| 9G7068 | 17 WIRE AS. | 1 | |
| 4S4465 | 18 SCREW | 1 | |
| 1H3338 | 19 LOCKWASHER | 1 | |
| 6K8180 | 20 GROMMET | 1 | |
| 1D4717 | 21 NUT | 1 | |
| 5R4690 | 22 WIRE AS. | 1 | |
| 5R4610 | 23 CAPACITOR | 1 | |
| 5R4691 | 24 WIRE AS. | 1 |
