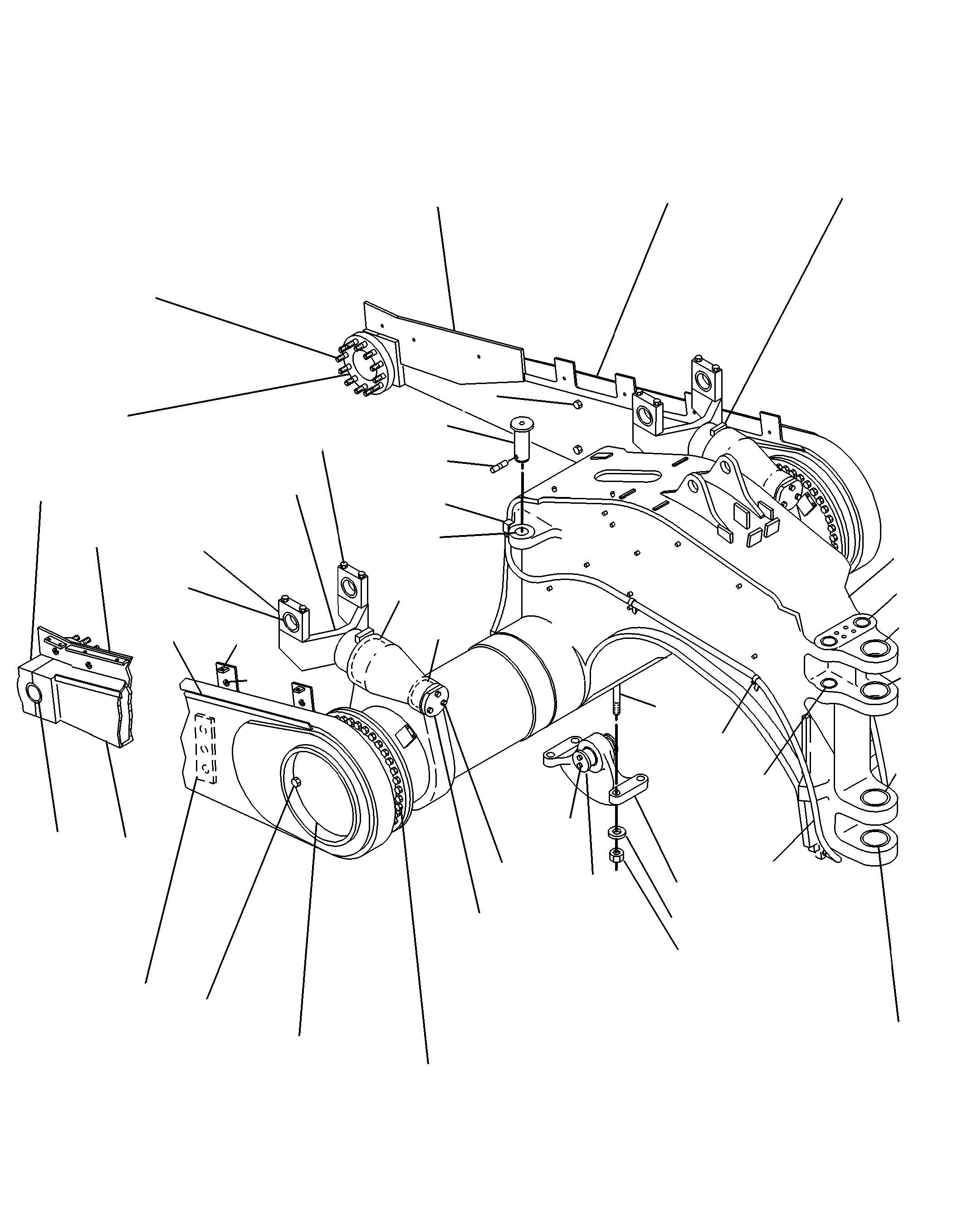

8X-6931 FRAME GP-DRAFTS/N 1HB635-690
Group No: 8X-6931
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 3G4434 | 1 PIN AS | 2 | |
| 8J1431 | SPRING | 1 | |
| 4J9849 | 2 PIN | 1 | |
| 3K9770 | 3 NUT-FULL (1-1/4-7-THD) | 4 | |
| 4K0684 | 4 WASHER-HARD (34X55X6-MM THK) | 8 | |
| 8X4454 | 5 BLOCK AS | 4 | |
| 3J2333 | 6 BUSHING | 1 | |
| 0S0509 | 7 BOLT (3/8-16X0.75-IN) | 4 | |
| 8M7145 | WASHER (10.2X28.5X5-MM THK) | 4 | |
| 6J1536 | 8 BOLT (7/8-9X6.5-IN) | 8 | |
| 5P8249 | 9 WASHER-HARD (24X41.5X4-MM THK) | 152 | |
| 0S1621 | 10 BOLT (1/2-13X1-IN) | 4 | |
| 4J9772 | RETAINER | 2 | |
| 6H1628 | 11 BOLT (1-1/4-7X6.5-IN) | 4 | |
| 0S1573 | 12 BOLT (1/2-13X4-IN) | 6 | |
| 1D4629 | 13 BOLT (7/8-9X3.5-IN) | 24 | |
| 1D4630 | 14 BOLT (7/8-9X4-IN) | 60 | |
| 2J3505 | NUT-FULL (7/8-9-THD) | 60 | |
| 1J5999 | 15 BOLT (1/2-13X1.25-IN) | 4 | |
| 8T4223 | WASHER-HARD (13.5X25.5X3-MM THK) | 4 | |
| 9F6936 | 16 BOLT (1-8X6-IN) | 8 | |
| 3K5234 | WASHER-HARD (28X49X6-MM THK) | 8 | |
| 5P8122 | 17 BOLT-LOCKING | 6 | |
| 7J3019 | 18 BRACKET AS | 1 | |
| 3J9511 | BUSHING | 1 | |
| 7J3373 | 19 CAP-BEARING | 2 | |
| 8J7533 | 20 DOOR-DRAFT TUBE | 2 | |
| 8X7135 | 21 FRAME AS-DRAFT | 1 | |
| 8X7136 | FRAME AS-DRAFT | 1 | |
| 9J1140 | 22 BUSHING | 2 | |
| 9J1141 | 23 BUSHING-TERMINAL | 2 | |
| 5J8363 | 24 BUSHING | 3 | |
| 8W2849 | BEARING | 3 | |
| 5J8361 | 25 BUSHING | 1 | |
| 8W2852 | BEARING (1.52-MM OS) | 1 | |
| 8J9926 | 26 BUSHING | 2 | |
| 7J2604 | 27 BUSHING | 2 | |
| 1K4620 | 28 BAR | 2 | |
| 7J2603 | 29 BUSHING | 2 | |
| 5P8245 | 30 WASHER-HARD (13.5X25.5X3-MM THK) | 30 | |
| 7J2652 | 31 RETAINER | 2 | |
| 3J3535 | 32 SHIM (3.4-MM THK) | 8 | |
| 3G3606 | 33 SHOE AS-WEAR | 2 | |
| 9J6260 | 34 TRUNNION | 2 | |
| 8J9669 | 35 YOKE | 2 | |
| 3B7721 | 36 BUSHING-REDUCER | 2 | |
| 8J1329 | 37 CLIP | 4 | |
| 2D1683 | 38 FITTING (1/8-27 PTF) | 2 | |
| 4T8886 | 39 HOSE AS | 2 | |
| 3G7752 | 40 PIN AS | 2 | |
| 8X6929 | 41 ARM AS-DRAFT FRAME (RH) | 1 | |
| 3J3532 | LUG | 2 | |
| 9J0002 | 42 BEARING | 1 | |
| 8W9244 | 43 PLATE AS (RH) | 1 | |
| 7G4550 | GROMMET | 3 | |
| 8P9770 | PLATE | 1 | |
| 5T9660 | 44 LUG | 4 | |
| 7G4550 | 45 GROMMET | 4 | |
| 8W9324 | 46 STRIP | 1 | |
| 8W9325 | PLATE | 1 | |
| 8X6930 | 47 ARM AS-DRAFT FRAME | 1 | |
| 8W9324 | STRIP | 1 | |
| 8W9325 | PLATE | 1 | |
| 3J3532 | LUG | 2 | |
| 9J0002 | 48 BEARING | 1 | |
| 8W9243 | 49 PLATE AS (LH) | 1 | |
| 7G4550 | GROMMET | 3 | |
| 8P9770 | PLATE | 1 | |
| 5T9660 | LUG | 4 | |
| 7G4550 | GROMMET | 4 |
