System And Components

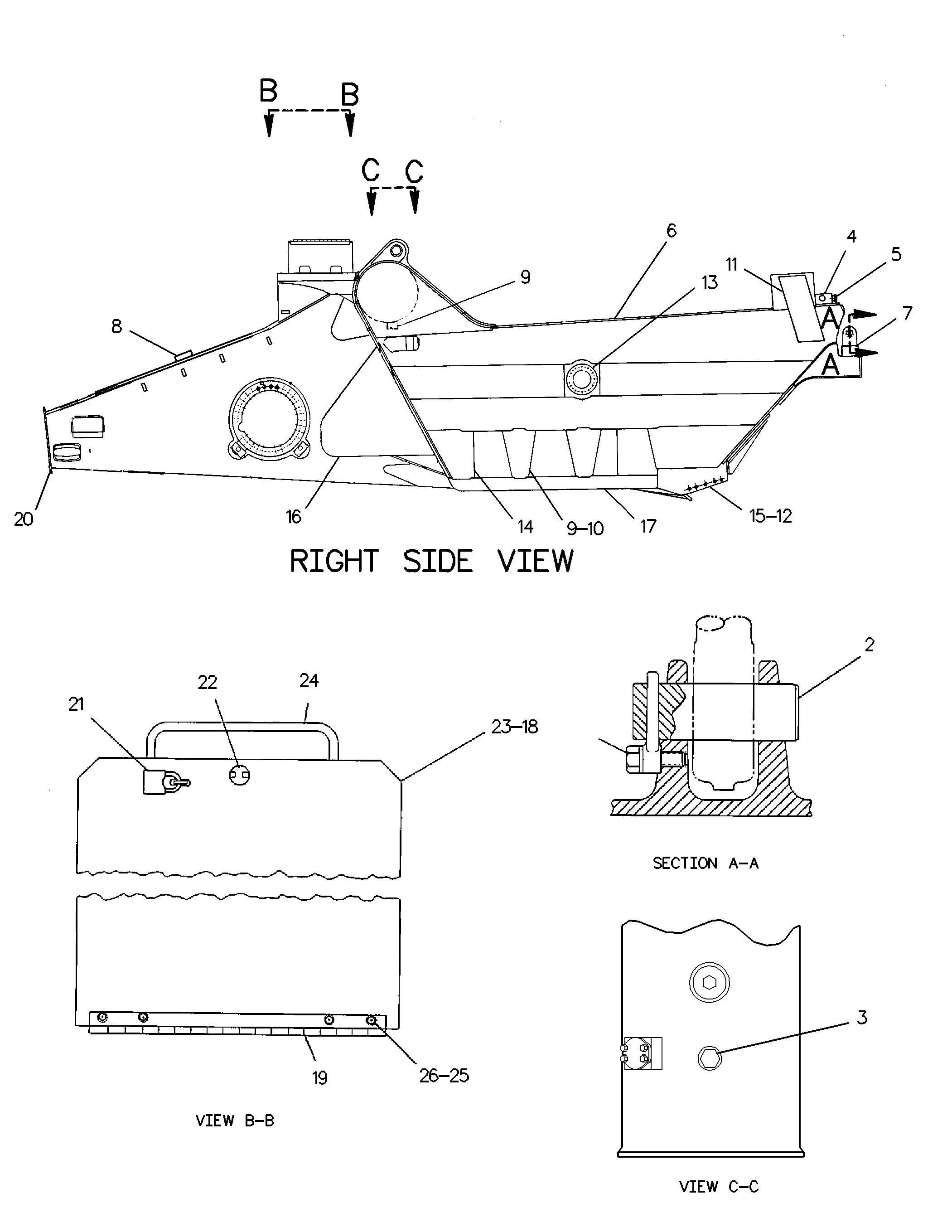

8X-1647 BOWL GP-SCRAPERS/N 1HB614-690
Group No: 8X-1647
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 2A1538 | 1 BOLT (3/4-10X2.25-IN) | 2 | |
| 8T4994 | WASHER-HARD (20X36.5X3.5-MM THK) | 2 | |
| 4J5193 | PIN | 2 | |
| 8W1708 | 2 PIN | 2 | |
| 8W1267 | 3 GAUGE-FUEL LEVEL | 1 | |
| 8T4223 | 4 WASHER-HARD (13.5X25.5X3-MM THK) | 1 | |
| 0L1329 | BOLT (1/2-13X3-IN) | 1 | |
| 8W2083 | 5 PIN AS | 1 | |
| 3J2910 | SPACER (46X73X15-MM THK) | 1 | |
| 8X1648 | 6 BOWL AS | 1 | |
| 4T5364 | BLOCK | 4 | |
| 9G5742 | BOSS (3/8-16-THD) | 4 | |
| 3G0033 | BRACKET-PIVOT | 2 | |
| 6G2514 | BOSS | 23 | |
| 7D5135 | BOSS (3/8-16-THD) | 3 | |
| 7G4550 | GROMMET | 4 | |
| 3J3532 | LUG | 4 | |
| 8J5178 | BLOCK | 1 | |
| 9J7342 | 7 BRACKET | 2 | |
| 8J5219 | 8 PLATE | 1 | |
| 3J8292 | 9 STIFFENER-SIDE | 4 | |
| 3J8345 | 10 STIFFENER-SIDE (RH) | 1 | |
| 4T5415 | 11 PLATE-WEAR | 2 | |
| 8X0493 | 12 REINFORCEMENT | 1 | |
| 9J6998 | 13 PIVOT-DRAFT ARM | 2 | |
| 3J8346 | 14 STIFFENER-SIDE (LH) | 1 | |
| 8X0494 | 15 REINFORCEMENT | 1 | |
| 5P2329 | 16 GUSSET | 4 | |
| 1U1566 | 17 RIB | 15 | |
| 4T0813 | PLATE | 2 | |
| 9J0021 | SUPPORT-EDGE | 1 | |
| 1V9725 | 18 HINGE | 1 | |
| 9K1554 | PLATE | 1 | |
| 1F0748 | NUT-WELD (1/2-13-THD) | 1 | |
| 9F2978 | 19 NUT-WELD (3/8-16-THD) | 6 | |
| 8W9786 | 20 PLATE | 1 | |
| 5P8502 | 21 PADLOCK GP | 1 | |
| 5P8500 | KEY | 2 | |
| 6V5874 | COVER | 1 | |
| 4D6082 | 22 BOLT (1/2-13X1.5-IN) | 1 | |
| 9S0201 | WASHER (13.5X22X2.5-MM THK) | 1 | |
| 3B4610 | PIN-COTTER | 1 | |
| 6G2519 | 23 COVER AS | 1 | |
| 7D7261 | 24 HANDHOLD | 1 | |
| 9F2978 | 25 NUT-WELD (3/8-16-THD) | 4 | |
| 5M3062 | 26 BOLT (3/8-16X0.75-IN) | 4 | |
| 8T4896 | WASHER-HARD (10.2X18.5X2.5-MM THK) | 4 |
