System And Components

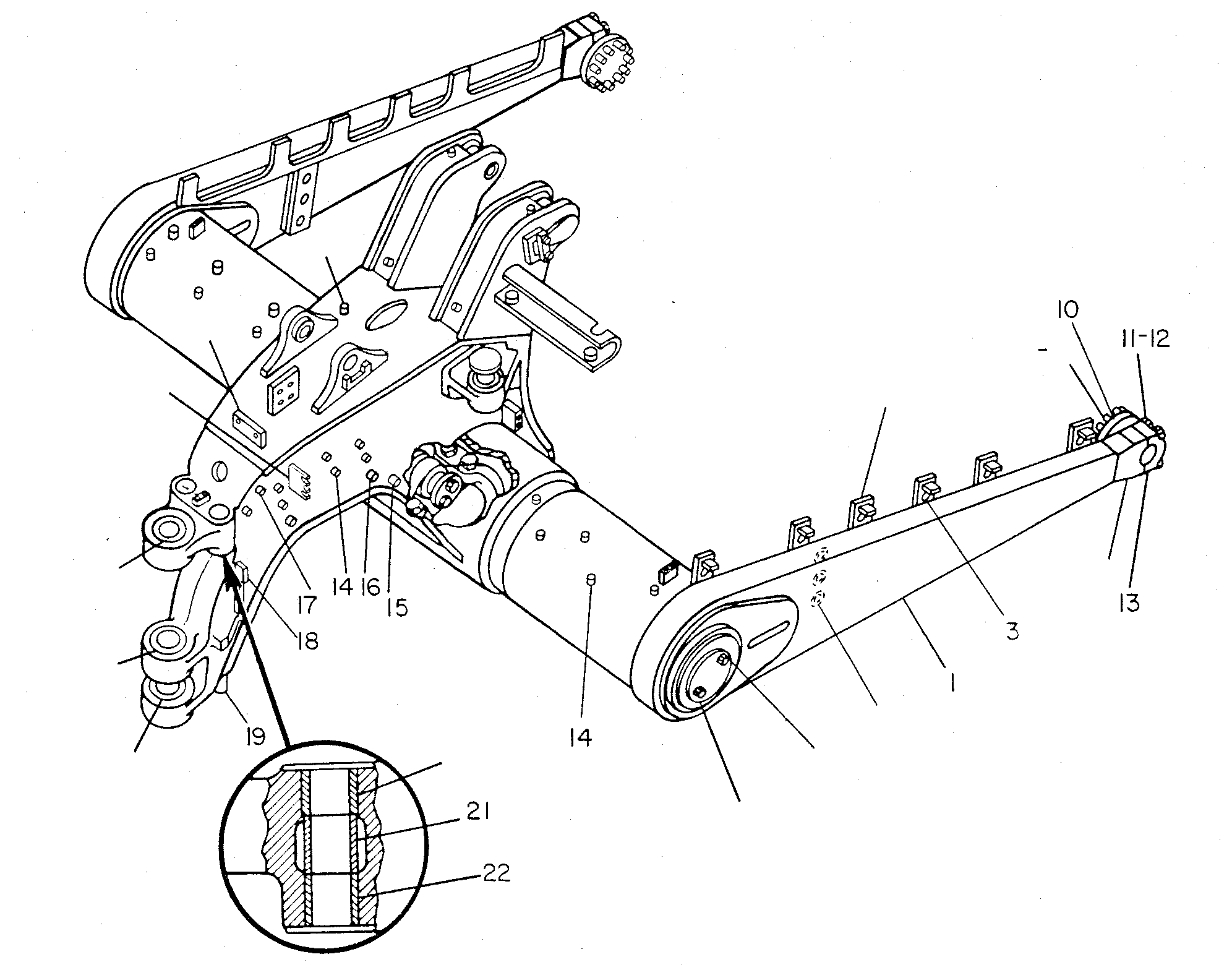

4T-3753 FRAME GP-DRAFTS/N 6FB1-596
Group No: 4T-3753
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 8W1451 | 1 ARM AS | 1 | |
| 8W0802 | 2 PLATE AS (LH) | 1 | |
| 7G4550 | 3 GROMMET | 6 | |
| 8J7534 | 4 BEARING | 1 | |
| 3J3532 | 5 LUG | 3 | |
| 0S1620 | 6 BOLT (1/2-13X0.75-IN) | 4 | |
| 5P8245 | WASHER-HARD (13.5X25.5X3-MM THK) | 4 | |
| 3G3395 | 7 COVER | 2 | |
| 1A1135 | 8 BOLT (5/8-11X2-IN) | 11 | |
| 3G8856 | 9 WASHER (17X30X5-MM THK) | 11 | |
| 9J8323 | 10 TRUNNION | 1 | |
| 0S1627 | 11 BOLT (3/4-10X4.5-IN) | 4 | |
| 5P8248 | 12 WASHER-HARD (20X36.5X3.5-MM THK) | 4 | |
| 7J1770 | 13 CAP-BEARING | 1 | |
| 8F9836 | 14 BOSS (3/8-16-THD) | 17 | |
| 7D5135 | 15 BOSS (3/8-16-THD) | 2 | |
| 5H9394 | 16 BOSS (1/2-13X1-IN) | 4 | |
| 3L4648 | 17 BOSS | 3 | |
| 8W0747 | 18 STRIP | 2 | |
| 4D6293 | 19 BOSS (3/8-16X1.31-IN) | 2 | |
| 9J1676 | 20 BUSHING | 2 | |
| 9J2171 | 21 SPACER (69.8X73X68.6-MM) | 2 | |
| 9J1679 | 22 BUSHING | 2 | |
| 4J5693 | 23 BUSHING | 1 | |
| 8W4524 | BEARING (1.52-MM OS) | 1 | |
| 4J5695 | 24 BUSHING | 1 | |
| 8W4521 | BEARING (1.52-MM OS) | 1 | |
| 4J5694 | 25 BUSHING | 1 | |
| 8W4526 | BEARING (1.52-MM OS) | 1 | |
| 3G2171 | 26 PLATE | 2 | |
| 9D2672 | 27 PLATE | 1 | |
| 3Y7829 | 28 BOSS (3/8-16-THD) | 1 | |
| 8F9836 | 29 BOSS (3/8-16-THD) | 16 | |
| 3L4648 | 30 BOSS | 3 | |
| 4D7529 | 31 BOSS (3/8-16-THD) | 3 | |
| 8W1450 | 32 ARM AS | 1 | |
| 3J3532 | LUG | 3 | |
| 8W0801 | 33 PLATE AS (RH) | 1 | |
| 7G4550 | GROMMET | 6 | |
| 8J7534 | 34 BEARING | 1 | |
| 8W1452 | 35 SHOE-WEAR | 2 | |
| 1J5999 | BOLT (1/2-13X1.25-IN) | 6 | |
| 8W1453 | SHIM (2-MM THK) | 7 | |
| 7J1770 | 36 CAP-BEARING | 1 | |
| 0S1627 | 37 BOLT (3/4-10X4.5-IN) | 4 | |
| 5P8248 | 38 WASHER-HARD (20X36.5X3.5-MM THK) | 8 | |
| 9J8323 | 39 TRUNNION | 1 | |
| 1A1135 | 40 BOLT (5/8-11X2-IN) | 11 | |
| 3G8856 | WASHER (17X30X5-MM THK) | 11 | |
| 8D3508 | 41 BOSS (3/8-16X1-IN) | 8 | |
| 3G6054 | 42 RETAINER | 3 | |
| 3G6058 | 43 PIN AS | 2 | |
| 3G6055 | 44 PLATE | 2 | |
| 0319253 | BOLT-LOCKING (3/4-10X1.5-IN) | 4 | |
| 8W2629 | 45 BRACKET | 1 | |
| 8J9910 | 46 BUSHING | 2 | |
| 5T9316 | 47 PLATE | 2 | |
| 3G6098 | 48 PIN AS | 2 | |
| 3G4434 | 49 PIN AS (SPRING) | 2 | |
| 8J1431 | SPRING | 1 | |
| 8J7520 | 50 BRACKET AS | 1 | |
| 3J6412 | BUSHING | 2 | |
| 5J2982 | 51 PIN | 1 | |
| 6H1717 | 52 BOLT (1/2-13X1.125-IN) | 4 | |
| 4J9772 | RETAINER | 2 | |
| 5B5473 | 53 BOLT (1-8X6.5-IN) | 4 | |
| 2J3507 | NUT-FULL (1-8-THD) | 4 | |
| 9M2828 | WASHER-HARD (28X44.5X6-MM THK) | 8 |
